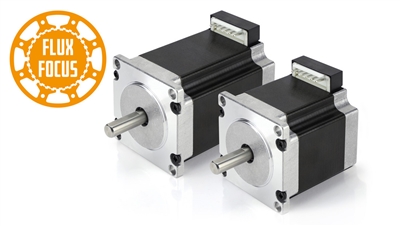

Nanotec: SCB5618 – STEPPER MOTOR – NEMA 23
Nanotec: SCB5618 – STEPPER MOTOR – NEMA 23



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Days
Order #: SCB5618


Model No.:


Qty:
Description Specifications and Drawings


Nanotec Electronic GmbH & Co KG

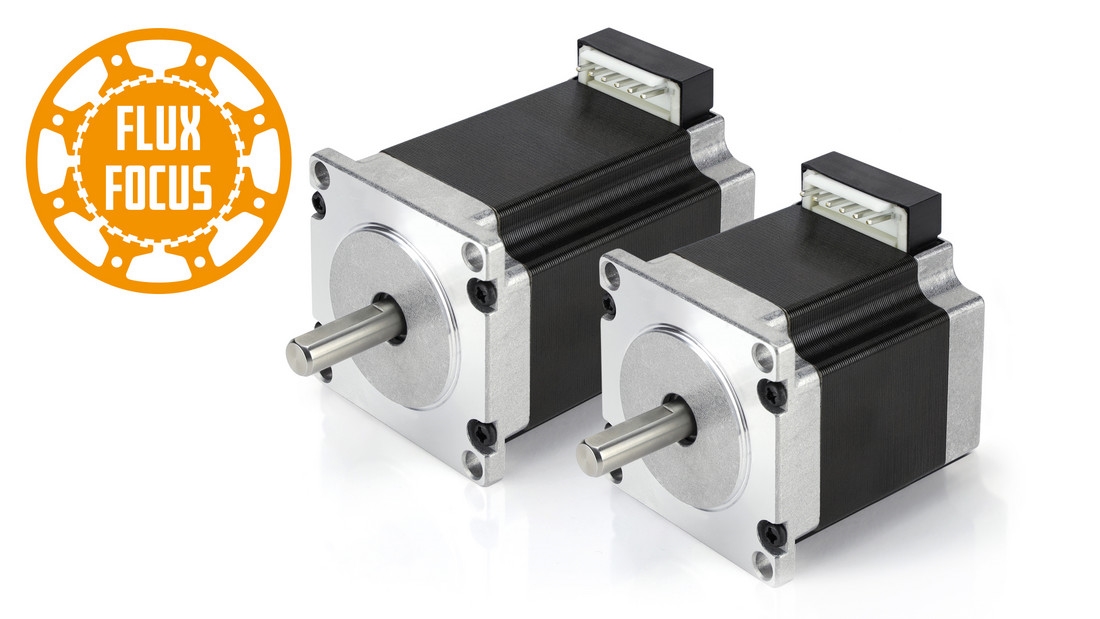

STEPPER MOTOR WITH FLUXFOCUS TECHNOLOGY – NEMA 23

Ultra high-torque stepper motor with integrated connector and 56 mm flange. By inserting rare earth magnets between the stator teeth, stray magnetic flux is redirected into the teeth, resulting in a holding torque of up to 2.95 Nm.

The SCB5618 series comes with a second shaft for mounting an optical or magnetic encoder.

  • Highest torque/size ratio of all NEMA 23 stepper motors on the market
  • Torque improvement over the whole speed range
  • Available in two lengths
  • 1.8° step angle
  • Improved efficiency

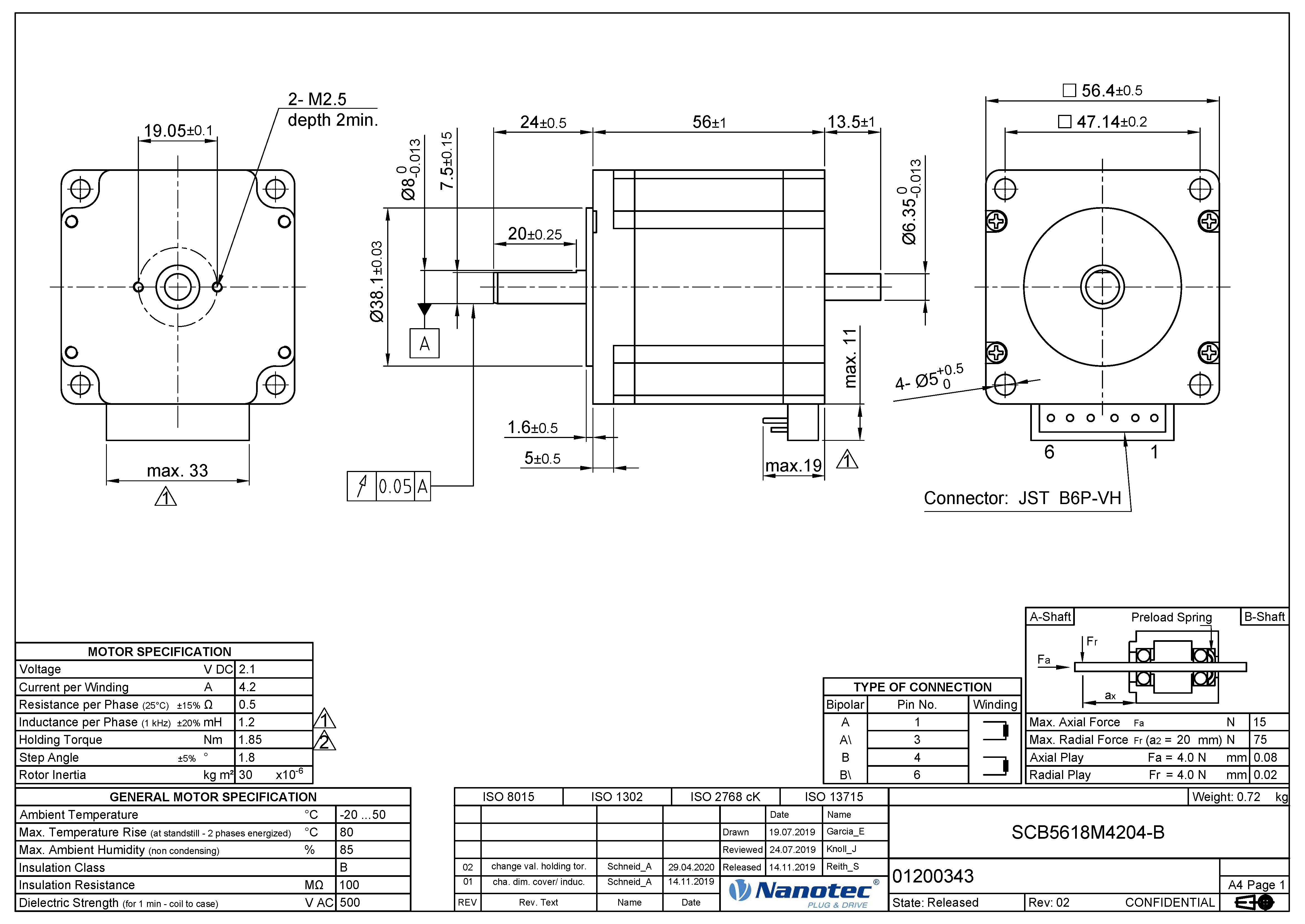

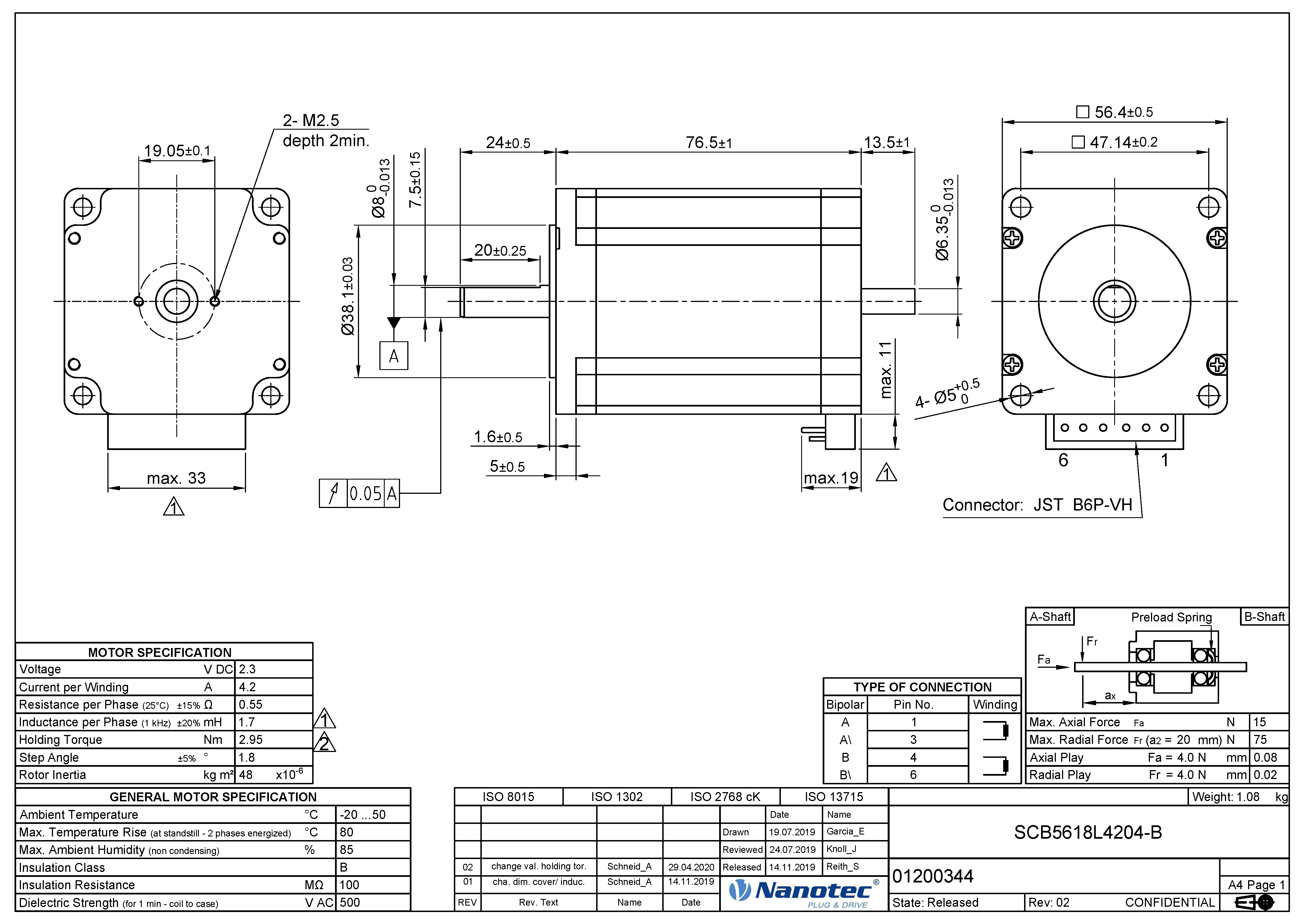

SCB5618M4204-B, SCB5618L4204-B
