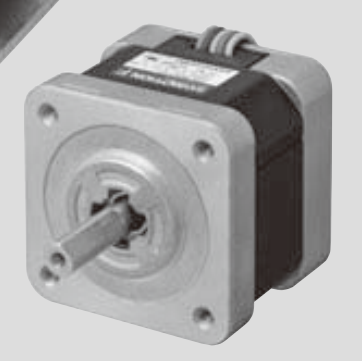

Sanyo Denki: 5-Phase Stepping Motors (SF5)
Highly responsive product with low vibration that includes a driver and motor for DC input and AC input set models with a basic step angle of 0.72°, and covers a wide variety of low vibration applications, including general industry machinery and manufacturing equipment for semiconductors.
Applications:
Semiconductor manufacturing equipment
General industrial machinery
Food machinery
Medical devices
Features:
Low vibration: This driver features approximately 30% less vibration compared with our conventional product* (when used with an AC input driver). Also, a low-vibration mode function provides smooth driving, even with one-division (full step) and two-division (half step) coarse resolution settings. This allows vibrations to be suppressed without control system restrictions. For DC input, set models (microstep) only.
High Torque: Torque is increased by approximately 5%* when combined with our newly developed motors. As output torque is the same for both 100 and 200 VAC input voltages, there is no need to change motors if power specifications change.
Analysis function and device startup support: Using an encoder with the motor makes it possible to monitor information such as the current position and speed. This simplifi es determining causes of vibration and step-out.
Rich Resolution Selection: Motors with 4000 P/R high-resolution encoders, electromagnetic brakes, or gears are available as options. The switch timing for motors with an electromagnetic brake is controlled automatically. An external power supply for the brake is unnecessary.
Compact size: This driver features a 29% reduction in volume compared with our conventional product*. This makes it easier to use in places where the setup space is limited.
Internal wiring: Connection method: New pentagon connection

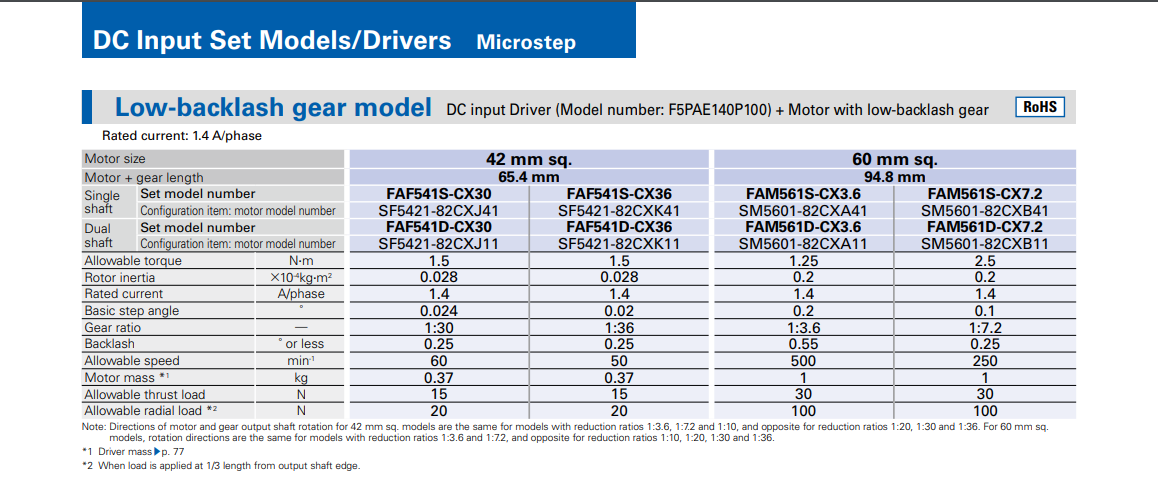

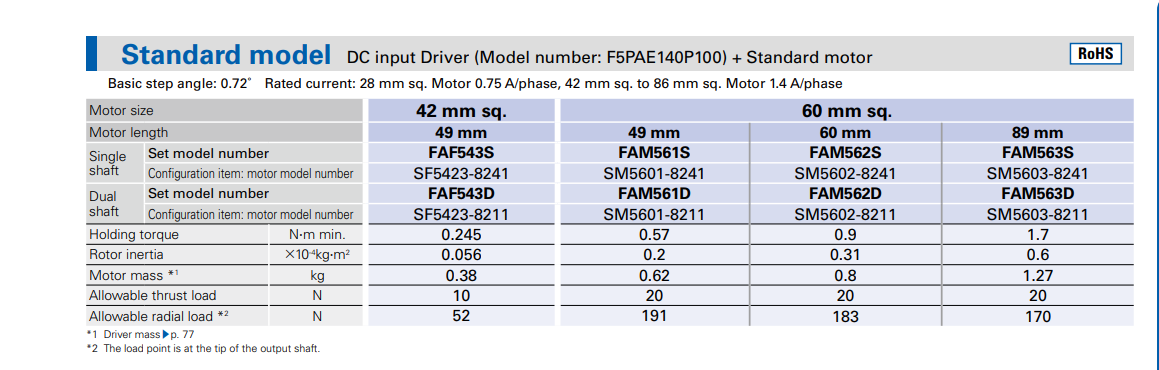

Compatible drivers: Model number: F5PAE140P100, FS1D140P10 (DC input) Operating current select switch setting: D
