SIKO: Wire-actuated Encoder (SG31 Series)
SIKO: Wire-actuated Encoder (SG31 Series)


Price: (Members Only)


Availability: Lead time is 5-6 weeks currently
Order #: SG31


Model No.:

Qty:
Description Ordering Information Specifications and Drawings

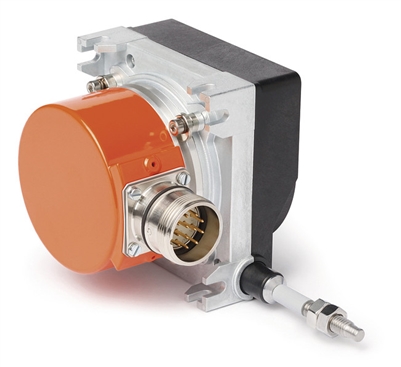

Wire-actuated Encoder (SG31 Series)

Robust design for rotary encoder mounting with 3000 mm measuring length

Very robust wire-actuated encoder in compact design for numerous applications including crane construction, stage construction, warehousing technology, etc., with a measuring length up to 3000 mm. Easy, universally changeable installation.

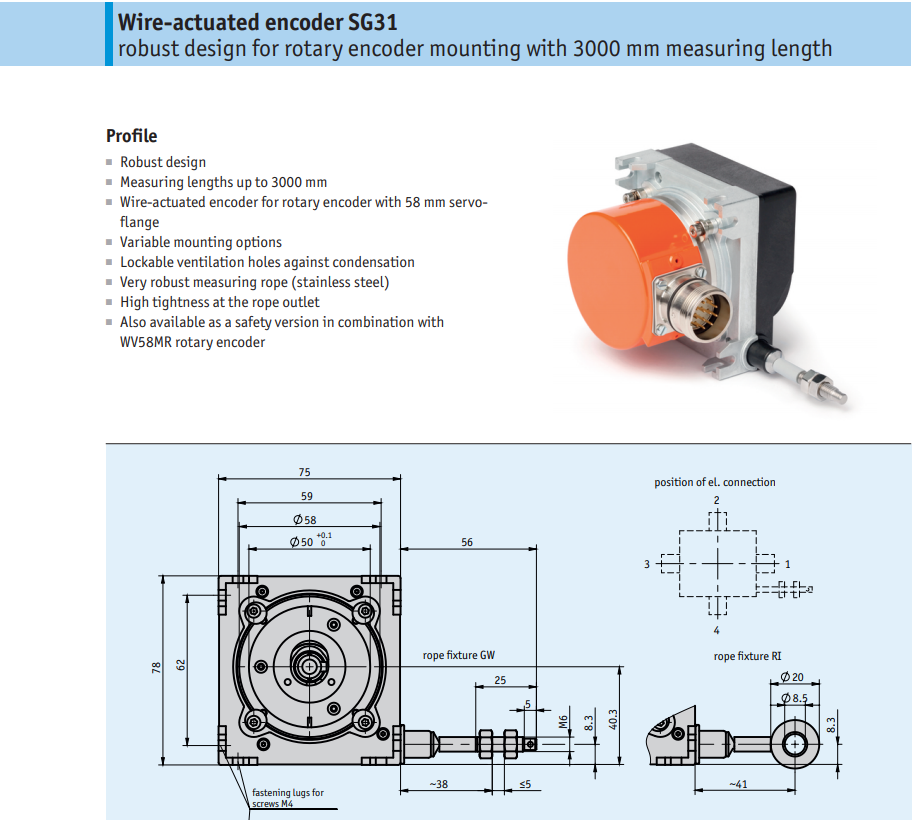

Profile SG31:

  • Robust design

  • Measuring lengths up to 3000 mm

  • Wire-actuated encoder for rotary encoder with 58 mm servo-flange

  • Variable mounting options

  • Lockable ventilation holes against condensation

  • Very robust measuring rope (stainless steel)

  • High tightness at the rope outlet
