SIKO: Wire-actuated Encoder (SG32 Series)
SIKO: Wire-actuated Encoder (SG32 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: SG32
.

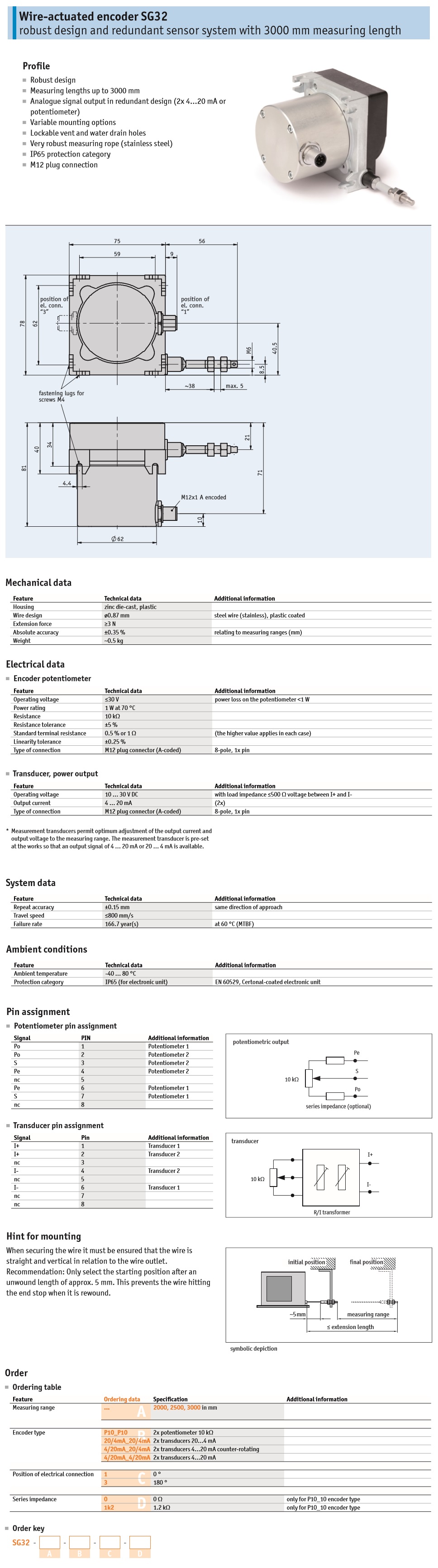

Description Specifications and Drawings

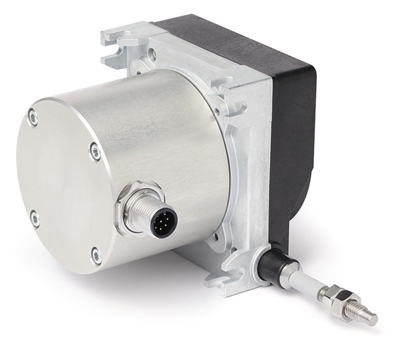

Wire-actuated Encoder (SG32 Series)

Robust design and redundant sensor system with 3000 mm measuring length

Very robust wire-actuated encoder in compact design for numerous areas of application including crane construction, stage construction, warehousing technology, etc., up to a measuring length of 3000 mm, with signal output in redundant design. Easy, universally changeable installation.

Profile SG32:

  • Robust design

  • Measuring lengths up to 3000 mm

  • Analogue signal output in redundant design (2x 4…20 mA or potentiometer)

  • Variable mounting options

  • Lockable vent and water drain holes

  • Very robust measuring rope (stainless steel)

  • IP65 protection category

  • M12 plug connection
