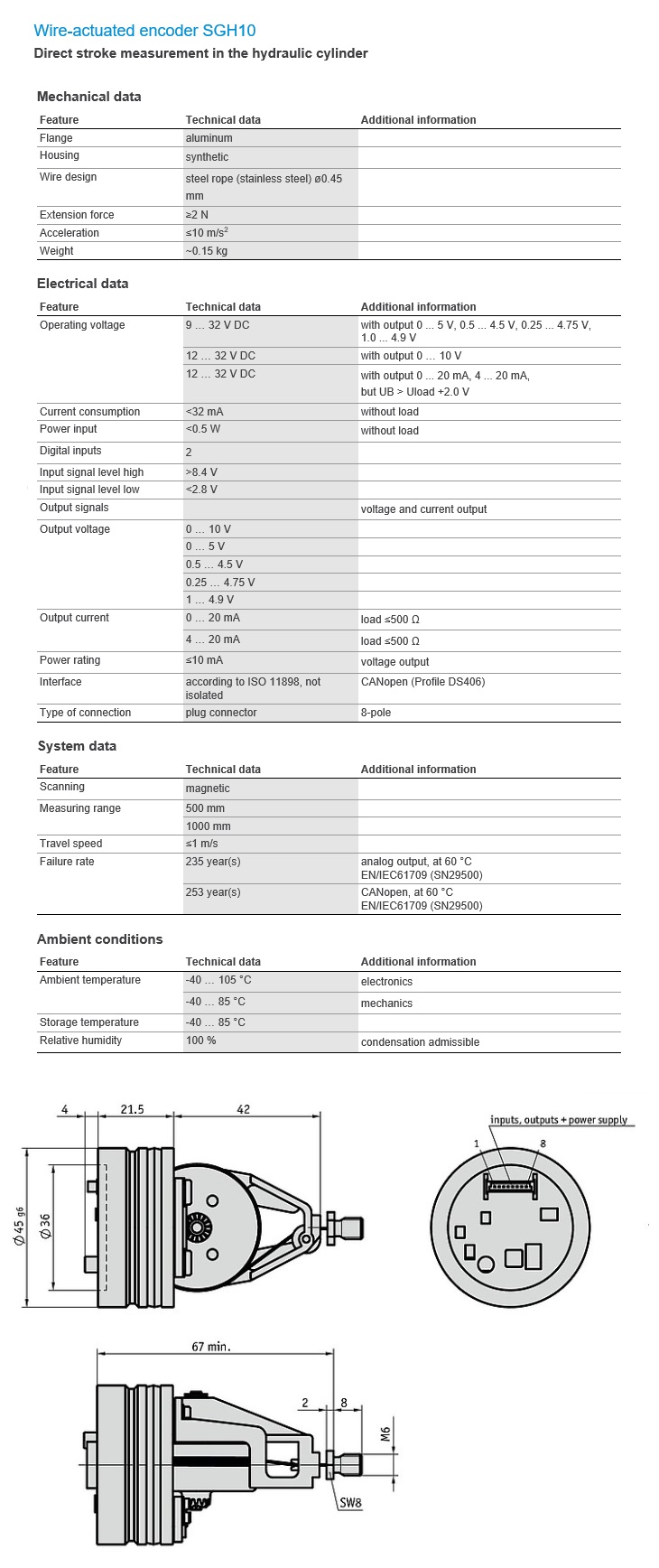

Description Specifications and Drawings

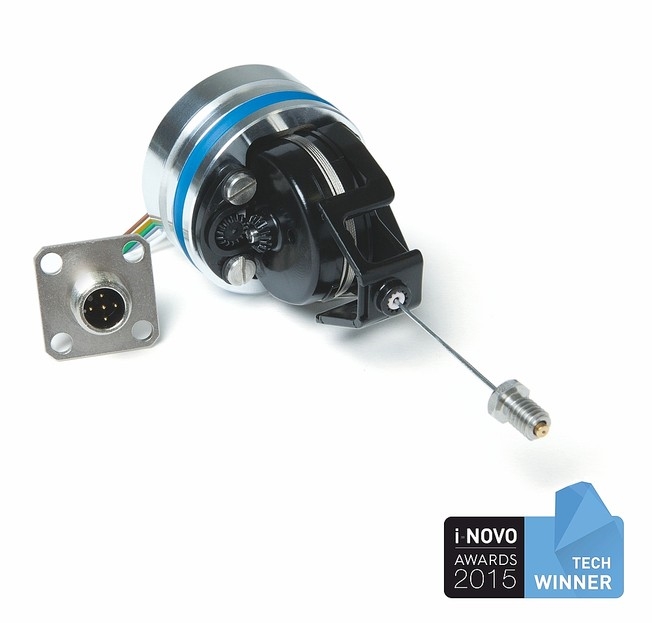

SIKO: Wire-actuated encoder (SGH10 Series)

Direct stroke measurement in the hydraulic cylinder

The SGH wire-actuated encoder measures the absolute, direct cylinder stroke in the hydraulic cylinder. Cost-intensive drilling of the piston is no longer required thanks to the patented measurement system. As a result there are lower integration costs compared with other measurement systems and weakening of the piston is effectively avoided. The highlight: The measurement system can even be used in telescopic cylinders!
In the framework of SPS IPC Drives 2015, exhibition and online visitors nominated the SGH10 as the winner of the DirectIndustry i-NOVO Award in the TECH category.

Profile SGH10:

  • Measuring range 0 … 1000 mm

  • Absolute measuring system

  • CANopen interface, analog: Current and voltage

  • Operating voltage 9 ... 36 VDC

  • Pressure-resistant up to 300 bar, pressure peaks up to 500 bar

  • High degree of flexibility, adjustable to all measuring lengths thanks to teach-in

  • High electro-magnetic compatibility

  • High shock and vibration resistance
