Yaskawa Linear Servo Motors: SGLFW Series
Yaskawa Linear Servo Motors: SGLFW Series

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: SGLFW


Model No.:


.
Description Specifications and Drawings


SGLFW

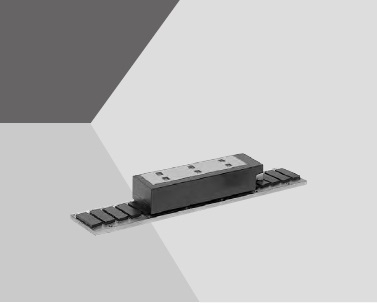

Iron core FW linear motors are composed of moving coils with laminated iron-core and single sided stationary magnet tracks. The moving coil of the FW linear motor is composed of laminated iron core and pre-wound coil bobbins inserted into the slots located on the laminated iron cores. The entire coil unit is permanently encapsulated in a thermally conductive resin body to give structural rigidity. The magnet track of the FW is made of a row of rare earth magnets accurately placed on one side of the nickelized steel carrier plate. Stainless steel magnet covers guard against minor accidental damage to the magnets.

Features:

  • Direct-feed mechanism for high-speed and high-precision positioning.
  • The magnetic attraction force between the moving and stationary members can be used effectively to increase the rigidity of the linear guidance by preloading the linear motion bearings.
  • The magnetic preloading on certain types of compliant linear motion bearings can help increase the system’s frequency response, improving its deceleration and settling performances.
  • Time Rating: Continuous
  • Insulation Resistance: 500 VDC, 10 MW min.
  • Ambient Temperature: 0 to 40˚C
  • Excitation: Permanent magnet
  • Withstand Voltage: 1500 VAC for one minute
  • Enclosure: Self-cooled
  • Ambient Humidity: 20% to 80% (no condensation)
  • Allowable Winding Temperature: 130˚C (Thermal class B)
  • Peak Speed: 4.5-5.0 m/s
  • Moving Coil Mass: 0.7-11.5 Kg
  • Electrical Time Constant: 3.2-18.3 ms
  • Thermal Resistance (With Heat Sink): 0.2-4.35 k/w
  • Thermal Resistance (Without Heat Sink): 0.73-7.69 k/w

SGLFW Catalog

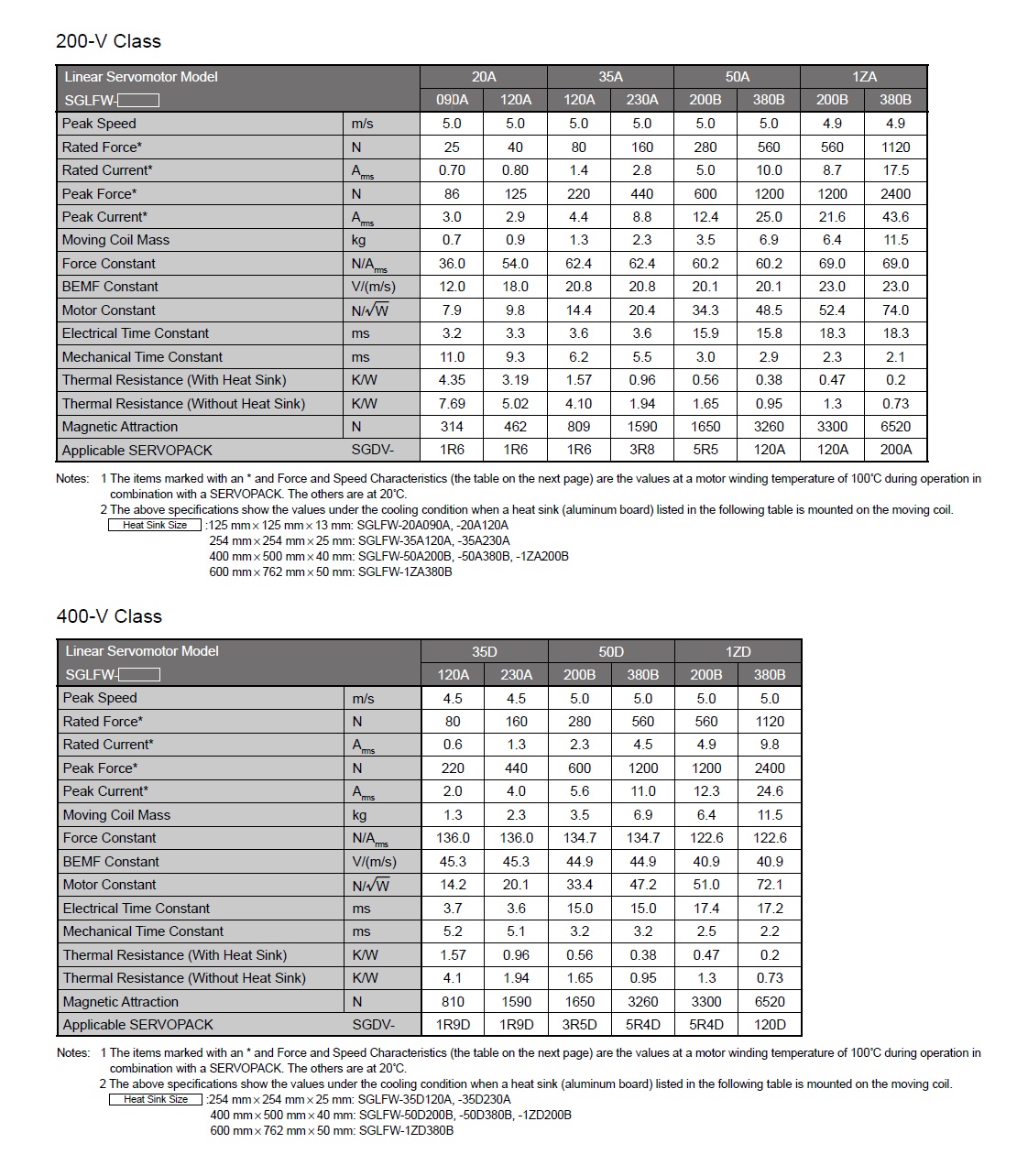

Specs

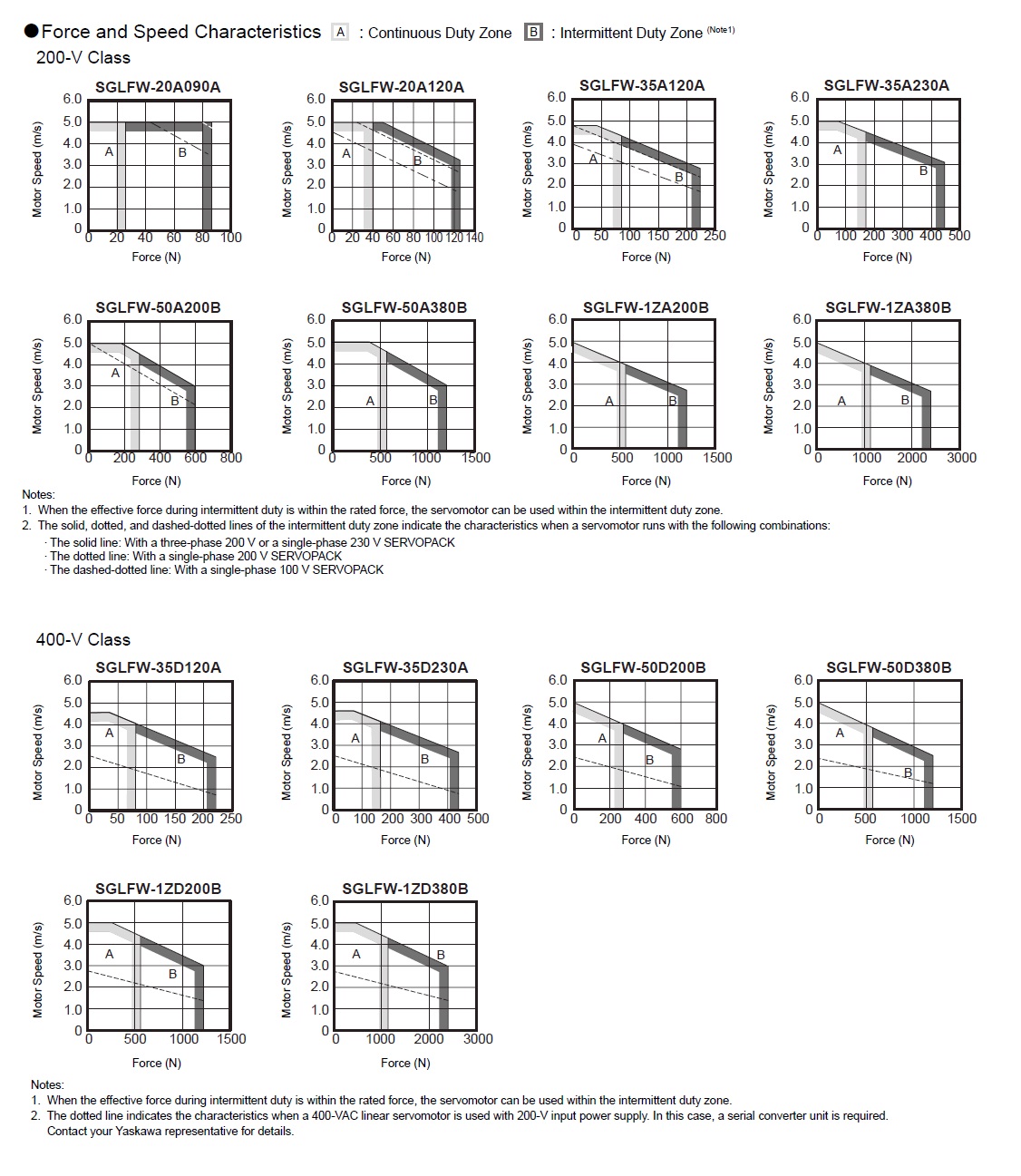

Torque Curves

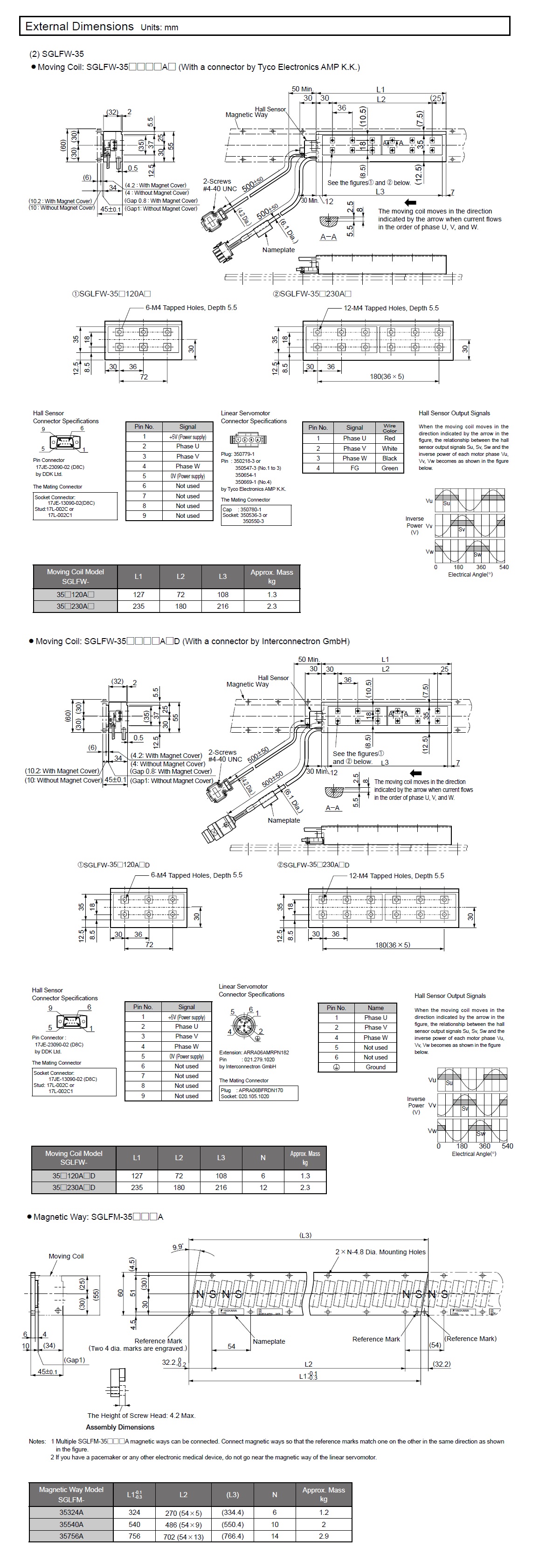

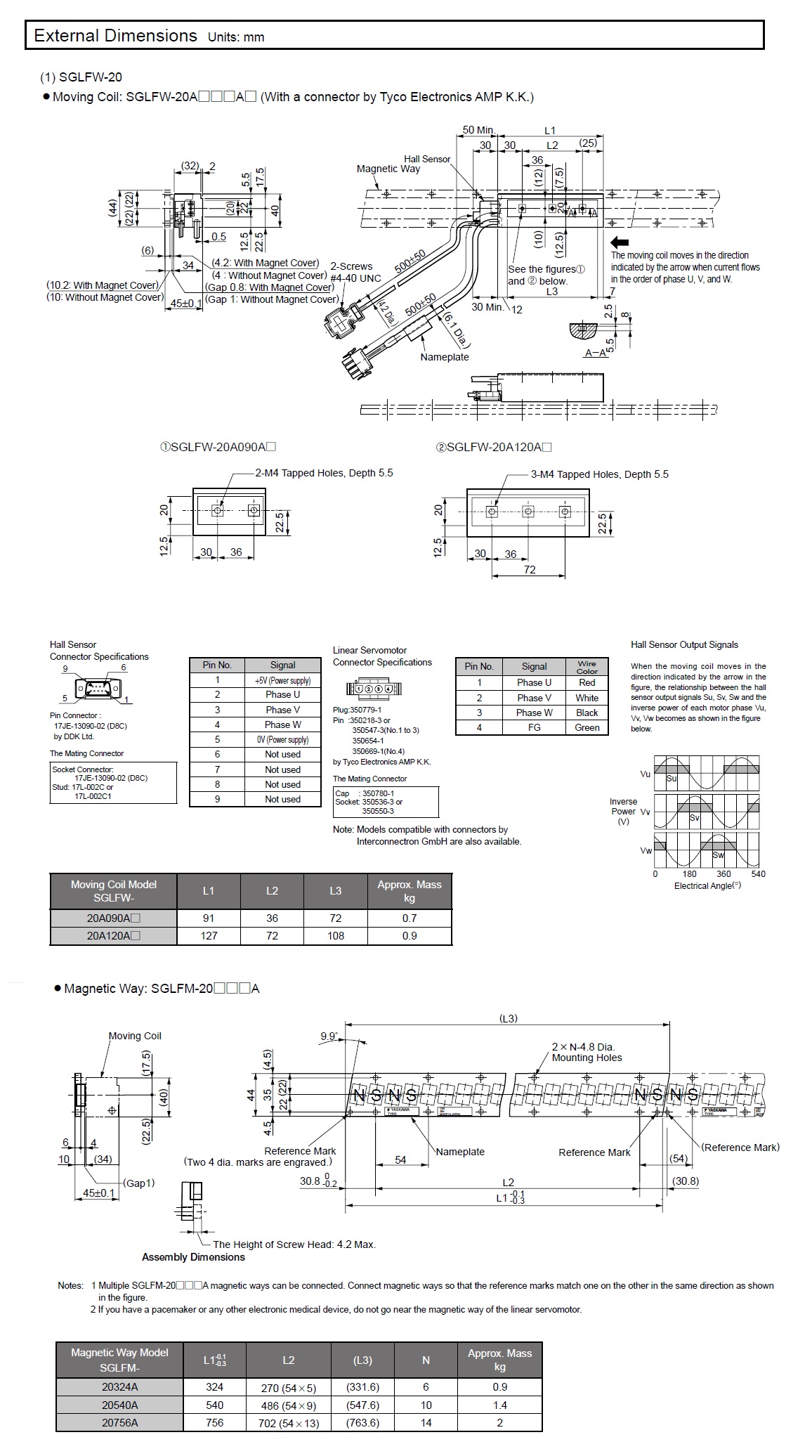

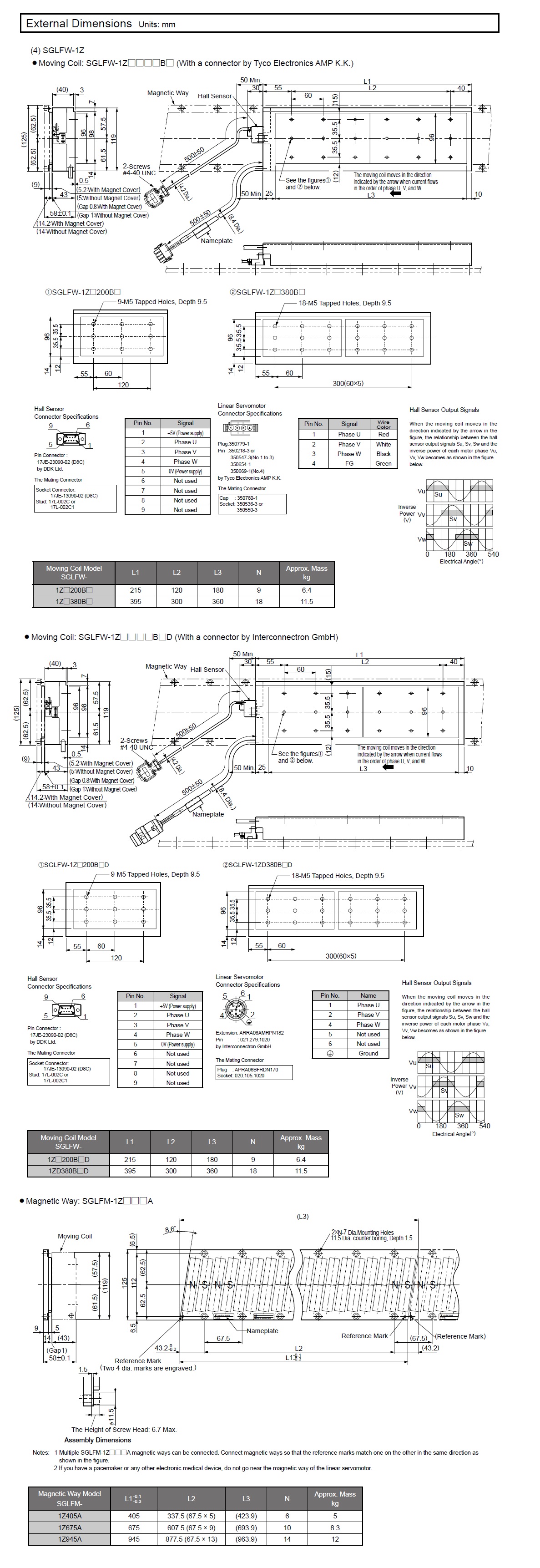

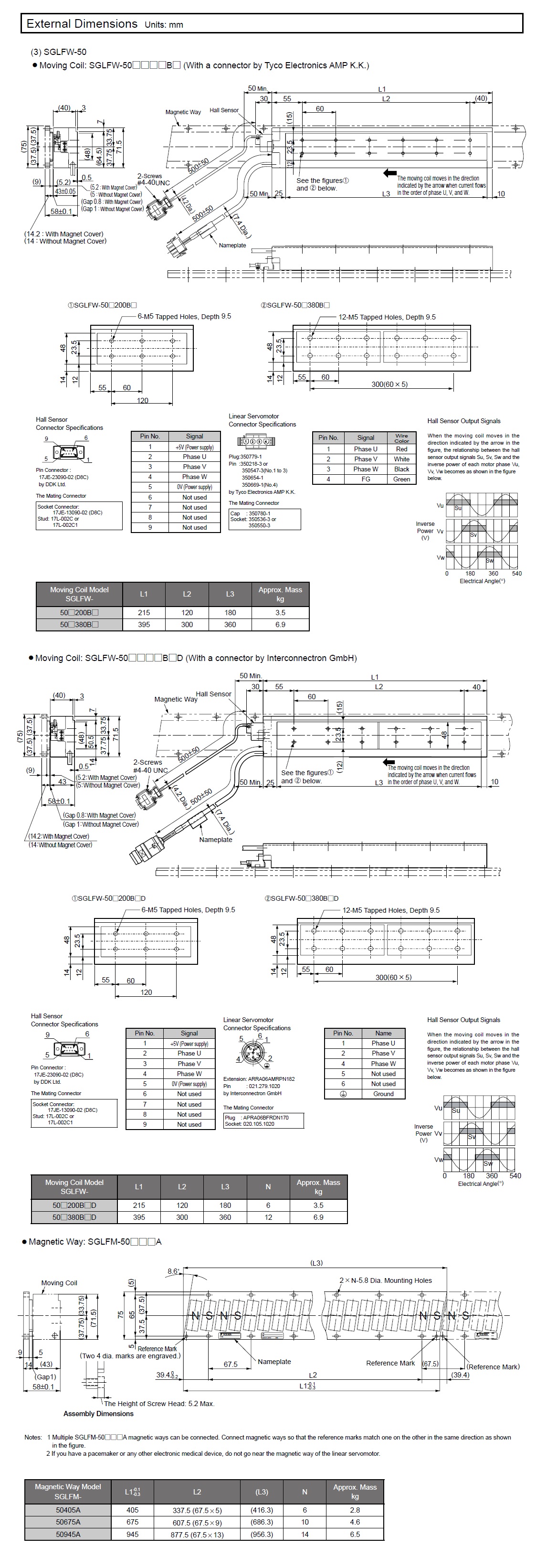

CAD(1)(2)(3)(4)

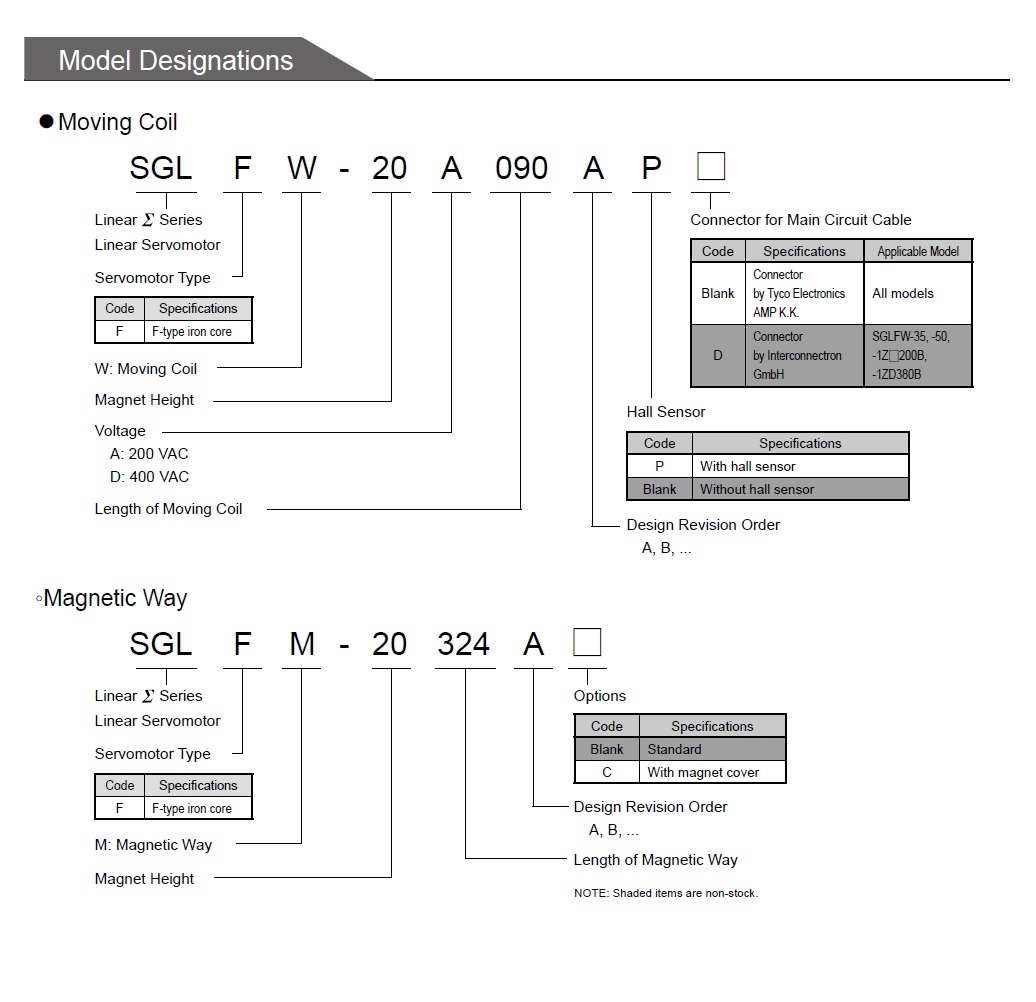

Buying Guide
