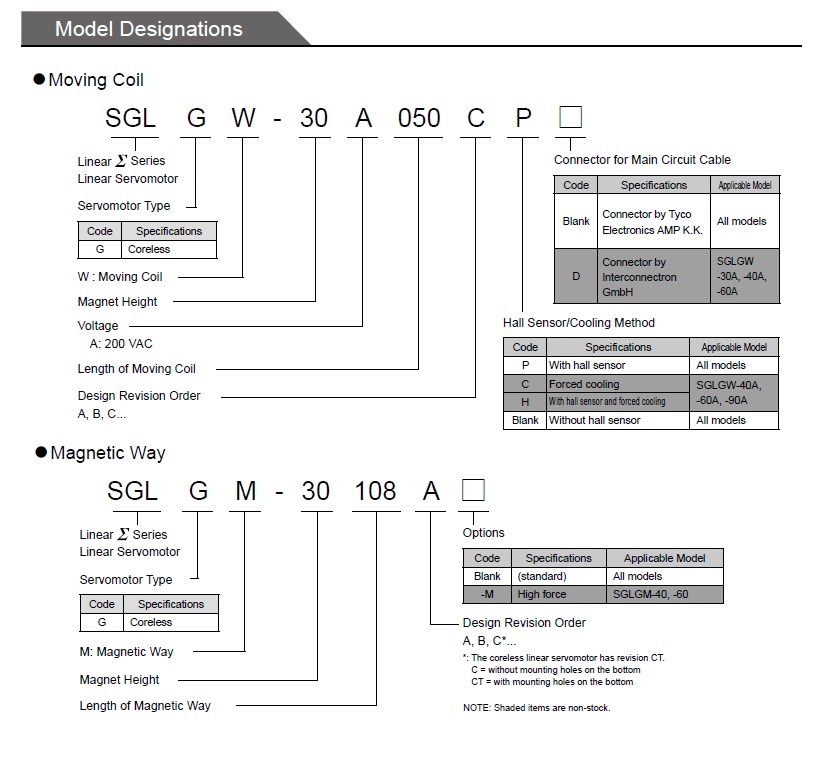

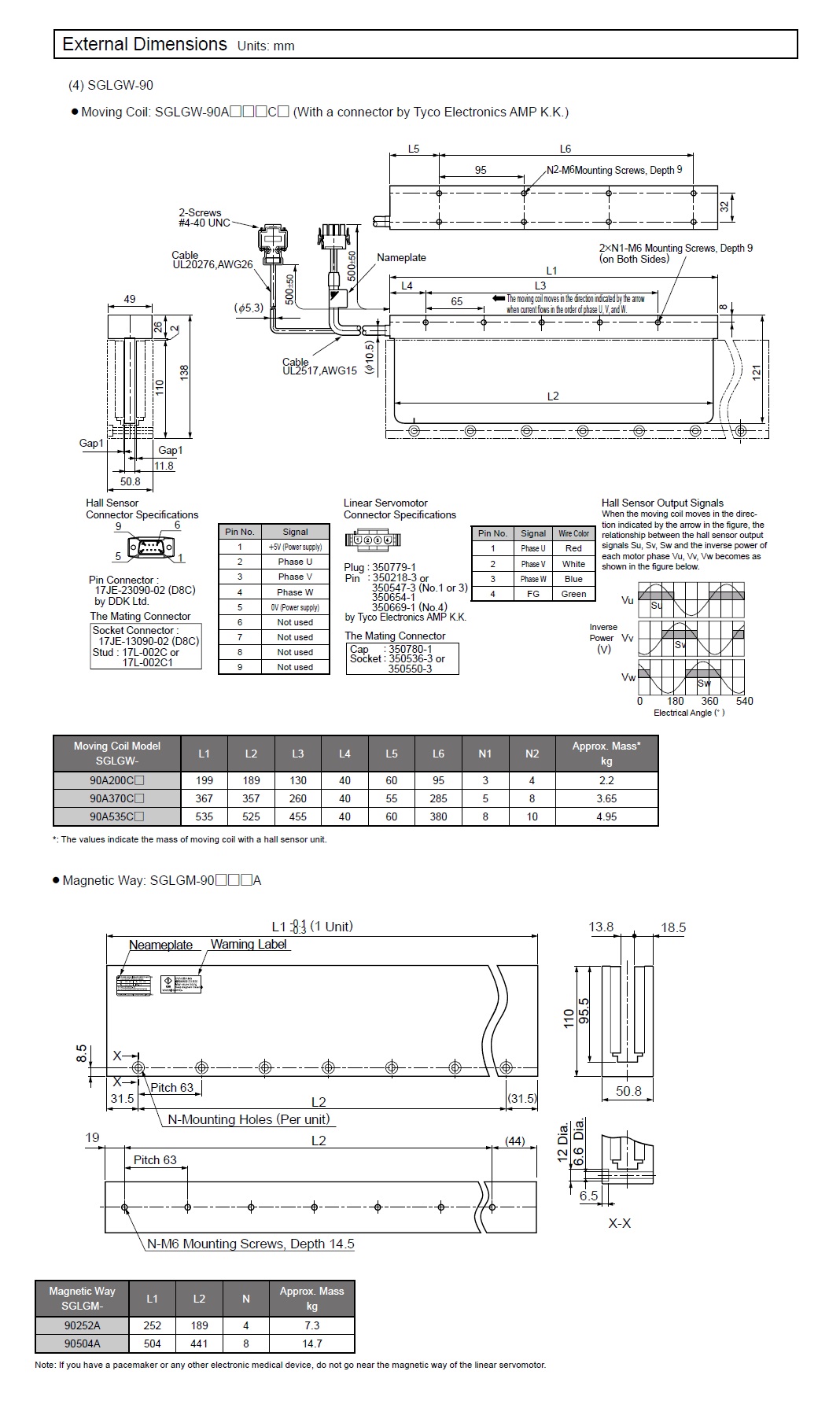

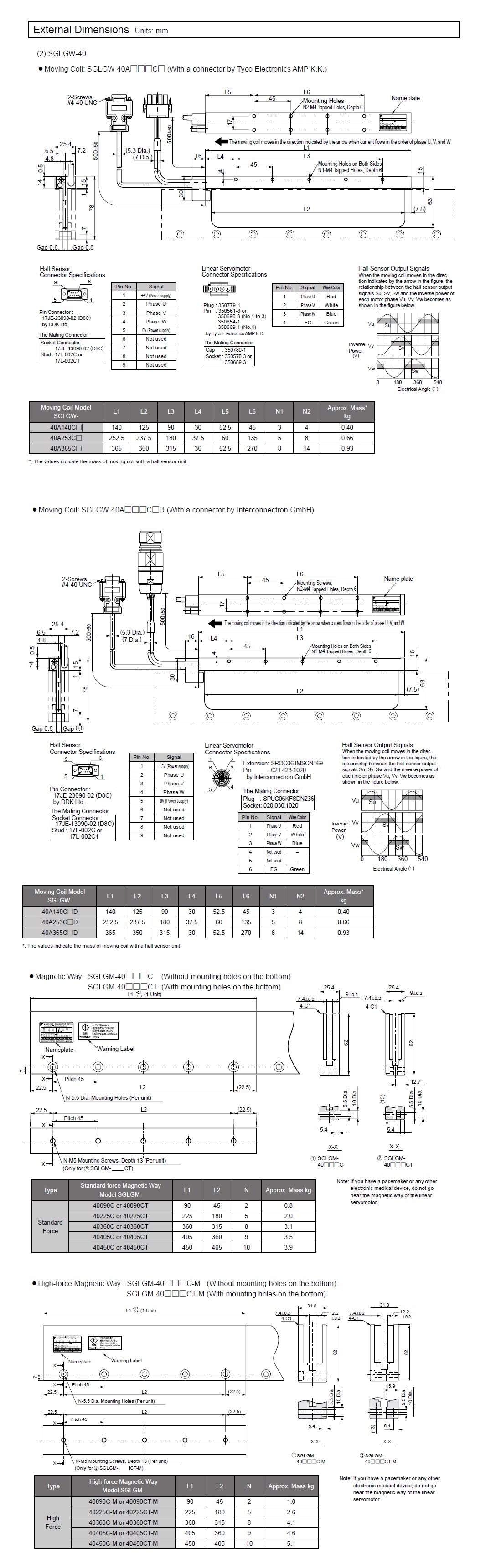

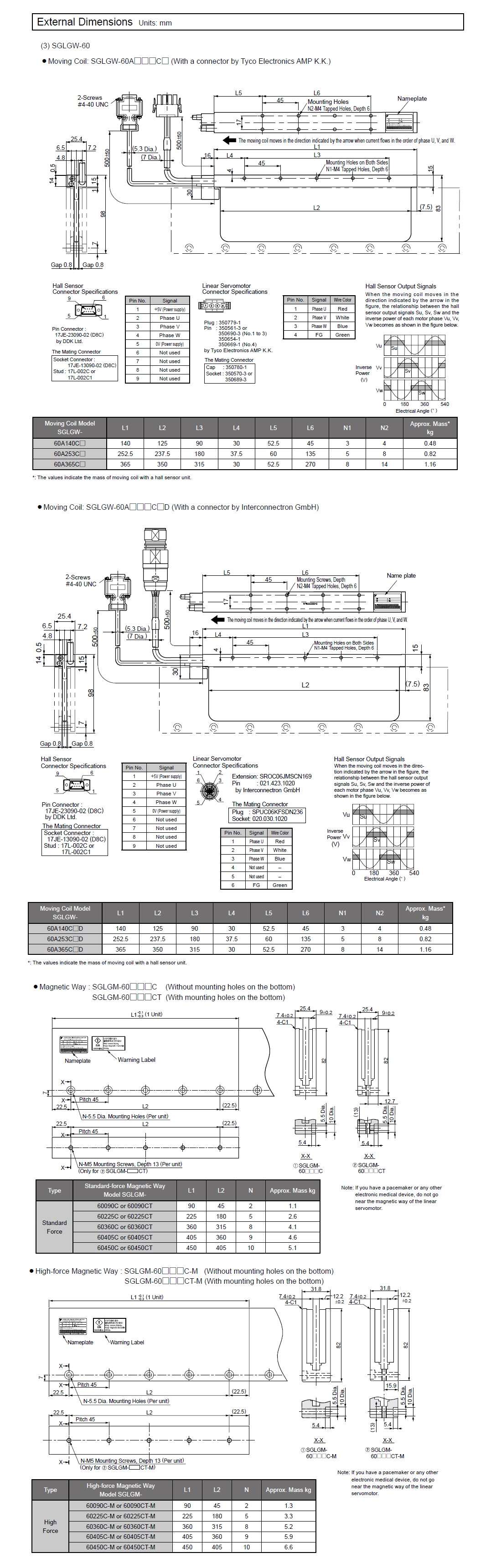

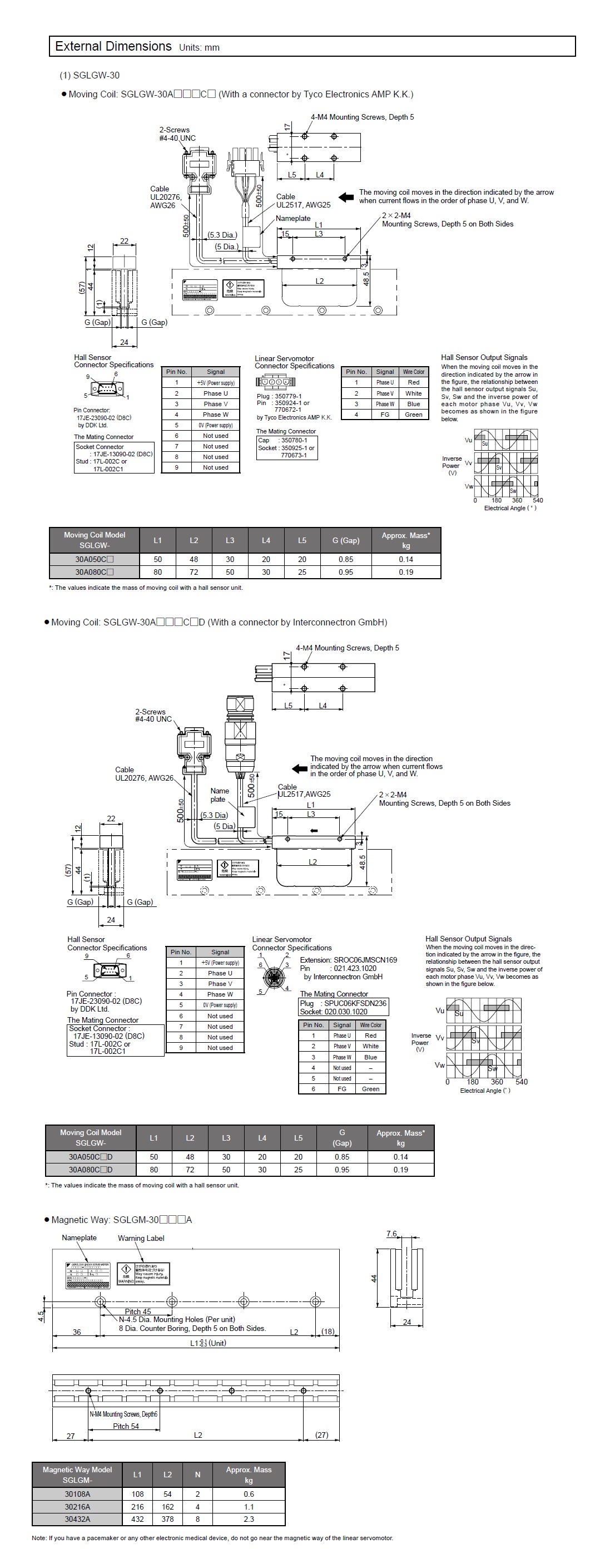

SGLGW Series

Coreless GW linear servo motors are composed of moving coils and stationary magnet tracks. The moving coil has no iron content and is made of accurately resin molded motor windings. The stationary magnet track is made of two nickelized steel plates with accurately placed rare-earth magnets on each side. The steel plates are jointed at one end to form a U-channel to provide space for the moving coils.

Features:

• Direct-feed mechanism for high-speed and high-precision positioning.
• Lack of magnetic attraction force helps extend the life of linear motion guides and minimizes noise.
• Zero cogging for minimal force ripple.
• Feeders and loaders
• Semiconductor equipment
• LCD manufacturing equipment

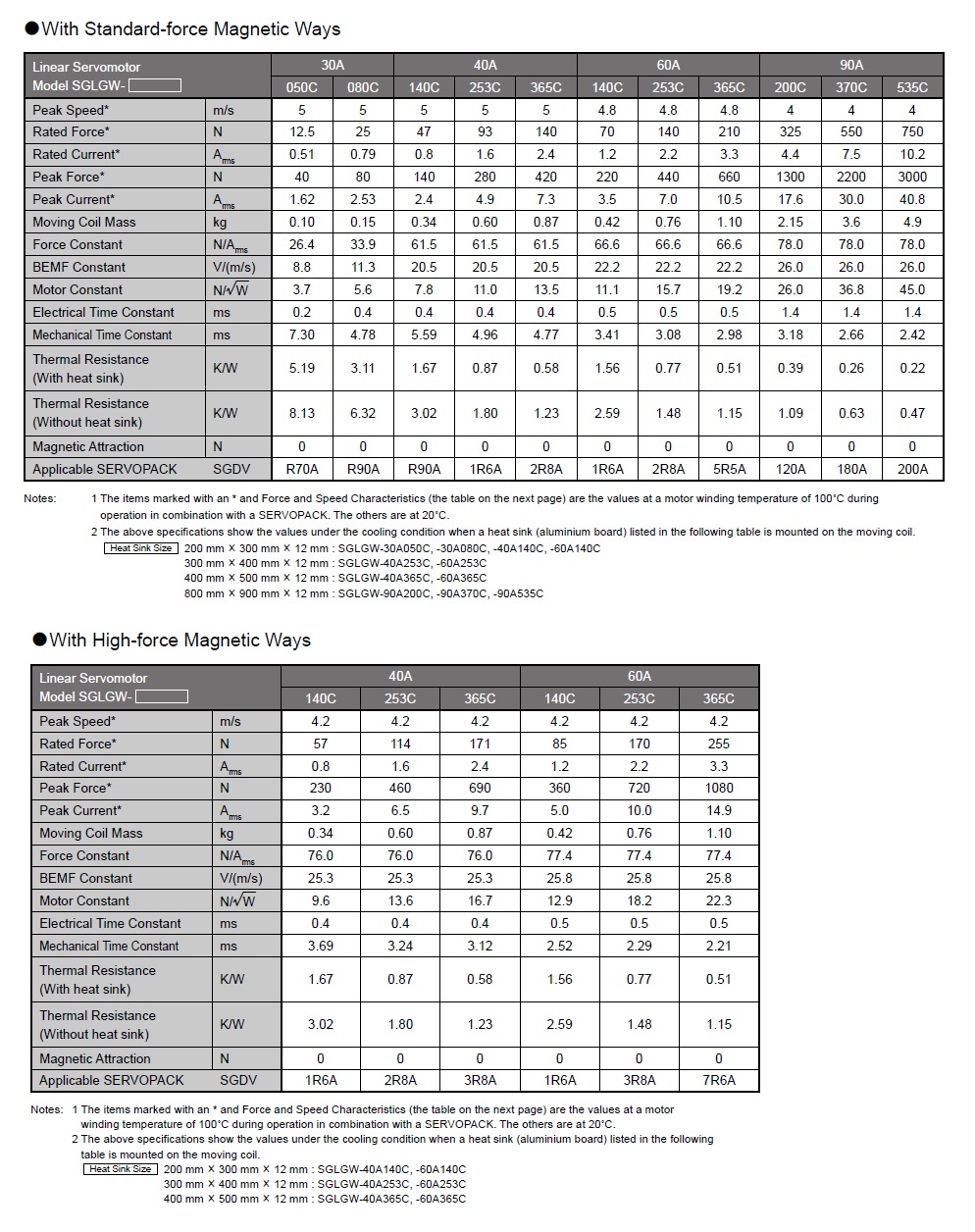

• Time Rating: Continuous
• Insulation Resistance: 500 VDC, 10 MΩ min.
• Ambient Temperature: 0 to 40˚C
• Excitation: Permanent magnet
• Withstand Voltage: 1500 VAC for one minute
• Enclosure: Self-cooled, air-cooling (Only self-cooled type available for SGLGW-30A linear servomotor)
• Ambient Humidity: 20% to 80% (no condensation)
• Allowable Winding Temperature: 130˚C (Thermal class B)

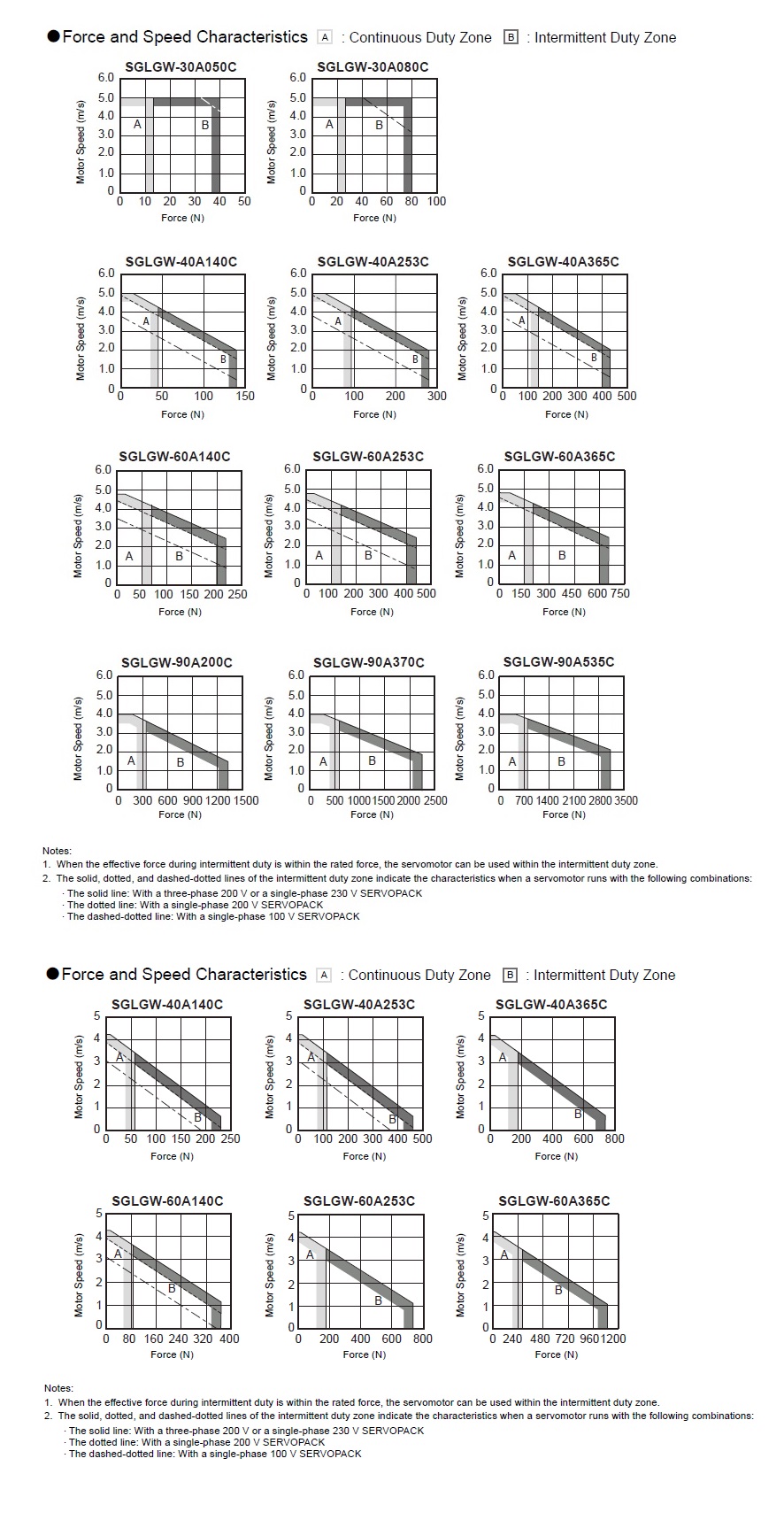

• Peak Speed: 4.2-5 m/s
• Moving Coil Mass: 0.10-4.9 Kg
• Electrical Time Constant: 0.2-1.4 ms
• Thermal Resistance (With Heat Sink): 0.22-5.19 k/w
• Thermal Resistance (Without Heat Sink): 0.63-8.13 k/w
