Yaskawa Rotary Servo Motors: SGMJV Sigma-5 Series
Yaskawa Rotary Servo Motors: SGMJV Sigma-5 Series

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: SGMJV
.

Description Specifications and Drawings


SGMJV Sigma-5

Rated Output: 50W, 100W, 200W, 400W, 750W

The SGMJV small capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

  • Medium inertia
  • Instantaneous peak torque (350% of rated torque)
  • Mounted high resolution serial encoder: 13 or 20-bit
  • Maximum speed: 6,000 rpm
  • Wide selection: 50 to 750W capacity, holding brake and gear options
  • Time Rating: Continuous
  • Vibration Class: V15
  • Insulation Resistance: 500 VDC, 10 MW min.
  • Ambient Temperature: 0 to 40˚C
  • Excitation: Permanent magnet
  • Mounting: Flange-mounted
  • Thermal Class: B
  • Withstand Voltage: 1500 VAC for one minute
  • Enclosure for IP65 (except for shaft opening): Totally enclosed, self-cooled
  • Ambient Humidity: 20% to 80% (no condensation)
  • Drive Method: Direct drive

Sigma-5 Series Product Catalog

SGMJV Catalog

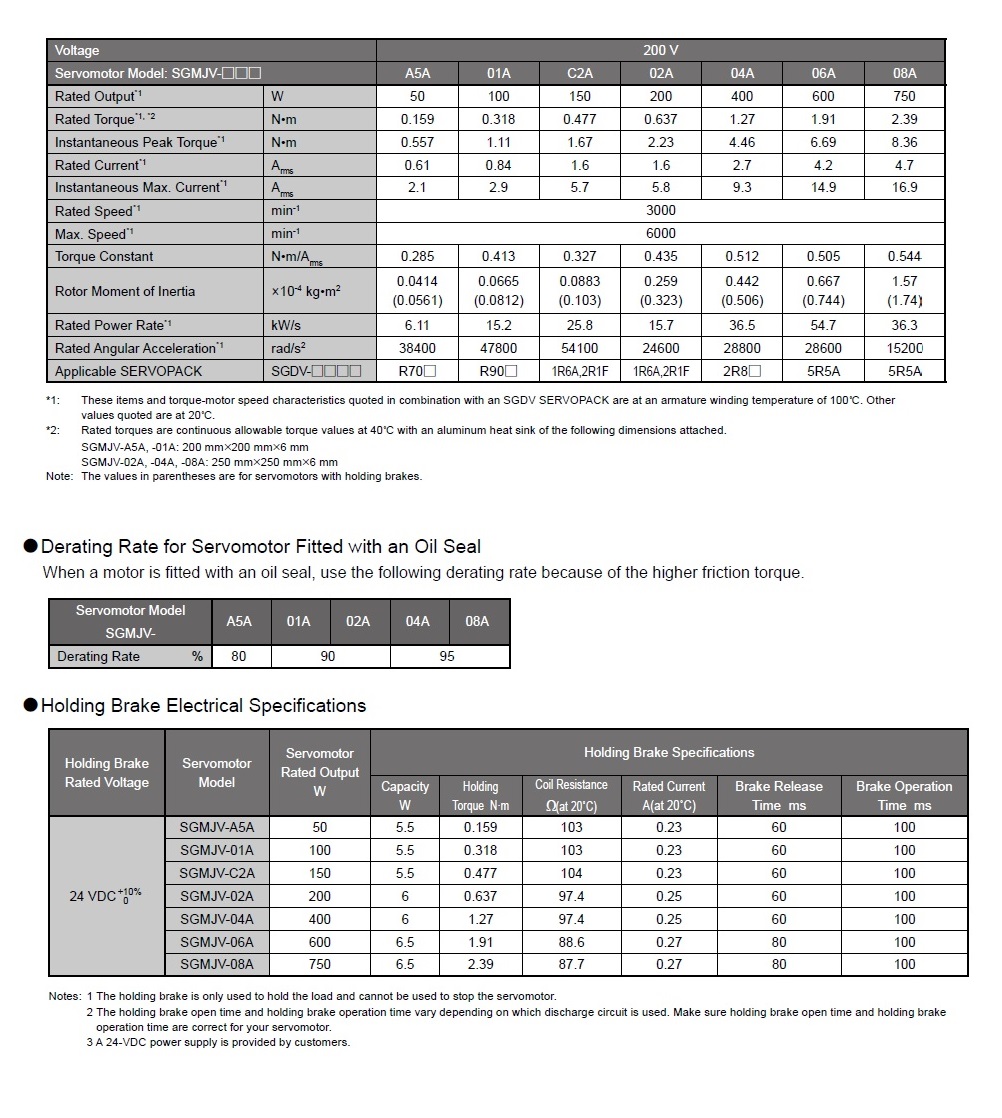

Specs

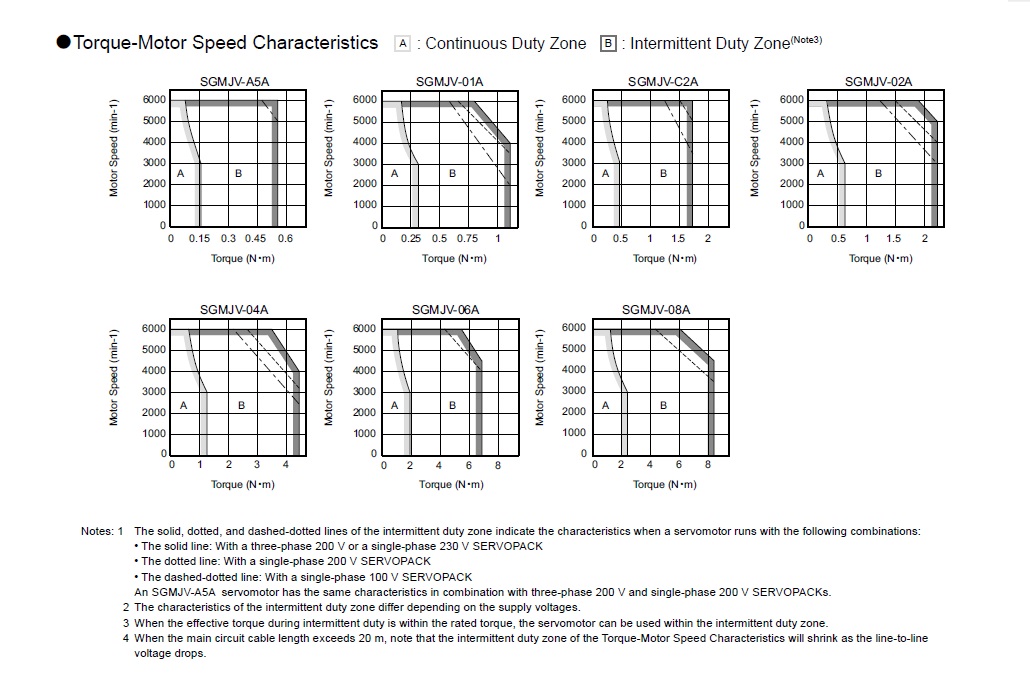

Torque Curves

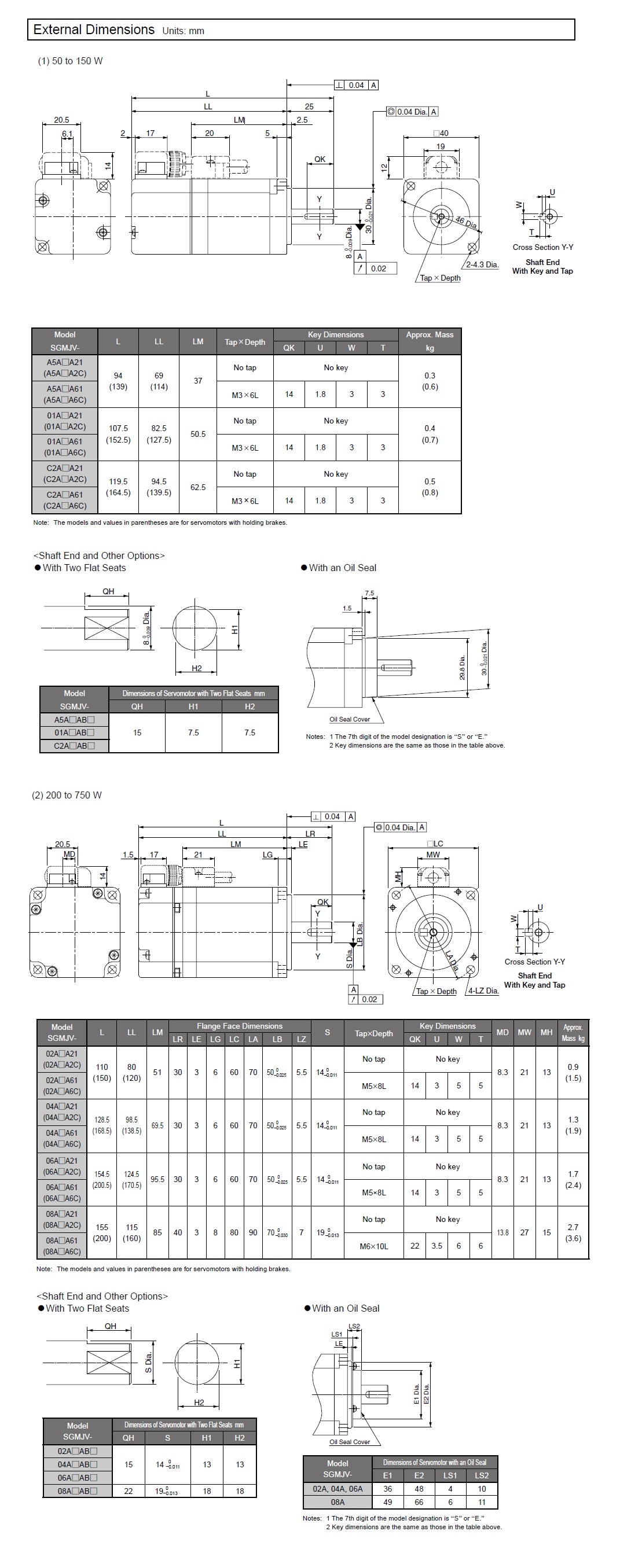

CAD

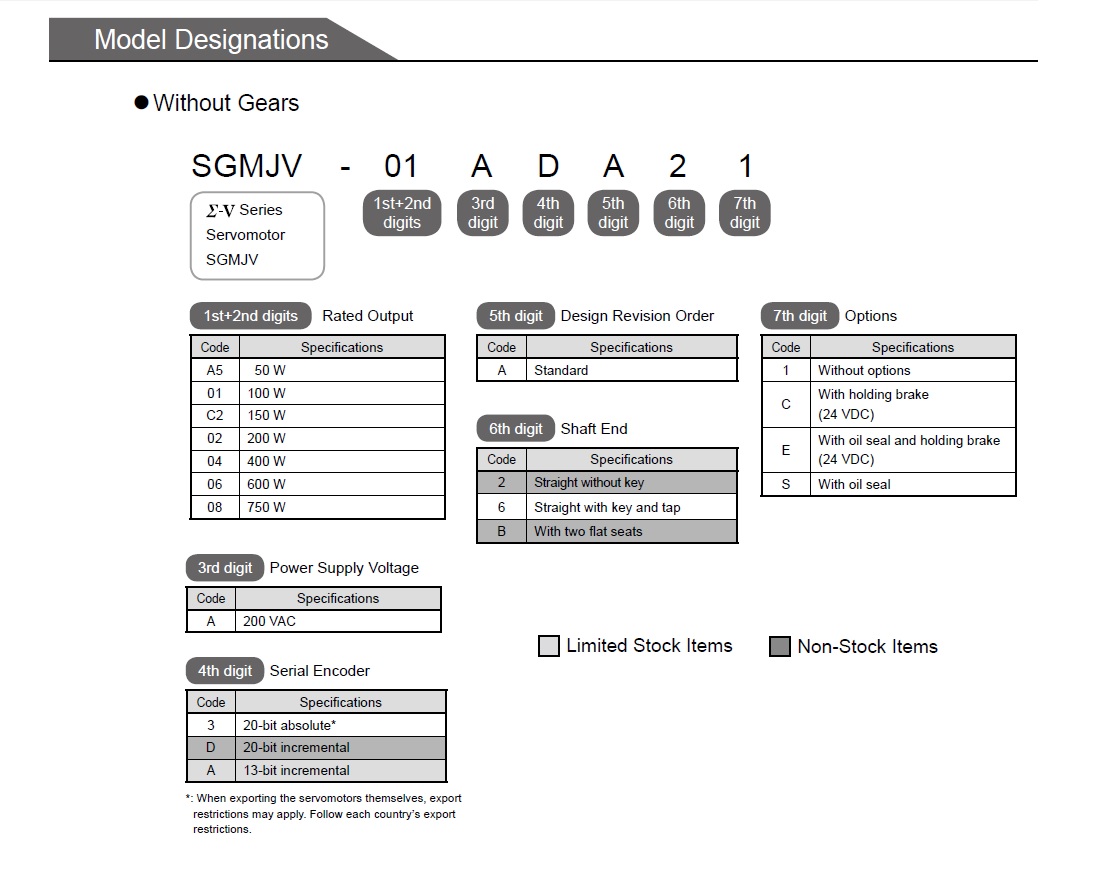

Buying Guide
