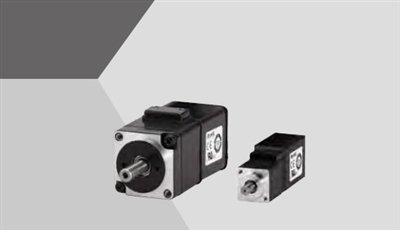

Yaskawa Rotary Servo Motors: SGMMV Sigma-5 Mini Series
Yaskawa Rotary Servo Motors: SGMMV Sigma-5 Mini Series

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: SGMMV


Model No.:


.
Description Specifications and Drawings


SGMMV Sigma-5 Mini
Rated Output: 3.3W, 5.5W, 10W, 11W, 20W, 30W

The SGMMV ultra-small capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

  • Low inertia
  • High resolution absolute serial encoder: 17-bit
  • Maximum Speed: 6000 rpm
  • Wide Selection: 3W to 30W
  • Holding Brake option available
  • AC or DC Input Power
  • Time Rating: Continuous
  • Vibration Class: V15
  • Insulation Resistance: 500 VDC, 10 MΩ min.
  • Ambient Temperature: 0 to 40˚C
  • Excitation: Permanent magnet
  • Mounting: Flange-mounted
  • Ambient Humidity: 20% to 80% (no condensation)
  • Drive Method: Direct drive
  • Rotation Direction: Counterclockwise (CCW) with forward run reference when viewed from the load side
  • Thermal Class: 15 mm×15 mm B (UL: A); 25 mm×25 mm B
  • Withstand Voltage: 600 VAC for one minute
  • Enclosure for IP42 (except for shaft opening): 15 mm×15 mm; completely enclosed, self-cooled
  • Enclosure for IP55 (except for shaft opening): 25 mm×25 mm; completely enclosed, self-cooled

Sigma-5 Series Product Catalog

SGMMV Catalog

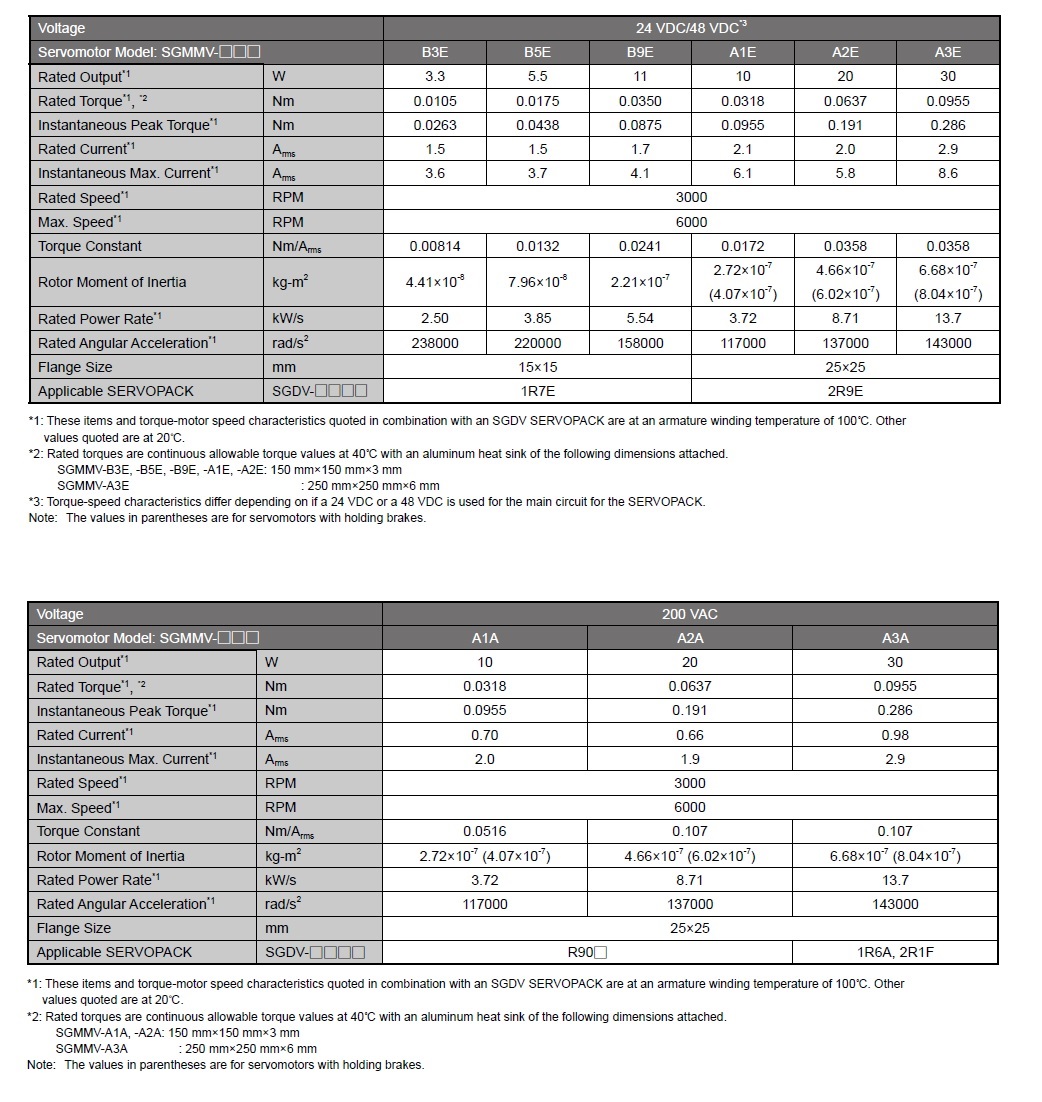

Specs

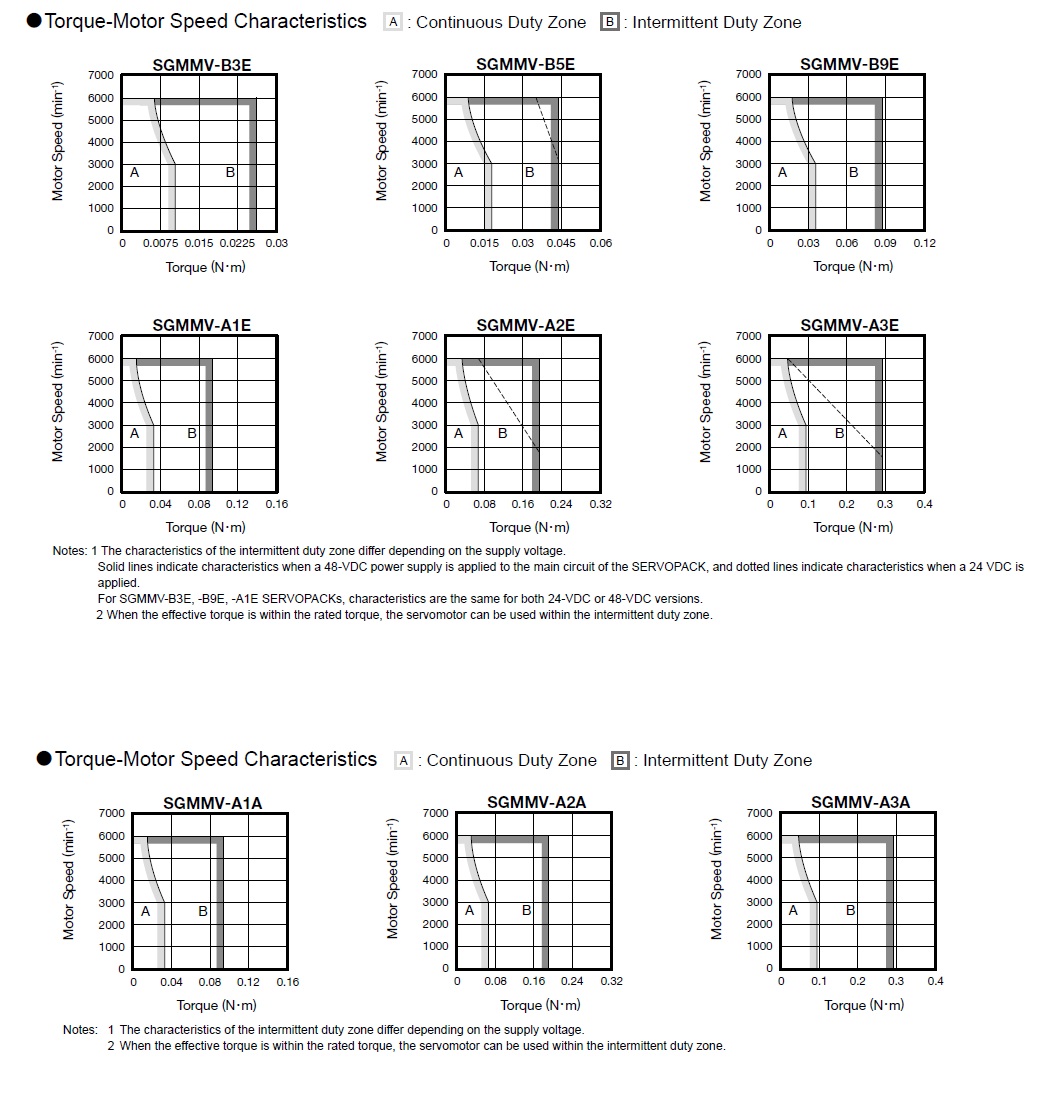

Torque Curves

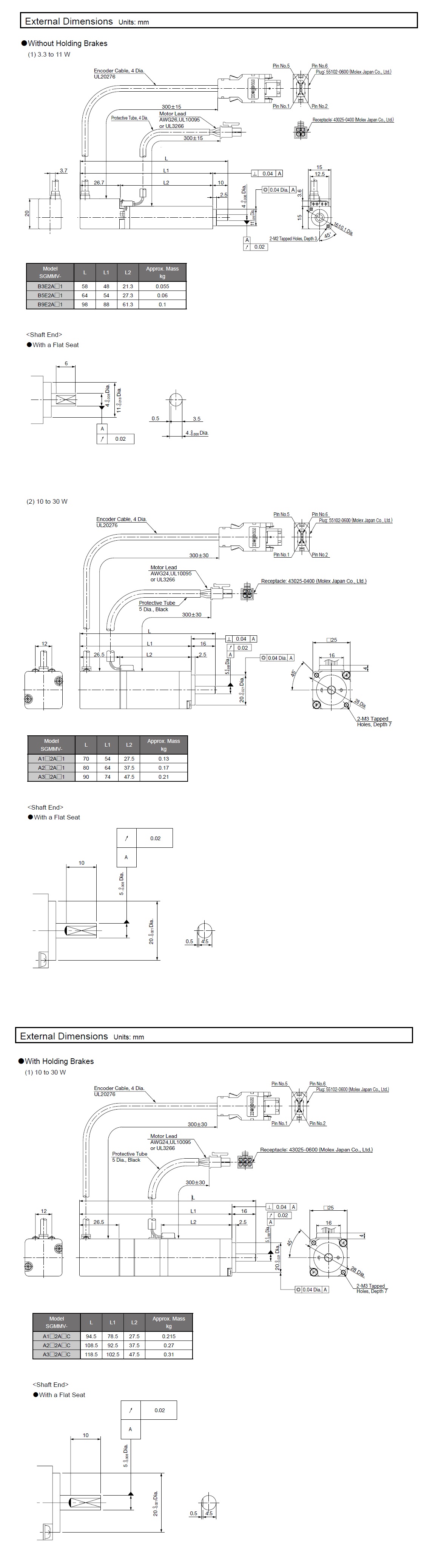

CAD

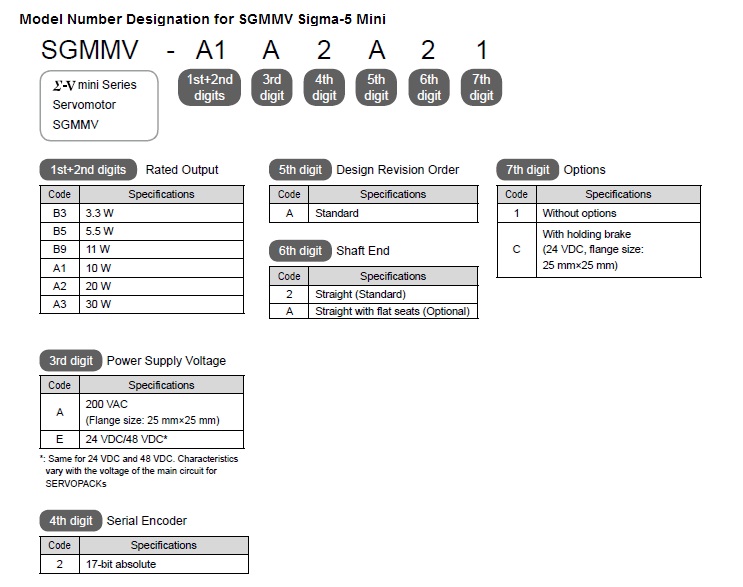

Buying Guide
