Yaskawa (Large Capacity) Rotary Servo Motors: SGMVV Sigma-5 Series
Yaskawa (Large Capacity) Rotary Servo Motors: SGMVV Sigma-5 Series

Alternate View


Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: SGMVV


Model No.:


.
Description Specifications and Drawings


SGMVV Sigma-5

Rated Output: 22kW, 30kW, 37kW, 45kW, 55kW

The SGMVV large capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

  • Medium inertia
  • High resolution absolute serial encoder: 20-bit
  • Maximum Speed: 2000 rpm
  • Wide Selection: 22kW to 55kW
  • Holding Brake and Shaft Seal options available
  • Flange or Foot Mount Option
  • Time Rating: Continuous
  • Vibration Class: V15
  • Insulation Resistance: 500 VDC, 10 MΩ min.
  • Ambient Temperature: 0 to 40˚C
  • Excitation: Permanent magnet
  • Mounting: Flange-mounted
  • Foot-mounted
  • Thermal Class: F
  • Withstand Voltage: 1500 VAC for one minute (200-V class)
  • 1800 VAC for one minute (400-V class)
  • Enclosure for IP44 (except for shaft opening): Totally enclosed, separately cooled
  • Ambient Humidity: 20% to 80% (no condensation)
  • Rotation Direction: Counterclockwise (CCW) with forward run reference when viewed from the load side

Sigma-5 Series Product Catalog

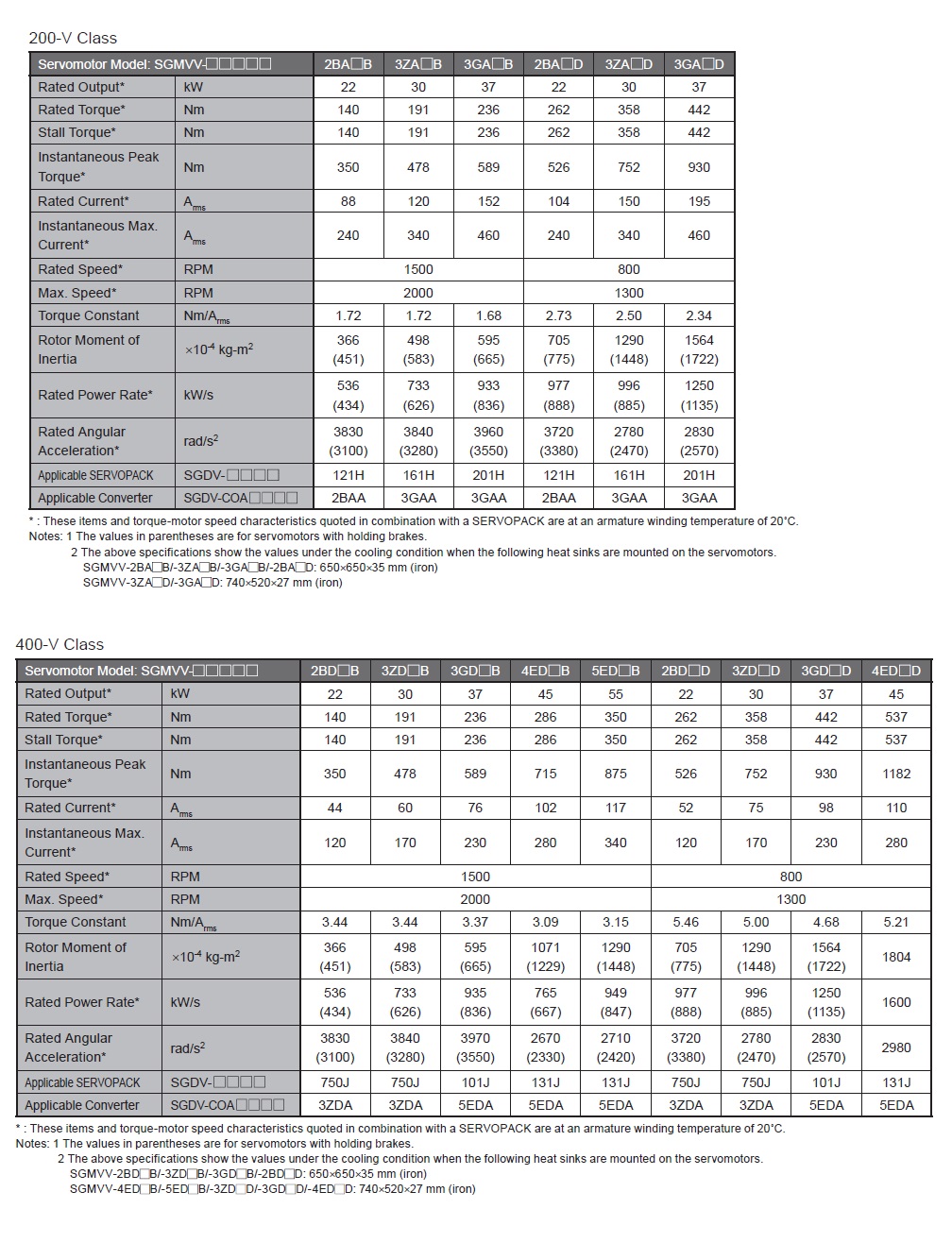

Specs

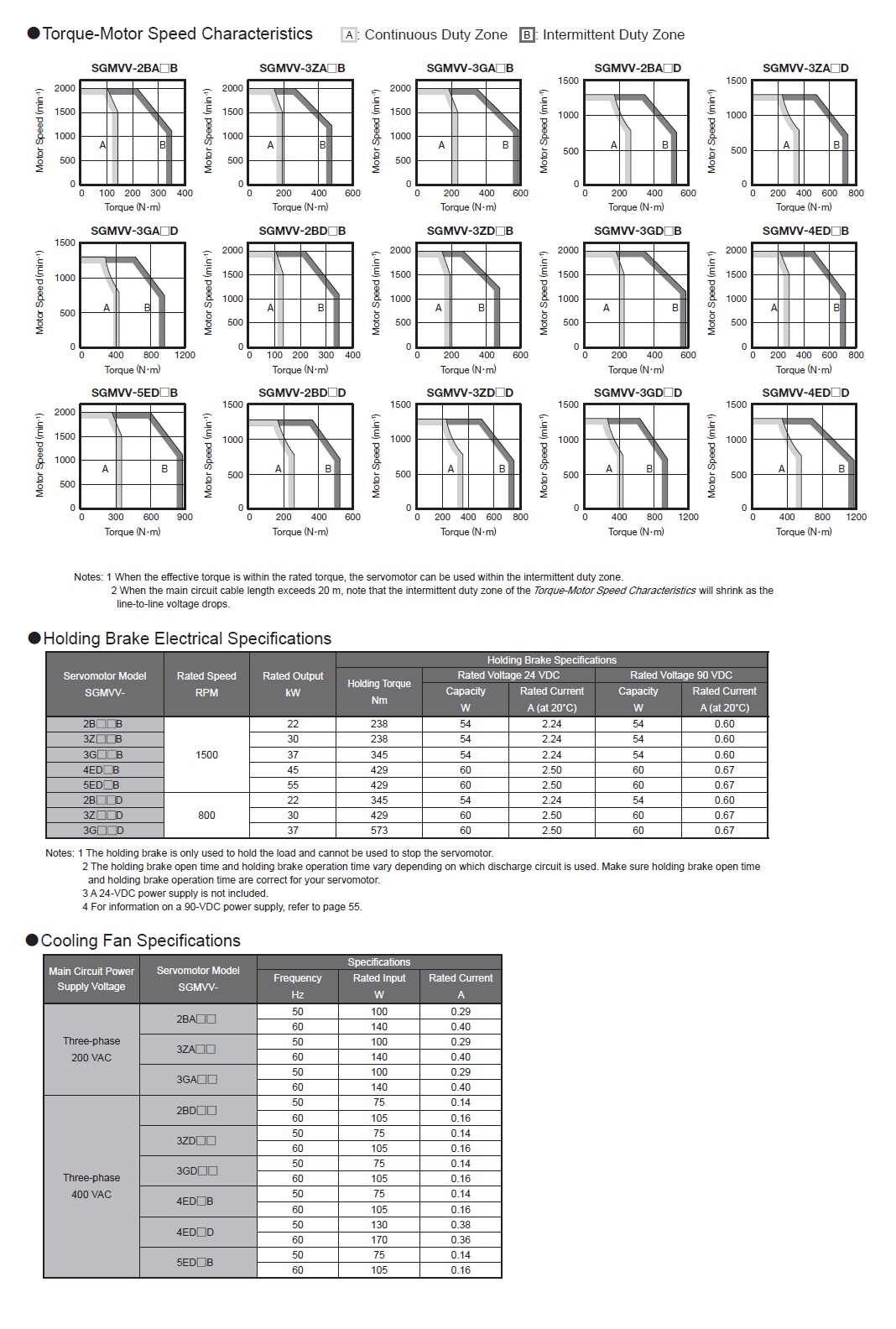

Torque Curves

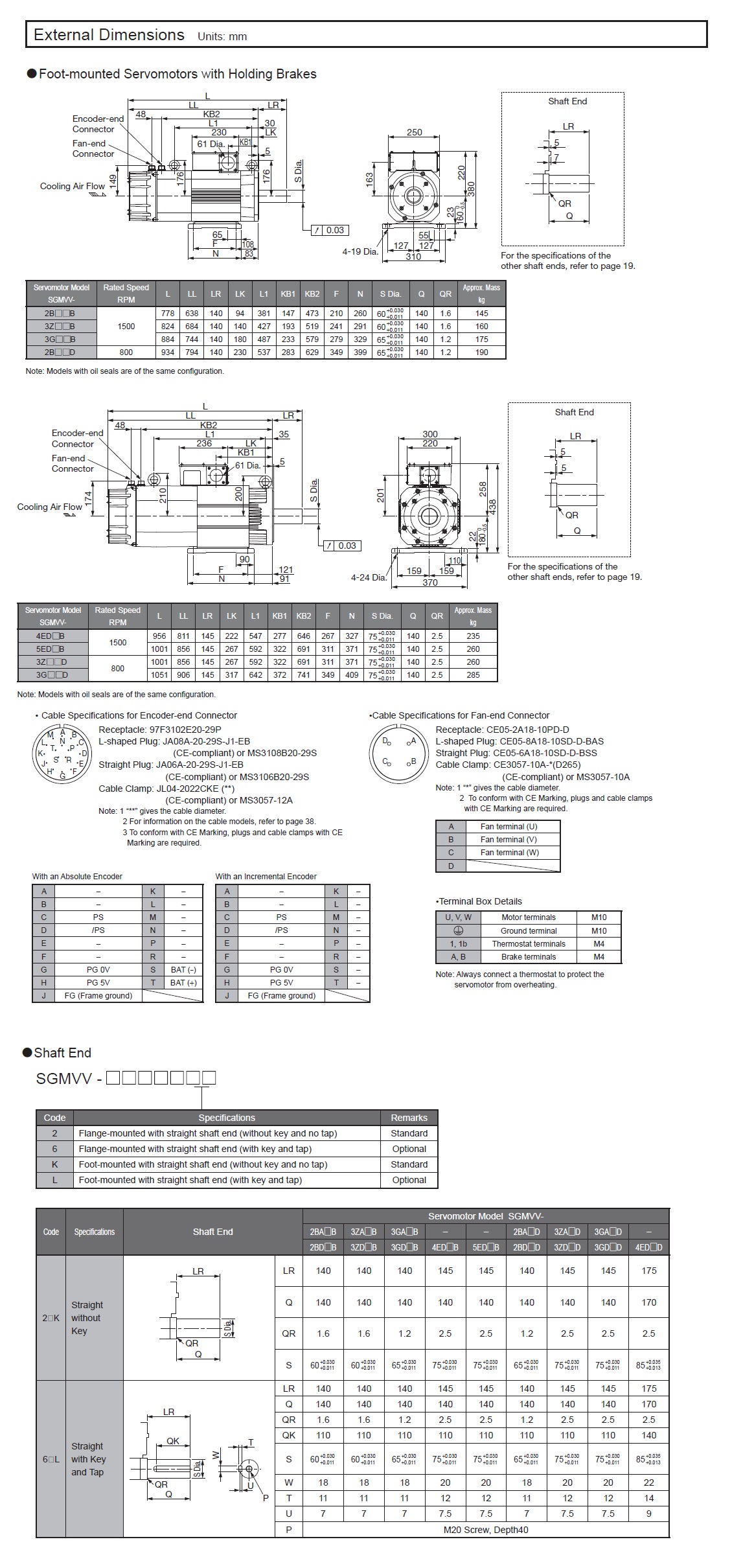

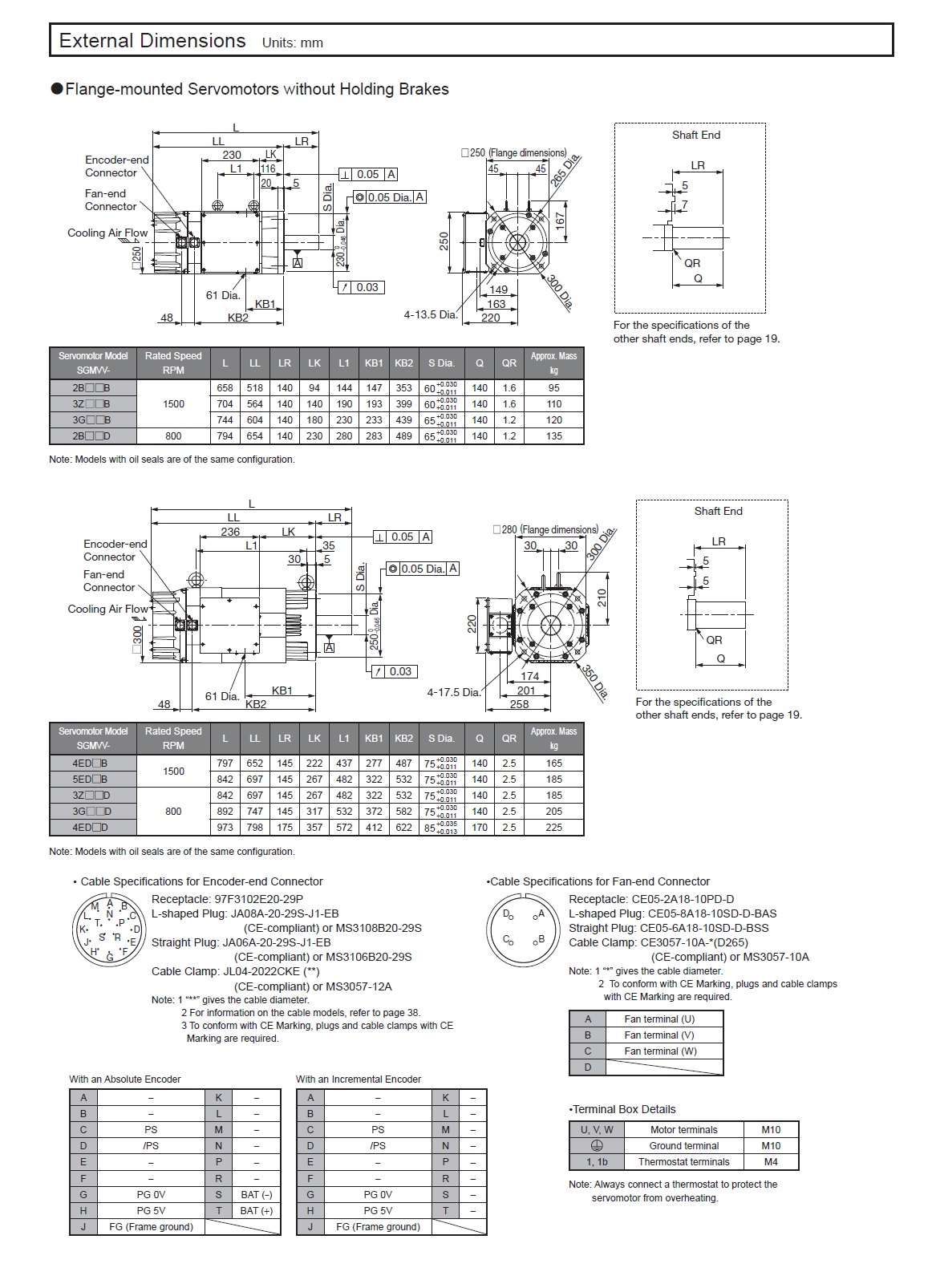

CAD1 (2)

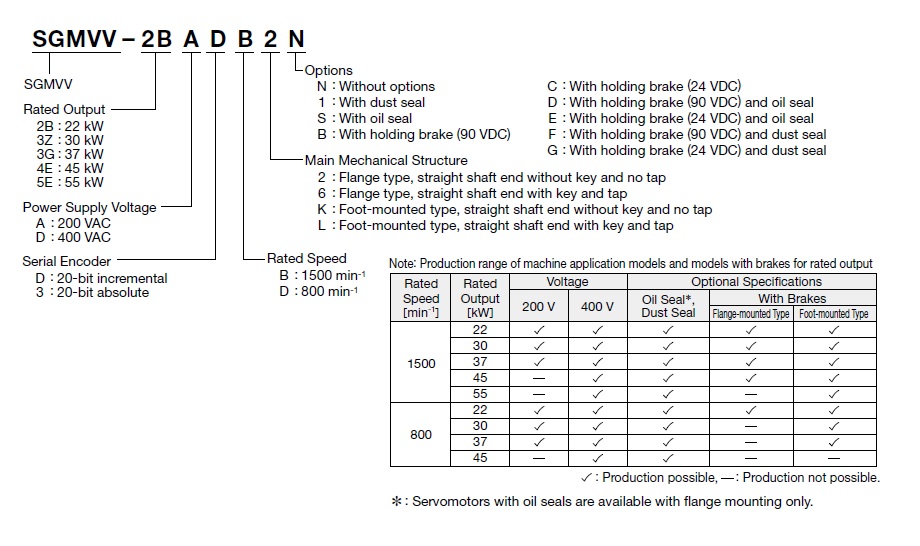

Buying Guide
