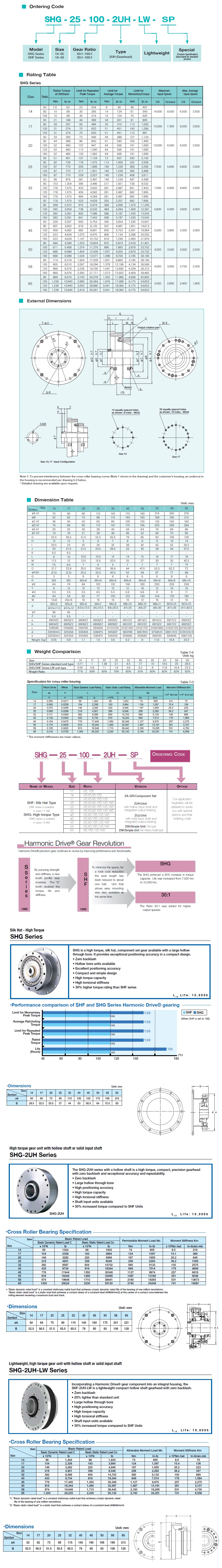

Description Specifications and Drawings


Harmonic Drive: Gear Units (SHG Series)

These gearheads can be easily adapted to any OEM servo motor. Harmonic Drive® gear products offer zero-backlash with gear ratios from 30:1 to 160:1. Precision planetary gearing products are available with gear ratios from 3:1 to 45:1 with backlash maintained below 1 arc-min. High capacity output bearings are utilized for robust and accurate support of loads. Other benefits include flange and shaft output configurations, hollow shaft designs, and sizes ranging from 0.625 inches to over 10 inches in diameter.

Harmonic Gear Principle

Harmonic Drive® gearing utilizes a unique operating principle which is based upon the elastic mechanics of metals. The greatest benefits are the zero-backlash characteristics and the weight and space savings compared to other gears because our gear mechanism consists of only three basic parts. They are the: Wave Generator, Flexspline and Circular Spline.

This simple three element construction combined with the unique operating principle allows extremely high reduction ratio in a very compact and lightweight package. Neither the size nor weight of the gear vary with the reduction ratio. The high performance attributes of this gearing technology including zero backlash, high torque, compact size, excellent positional accuracy and repeatability are all a direct result of the unique operating principle.

Features:

  • 2UH: Gearhead / Hollow Shaft gear unit

  • 2UJ: Gearhead / Shaft Input gear unit

  • 2SO: Simplicity Gear Unit (Solid Input Shaft)

  • 2SH: Simplicity Gear Unit (Hollow Input Shaft)

  • LW: Lightweight


SHG-2UH
Series: Hollow Shaft Gearheads

Harmonic Drive® SHG series gearheads are improved, high torque version of the SHF series. All torque ratings and L10 life are all significantly improved compared to the SHF series gearhead of the same size.

  • 30% higher rated torque

  • 30% higher repeated peak torque

  • 30% higher maximum momentary torque

  • 42% longer life (L10 of 10,000 hours)

  • The external dimensions, mass, torsional stiffness, moment stiffness, positional accuracy, repeatability, input moment of inertia, etc. are all the same as SHF series gearheads.

The SHG-2UH series is a compact hollow shaft gearhead which has zero backlash as well as exceptional accuracy and repeatability. The gearhead incorporates a Harmonic Drive® gear component into an integral housing. In addition to the hollow shaft, the gearhead also features a high capacity cross roller bearing and output flange to mount the load without the need for additional support bearings. A New lightweight version is now available which provides the same output torque with a mass averaging 20% lower than the standard series!


SHG-2SH/
SHG-2SO/SHG-2UJ Series: Simplicity Gear Units

Our Simplicity Gear Units are Non-housed component gears combined with a precision cross roller output bearing. Simplicity Gear Units do not include the housing and output flange, which allows for even tighter integration into the customer’s housing or machine structure.


Model
Specifications

SHG-2UH

The SHG-2UH series is a compact hollow shaft gearhead which has zero backlash as well as exceptional accuracy and repeatability. Like all of our gear units, the gearhead incorporates a Harmonic Drive® gear component into an integral housing. In addition to the hollow shaft, the gearhead also features a high capacity cross roller bearing and output flange to mount the load without the need for additional support bearings. A lightweight version, SHG-2UH-LW is available if weight is a critical factor.

Key Features:

  • Zero backlash

  • Large hollow thru bore

  • High positioning accuracy

  • Compact and simple design

  • High torque capacity

  • High torsional stiffness

  • Shaft input units available

SHG-2UH-LW

LW indicates lightweight. Incorporating a Harmonic Drive® gear component into an integral housing, the SHF-2UH-LW is a lightweight compact hollow shaft gearhead with zero backlash.

Key Features:

  • Zero backlash

  • 20% lighter than standard unit

  • Large hollow through bore

  • High positioning accuracy

  • High torque capacity

  • High torsional stiffness

  • Shaft input units available

SHG-2SH

High torque simplicity gear unit with a hollow input shaft. It costs less than a full unit and features an incredibly flexible design. SHG-2SH are available in ten sizes with ratios 50:1 to 160:1 and peak torque ranging 23-3419 Nm.

Key Features:

  • Zero Backlash

  • Simple Design

  • Large hollow through bore

  • High positioning accuracy

  • High torque capacity

  • High torsional stiffness

  • 30% increased torque compared to SHF gear

SHG-2SO

The SHG-2SO series is a compact hollow shaft gearhead which has zero backlash as well as exceptional accuracy and repeatability. The gearhead also features a high capacity cross roller bearing and output flange to mount the load without the need for additional support bearings.

Key Features:

  • Zero Backlash

  • Accuracy <1 arc-min (most sizes)

  • High torsional stiffness

  • Robust cross roller output bearing

  • Output flange for direct mounting of load

SHG-2UJ

  • High torque

  • Zero Backlash

  • Accuracy <1 arc-min (most sizes)

  • High torsional stiffness

  • Robust cross roller output bearing

  • Output flange for direct mounting of load


Model No.: SHG-2SH, SHG-2SO, SHG-2UH, SHG-2UH-LW, SHG-2UJ
