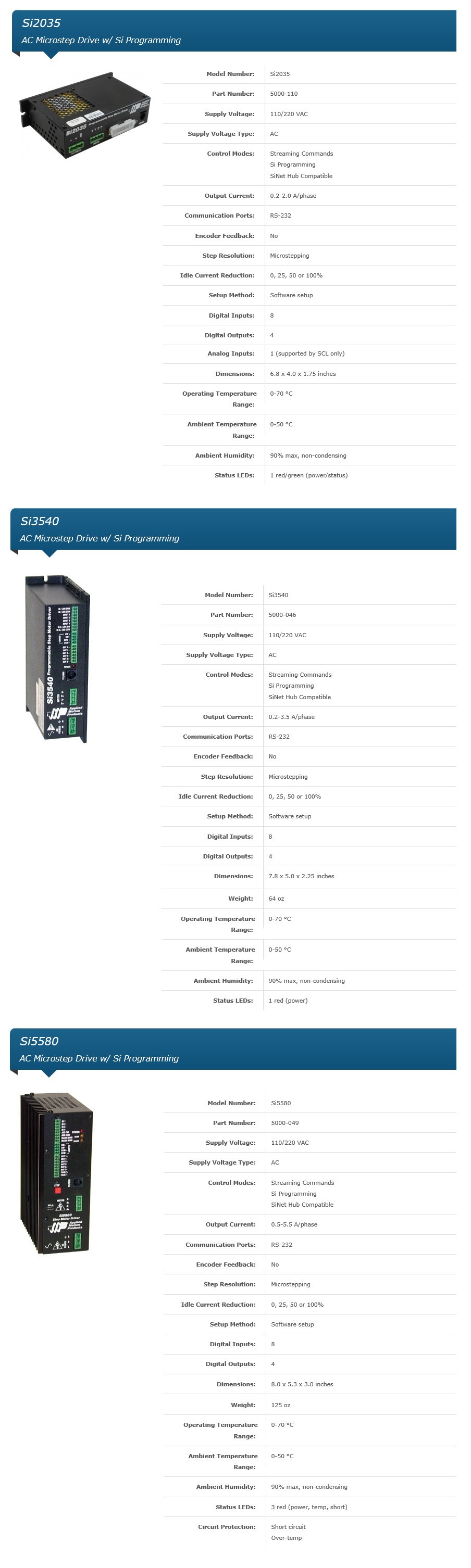

AMP: AC Microstep Drive w/ Si Programming (Si Series) 110/220 VAC
Step motor drives from Applied Motion Products offer unparalleled performance for today's modern machine builders. From the ground up these drives offer best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options, and industry-standard industrial network communications.

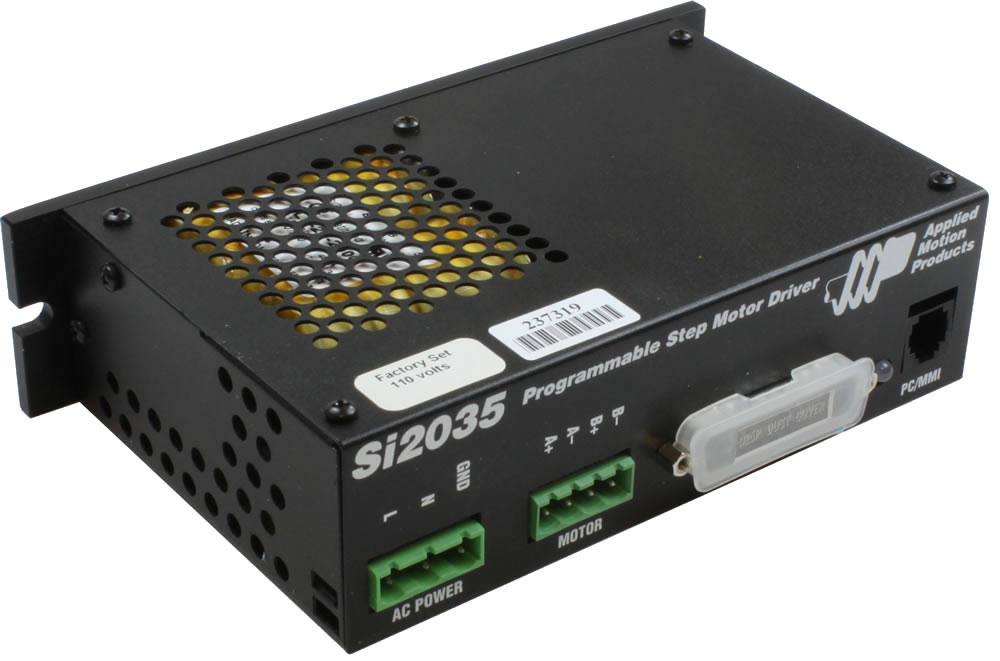

Si2035: AC Microstep Drive w/ Si Programming
The Si2035 is a programmable stepper drive/indexer packaged in a rugged steel case. Integral heat sink, mounting brackets, and mating connectors are included with each drive. The Si2035 is recommended for use with NEMA 11, 14, 17, and 23 frame motors and comes with all operating software necessary to create a complete stepper motion solution.
The Si2035 includes our Si Programmer™ software for quick set up and easy programming. Si programming is ideal for stand-alone operation. For more experienced users with software development expertise, the Si2035 also operates in SCL mode, which permits controlling the drive and motor by streaming serial commands from a host PC or PLC, thus allowing the user to command all drive functions from the host software application.
Multiple axis applications are handled by our SiNet™ Hub multi-axis controllers and the SiNet Hub Programmer™ software application, which give users the ability to control up to 8 drives from a single program. You can also use our MMI operator interface to allow machine operators to enter specific motion parameters.
Factory set for 110 VAC operation, the Si2035 can be set by the user for 220 VAC operation with a single switch. Pluggable screw terminal blocks are provided for motor and AC power connections. A 25-pin D-Sub connector is provided for digital I/O connections. Mating connectors, programming cable, and software are provided with each drive.
Si Programmer™ compatible indexer/drive
AC input 110V or 220V switch selectable, 50-60 Hz
DC bus voltage 28 VDC full load, 35 VDC nominal
Software selectable motor current from 0.2-2.0 amps/phase
Software selectable microstep resolution and idle current reduction
Eight optically isolated digital inputs
Four optically isolated digital outputs
RS-232 for PC/MMI communications
D-Sub and pluggable screw terminal connectors
Dual H-bridge, pulse width modulated amplifier switching at 20-30 kHz
Ideal for 4, 6 or 8 leaded step motors NEMA sizes 11, 14, 17 and 23
Optional operator interface (MMI) allows users to enter specific motion parameters
SCL mode for streaming serial commands from host controller

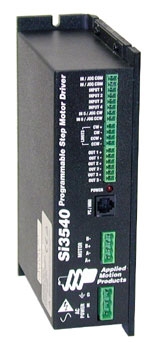

Si3540: AC Microstep Drive w/ Si Programming
The Si3540 is a programmable stepper drive/indexer packaged in a rugged steel case. Integral heat sink, mounting brackets, and mating connectors are included with each drive. The Si3540 is recommended for use with NEMA 11, 14, 17, and 23 frame motors and comes with all operating software necessary to create a complete stepper motion solution.
The Si3540 includes our Si Programmer™ software for quick set up and easy programming. Si programming is ideal for stand-alone operation. For more experienced users with software development expertise, the Si3540 also operates in SCL mode, which permits controlling the drive and motor by streaming serial commands from a host PC or PLC, thus allowing the user to command all drive functions from the host software application.
Multiple axis applications are handled by our SiNet™ Hub multi-axis controllers and the SiNet Hub Programmer™ software application, which give users the ability to control up to 8 drives from a single program. You can also use our MMI operator interface to allow machine operators to enter specific motion parameters.
Factory set for 110 VAC operation, the Si3540 can be set by the user for 220 VAC operation with a single switch. Pluggable screw terminal blocks are provided for I/O, motor, and AC power connections. Mating connectors, programming cable, and software are provided with each drive.
Si Programmer™ compatible indexer/drive
AC input 110V or 220V switch selectable, 50-60 Hz
DC bus voltage 35 VDC full load, 40 VDC nominal
Software selectable motor current from 0.2-3.5 amps/phase
Software selectable microstep resolution and idle current reduction
Eight optically isolated digital inputs
Four optically isolated digital outputs
RS-232 for PC/MMI communications
Pluggable screw terminal connectors
Dual MOSFET H-bridge, 3 state, pulse width modulated amplifier switching at 20-30 kHz
Ideal for 4, 6 or 8 leaded step motors NEMA sizes 11, 14, 17 and 23
Optional operator interface (MMI) allows users to enter specific motion parameters
SCL mode for streaming serial commands from host controller

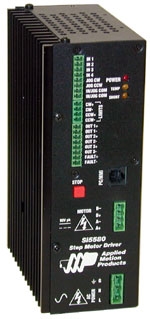

Si5580: AC Microstep Drive w/ Si Programming
The Si5580 is a programmable stepper drive/indexer packaged in a rugged steel case. Integral heat sink, mounting brackets, and mating connectors are included with each drive. The Si5580 is recommended for use with NEMA 23 and 34 frame step motors and comes with all operating software necessary to create a complete stepper motion solution.
The Si5580 includes our Si Programmer™ software for quick set up and easy programming. Si programming is ideal for stand-alone operation. For more experienced users with software development expertise, the Si5580 also operates in SCL mode, which permits controlling the drive and motor by streaming serial commands from a host PC or PLC, thus allowing the user to command all drive functions from the host software application.
Multiple axis applications are handled by our SiNet™ Hub multi-axis controllers and the SiNet Hub Programmer™ software application, which give users the ability to control up to 8 drives from a single program. You can also use our MMI operator interface to allow machine operators to enter specific motion parameters.
Factory set for 110 VAC operation, the Si5580 can be set by the user for 220 VAC operation with a single switch. Pluggable screw terminal blocks are provided for I/O, motor, and AC power connections. Mating connectors, programming cable, and software are provided with each drive. The drive is protected from over-temperature conditions as well as motor overcurrent and short circuit conditions.
Si Programmer™ compatible indexer/drive
AC input 110V or 220V switch selectable, 50-60 Hz
DC bus voltage 75 VDC full load, 80 VDC nominal
Software selectable motor current from 0.5-5.5 amps/phase
Software selectable microstep resolution and idle current reduction
Eight optically isolated digital inputs
Four optically isolated digital outputs
RS-232 for PC/MMI communications
Pluggable screw terminal connectors
Dual MOSFET H-bridge, 3 state, pulse width modulated amplifier switching at 20-30 kHz
Ideal for 4, 6 or 8 leaded step motors NEMA sizes 23 and 34
Over-temperature and over-current/short circuit protection
Optional operator interface (MMI) allows users to enter specific motion parameters
SCL mode for streaming serial commands from host controller
Model No.: Si2035, Si3540, Si5580
