Cyclone: hand wheel encoder SM60-N-0100BL-2
Cyclone: hand wheel encoder SM60-N-0100BL-2



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Days
Order #: SM60-N-0100BL-2
Qty:

Description Ordering Information Specifications and Drawings


Hand wheel encoder SM60-N-0100BL-2

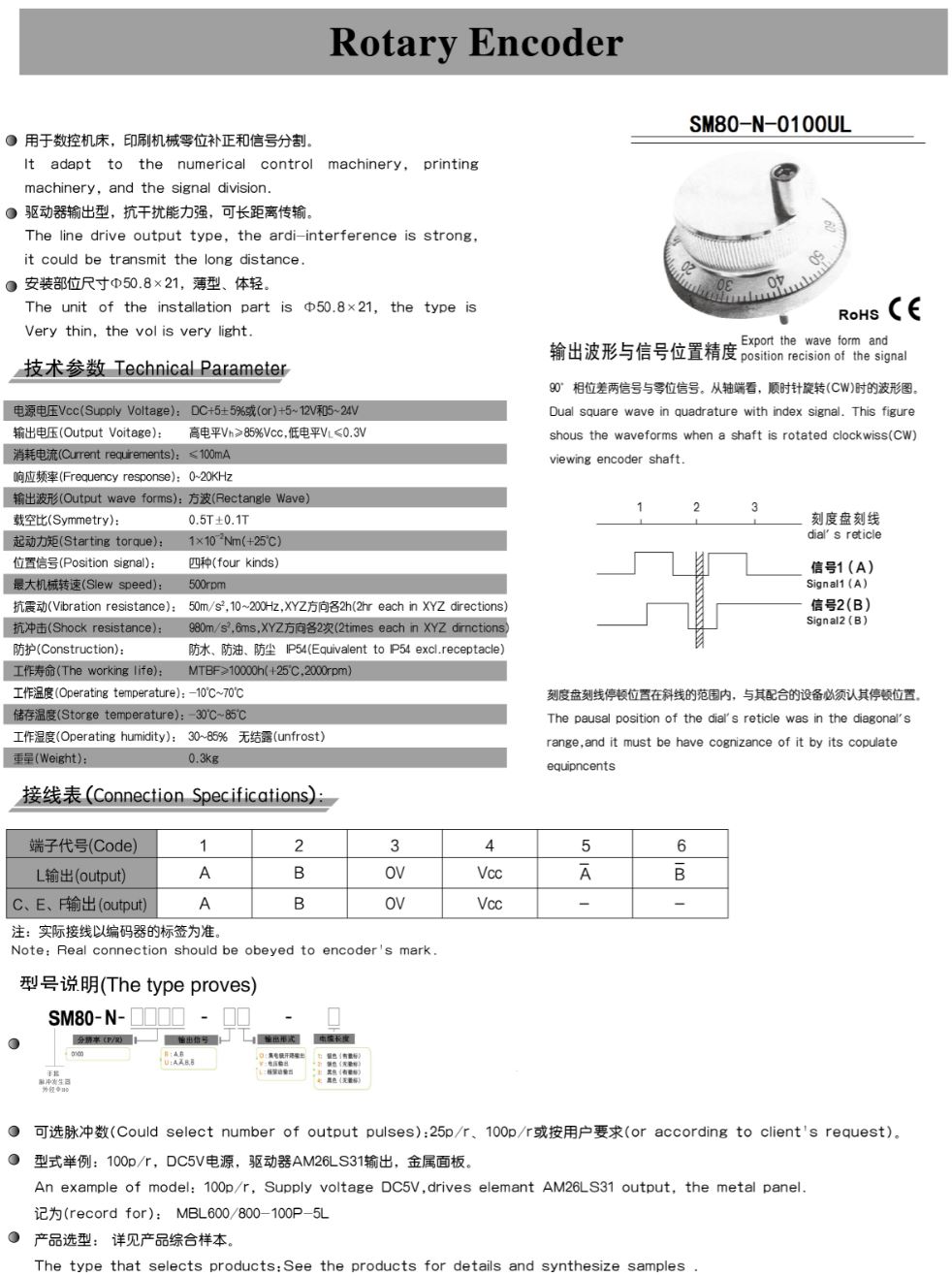

Specifications

Feature:

* Handheld remote control part: resolution 100P/R
* Supply voltage DC5V
* Line Driver output - L
* Can be equipped with a variety of numerical control system, for example, FANUC, Siemens, etc

Application:

Widely used in CNC machine tools signal segmentation and zero point correction.

Models:SM80-N-0100UL-2,SM60-N-0100UL-2,SM80-N-0100BO-2,SM60-N-0100BO-2,SM80-N-0100BV-2,SM60-N-0100BV-2,SM80-N-0100BL-2,SM60-N-0100BL-2


Note：
Mecapion sold to LS Electrical,the handheld remote control part discontinued, here is replacement service,we keep same Model,same sizing,same function as Mecapion brand ,we offer customer's logo lable ,without Brand LOGO is standard.
