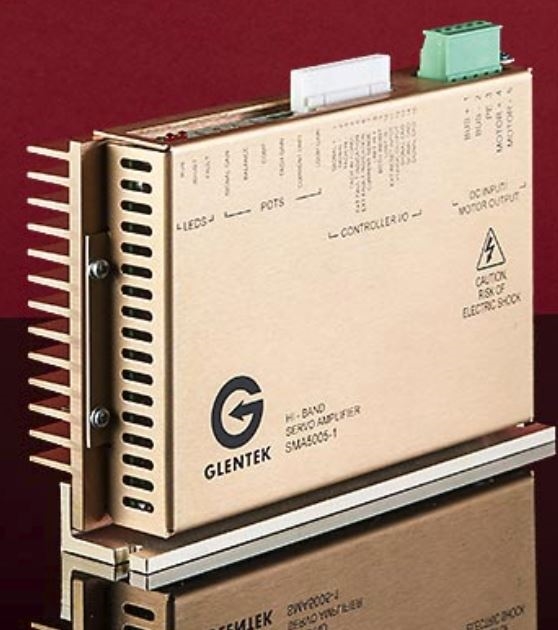

Glentek:4-axis Analog Linear Brush Drive,SMA5005-4A-4
Glentek:4-axis Analog Linear Brush Drive,SMA5005-4A-4

Alternate View



Price: (Members Only)


Order #: SMA5005-4A-4
Qty:

Description Ordering Information Specifications and Drawings

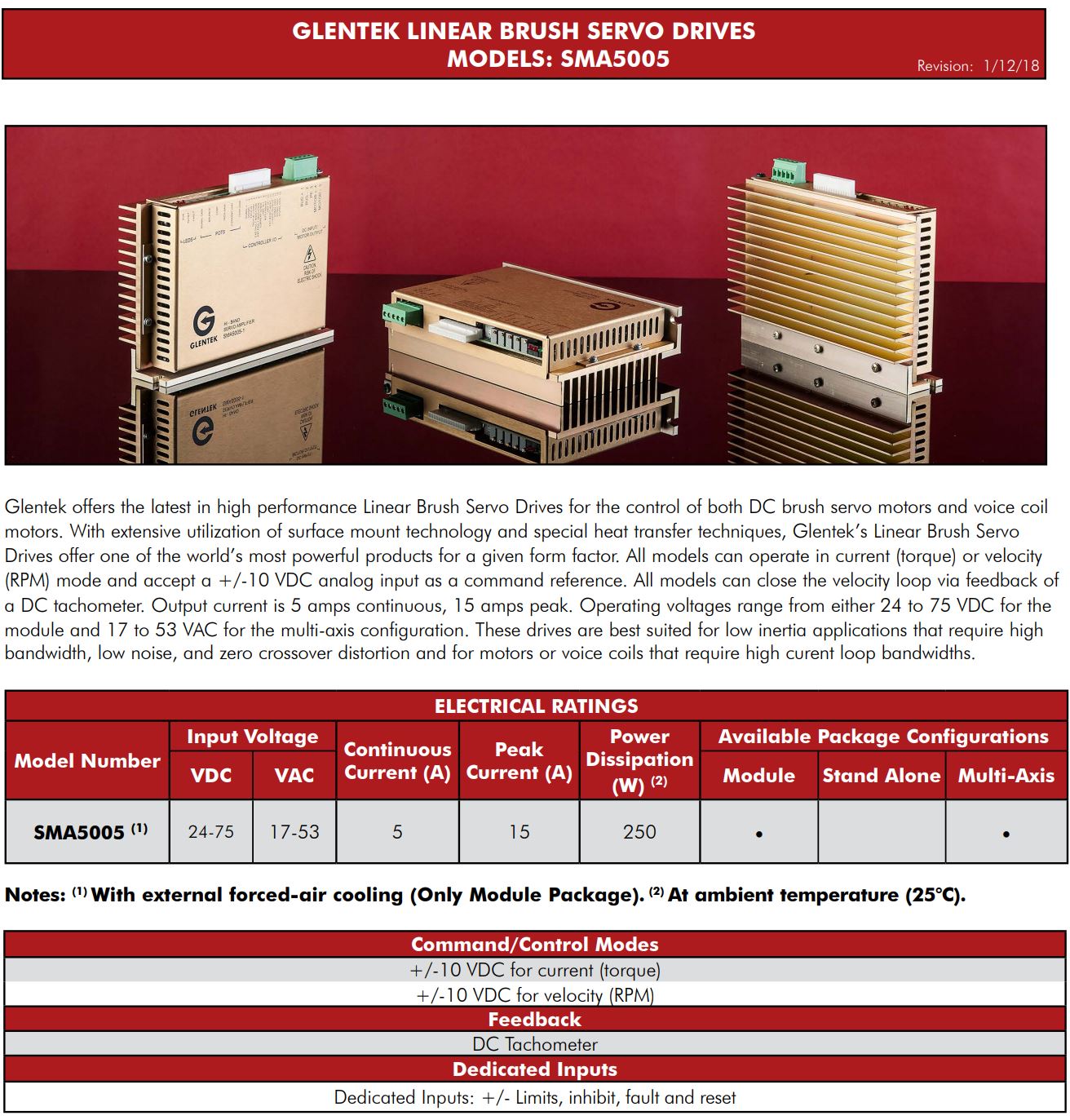

The SMA5005 Linear Brush Servo Drive in the Multi-Axis package configuration operates from 17-53 VAC and can output up to 5 A of continuous current. All models can operate in current (torque) or velocity (RPM) mode and accept a +/-10 VDC analog input as a command reference. All models can close the velocity loop via feedback of a DC tachometer. These drives are best suited for low inertia applications that require high bandwidth, low noise, and zero crossover distortion and for motors or voice coils that require high curent loop bandwidths.

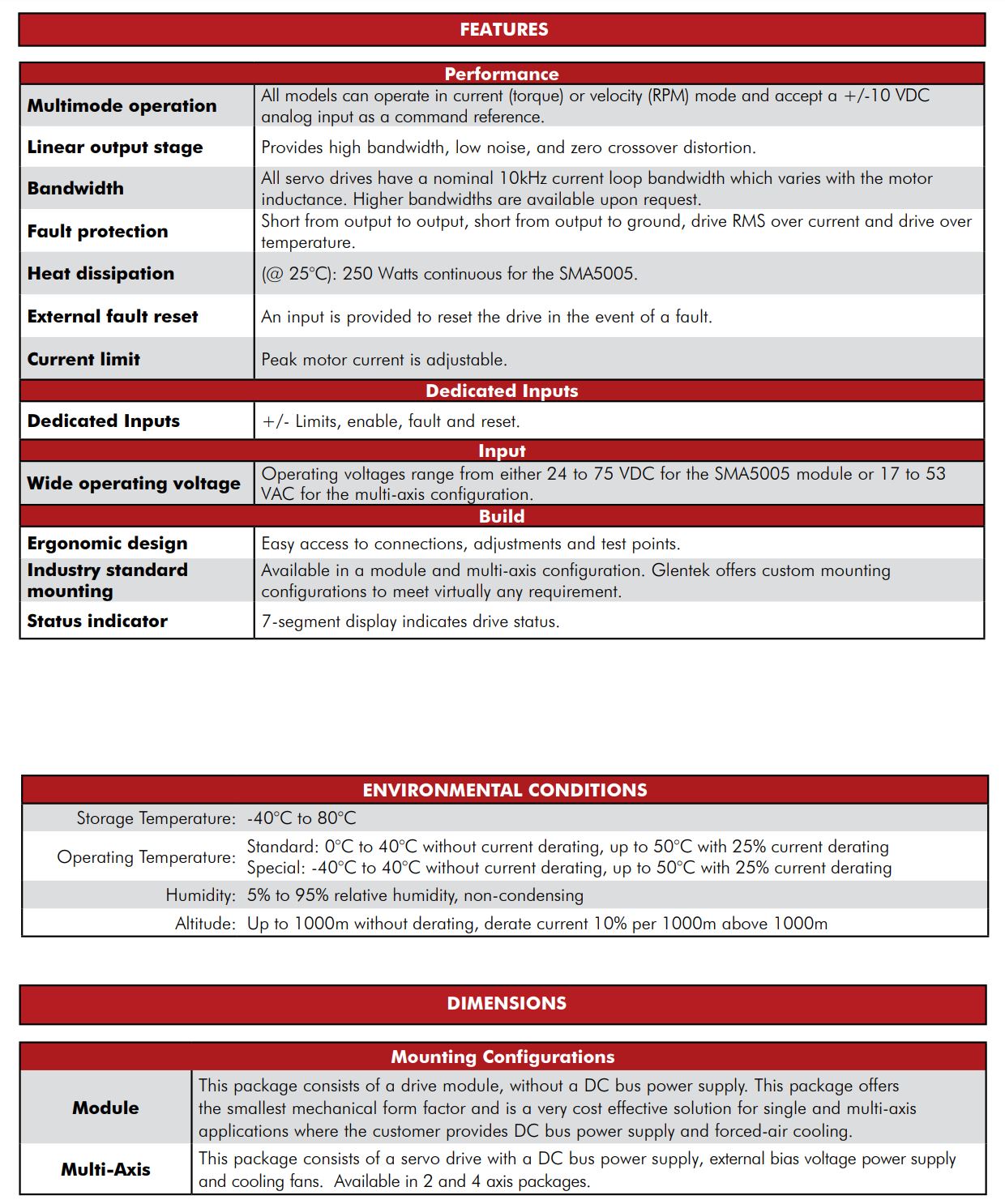

Modes of Control:+/-10 VDC for current (torque) or velocity (RPM)

Feedback Devices: Analog tachometer

Current Loop Bandwidth: 10 kHz nominal, varies with the motor inductance

Input Voltage Range: +/-24 to +/-75 bipolar VDC, 17-53 VAC, and 17-39 VAC from transformer with center tap

Note:Add or reduce function options,price no change.Please add the model detail in the description lines when you place an order.
