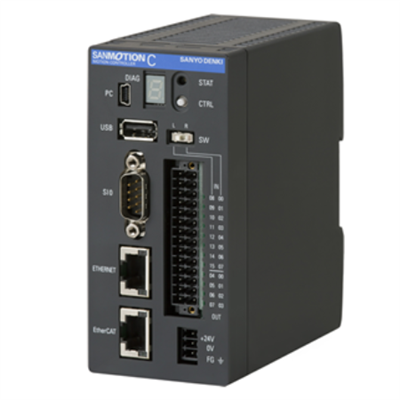

Sanyo Denki: Motion Controller SANMOTION C
S100 SMC100
Ultra-compact SANMOTION C motion controllers featuring
high-speed EtherCAT fieldbus are available in a high-performance type for
controlling robots and a standard type that specializes in PTP (Point-to-Point)
positioning. They are suitable for motion control applications such as robots,
conveying machines, and semiconductor manufacturing equipment.
Compact Motion Controllers

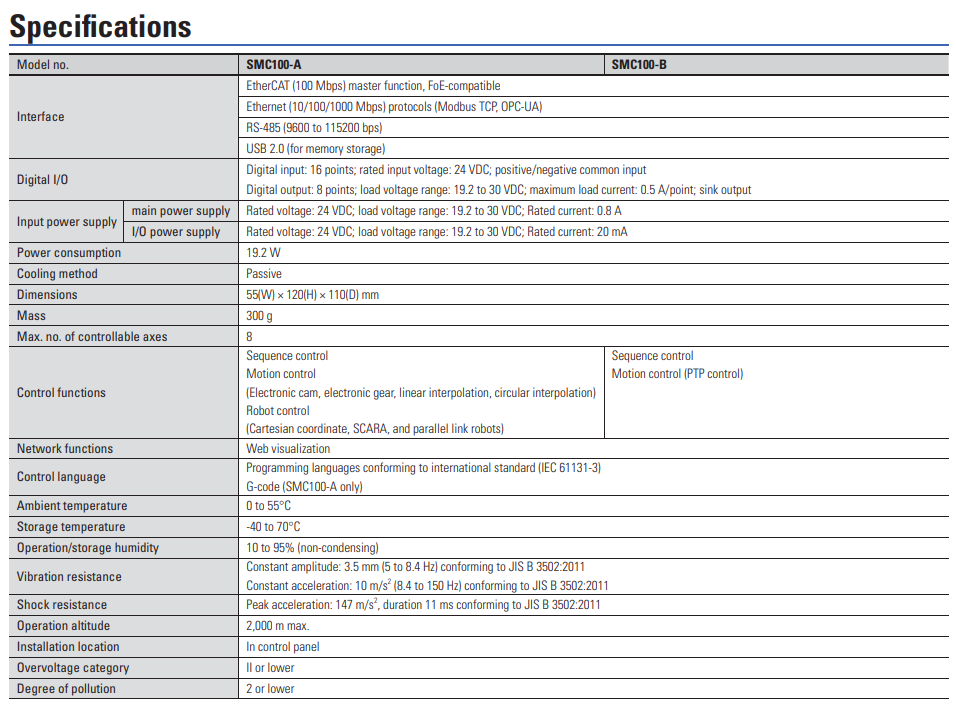

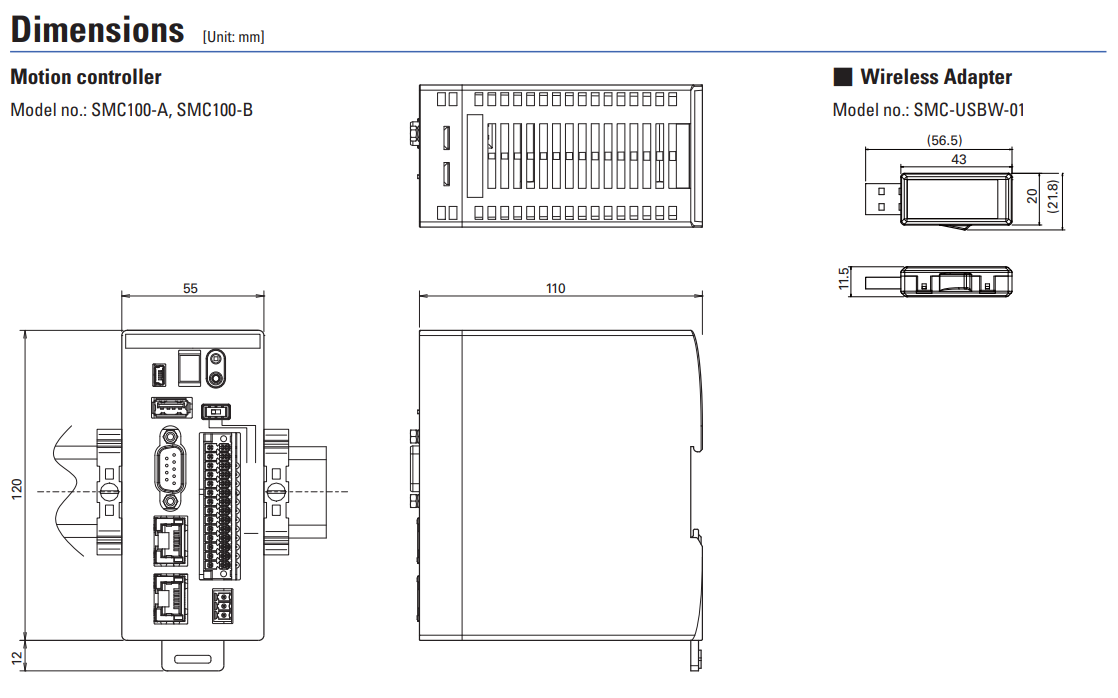

These ultra-compact motion controllers measure only 120 mm (H)
× 55 mm (W) × 110 mm (D).
Their small footprint design supports space saving and cost reduction.
Flexible System Configuration

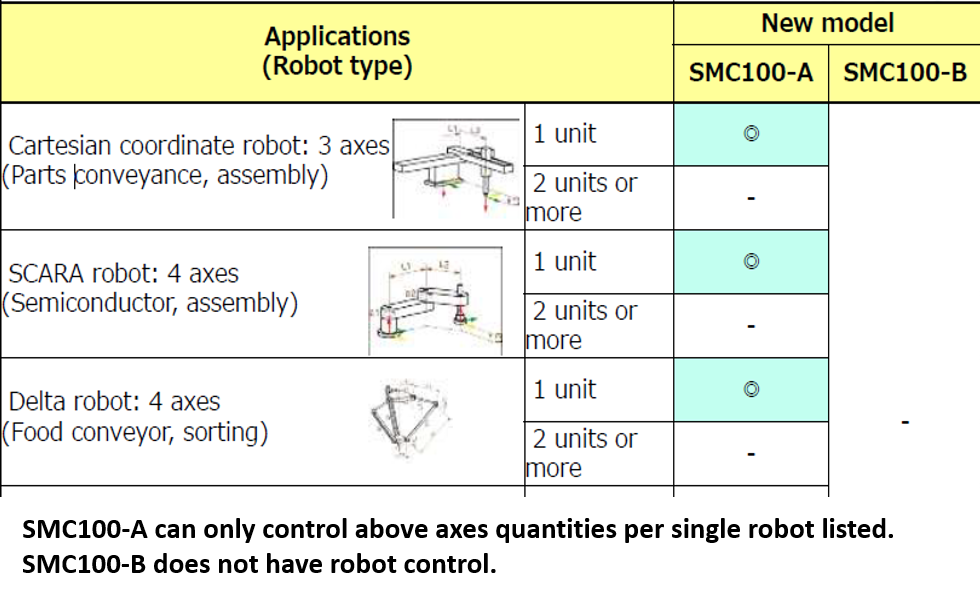

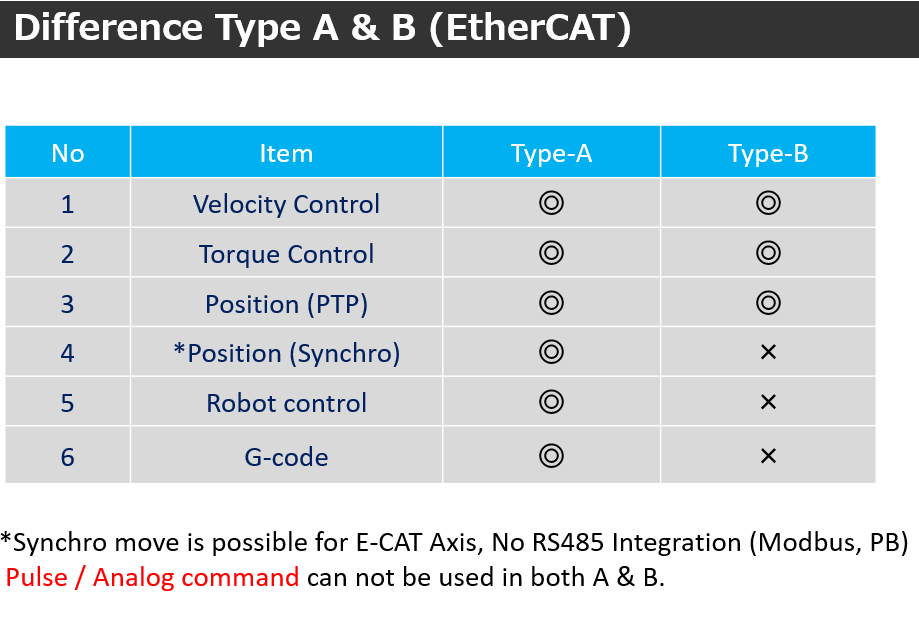

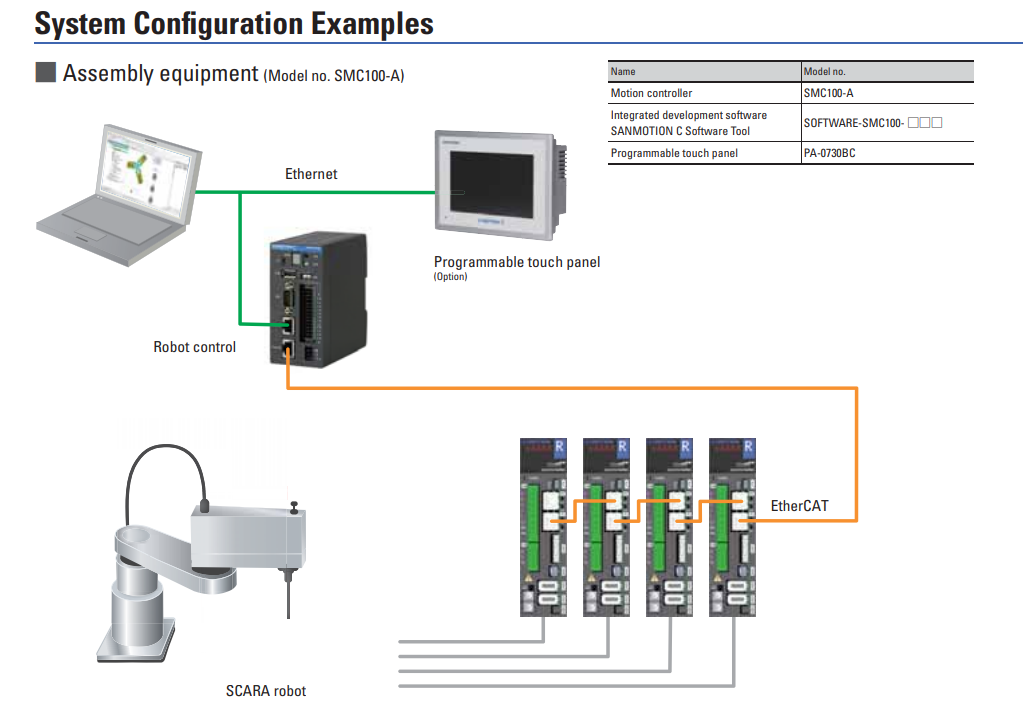

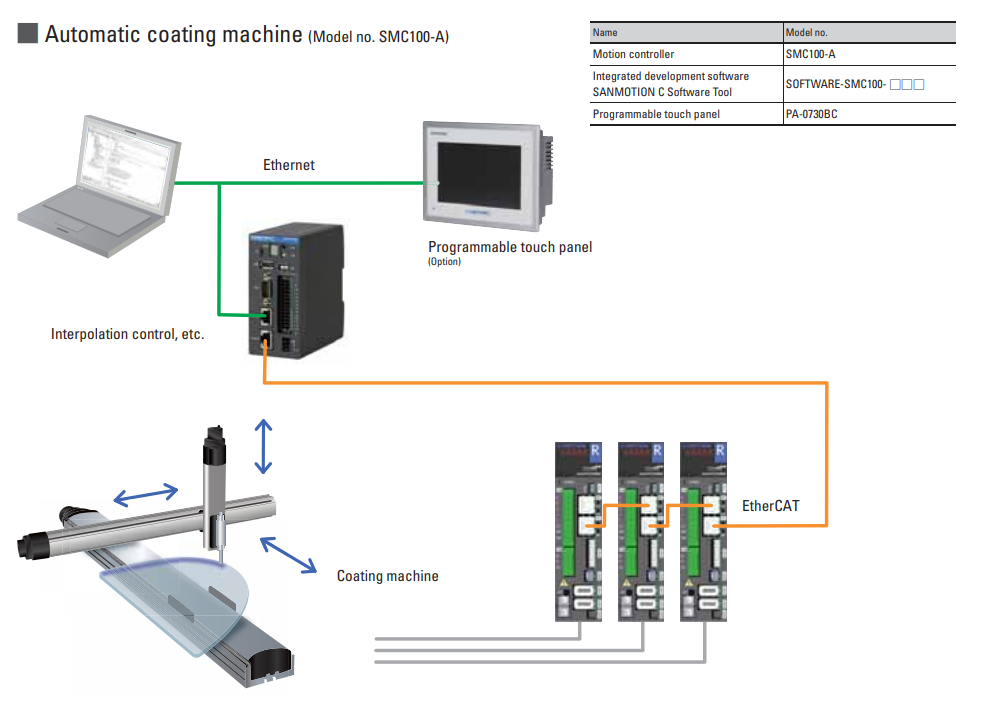

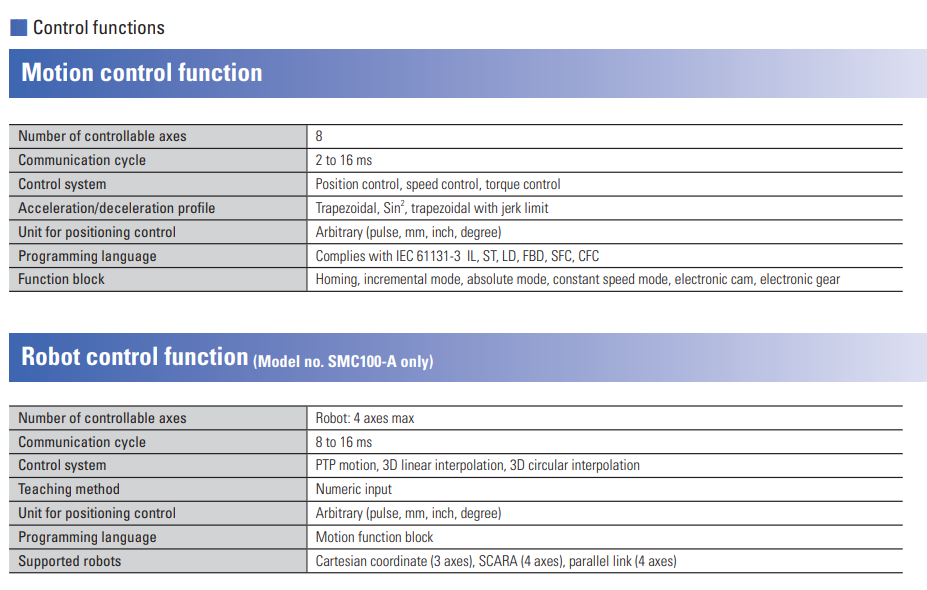

The new lineup features two types: an A type which can control

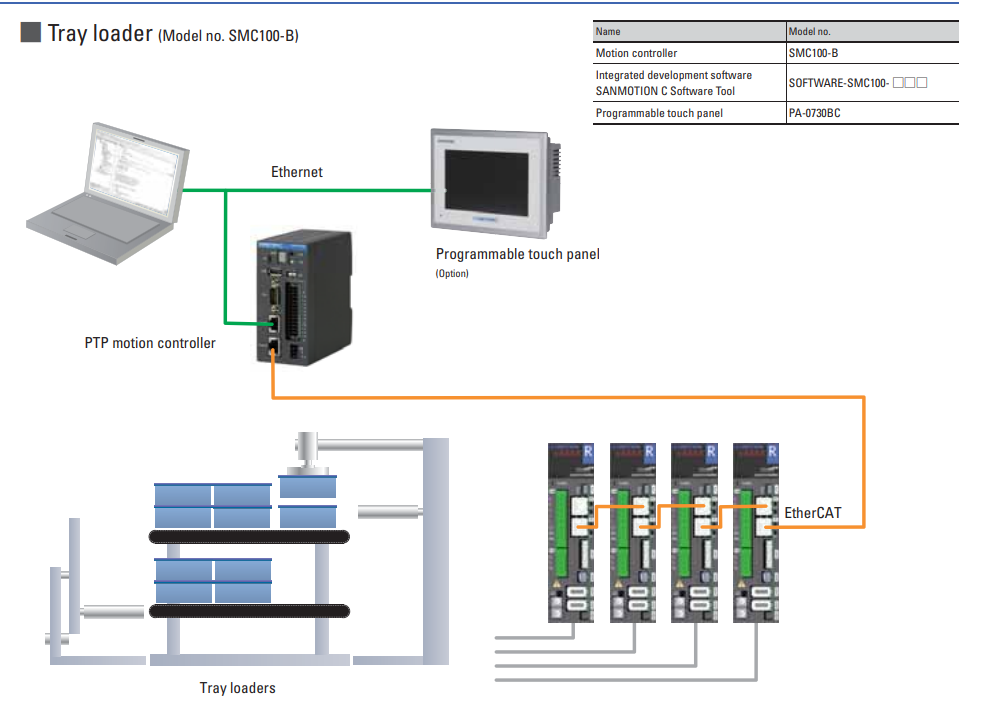

robots and electronic cams, and a B type which specializes in PTP motion.
It is possible to control I/O signals while performing complex multi-axis
motion and robot control. This enables flexible system configurations for a
variety of applications and functions.
IoT-enabled (1)

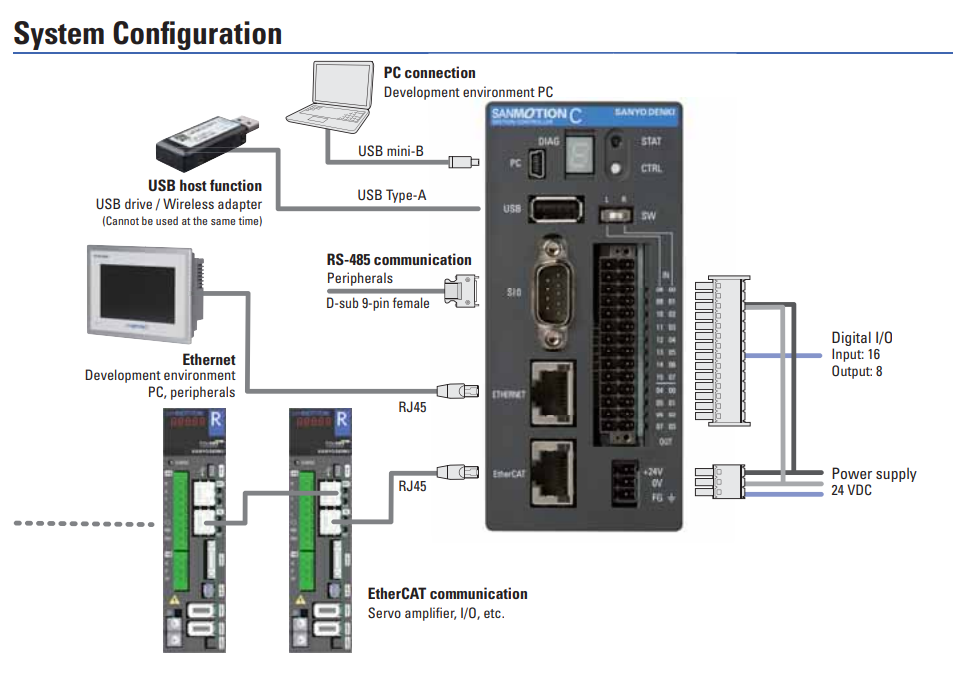

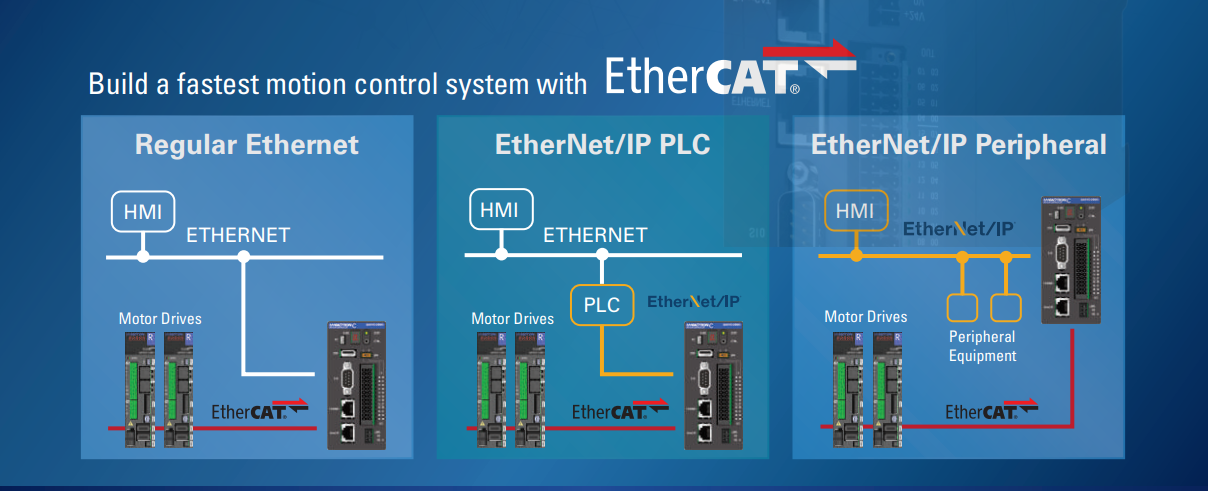

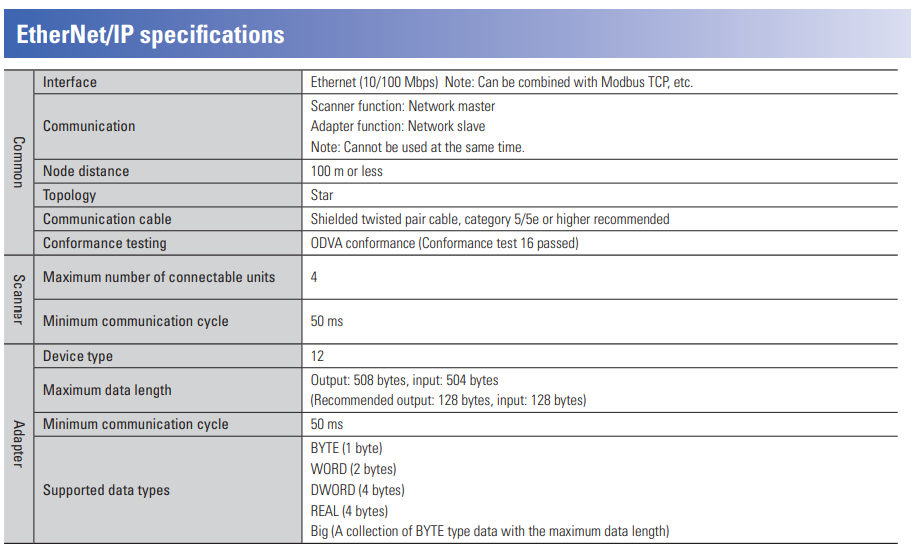

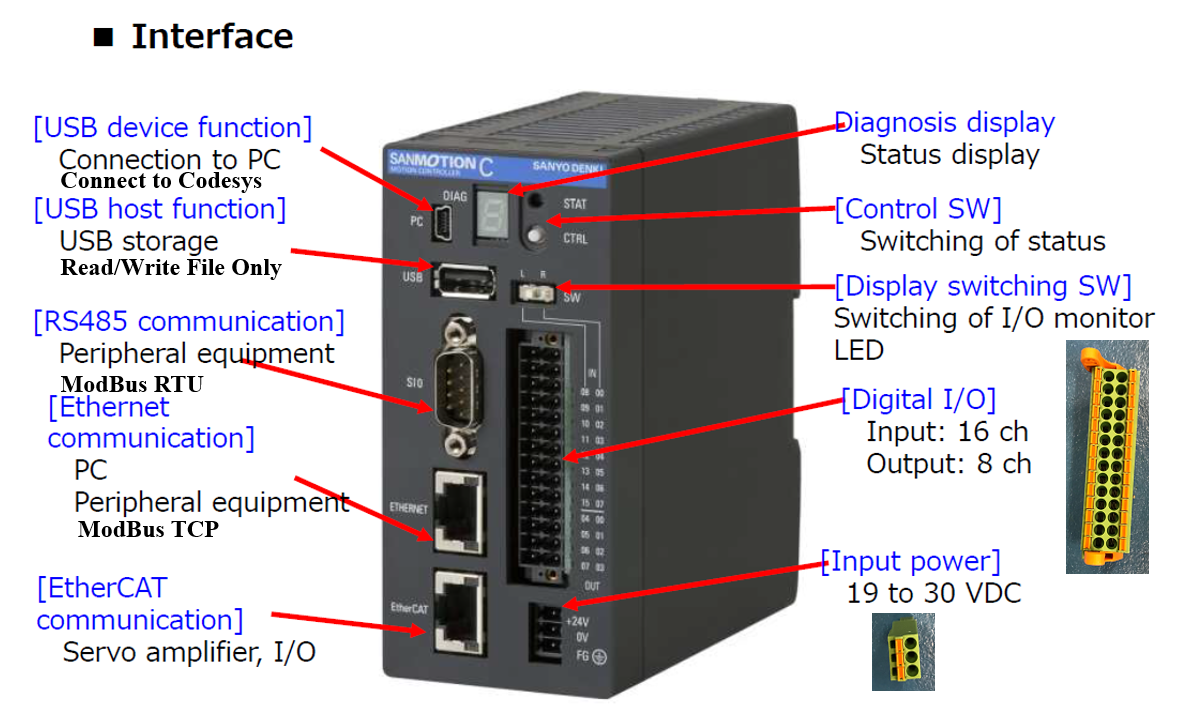

Ethernet, RS-485, and USB interfaces for connecting to various
peripherals come standard. It is also possible to use Modbus TCP over Ethernet.
The new models also conform to machine-to-machine (M2M) communication standard
OPC-UA
(2) to
seamlessly connect to various devices.

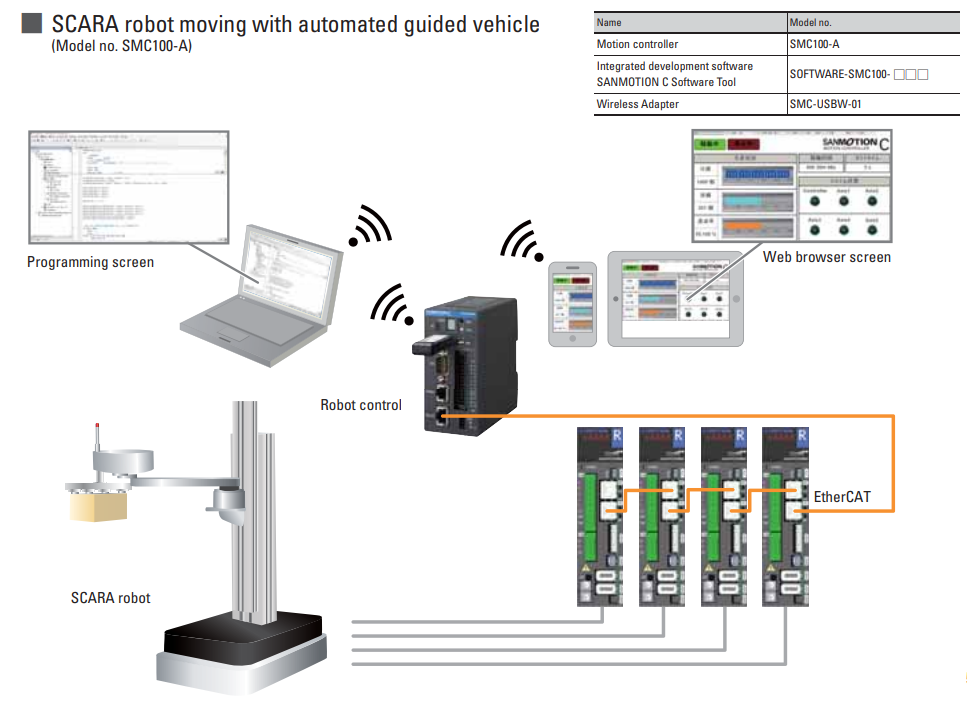

In addition, with the web server function, it is possible to monitor the
operational status, and read and write program variables using a standard web
browser on any PC. These models make it simple to integrate IoT technology into
any system.
(1) Internet of things: A system that connects electronic
devices to a network so that they can communicate, interact, and be mutually
controlled.
(2) Object Linking and Embedding for Process Control - Unified Architecture:
Data interoperability standard.

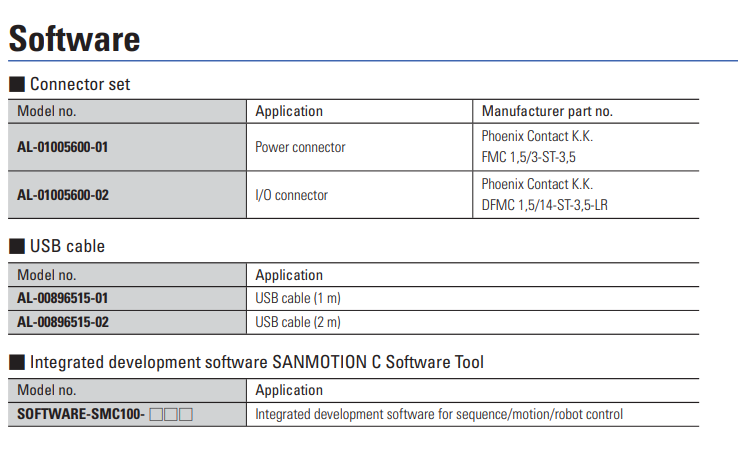

*The following items will be required when ordering the above controllers.
Connector (required 1): AL-01005600-01
Description: Power input connector
Connector (required 1): AL-01005600-02
Description: I/O connector

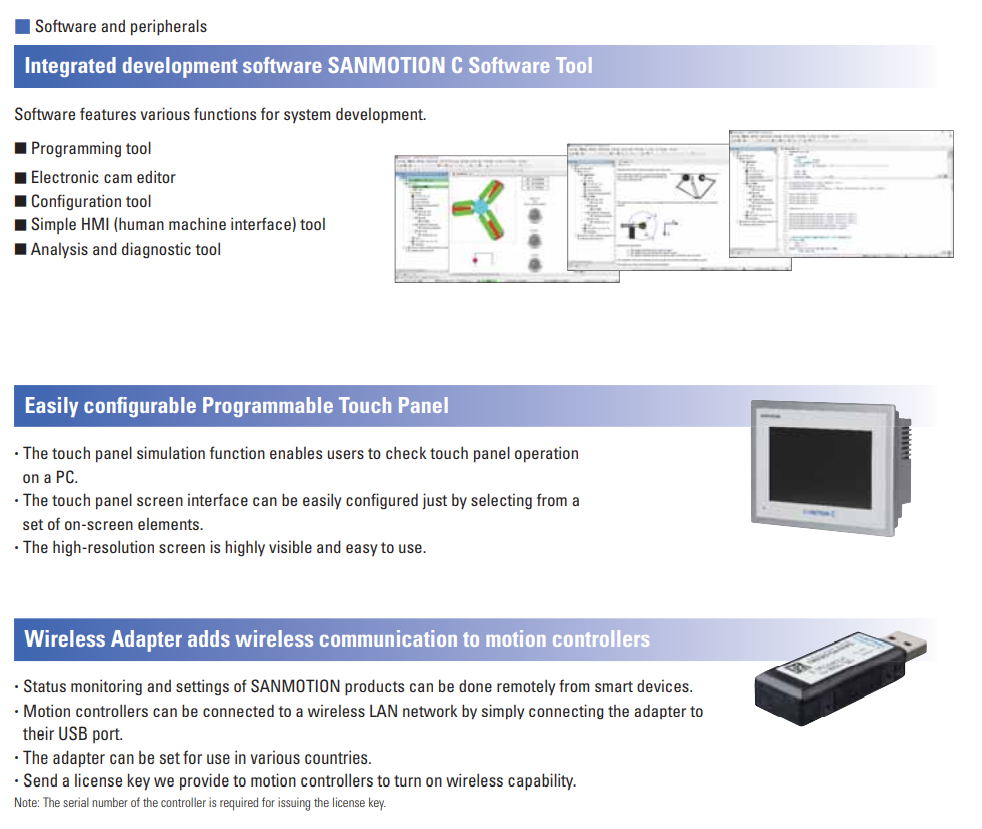

P/N: SOFTWARE-SMC100-111
Description: Software for SMC100 controller (for both -A and -B)
