MYCOM: Motion Controllers (SNC240/SNC440 Series)
MYCOM: Motion Controllers (SNC240/SNC440 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: SNC240-SNC440


Model No.:


.

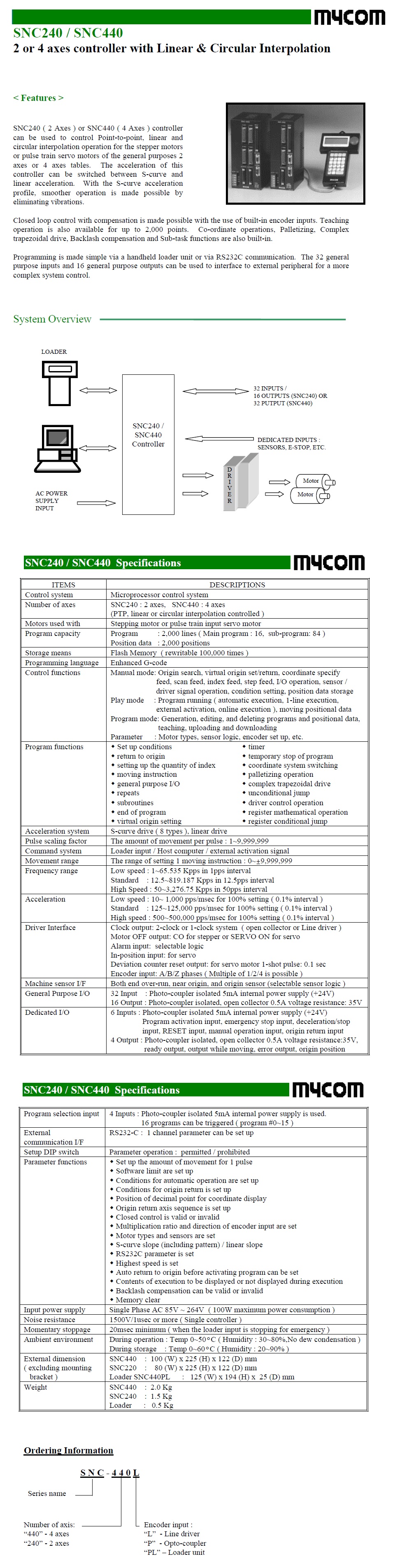

Description Specifications and Drawings


MYCOM: Controller Circular w/ Interpolation (SNC240/SNC440 Series)


SNC240 (2 Axes) or SNC440 (4 Axes) controller can be used to control Point-to-point, linear and circular interpolation operation for the stepper motors or pulse train servo motors of the general purposes 2 axes or 4 axes tables. The acceleration of this controller can be switched between S-curve and linear acceleration. With the S-curve acceleration profile, smoother operation is made possible by eliminating vibrations.


Closed loop control with compensation is made possible with the use of built-in encoder inputs. Teaching operation is also available for up to 2,000 points. Co-ordinate operations, Palletizing, Complex trapezoidal drive, Backlash compensation and Sub-task functions are also built-in.


Programming is made simple via a handheld loader unit or via RS232C communication. The 32 general purpose inputs and 16 general purpose outputs can be used to interface to external peripheral for a more complex system control.

Features:

  • Standalone

  • Multi-tasking

  • PTP, Linear & Circular Interpolation


Model No.: SNC240, SNC440
