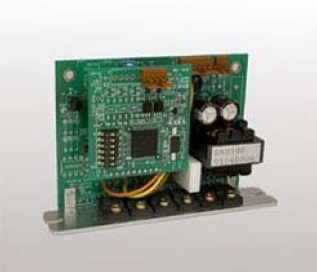

MYCOM: Stepper Drive (SND100 Series)
MYCOM: Stepper Drive (SND100 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)

Quantity in Stock:3

Order #: SND100-220L
.

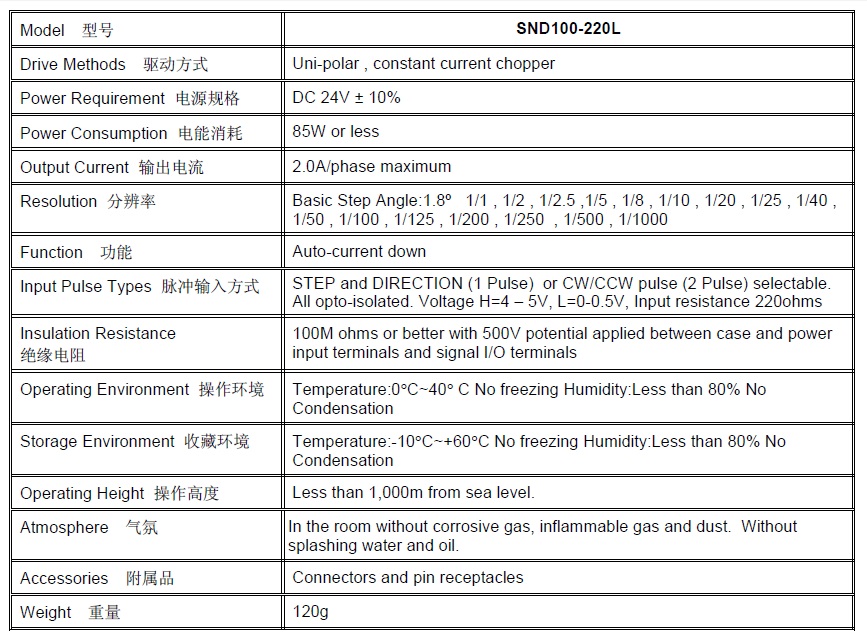

Description Specifications and Drawings


MYCOM: NanoDrive (SND100 Series)

2 Phase, DC Type NanoDrive Stepping Driver Units

Features:

  • Maximum resolution; 1/200,000 per revolution

  • Minimum step angle; 0.0018 degree (at 1/1000 division)

  • Selectable 16 types resolutions ( Maximum 1/1000 division)

  • Same step angle with 5 phase stepping motor is driven economically depending on resolution

  • If 1mm pitch ball gear is used, each 5nm pitch control is available

  • Even if inching feed (jogging), follow-up control is available

  • Peculiar vibration of stepping motor is depressed and driving of very low vibration is available

  • There is no torque reduction when nano driving

  • Control module and power module are individually salable for great quantity

  • Lower cost than half of conventional one

  • CE Approved

  • Dimensions (mm): 106 x 67 x 26.6
