AMP: DC Advanced Microstep Drive w/Q Programming (ST10-Plus Series) 24-80 VDC

Step Motor Drives

Step motor drives from Applied Motion Products offer unparalleled performance for today's modern machine builders. From the ground up these drives offer best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options, and industry-standard industrial network communications.

ST10-Plus: DC Advanced Microstep Drive w/ Q Programming

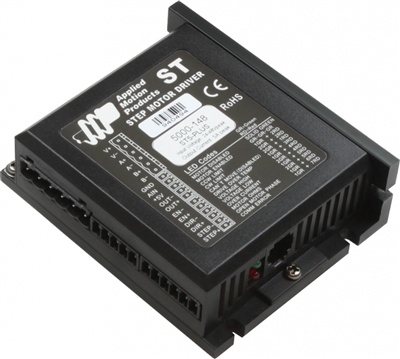

The ST10-Plus stepper drive is a DC-powered microstepping drive for controlling two-phase, bipolar step motors. It offers advanced current control and a sophisticated 3rd generation anti-resonance algorithm that electronically dampens motor and system resonances to improve motor smoothness and usable torque over a wide speed range. The drive also employs electronic torque ripple smoothing and microstep emulation to greatly reduce motor noise and vibration. The drive must be powered from 24-80 VDC and can output up to 10.0 A/phase (peak-of-sine) to the step motor. Over-voltage, over-temperature and over-current protection features prevent damage while running in adverse conditions. The drive is complemented by a specifically matched set of NEMA 23 and NEMA 34 frame stepper motors (see Related and Recommended products below).

The ST10-Plus can operate in all of the same control modes as the S model (pulse & direction, velocity, streaming commands, SiNet Hub operation), plus it has the ability to run stand-alone Q programs stored in non-volatile memory. Q programs are created using the Q Programmer™ software, which provides multi-tasking, math functions, conditional processing, data register manipulation, and more features in a robust yet simple text-based programming language. The drive is setup and configured using Applied Motion’s ST Configurator™ software. Preconfigured motor setup files included with ST Configurator™ make it easy to set up the drive for optimum results.

For connecting to external devices such as step & direction control signals, incremental encoders, limit switches, proximity or photoelectric sensors, PLC I/O, lamps, and other devices, the drive comes with 3 digital inputs, 1 digital output, and 1 single-ended analog input. Adjustable digital filters are present on the digital inputs for enhanced reliability in noisy environments.

The drive comes with an RS-232 port for configuration, serial communications and programming.

All ST drives are CE approved and RoHS compliant.

Features:

  • Compact microstepping drive with advanced current control

  • Q Programmer™ for robust motion control programming

  • 744 lines of stored program capability

  • Math calculations using analog and digital parameters

  • Supports all “S” drive control modes as well

  • Wide current range 0.1 to 10.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • Microstepping and Microstep Emulation

  • 3 digital inputs, 1 digital output, optically isolated

  • 1 analog input, 0-5 volt range

  • RS-232 cable and mating connectors included
