Nanotec Electronic GmbH & Co KG

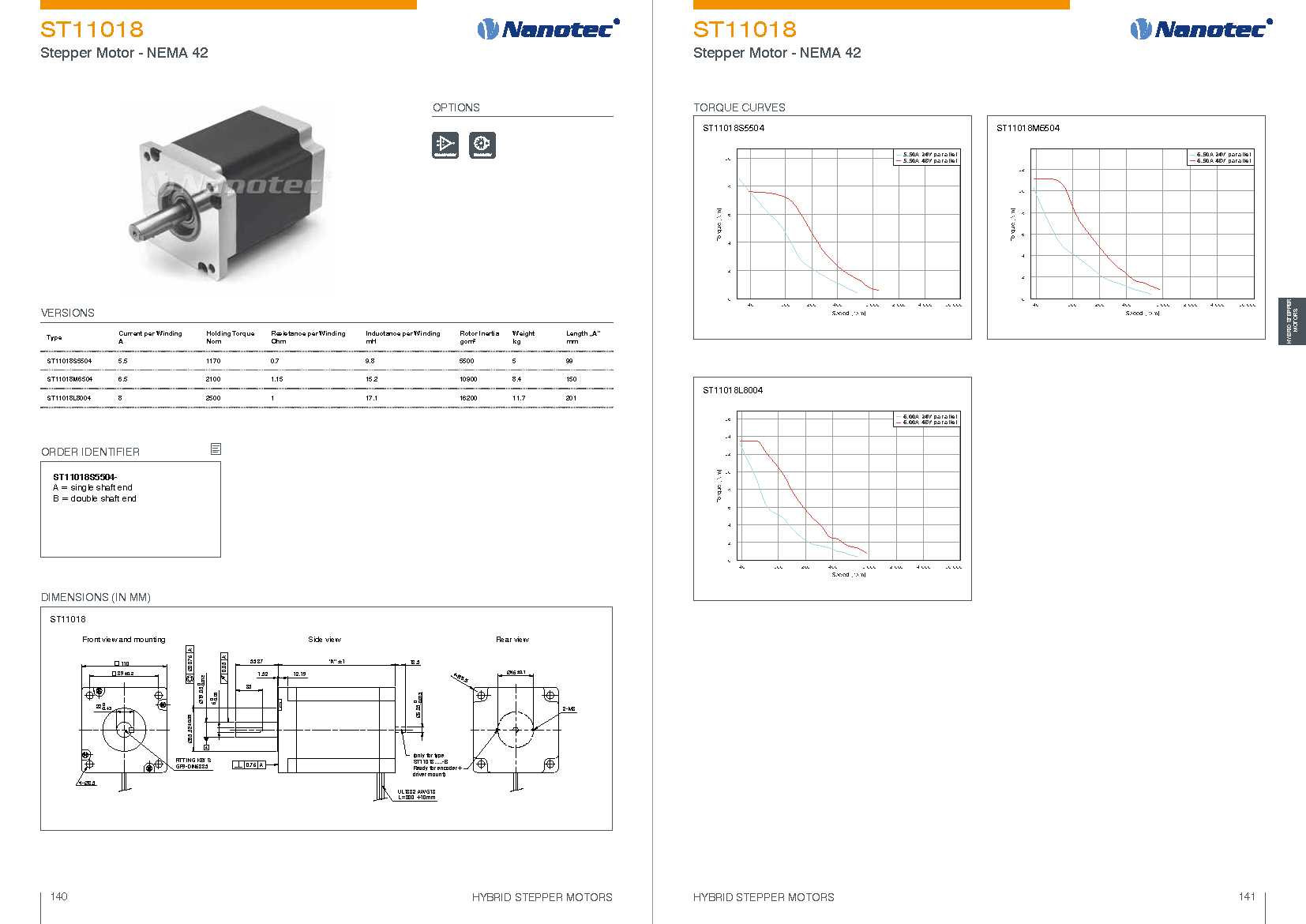

HYBRID STEPPER MOTOR – NEMA 42

Stepper motor with 110 mm flange, 1.8° step angle and 1,170–2,500 Ncm holding torque. Length: 99–201 mm.

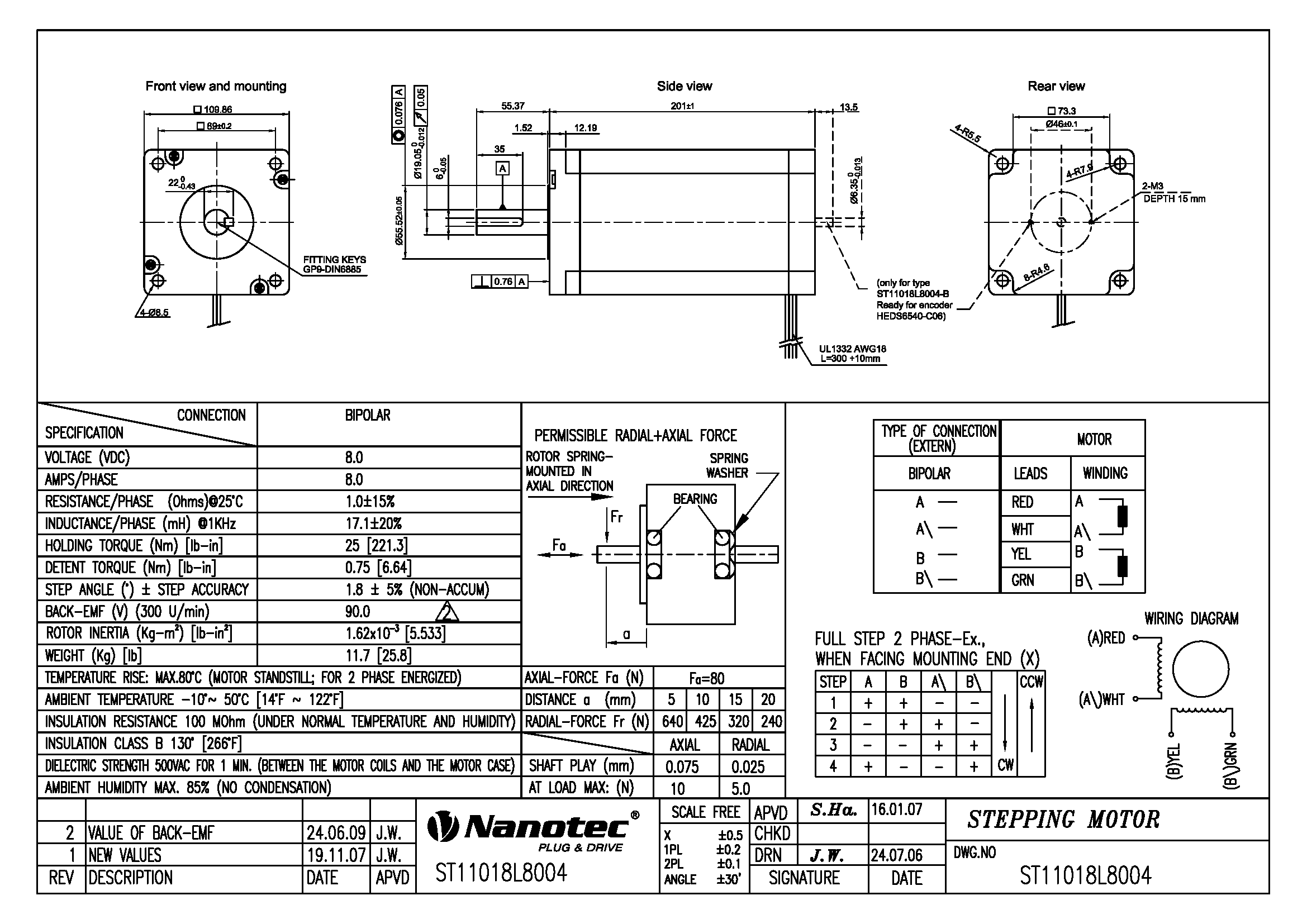

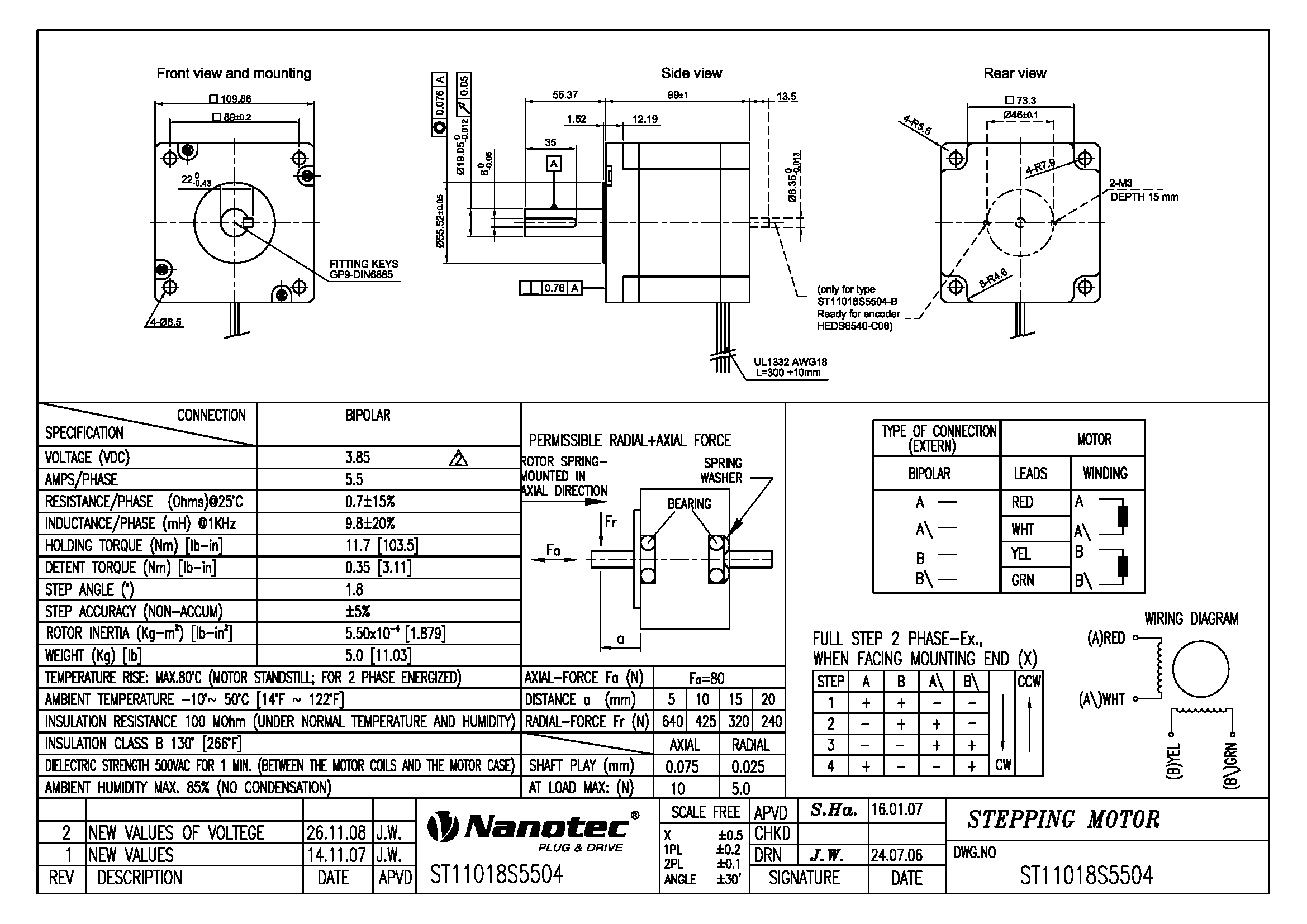

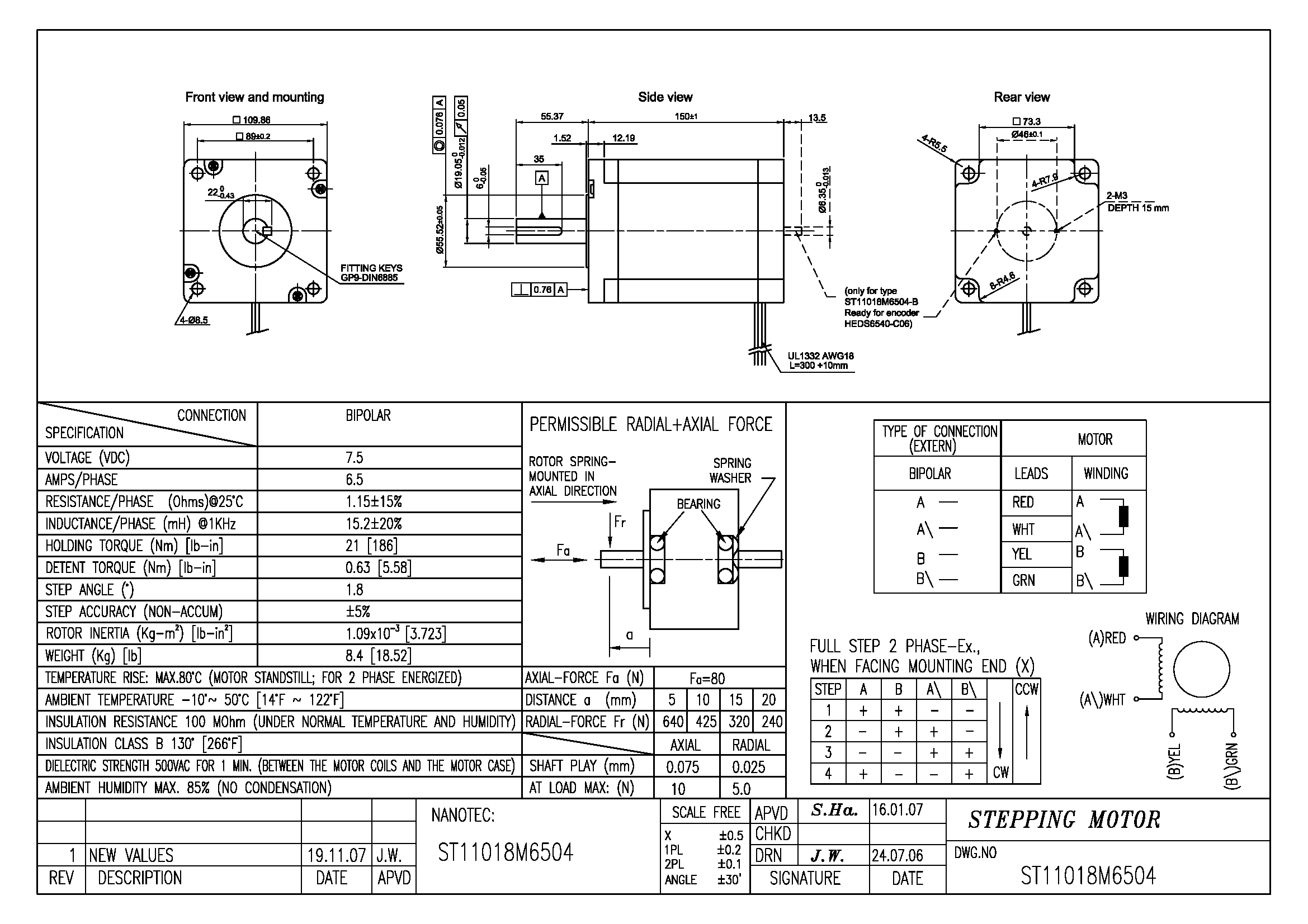

ST11018L8004-A, ST11018L8004-B, ST11018S5504-A, ST11018S5504-B, ST11018M6504-A, ST11018M6504-B, ST11018L8004-A, ST11018L8004-B

NEMA 42

Current per Winding - 5.5 A - 8 A

Length "A" - 3.9 in - 7.91 in

Size - 4.33 in

Holding Torque - 500.67 oz-in - 1702.29 oz-in

Weight - 23.4 kg
