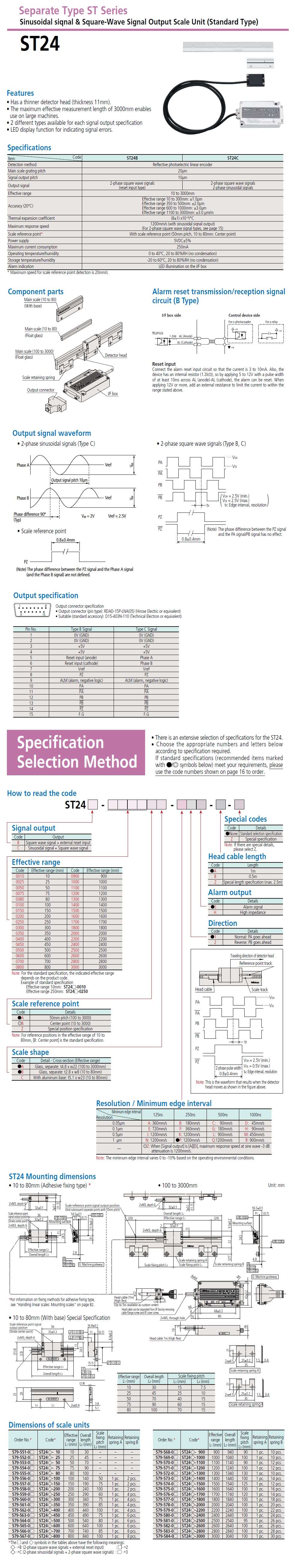

Description Specifications and Drawings

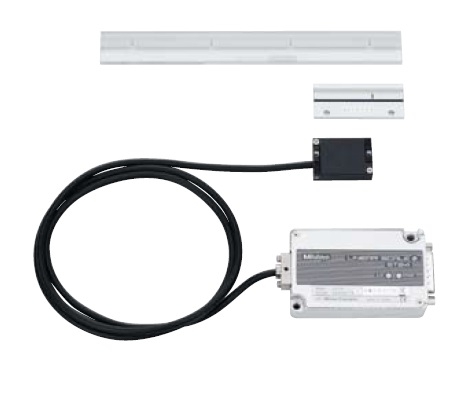

Mitutoyo: ST24 Linear Scales (579 Series) Standard Type

Features

  • Outputs 2-phase square and sinusoidal wave signals at 10μm pitch.

  • Has a thinner detector head (thickness 11mm).

  • The maximum effective measurement range of 3000mm enables use on large machines.

  • 2 different types available for each signal output specification.

  • LED display function for indicating signal errors.

Specifications

  • Detection method: Reflective photoelectric linear encoder

  • Output signal:

  • ST24B: 2-phase square wave signals, Alarm reset input

  • ST24C: 2-phase square wave signals, 2-phase sinusoidal signals

  • Main scale grating pitch: 20µm

  • Signal output pitch: 10µm

  • Effective range: 10 to 3000mm

  • Resolution: 0.01, 0.02, 0.05, 0.1µm

  • Accuracy (20°C)*1: ±1µm, ±2µm, ±3µm(/m)

  • Maximum response speed*2: 1200mm/s

  • Scale reference point: Center point (10 to 80mm). 50mm pitch (100 to 3000mm)

  • Power supply voltage: DC5V ±5%

  • Operating temperature/ humidity range: 0 to 40°C/ 20 to 80% (no condensation)

  • Storage temperature/ humidity range: –20 to 60°C/ 20 to 80% (no condensation)

  • Head cable length: 1m (high-flex connecting cable)

Model No.: ST24B, ST24C
