Nanotec: ST3518 – STEPPER MOTOR – NEMA 14
Nanotec: ST3518 – STEPPER MOTOR – NEMA 14



Price: (Members Only)

Quantity in Stock:2

Availability: Subject to availability
Order #: ST3518


Model No.:

Qty:

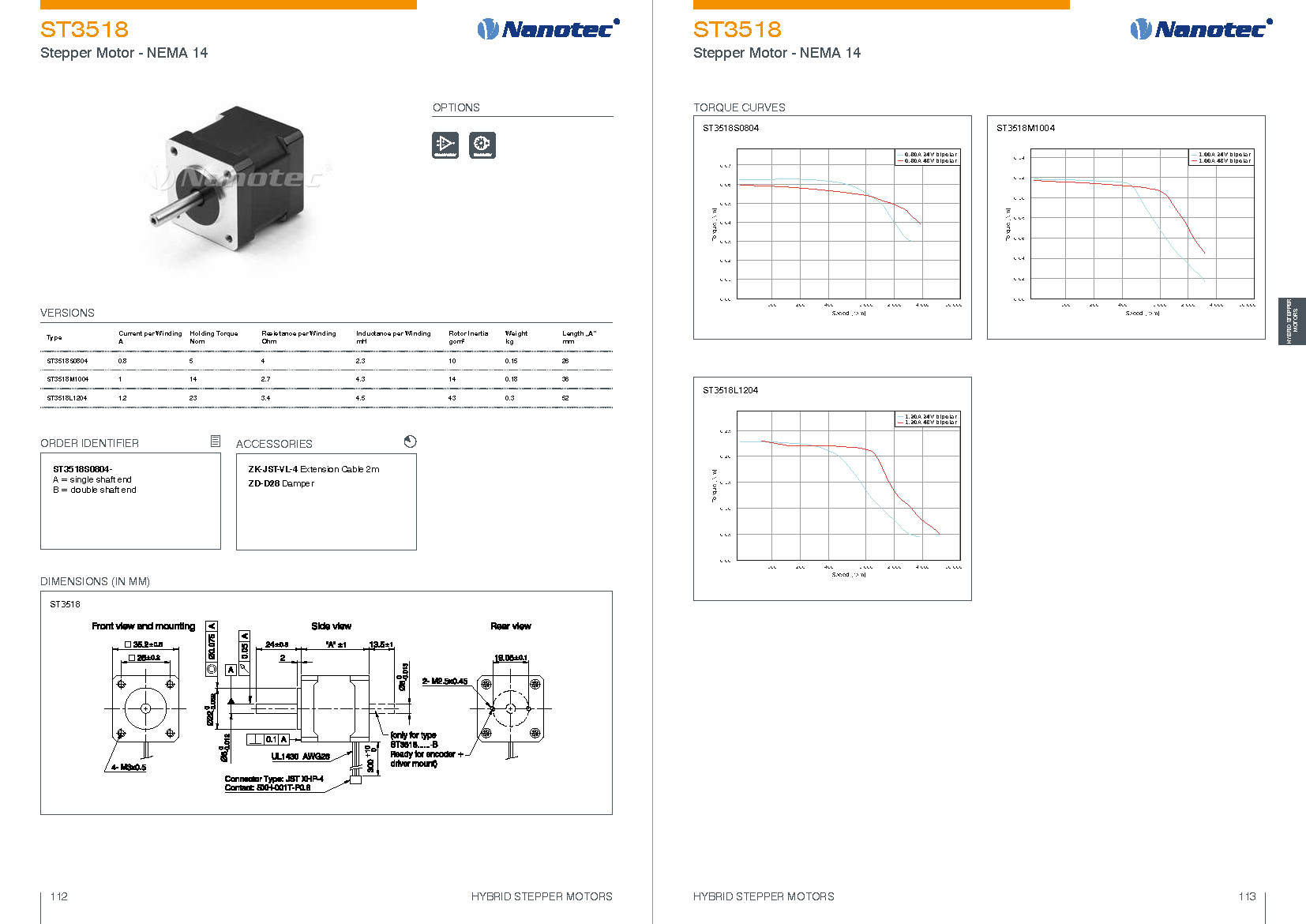

Description Specifications and Drawings


Nanotec Electronic GmbH & Co KG

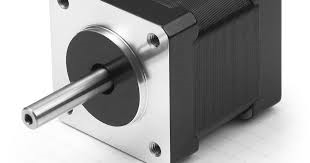

HYBRID STEPPER MOTOR – NEMA 14

High-torque stepper motor in size NEMA 14 (35 mm) with 1.8° step angle (full step). Available in three lengths.

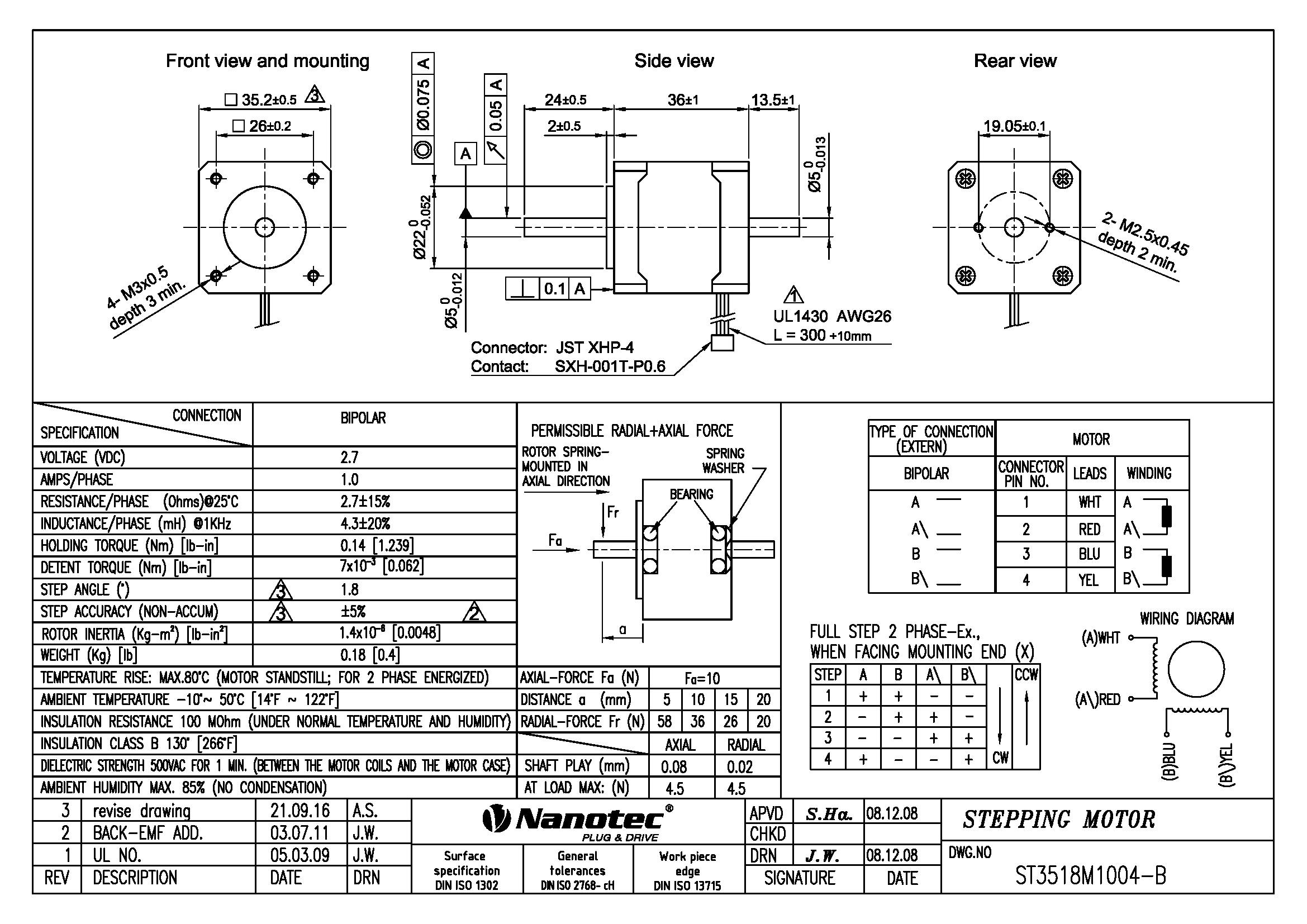

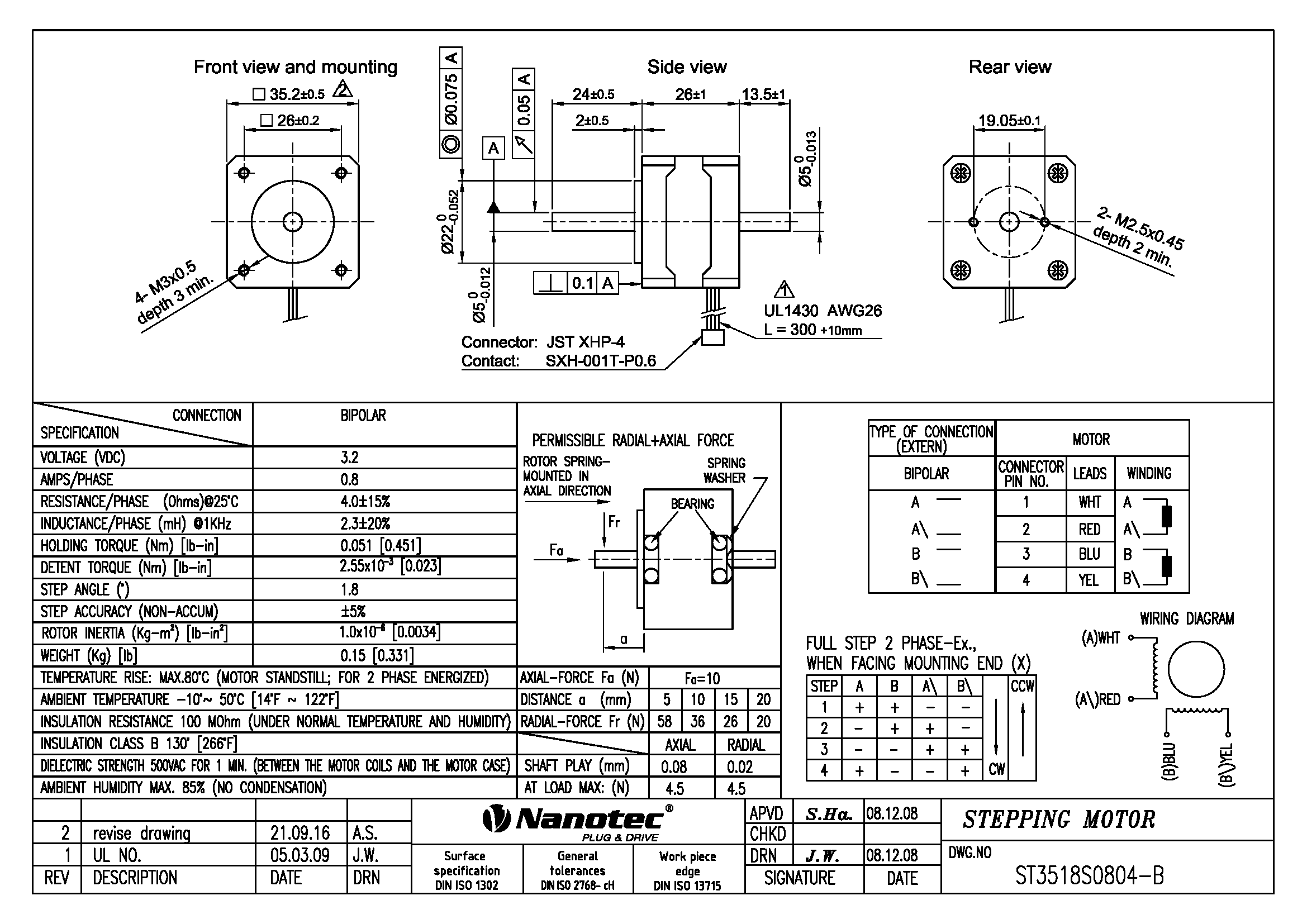

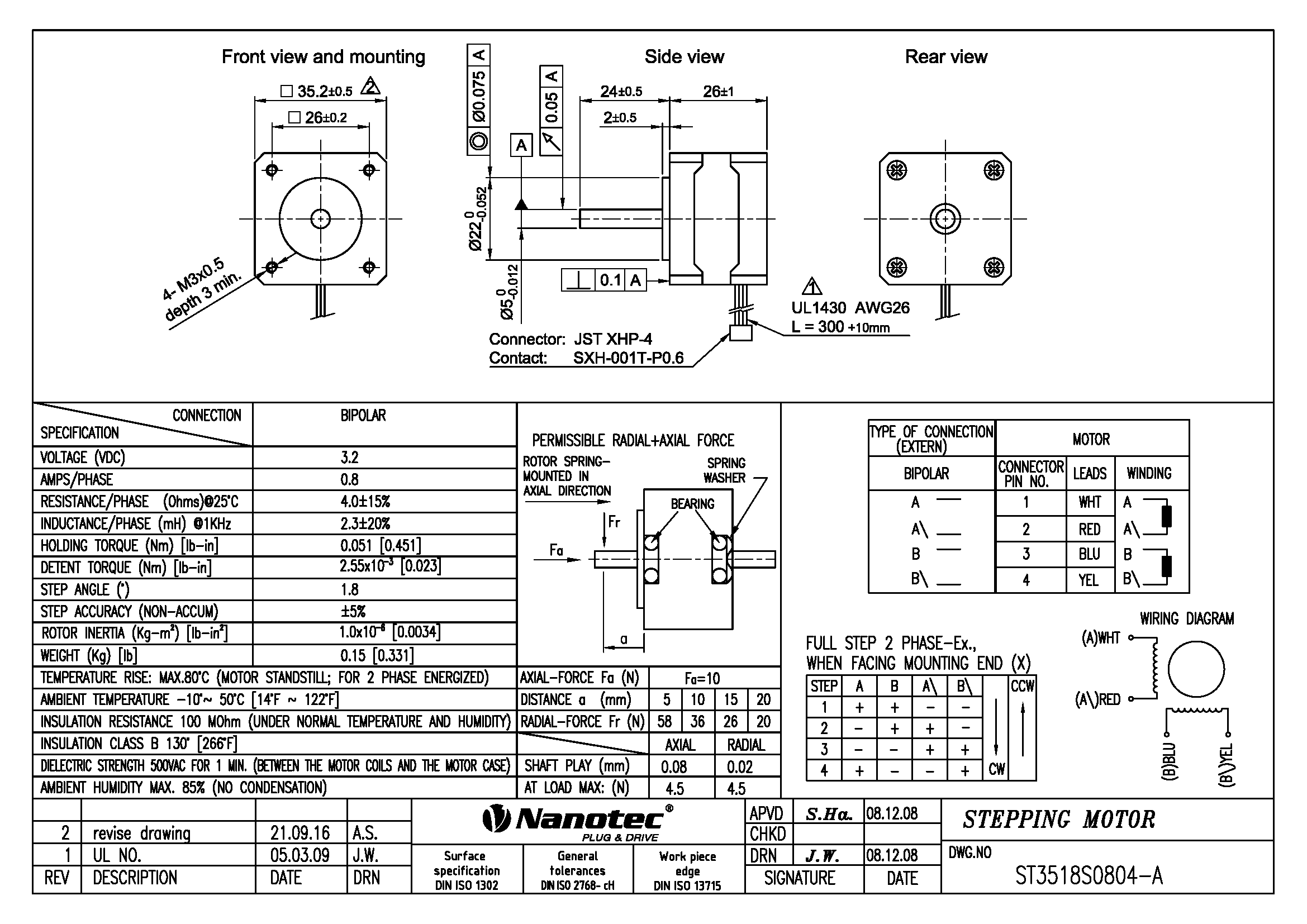

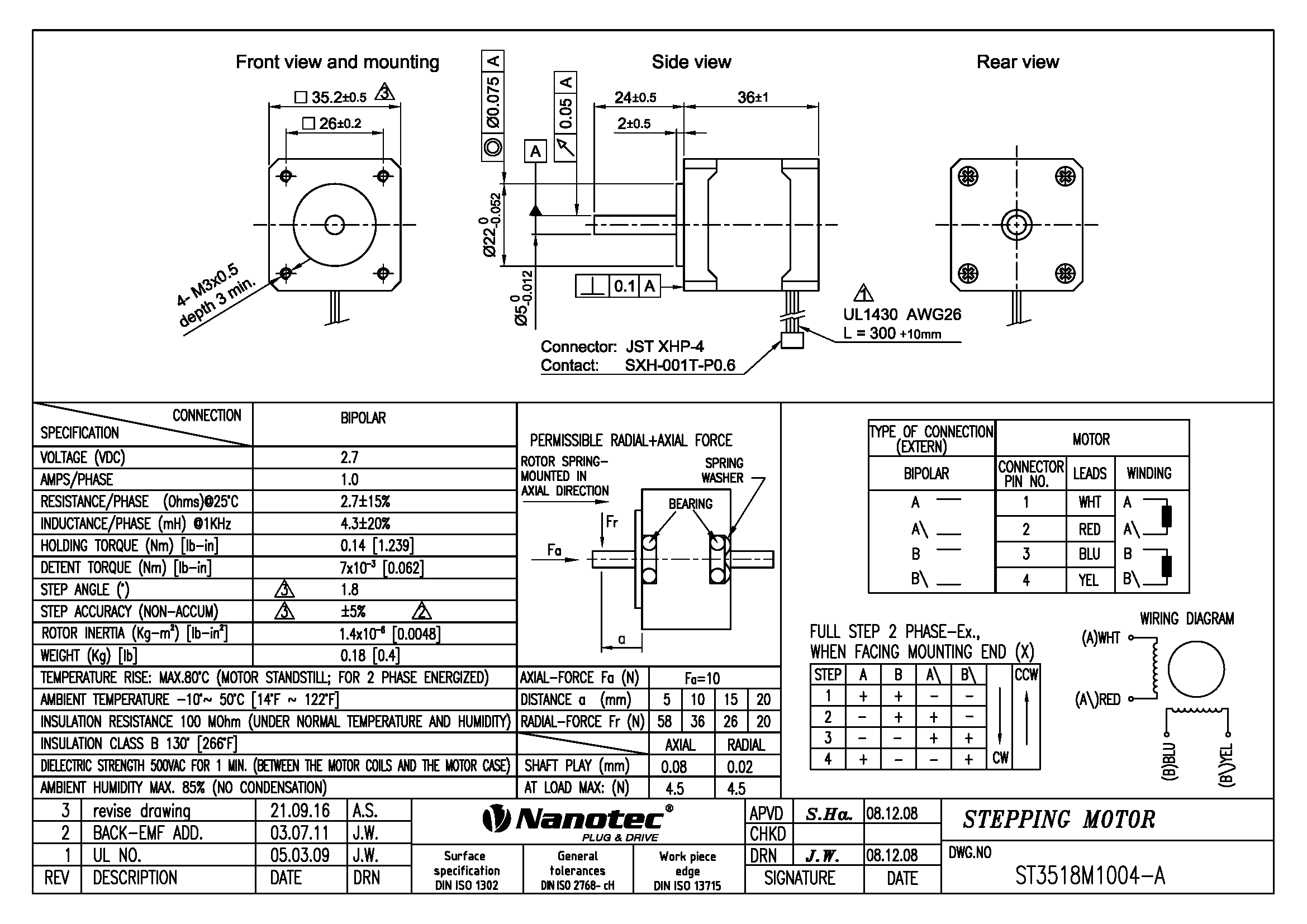

ST3518S0804-A, ST3518S0804-B, ST3518M1004-A, ST3518M1004-B,

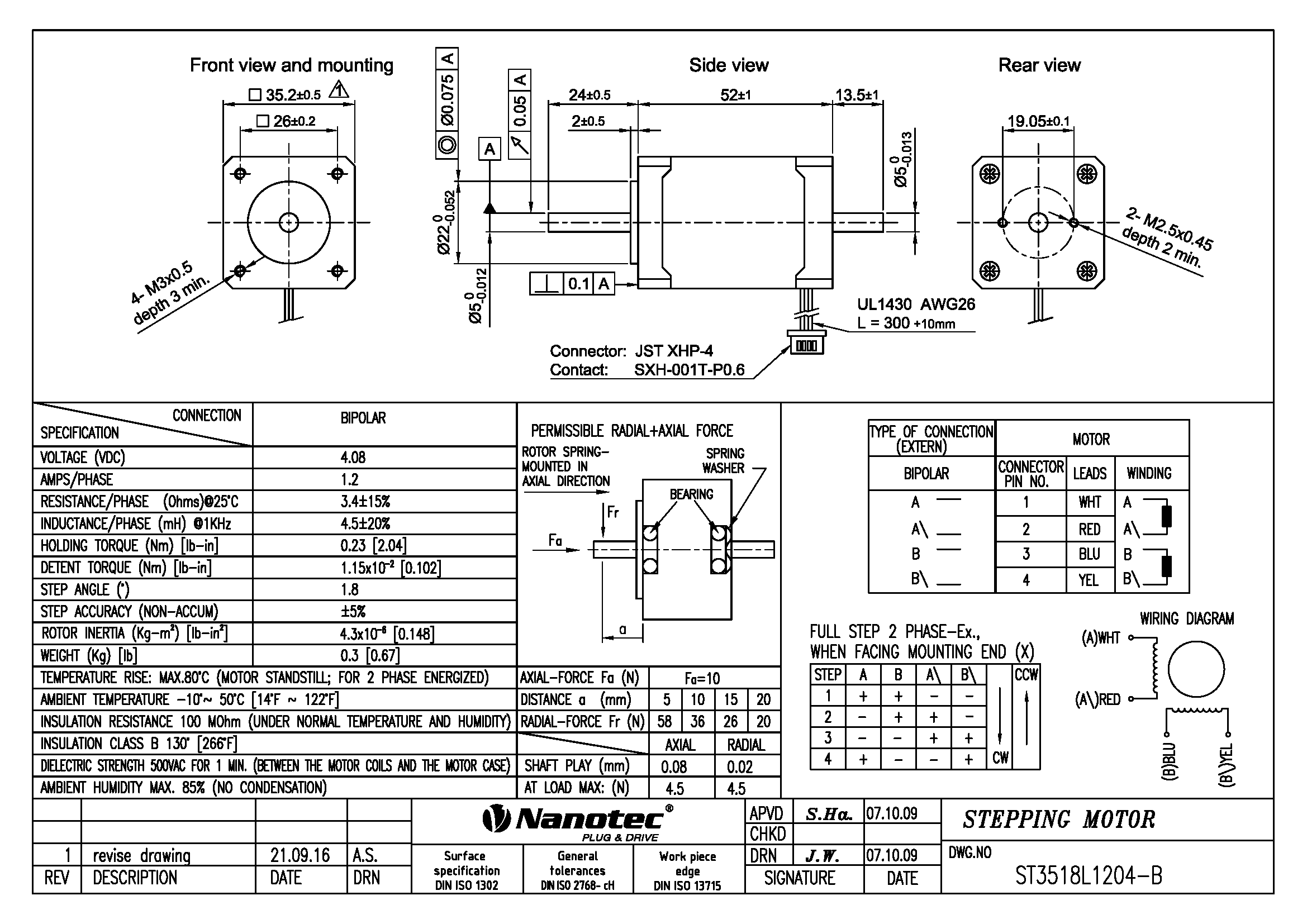

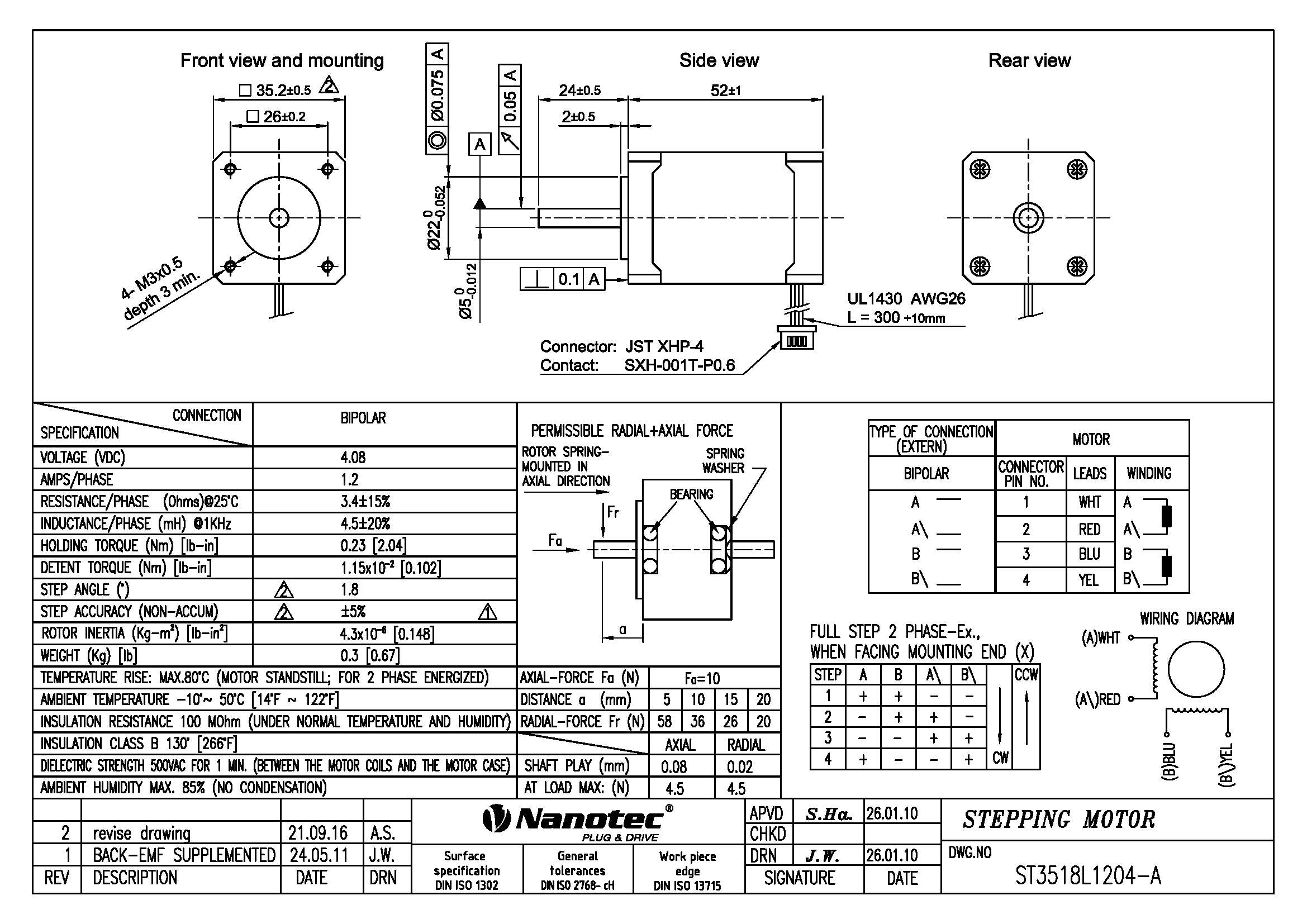

ST3518L1204-A , ST3518L1204-B

  • Size1.38 in
  • NEMA14
  • Holding Torque7.08 oz-in - 32.57 oz-in
  • Current per Winding0.8 A - 1.2 A
  • Length "A"1.02 in - 2.05 in
