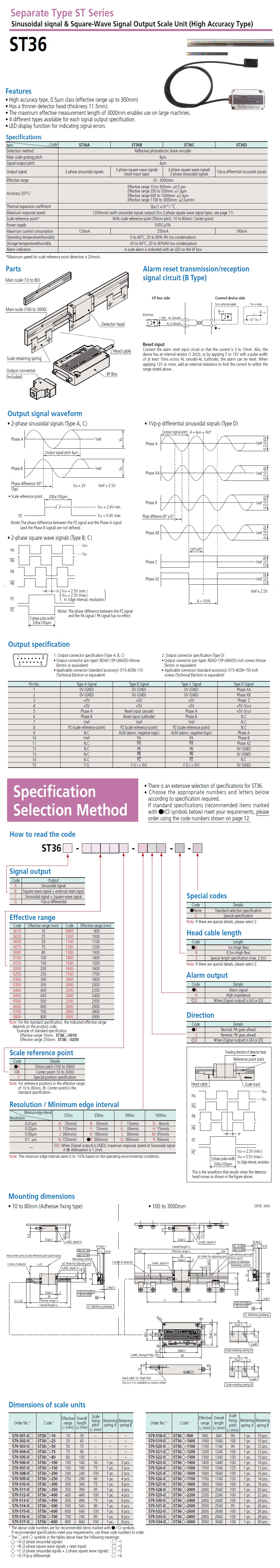

Description Specifications and Drawings

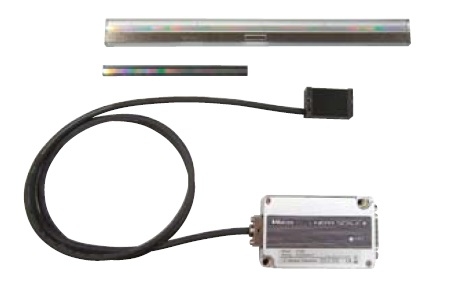

Mitutoyo: ST36 Linear Scales (579 Series) High Accuracy Type

Features

  • Outputs two-phase sinusoidal wave signal, two-phase pulse signal, and 1Vp-p at 4μm pitch.

  • High accuracy type, 0.5μm class (effective range up to 300mm).

  • Has a thinner detector head (thickness 11.5mm).

  • The maximum effective measurement range of 3000mm enables use on large machines.

  • 4 different types available for each signal output specification.

  • LED display function for indicating signal errors.

  • Along with the output specifications of 2-phase sinusoidal wave and 2-phase square wave, the output specification of 1Vp-p wave is also available.

Specifications

  • Detection method: Reflective photoelectric linear encoder

  • Output signal:

  • ST36A: 2-phase sinusoidal signals

  • ST36B: 2-phase square wave signals, Alarm reset input

  • ST36C: 2-phase square wave signals, 2-phase sinusoidal signals

  • ST36D: 1Vp-p differential sinusoidal signals

  • Main scale grating pitch: 8µm

  • Signal output pitch: 4µm

  • Effective range: 10 to 3000mm

  • Resolution: 0.01, 0.02, 0.05, 0.1µm

  • Accuracy (20°C)*1: ±0.5µm, ±1µm, ±2µm(/m)

  • Maximum response speed*2: 1200mm/s

  • Scale reference point: Center point (10 to 80mm), 50mm pitch (100 to 3000mm)

  • Power supply voltage: DC5V ±5%

  • Operating temperature/ humidity range: 0 to 40°C/ 20 to 80% (no condensation)

  • Storage temperature/ humidity range: –20 to 60°C/ 20 to 80% (no condensation)

  • Head cable length: 1m (high-flex connecting cable)

Model No.: ST36A, ST36B, ST36C, ST36D
