Nanotec: ST4118 – STEPPER MOTOR – NEMA 17

Nanotec: ST4118 â€“ STEPPER MOTOR â€“ NEMA 17

Alternate View

Price: (Members Only)

Availability: Usually Ships in 2 to 3 Weeks
Order #: ST4118

Model No.:

Qty:

Description

Ordering Information

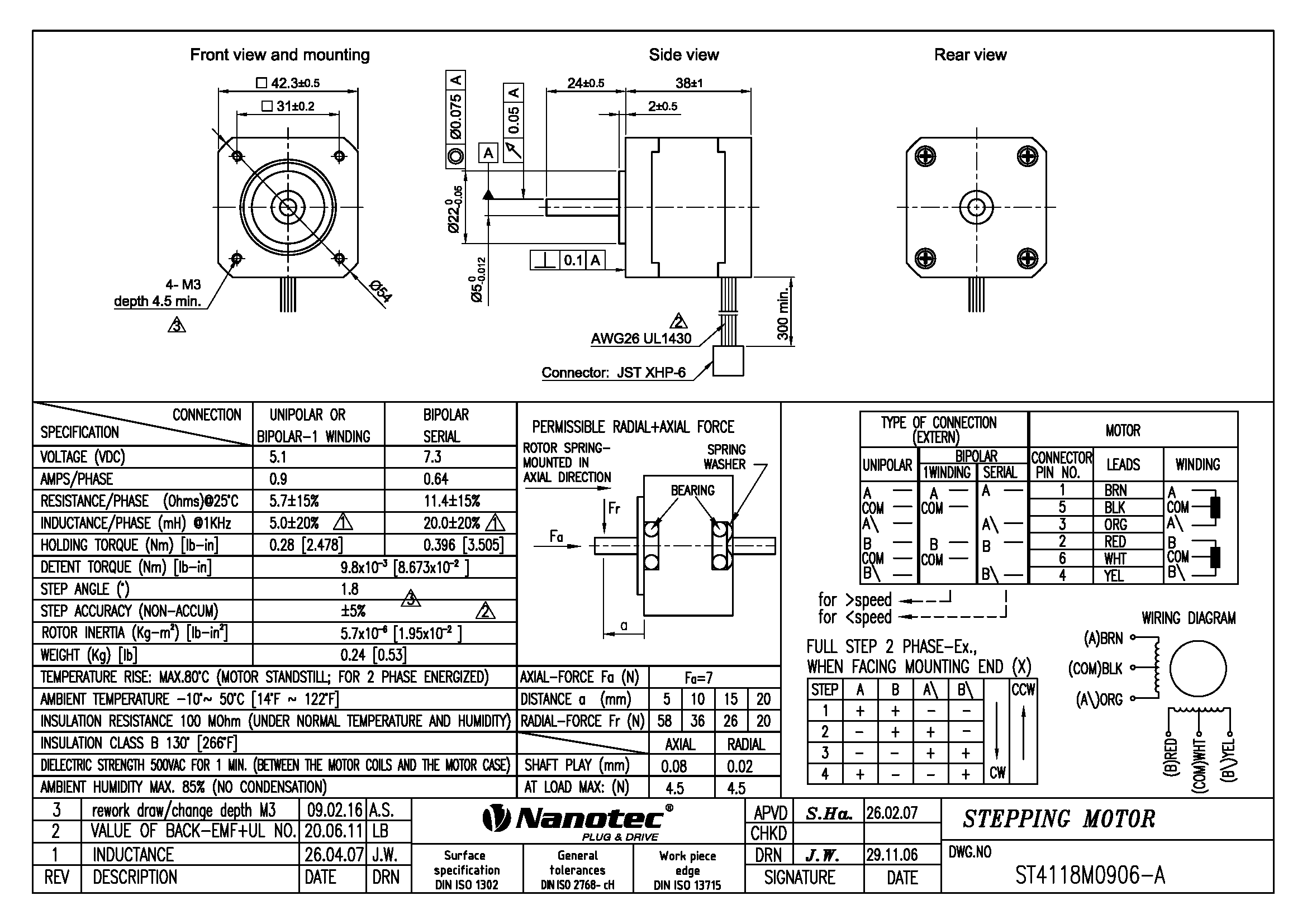

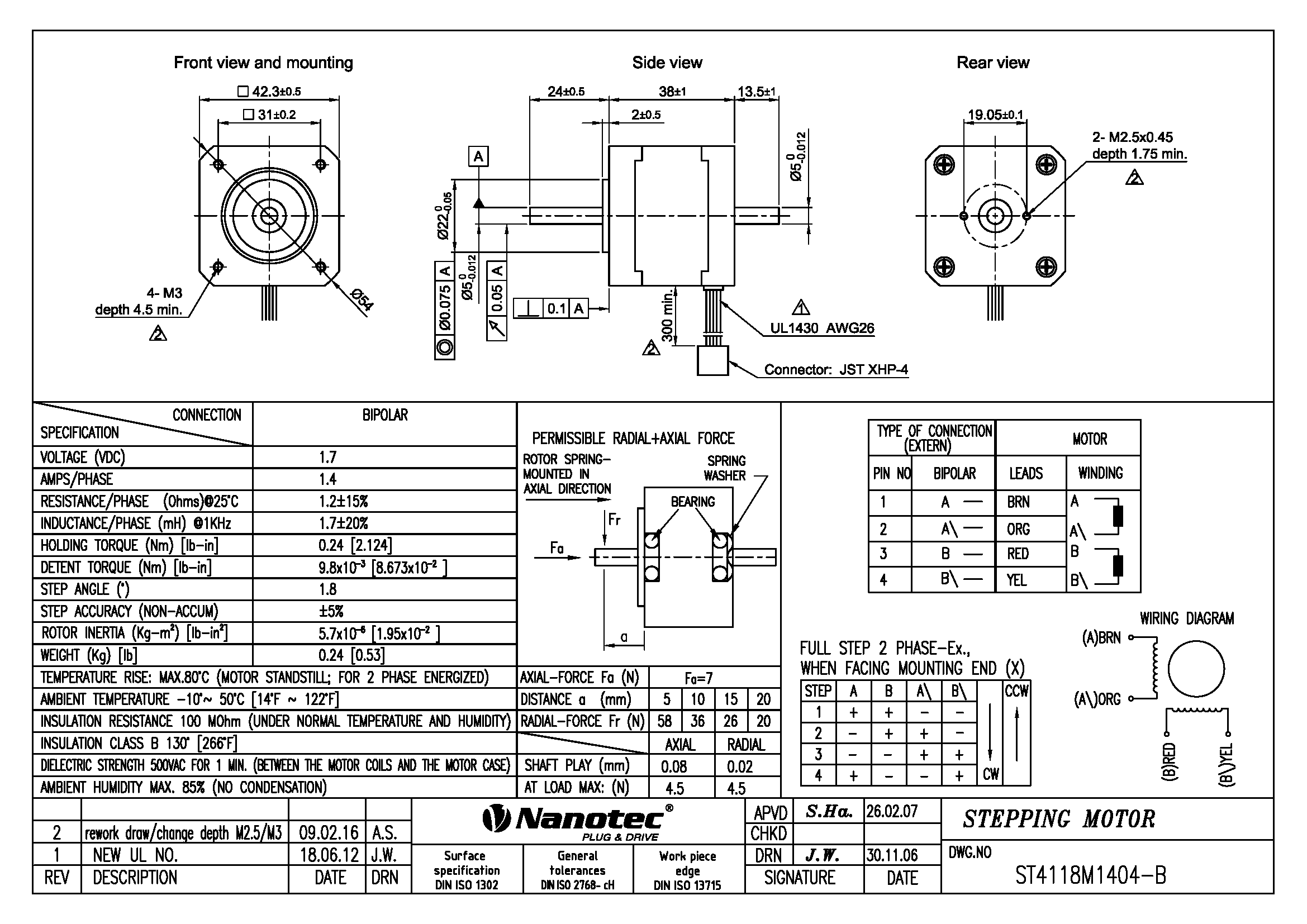

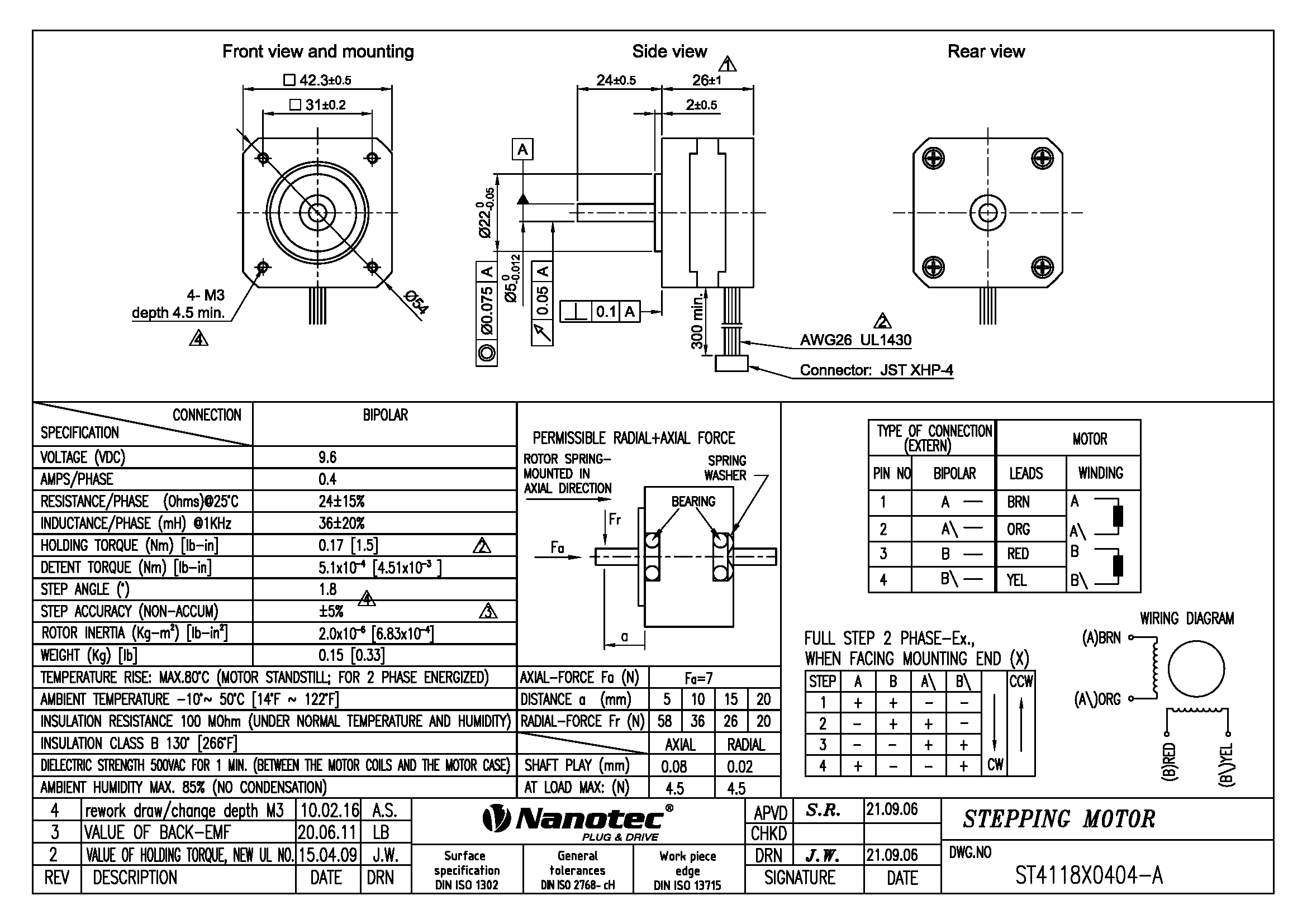

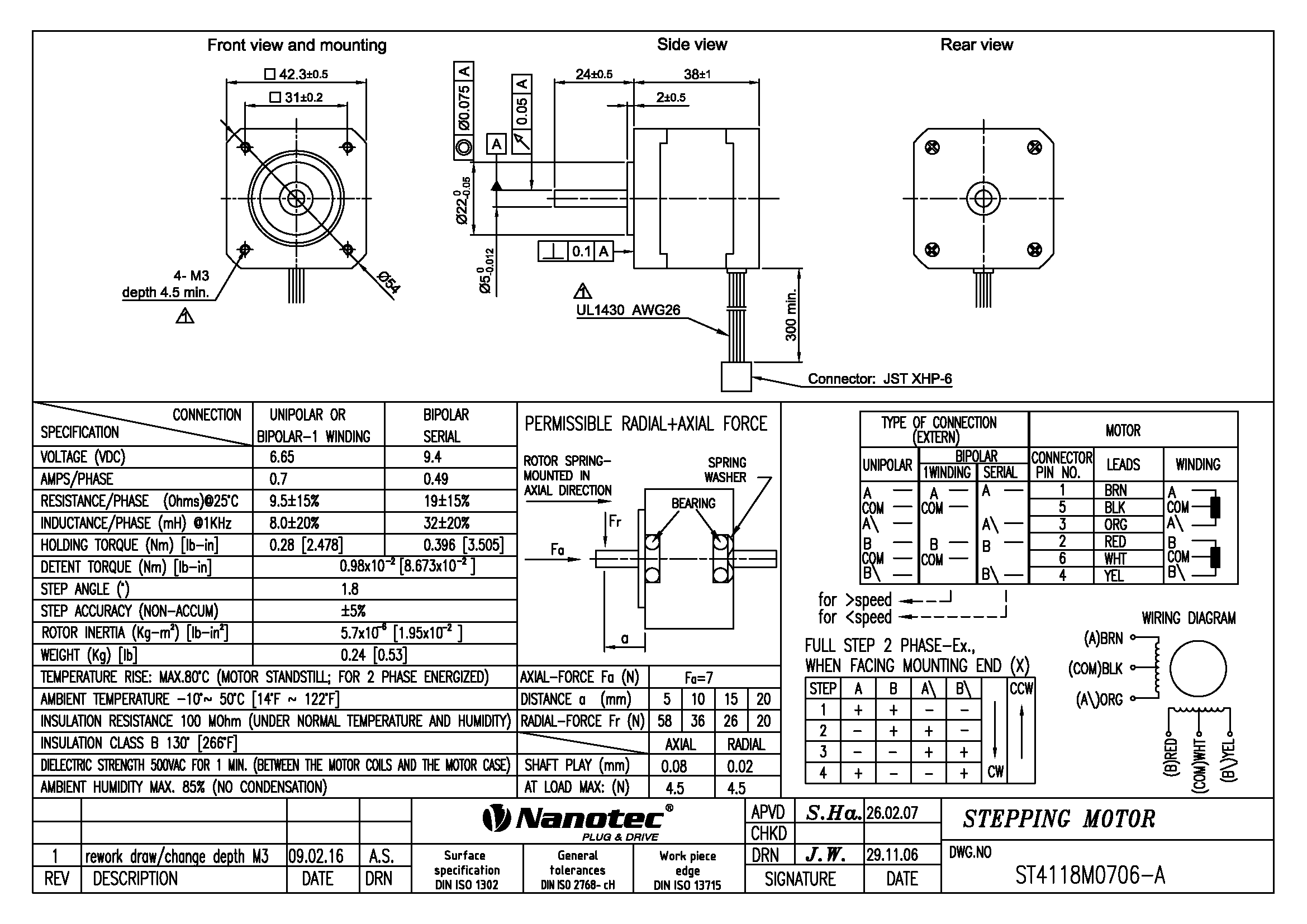

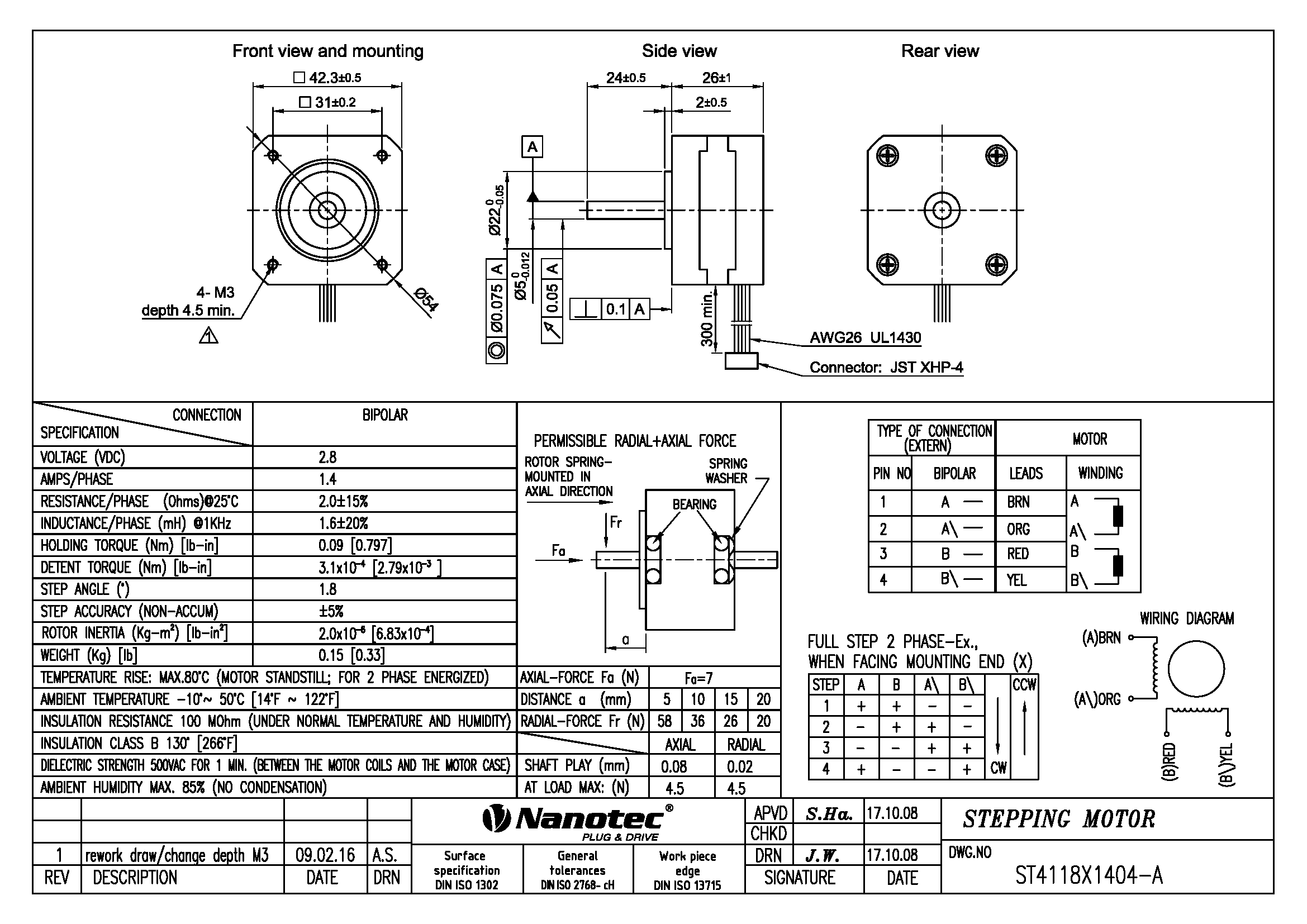

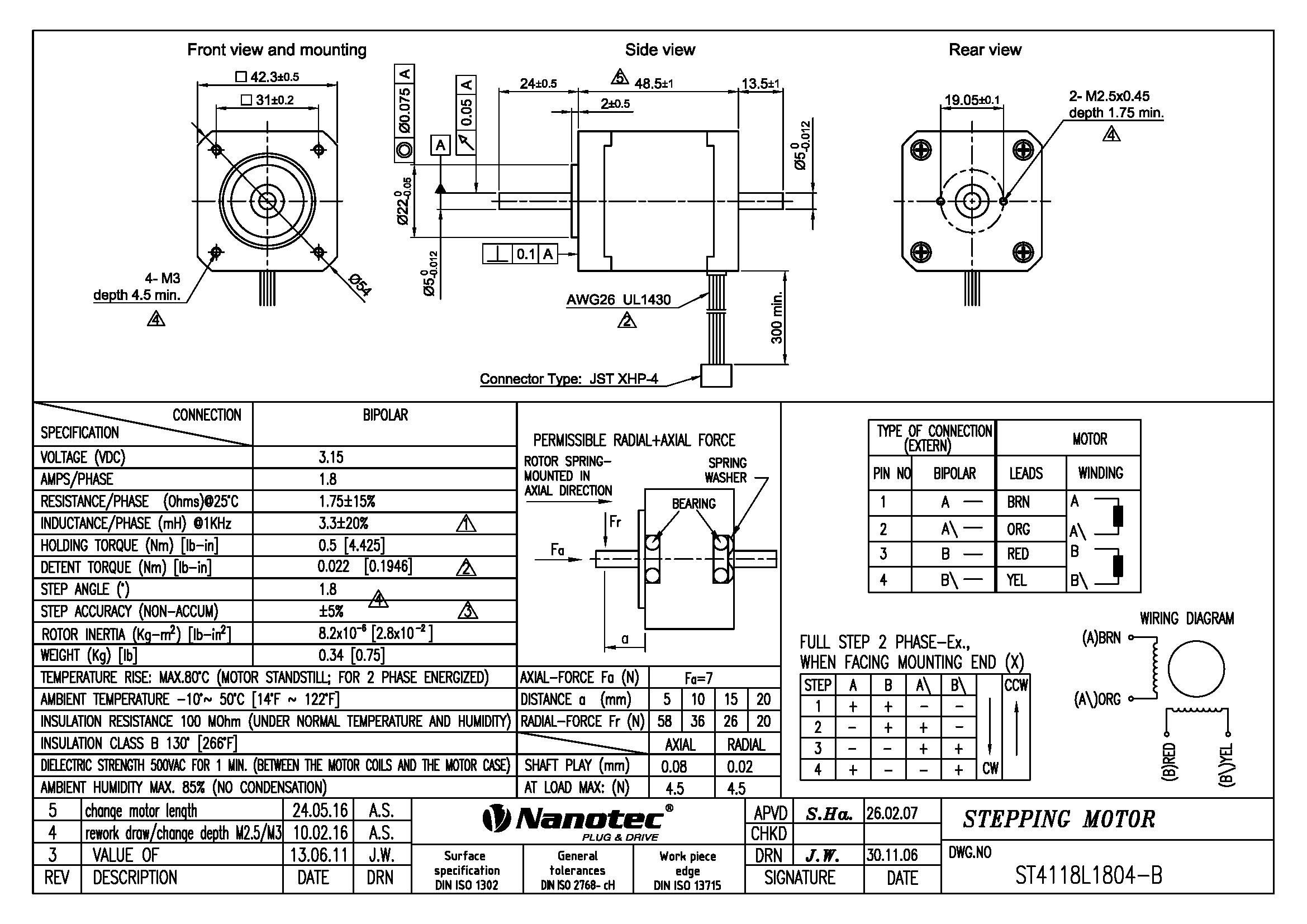

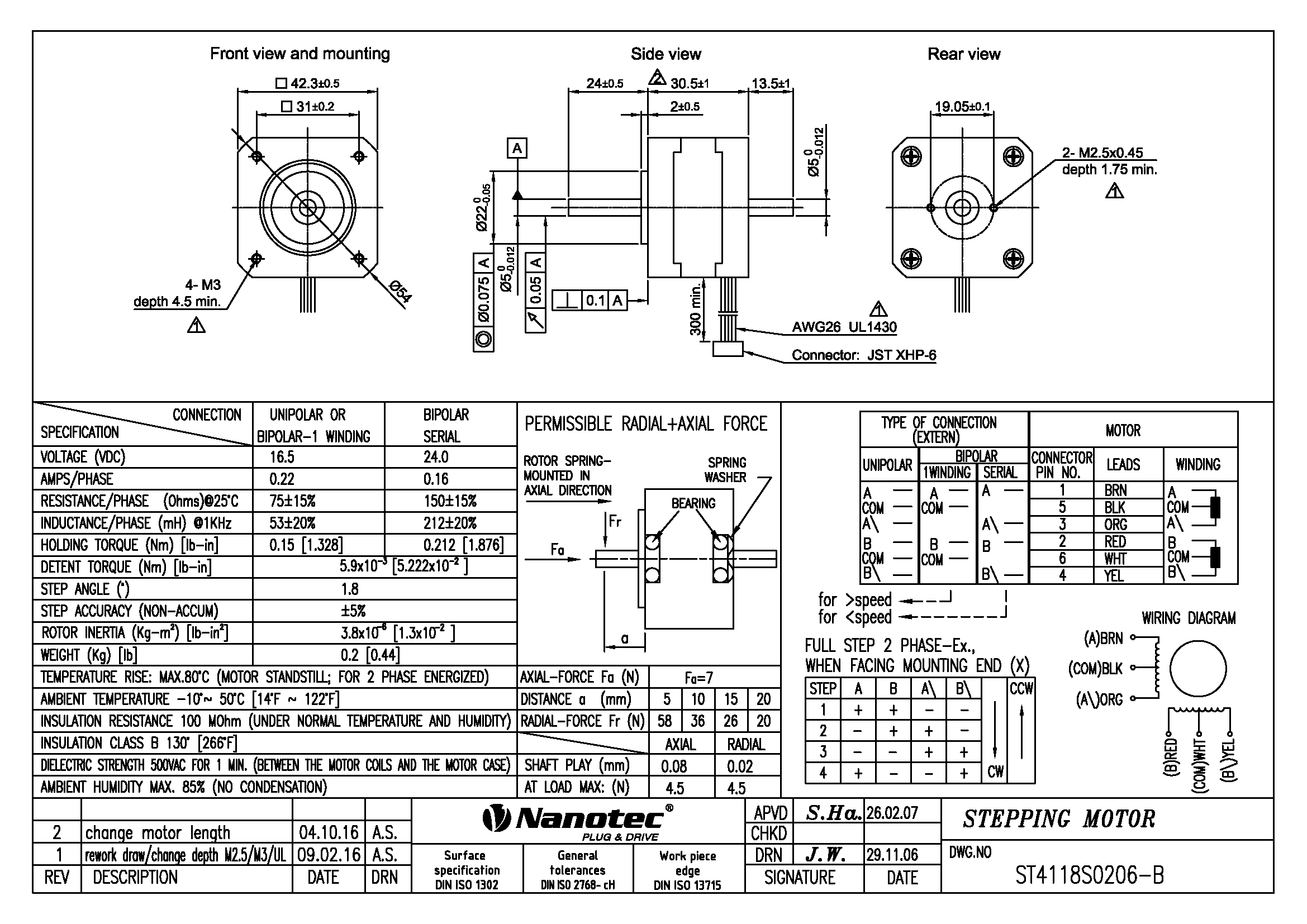

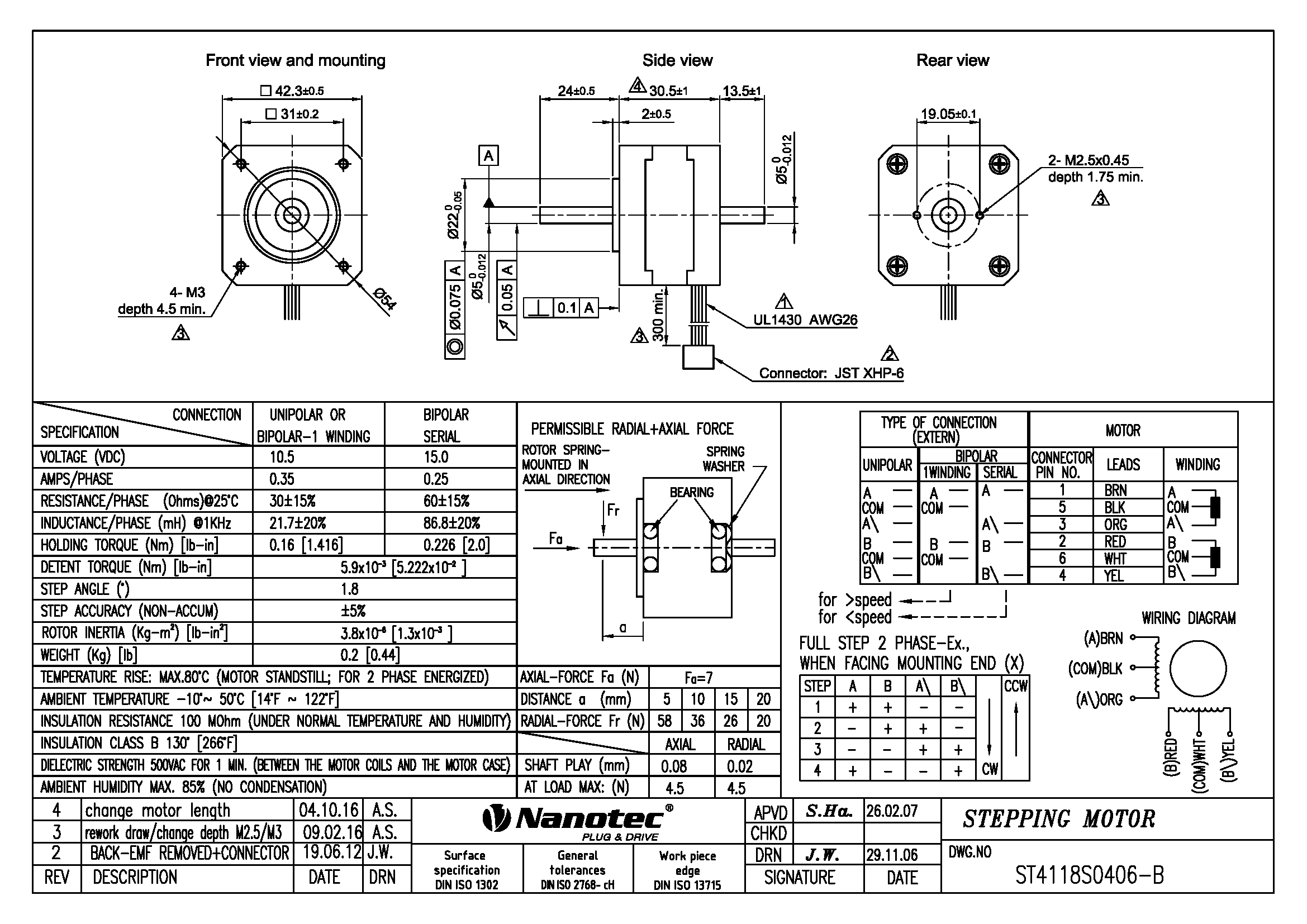

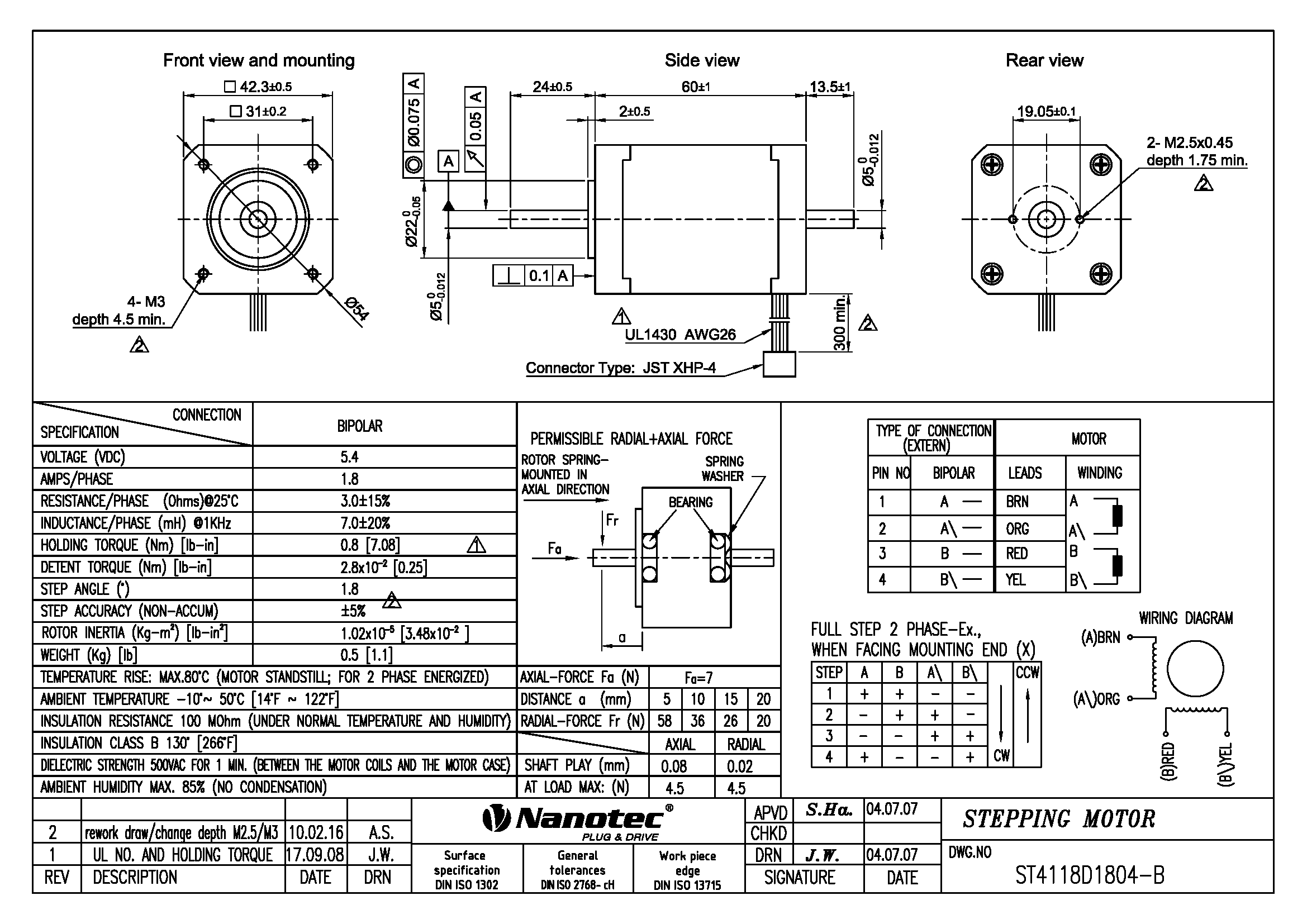

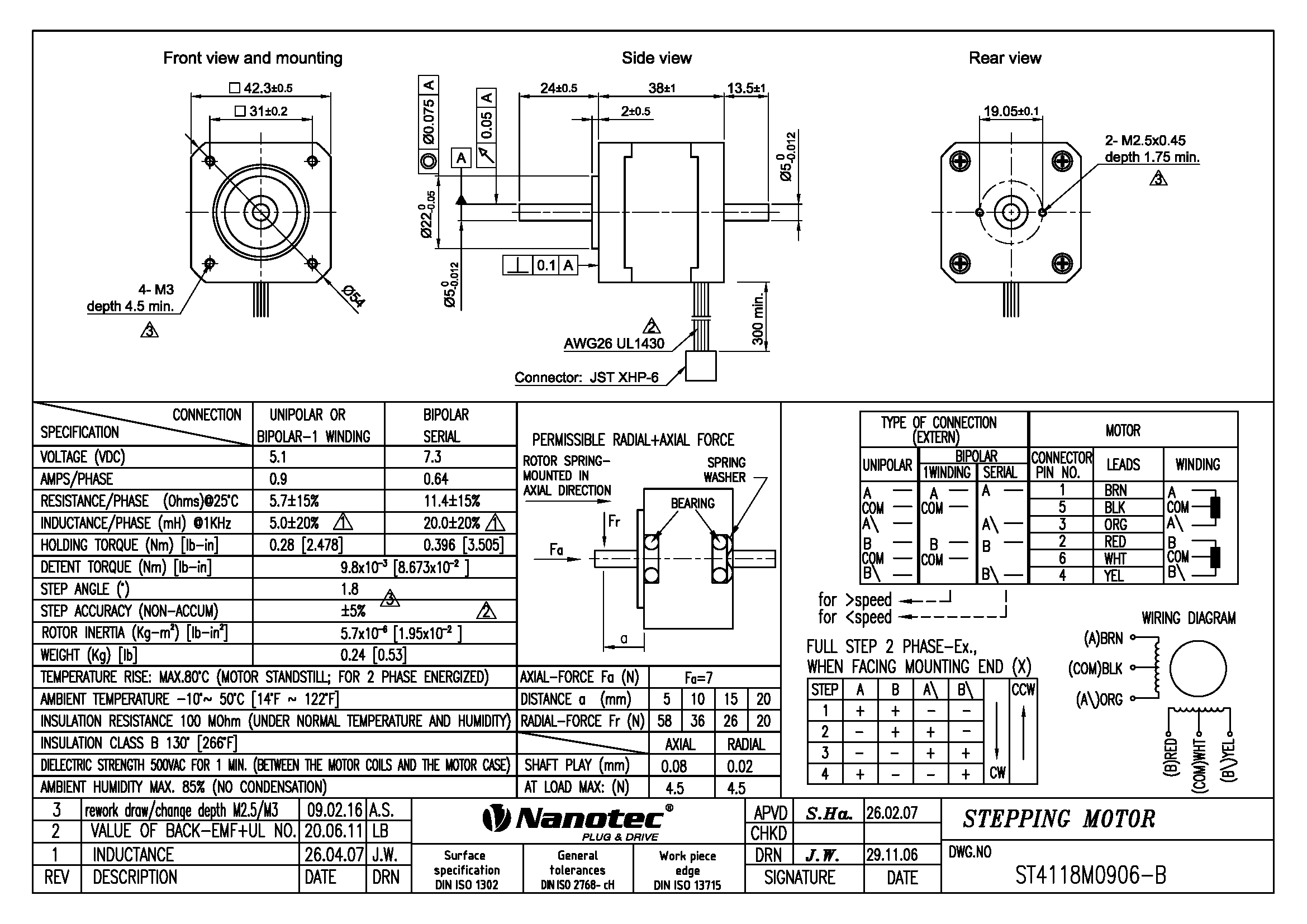

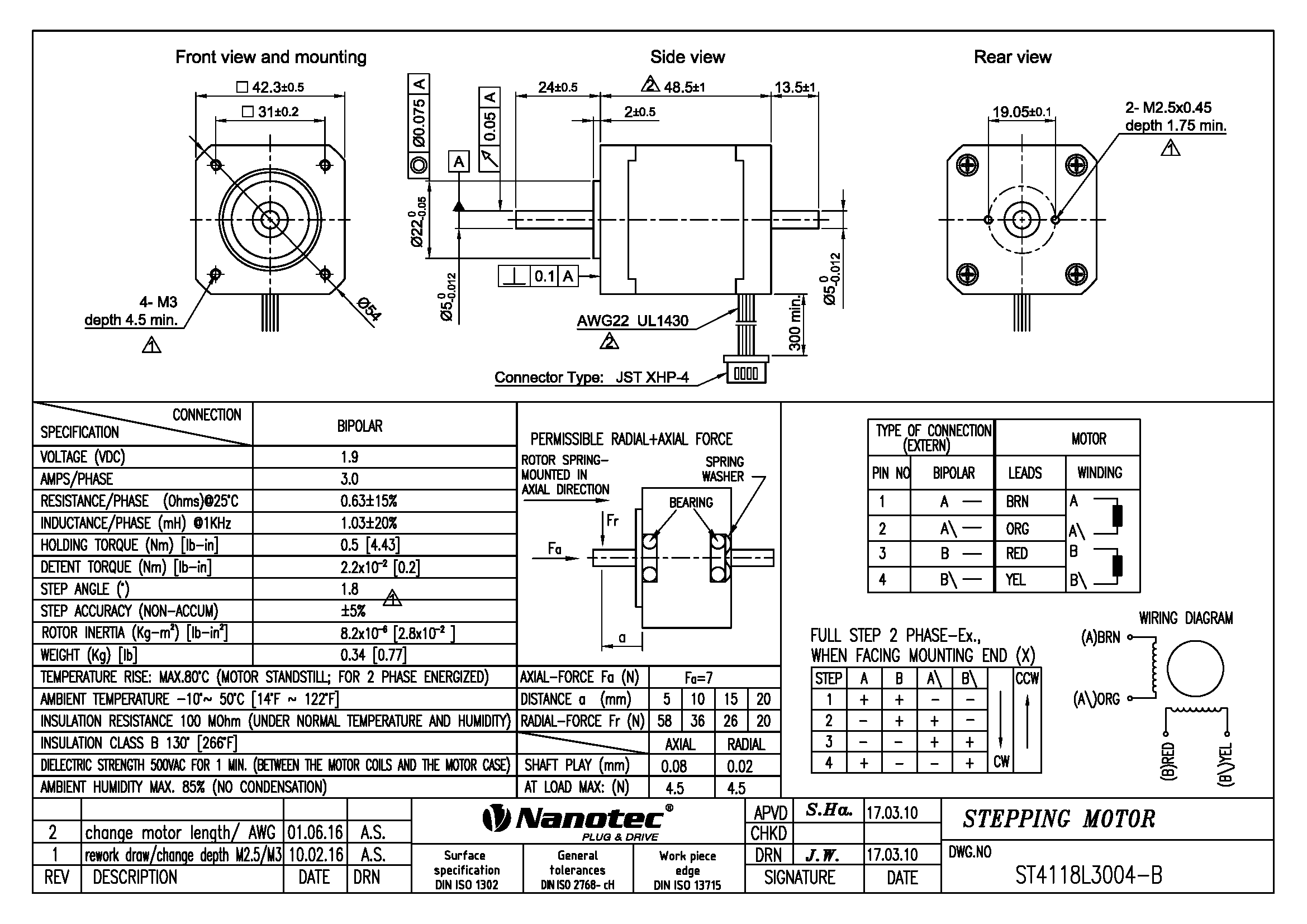

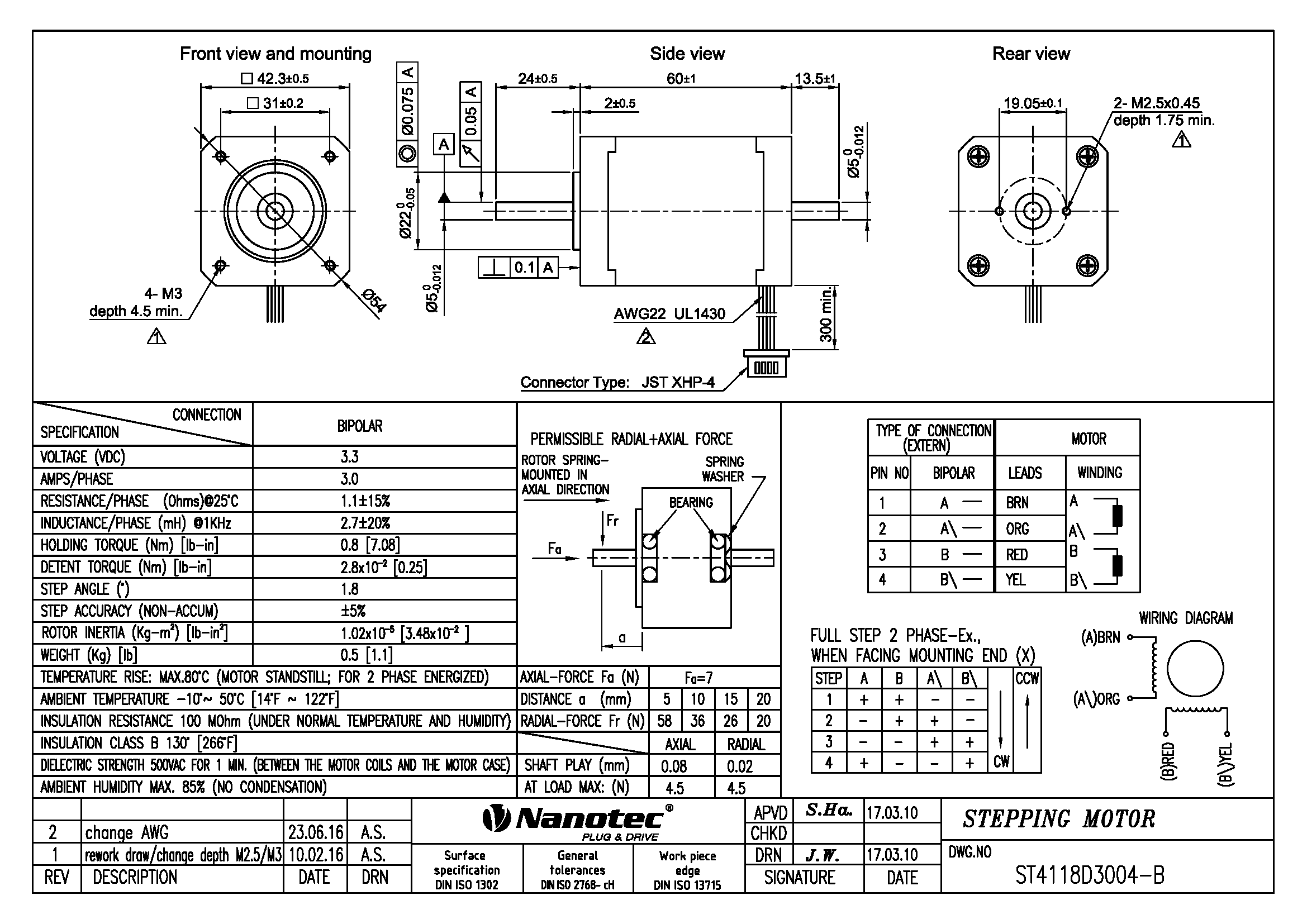

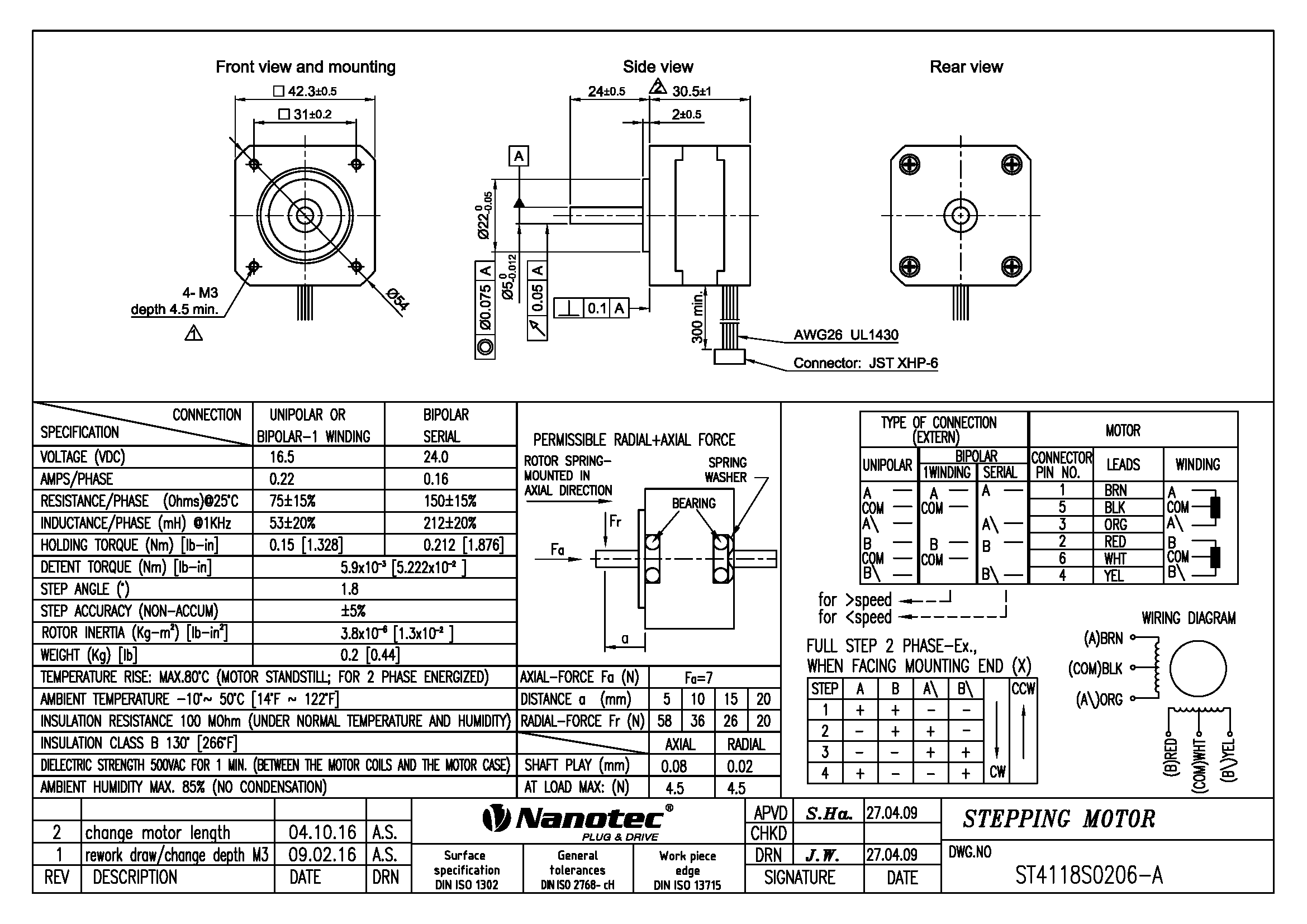

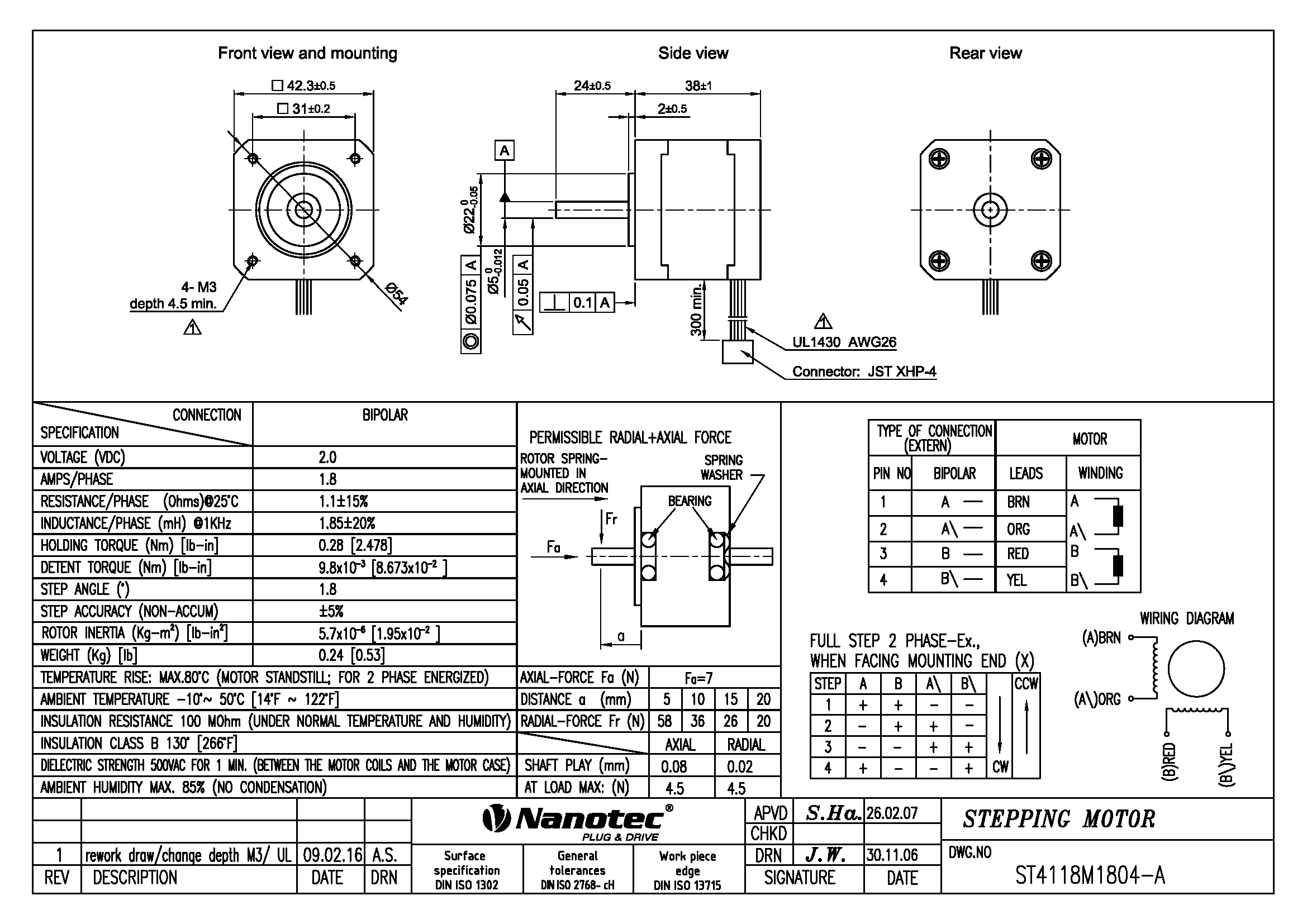

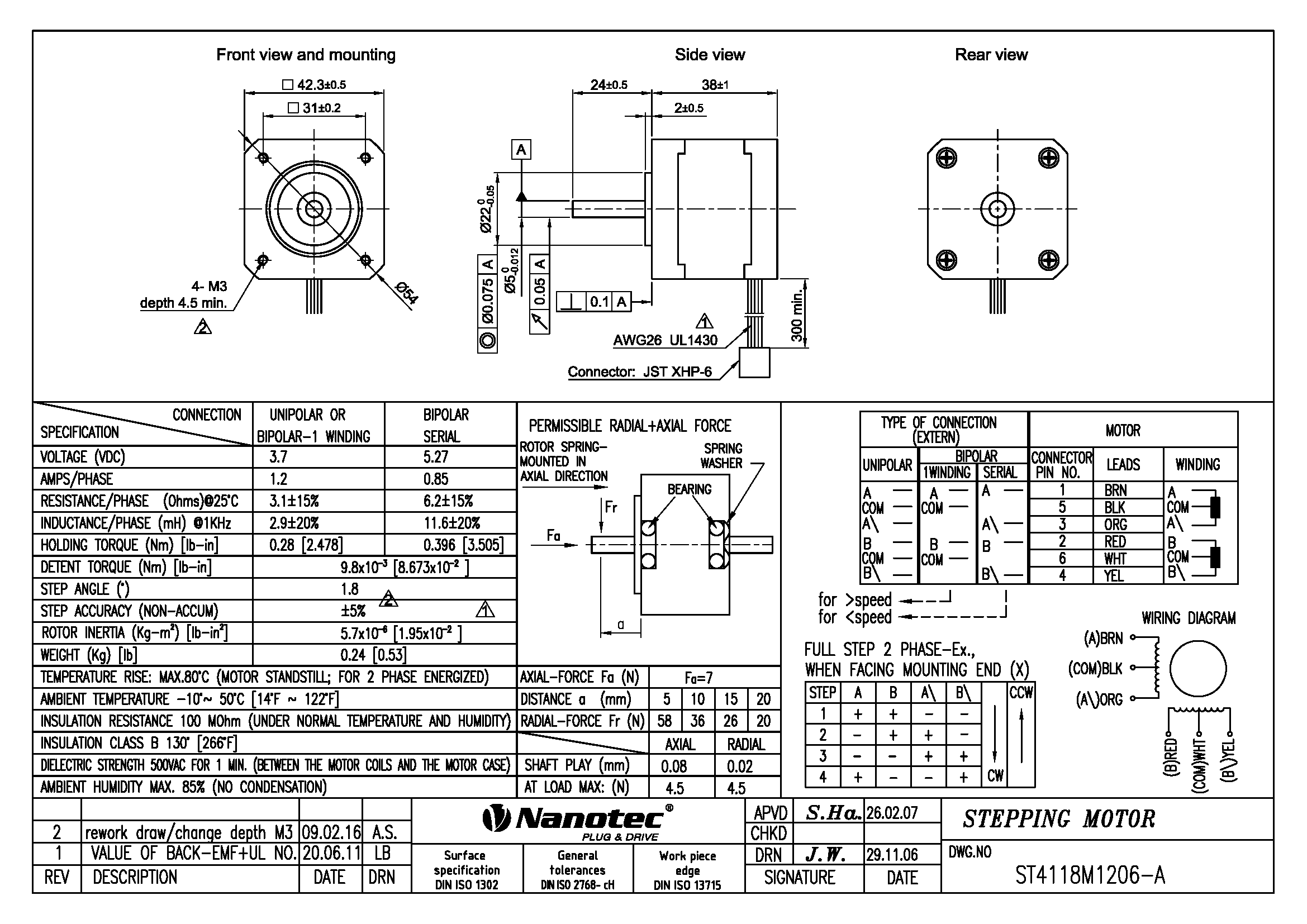

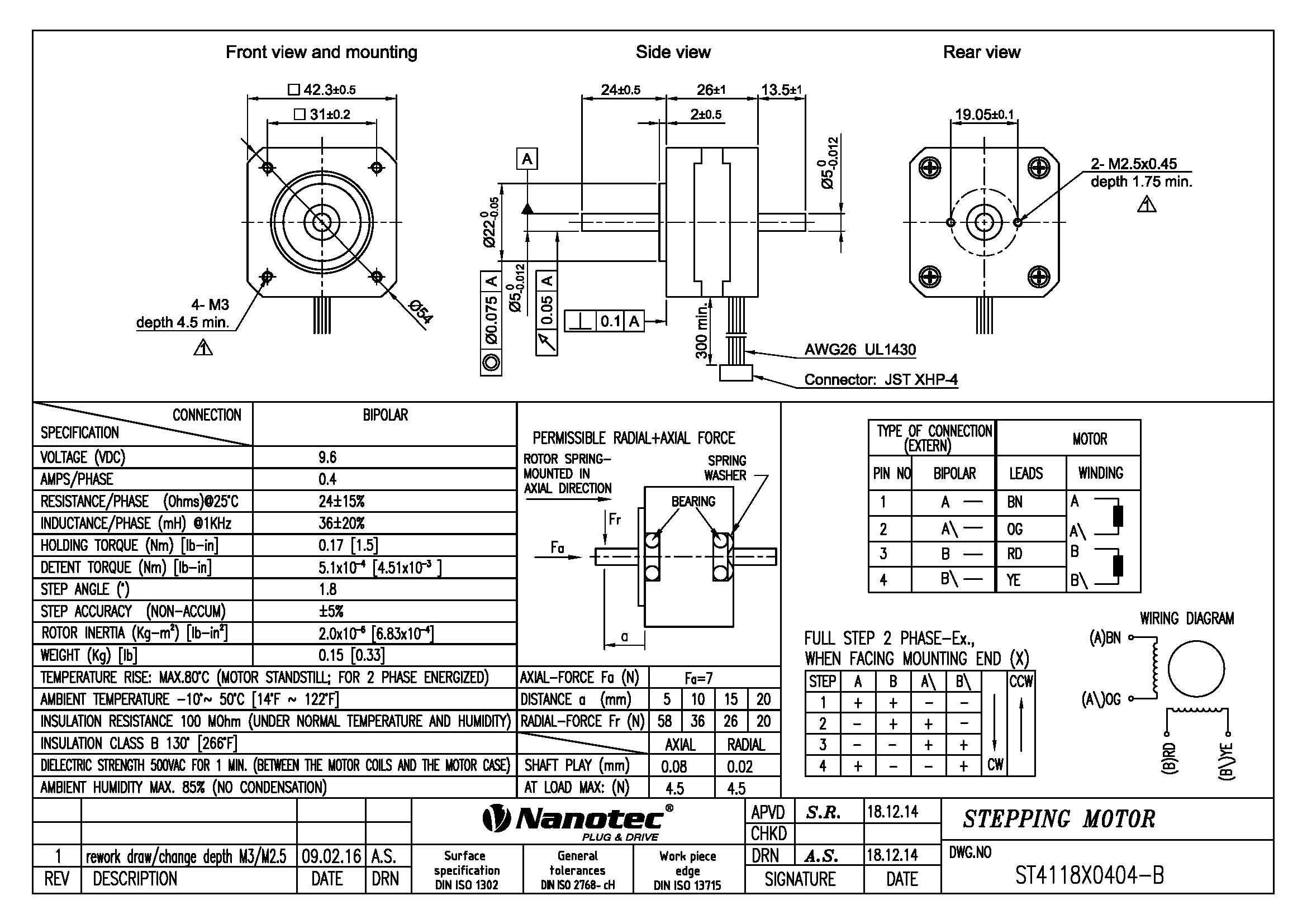

Specifications and Drawings

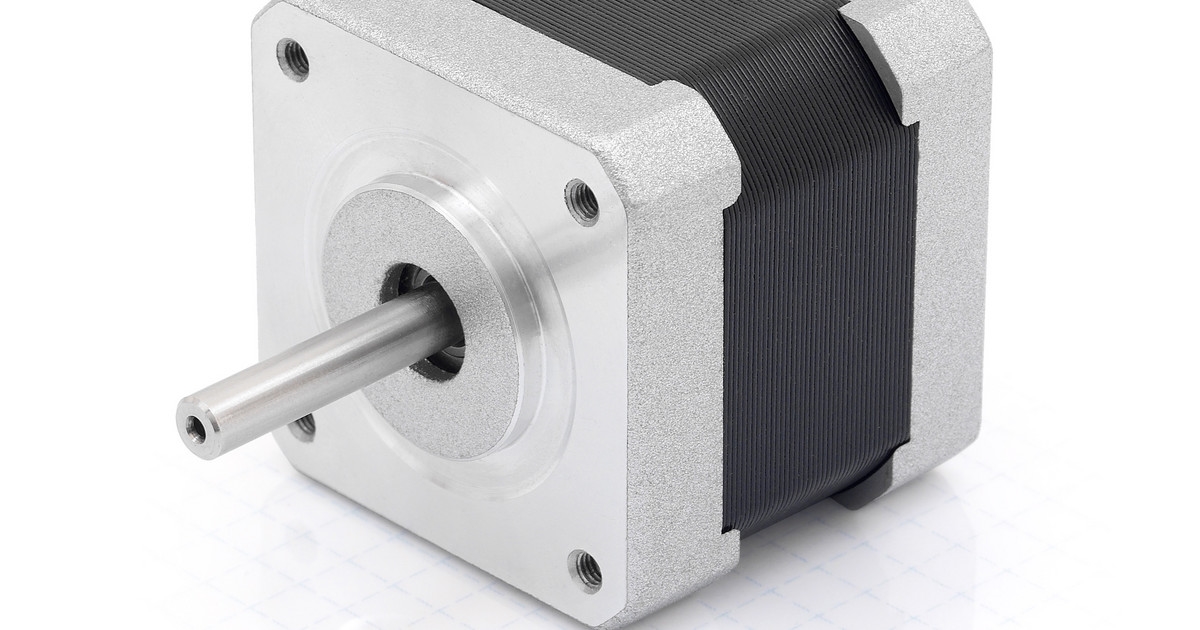

HYBRID STEPPER MOTOR – NEMA 17

High-torque stepper motor in size NEMA 17 (42 mm) with 1.8° step angle (full step) for a wide range of potential applications. Available in various lengths and versions.

Size1.65 in
NEMA17
Holding Torque12.75 oz-in - 113.29 oz-in
Current per Winding0.22 A - 3 A
Length "A"1.02 in - 2.36 in

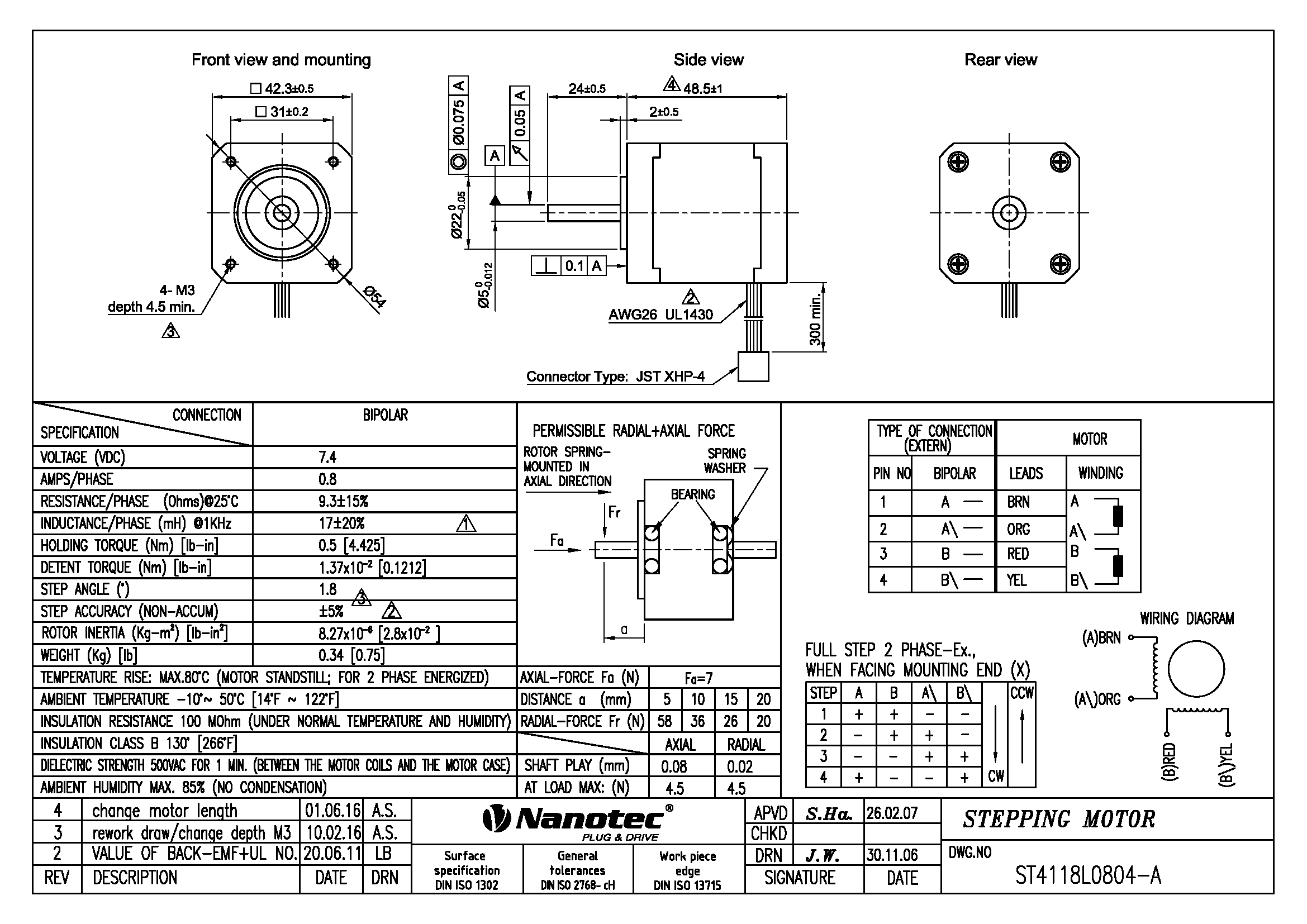

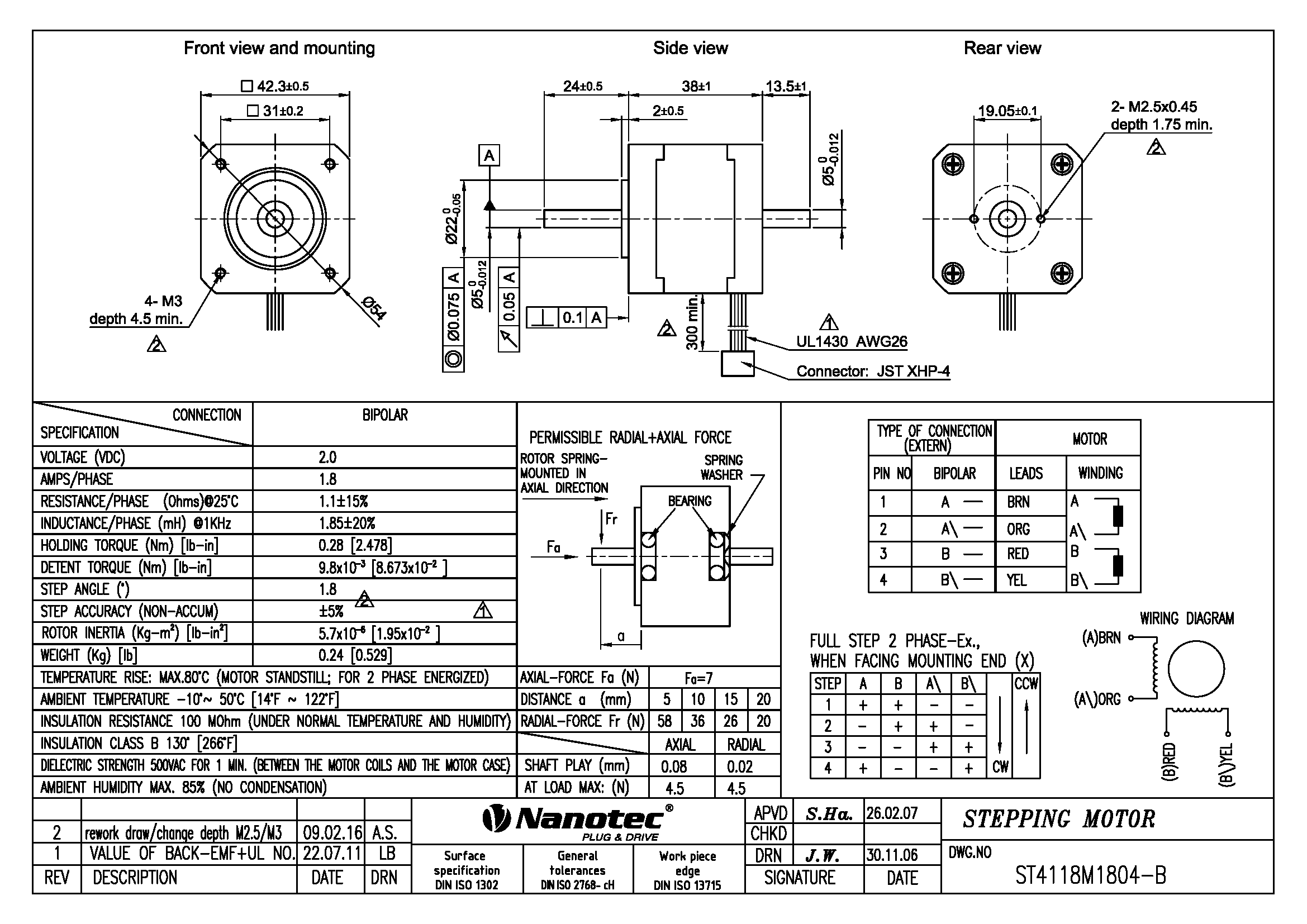

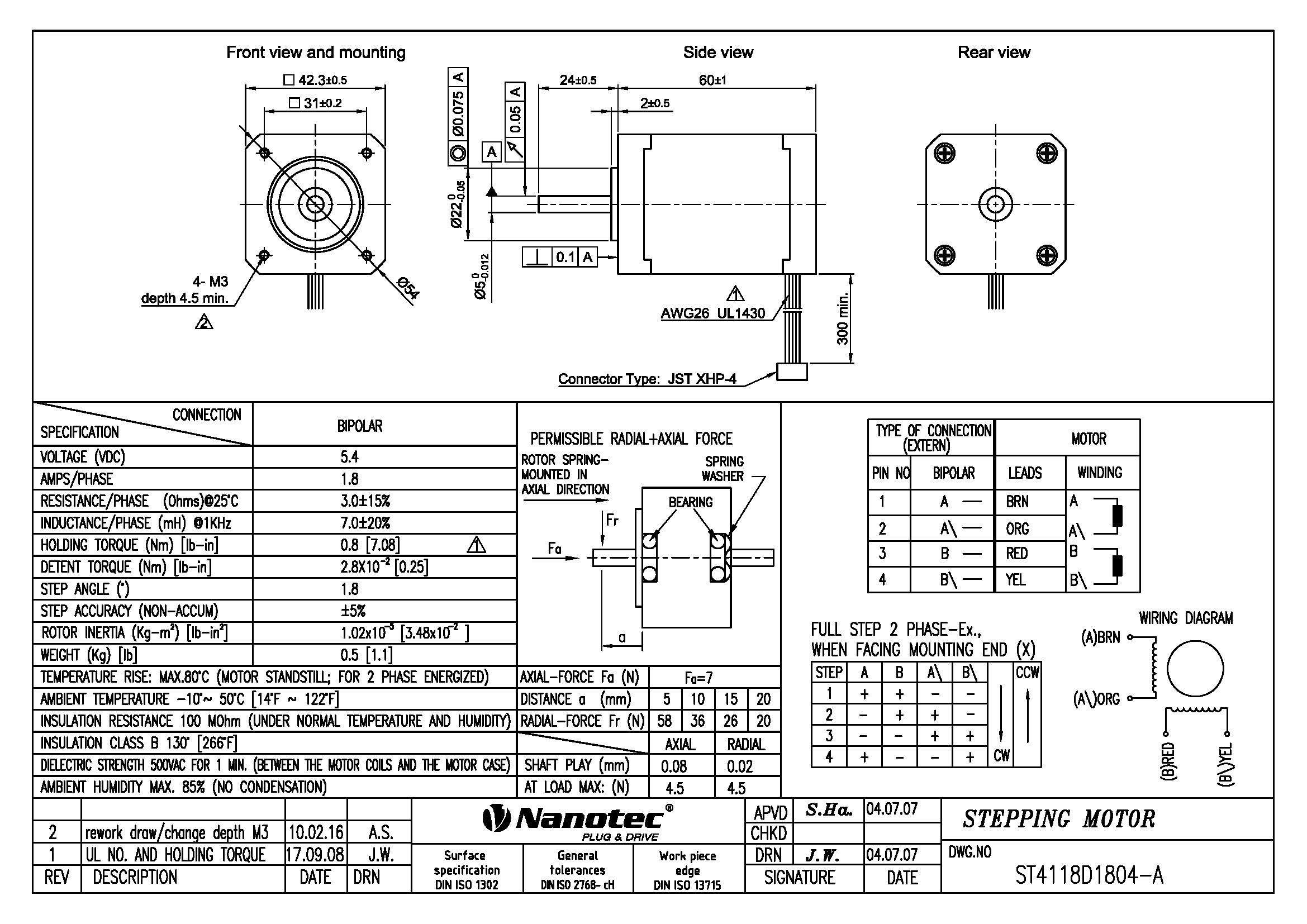

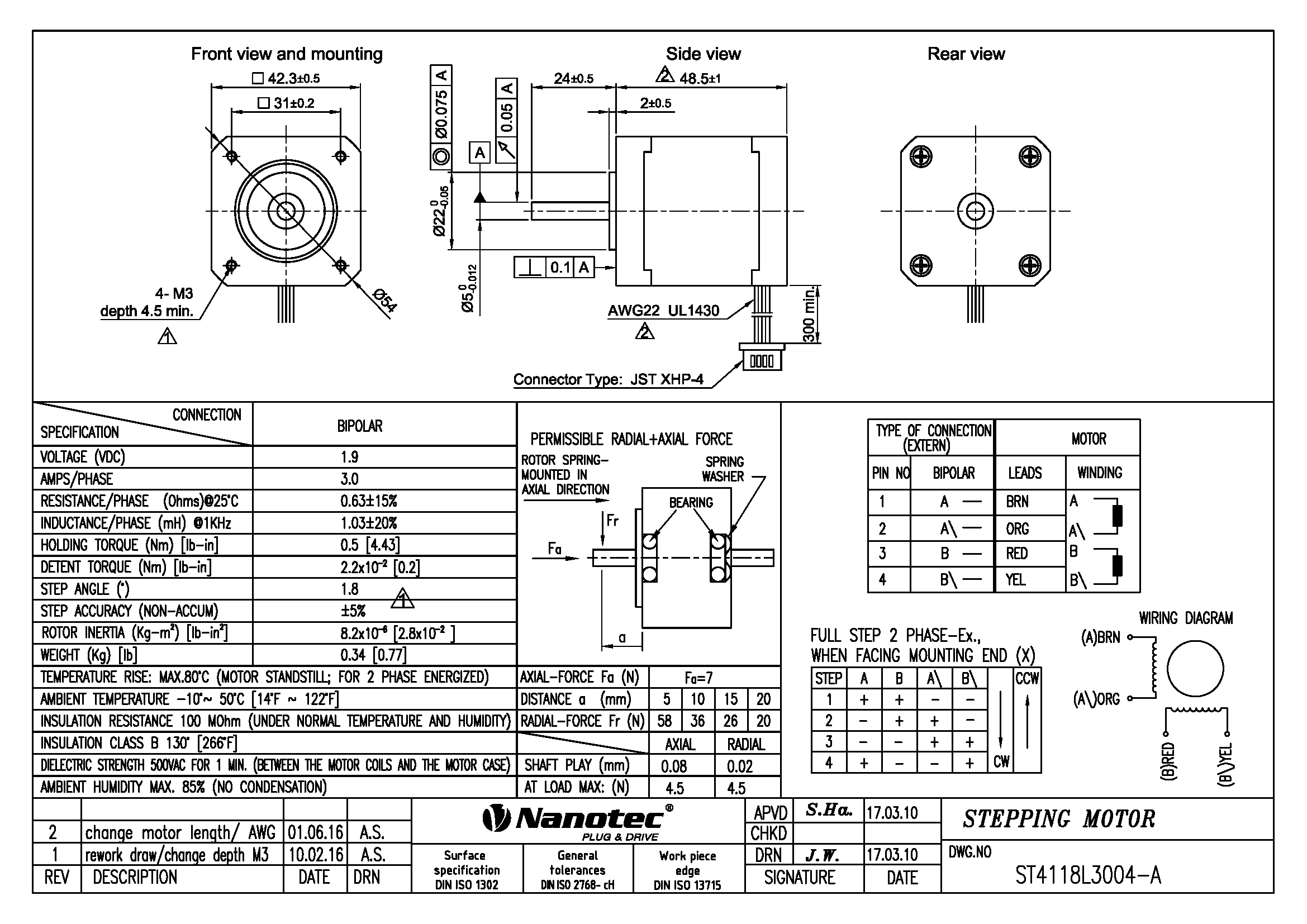

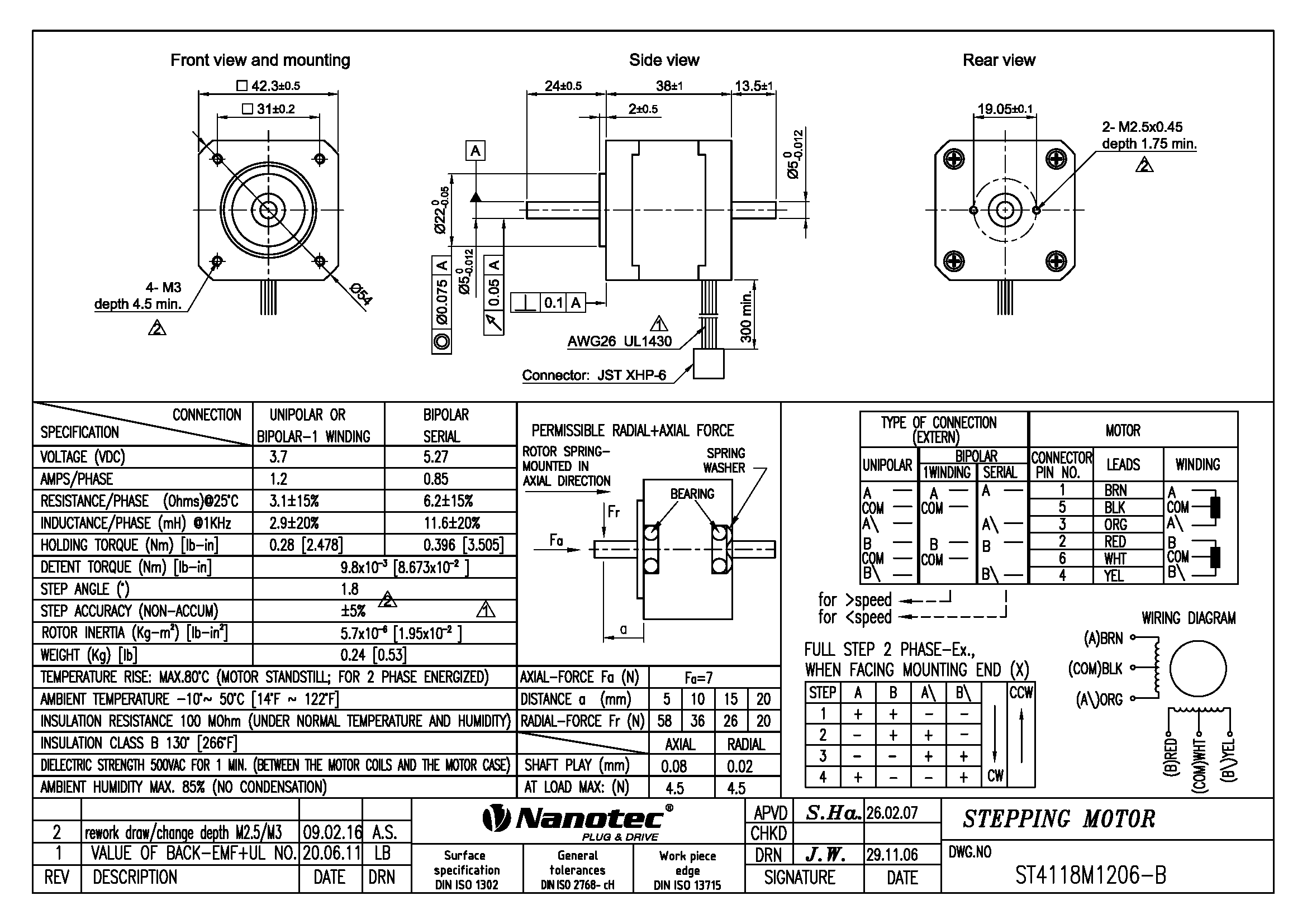

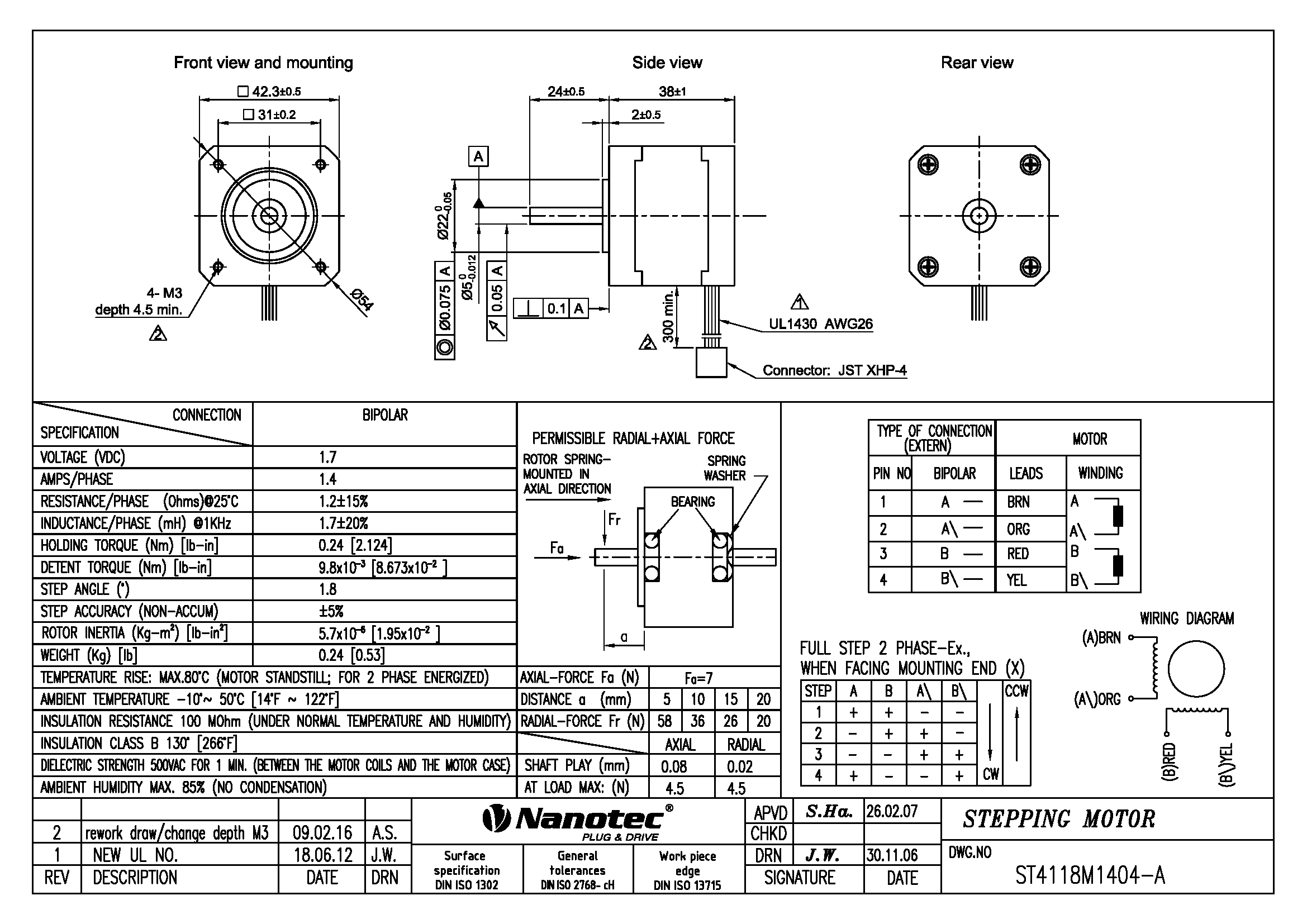

ST4118X0404-A , ST4118X0404-B, ST4118X1404-A, ST4118X1404-B, ST4118S0206-A, ST4118S0206-B, ST4118S0406-A, ST4118S0406-B, ST4118S0706-A, ST4118S0706-B , ST4118S1006-A, ST4118S1006-B, ST4118S1404-A, ST4118S1404-B, ST4118M0406-A, ST4118M0406-B, ST4118M0706-A, ST4118M0706-B, ST4118M0906-A, ST4118M0906-B, ST4118M1206-A, ST4118M1206-B, ST4118M1404-A, ST4118M1404-B, ST4118M1804-A, ST4118M1804-B, ST4118L0804-A, ST4118L1804-B, ST4118L1206-A, ST4118L1206-B, ST4118L1804-A , ST4118L1804-B , ST4118L3004-A, ST4118L3004-B, ST4118D1804-A, ST4118D1804-B, ST4118D3004-A, ST4118D3004-B
