Nanotec: ST4118M1804-L– STEPPER MOTOR WITH HOLLOW SHAFT – NEMA 17
Nanotec: ST4118M1804-L– STEPPER MOTOR WITH HOLLOW SHAFT – NEMA 17



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Days
Order #: ST4118M1804-L
Qty:

Description Ordering Information Specifications and Drawings


Nanotec Electronic GmbH & Co KG

ST4118M1804-L– STEPPER MOTOR WITH HOLLOW SHAFT – NEMA 17

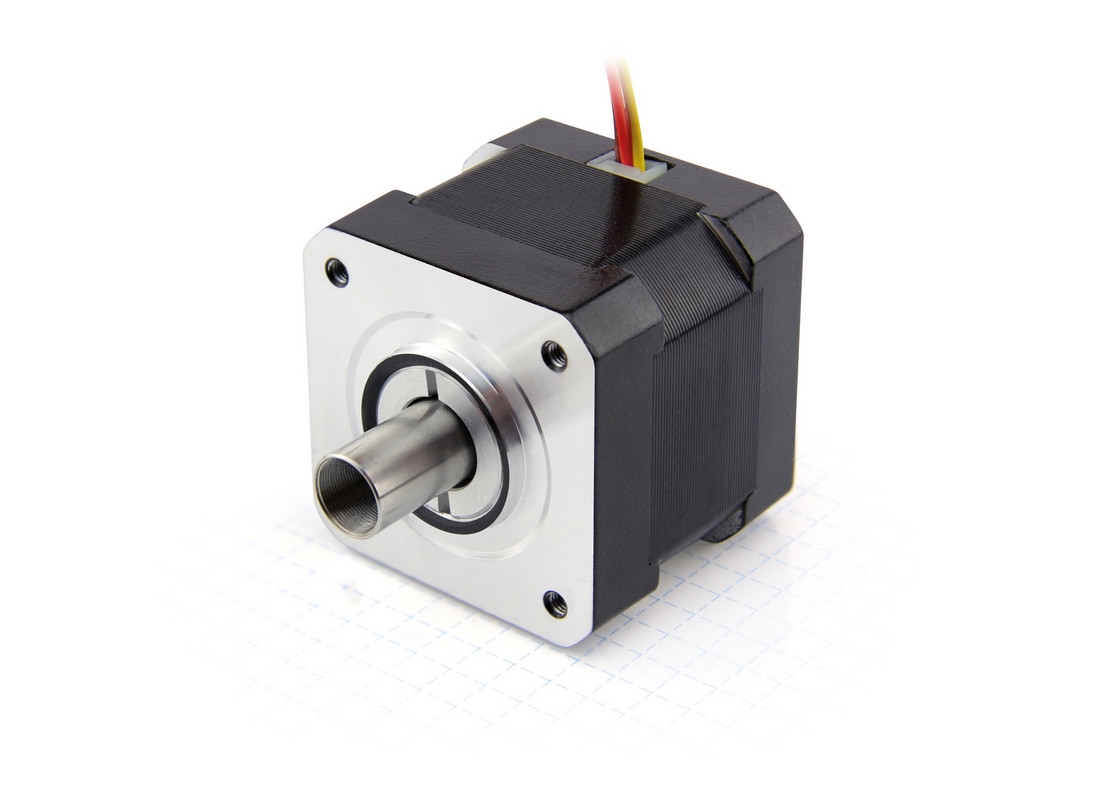

High-torque stepper motor with hollow shaft in size NEMA 17 (42 mm) and with 1.8° step angle (full step).


• Current per Winding - 1.8 A

• Length "A" - 1.5 mm

• Size - 1.66 in

• Resolution - 1.8 °/step

• Weight - 0.095 kg
