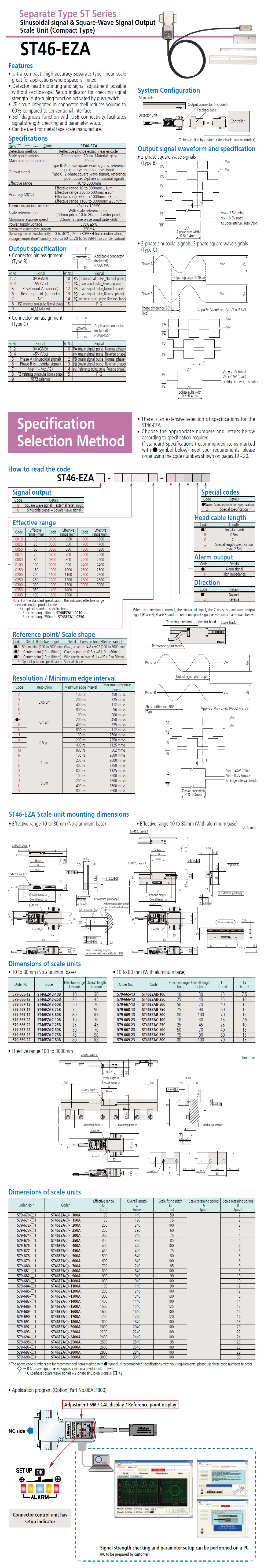

Description Specifications and Drawings

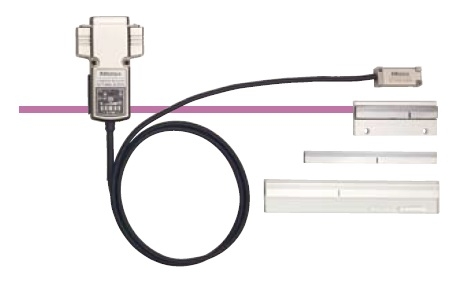

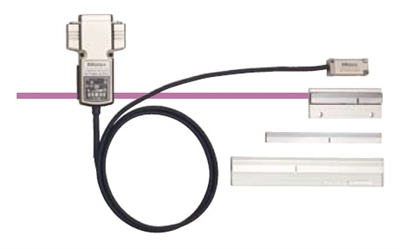

Mitutoyo: ST46-EZA Glass Linear Scales (579 Series)

Features

  • Includes an automatic adjusting function for the signal (EZA function) at the push of a button.

  • Detector head mounting and signal adjustment possible without oscilloscope or PC.

  • A setup indicator for checking signal strength is included.

  • I/F circuit integrated in connector shell reduces volume to 60% compared to conventional interface.

  • Self-diagnosis function with USB connectivity facilitates signal strength checking and parameter setup.

  • Glass and metal tape scales are available.

  • The thickness of the detector head is only 7.5 mm. The metal tape scale type has a mounting surface area of 12.5 by 9.325 mm, allowing use in applications where a space-saving design is important.

Specifications

  • Detection method: Reflective photoelectric linear encoder

  • Scale type: Glass, Metal tape

  • Main scale grating pitch: 20µm

  • Output signal:

  • Type B: 2-phase square wave signals, reference point pulse, external reset input.

  • Type C: 2-phase square wave signals, reference point pulse, 2-phase sinusoidal signals.

  • Effective range: 10 to 3000mm

  • Resolution: 0.05µm to 5 µm

  • Accuracy (20°C) Glass Scale Type:

  • Effective range 10 to 300mm: ±1µm

  • Effective range 350 to 500mm: ±2µm

  • Effective range 600 to 1000mm: ±3µm

  • Effective range 1100 to 3000mm: ±3µm/m

  • Accuracy (20°C) Metal Scale Type:

  • Effective range 10 to 1000mm: ±5µm

  • Effective range 1100 to 3000mm: ±5µm/m (The accuracy applies to individual scales. For double-end fixing designs, perform point-to-point correction after ensuring the metal tape is tensioned correctly.)

  • Maximum response speed: 2.6m/s (With sinusoidal signal amplitude of -3dB)

  • Scale reference point: 50mm pitch, 10 to 80mm: Center point

  • Power supply voltage: 5VDC±5%

  • Operating temperature/ humidity range: 0 to 40°C, RH 20 to 80% (no condensation)

  • Storage temperature/ humidity range: –20 to 60°C, RH 20 to 80% (no condensation)
