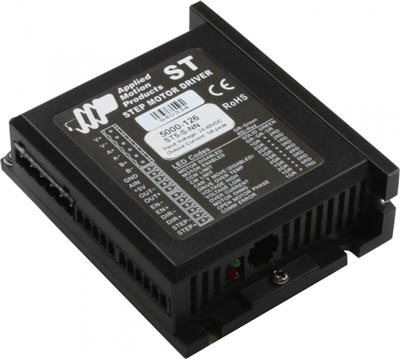

AMP: DC Advanced Microstep Drive (ST5-S Series) 24-48 VDC
AMP: DC Advanced Microstep Drive (ST5-S Series) 24-48 VDC


Price: (Members Only)


Order #: ST5-S


Model No.:


Qty:

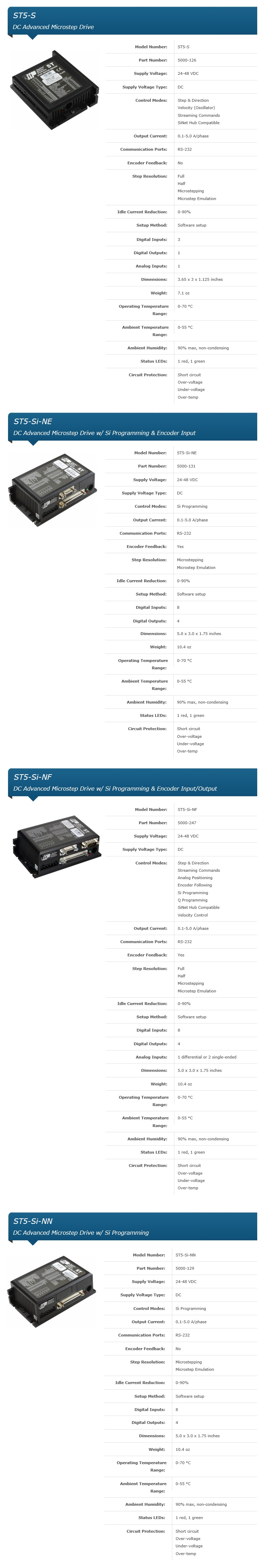

Description Specifications and Drawings


AMP: DC Advanced Microstep Drive (ST5-S Series) 24-48 VDC

Step Motor Drives

Step motor drives from Applied Motion Products offer unparalleled performance for today's modern machine builders. From the ground up these drives offer best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options, and industry-standard industrial network communications.

ST5-S: DC Advanced Microstep Drive

The ST5-S stepper drive is a DC-powered microstepping drive for controlling two-phase, bipolar step motors. It offers advanced current control and a sophisticated 3rd generation anti-resonance algorithm that electronically dampens motor and system resonances to improve motor smoothness and usable torque over a wide speed range. The drive also employs electronic torque ripple smoothing and microstep emulation to greatly reduce motor noise and vibration. The drive must be powered from 24-48 VDC and can output up to 5.0 A/phase (peak-of-sine) to the step motor. Over-voltage, over-temperature and over-current protection features prevent damage while running in adverse conditions. The drive is complemented by a specifically matched set of NEMA 11 through NEMA 23 frame stepper motors (see Related and Recommended products below).

The ST5-S can operate in the following control modes: step (pulse) & direction, velocity (oscillator), streaming serial commands (SCL), and operation with an Applied Motion 4-axis or 8-axis SiNet Hub. All ST drives are setup and configured using Applied Motion’s ST Configurator™ software. Preconfigured motor setup files included with ST Configurator™ make it easy to set up the drive for optimum results.

For connecting to external devices such as step & direction control signals, incremental encoders, limit switches, proximity or photoelectric sensors, PLC I/O, lamps, and other devices, the drive comes with 3 digital inputs, 1 digital output, and 1 single-ended analog input. Adjustable digital filters are present on the digital inputs for enhanced reliability in noisy environments.

The drive comes with an RS-232 port for configuration, serial communications and programming.

All ST drives are CE approved and RoHS compliant.

Features:

  • Compact microstepping drive with advanced current control

  • Step (pulse) & direction, CW/CCW pulse, or A/B quadrature pulse control

  • On-board oscillator with analog speed reference

  • Versatile joystick operation

  • Streaming serial command mode (SCL)

  • Wide current range 0.1 to 5.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • Microstepping and Microstep Emulation

  • 3 digital inputs, 1 digital output, optically isolated

  • 1 analog input, 0-5 volt range

  • RS-232 cable and mating connectors included

ST5-Si-NE: DC Advanced Microstep Drive w/ Si Programming & Encoder Input

The ST5-Si-NE stepper drive is a DC-powered microstepping drive for controlling two-phase, bipolar step motors. It offers advanced current control and a sophisticated 3rd generation anti-resonance algorithm that electronically dampens motor and system resonances to improve motor smoothness and usable torque over a wide speed range. The drive also employs electronic torque ripple smoothing and microstep emulation to greatly reduce motor noise and vibration. The drive must be powered from 24-48 VDC and can output up to 5.0 A/phase (peak-of-sine) to the step motor. Over-voltage, over-temperature and over-current protection features prevent damage while running in adverse conditions. The drive is complemented by a specifically matched set of NEMA 11 through NEMA 23 frame stepper motors (see Related and Recommended products below).

The ST5-Si-NE can operate in all of the same control modes as the Q models, plus it has the ability to run a stand-alone Si program stored in non-volatile memory. Si programs are created using the Si Programmer™ software, which provides unparalleled simplicity in indexer-drive programming via Applied Motion’s unique and powerful icon-based programming environment. Preconfigured motor setup files included with Si Programmer™ make it easy to set up the drive for optimum results.

For connecting to external devices such as control signals, incremental encoders, limit switches, proximity or photoelectric sensors, PLC I/O, lamps, and other devices, the drive comes with 8 digital inputs and 4 digital outputs. Adjustable digital filters are present on the digital inputs for enhanced reliability in noisy environments. Note: 2 single-ended analog inputs, which can be wired together as 1 differential analog input, are also available, but not in Si program mode.

The drive comes with an RS-232 port for configuration and programming.

The ST5-Si-NE comes with an encoder feedback connector for applications that demand a higher level of position control than ordinary open-loop step motor systems can provide. Use our double-shaft step motors with incremental encoders and activate either Stall Detection or Stall Prevention in the drive. Stall Detection notifies the system as soon as the required torque is too great for the motor, which results in a loss of synchronization between the rotor and stator, also known as stalling. Stall Prevention automatically adjusts motor speed to maintain synchronization of the rotor to the stator under all conditions. This unique feature allows step motors to operate in a much broader range of applications than previously possible, such as torque-control. The Stall Prevention feature also performs static position maintenance, which maintains the position of the motor shaft when at rest. Additionally, the inclusion of the optional encoder allows the motor to be precisely homed to the index (marker) pulse.

All ST drives are CE approved and RoHS compliant.

Features:

  • Programmable microstepping drive with advanced current control

  • 100 lines of icon-based program capability

  • Si Programmer™ is heralded for its programming ease

  • Animation mode displays operation in real time, great for debugging

  • Wide current range 0.1 to 5.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • Microstepping and Microstep Emulation

  • 8 digital inputs, 4 digital outputs, optically isolated

  • Encoder feedback connector for Stall Prevention & Stall Detection

  • RS-232 cable and mating connectors included

ST5-Si-NF:DC Advanced Microstep Drive w/ Si Programming & Encoder Input/Output

This stepper drive with model number ending in -NF is designed to accept encoder feedback. Be sure to order a compatible stepper motor with the encoder option (i.e. -WAA, -ZAA, or -YAA).

The ST5-Si-NF stepper drive is a DC-powered microstepping drive for controlling two-phase, bipolar step motors. It offers advanced current control and a sophisticated 3rd generation anti-resonance algorithm that electronically dampens motor and system resonances to improve motor smoothness and usable torque over a wide speed range. The drive also employs electronic torque ripple smoothing and microstep emulation to greatly reduce motor noise and vibration. The drive must be powered from 24-48 VDC and can output up to 5.0 A/phase (peak-of-sine) to the step motor. Over-voltage, over-temperature and over-current protection features prevent damage while running in adverse conditions. The drive is complemented by a specifically matched set of NEMA 11 through NEMA 23 frame stepper motors (see Related and Recommended products below).

The ST5-Si-NF can operate in all of the same control modes as the Q models, plus it has the ability to run a stand-alone Si program stored in non-volatile memory. Si programs are created using the Si Programmer™ software, which provides unparalleled simplicity in indexer-drive programming via Applied Motion’s unique and powerful icon-based programming environment. Preconfigured motor setup files included with Si Programmer™ make it easy to set up the drive for optimum results.

For connecting to external devices such as control signals, incremental encoders, limit switches, proximity or photoelectric sensors, PLC I/O, lamps, and other devices, the drive comes with 8 digital inputs and 4 digital outputs. Adjustable digital filters are present on the digital inputs for enhanced reliability in noisy environments. Note: 2 single-ended analog inputs, which can be wired together as 1 differential analog input, are also available, but not in Si program mode.

The drive comes with an RS-232 port for configuration, serial communications and programming.

The ST5-Si-NF includes a quadrature encoder feedback connector for applications that demand a higher level of position control than ordinary open-loop step motor systems can provide. Use our double-shaft step motors with incremental encoders and activate either Stall Detection or Stall Prevention in the drive. Stall Detection notifies the system as soon as the required torque is too great for the motor, which results in a loss of synchronization between the rotor and stator, also known as stalling. Stall Prevention automatically adjusts motor speed to maintain synchronization of the rotor to the stator under all conditions. This unique feature allows step motors to operate in a much broader range of applications than previously possible, such as torque-control. The Stall Prevention feature also performs static position maintenance, which maintains the position of the motor shaft when at rest. Additionally, the inclusion of the optional encoder allows the motor to be precisely homed to the index (marker) pulse.

The ST5-Si-NF also features a separate, buffered encoder output so that other devices can monitor the motor position in real time.

All ST drives are CE approved and RoHS compliant.

Features:

  • Programmable microstepping drive with advanced current control

  • Encoder feedback connector for Stall Prevention & Stall Detection

  • Buffered encoder out for monitoring by PLC or Motion Controller

  • Si Programmer™ is heralded for its programming ease

  • 100 lines of icon-based program capability

  • Animation mode displays operation in real time, great for debugging

  • Supports all “Q” and “S” drive control modes as well

  • Wide current range 0.1 to 5.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • Microstepping and Microstep Emulation

  • 8 digital inputs, 4 digital outputs, optically isolated

  • 2 analog inputs, +/-10 volt range

  • RS-232 cable and mating connectors included

ST5-Si-NN: DC Advanced Microstep Drive w/ Si Programming

The ST5-Si-NN stepper drive is a DC-powered microstepping drive for controlling two-phase, bipolar step motors. It offers advanced current control and a sophisticated 3rd generation anti-resonance algorithm that electronically dampens motor and system resonances to improve motor smoothness and usable torque over a wide speed range. The drive also employs electronic torque ripple smoothing and microstep emulation to greatly reduce motor noise and vibration. The drive must be powered from 24-48 VDC and can output up to 5.0 A/phase (peak-of-sine) to the step motor. Over-voltage, over-temperature and over-current protection features prevent damage while running in adverse conditions. The drive is complemented by a specifically matched set of NEMA 11 through NEMA 23 frame stepper motors (see Related and Recommended products below).

The ST5-Si-NN can operate in all of the same control modes as the Q models, plus it has the ability to run a stand-alone Si program stored in non-volatile memory. Si programs are created using the Si Programmer™ software, which provides unparalleled simplicity in indexer-drive programming via Applied Motion’s unique and powerful icon-based programming environment. Preconfigured motor setup files included with Si Programmer™ make it easy to set up the drive for optimum results.

For connecting to external devices such as control signals, incremental encoders, limit switches, proximity or photoelectric sensors, PLC I/O, lamps, and other devices, the drive comes with 8 digital inputs and 4 digital outputs. Adjustable digital filters are present on the digital inputs for enhanced reliability in noisy environments. Note: 2 single-ended analog inputs, which can be wired together as 1 differential analog input, are also available, but not in Si program mode.

The drive comes with an RS-232 port for configuration and programming.

All ST drives are CE approved and RoHS compliant.

Features:

  • Programmable microstepping drive with advanced current control

  • 100 lines of icon-based program capability

  • Si Programmer™ is heralded for its programming ease

  • Animation mode displays operation in real time, great for debugging

  • Wide current range 0.1 to 5.0 A/phase (peak of sine) with idle current reduction

  • Advanced anti-resonance algorithm

  • Torque ripple smoothing

  • Microstepping and Microstep Emulation

  • 8 digital inputs, 4 digital outputs, optically isolated

  • RS-232 cable and mating connectors included

Model No.: ST5-S, ST5-Si-NE, ST5-Si-NF, ST5-Si-NN
