Nanotec: ST5918S3008-L2– STEPPER MOTOR WITH HOLLOW SHAFT – NEMA 23
Nanotec: ST5918S3008-L2– STEPPER MOTOR WITH HOLLOW SHAFT – NEMA 23



Price: (Members Only)


Availability: Lead time is 3-5 weeks currently.
Order #: ST5918S3008-L2
Qty:

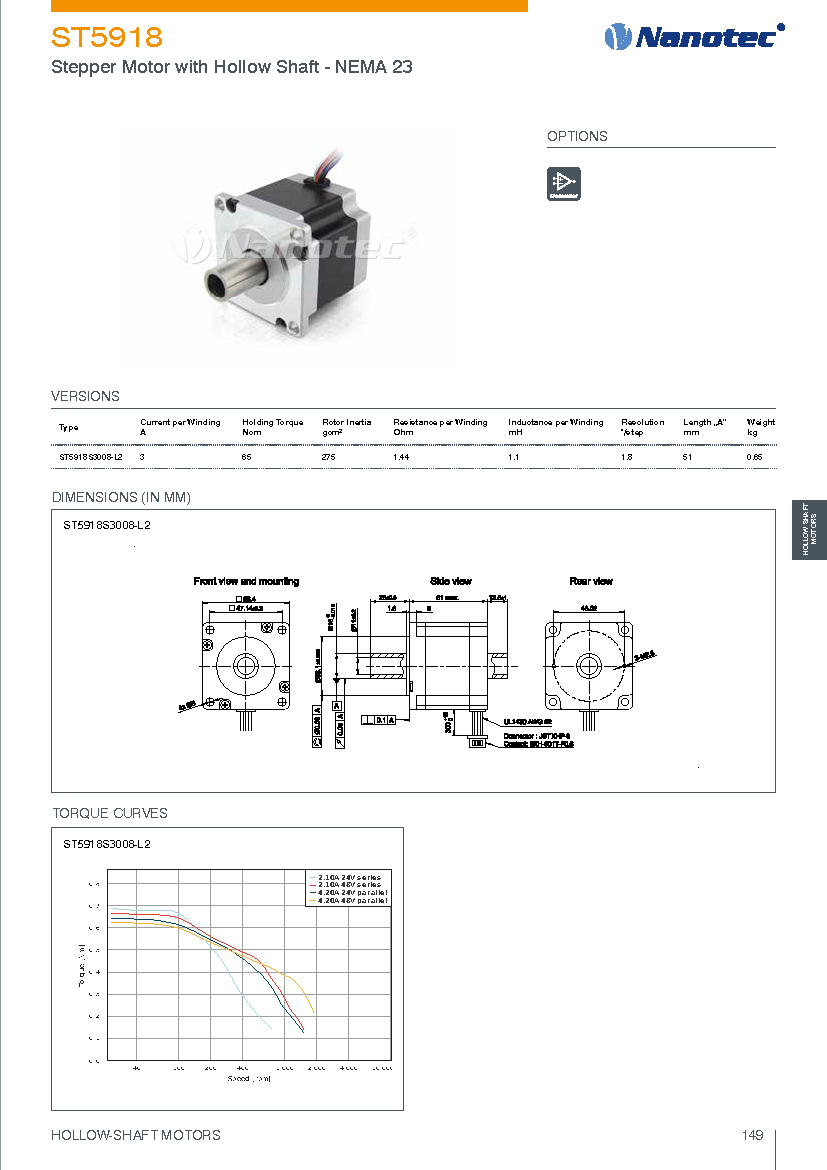

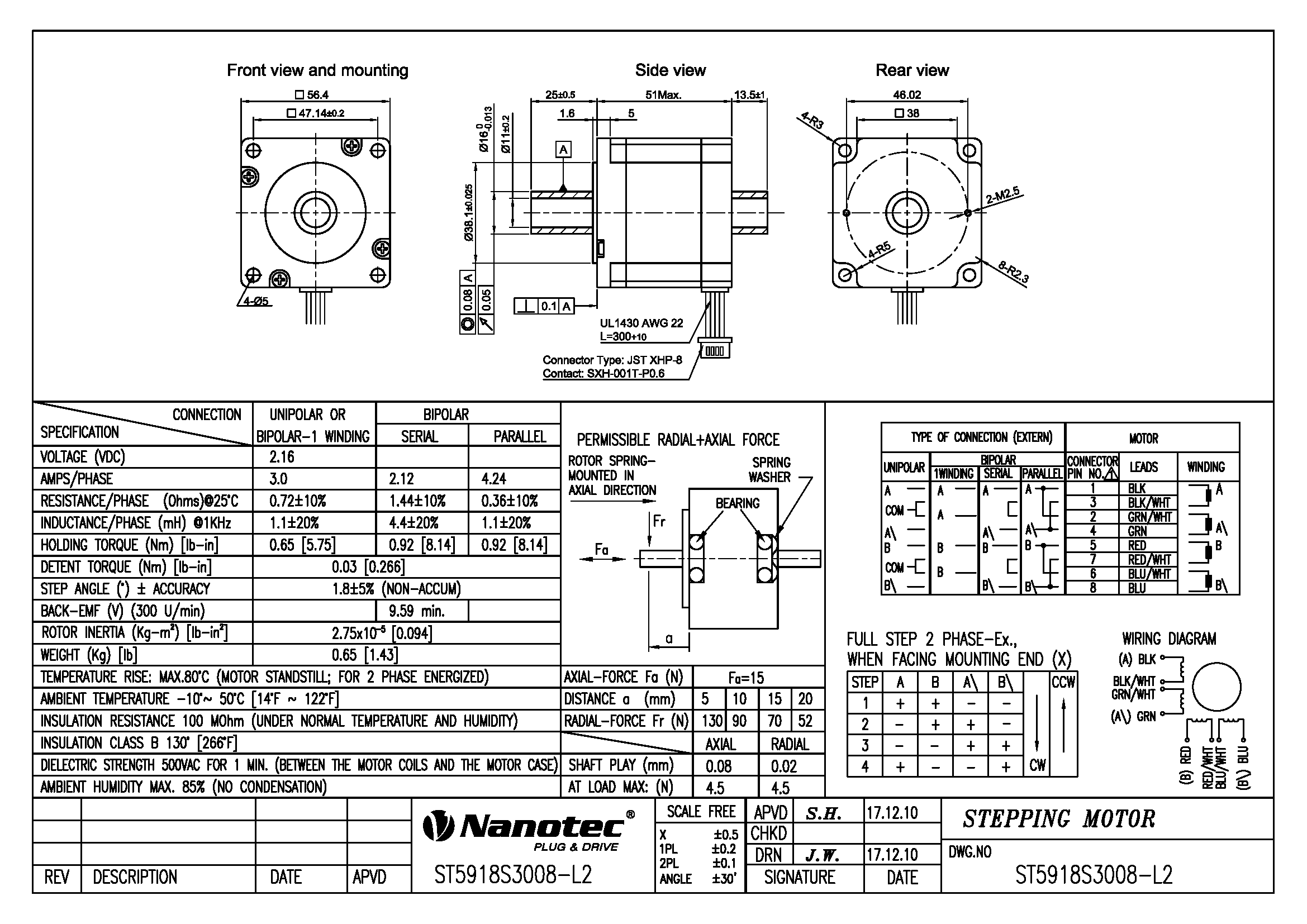

Description Ordering Information Specifications and Drawings


Nanotec Electronic GmbH & Co KG

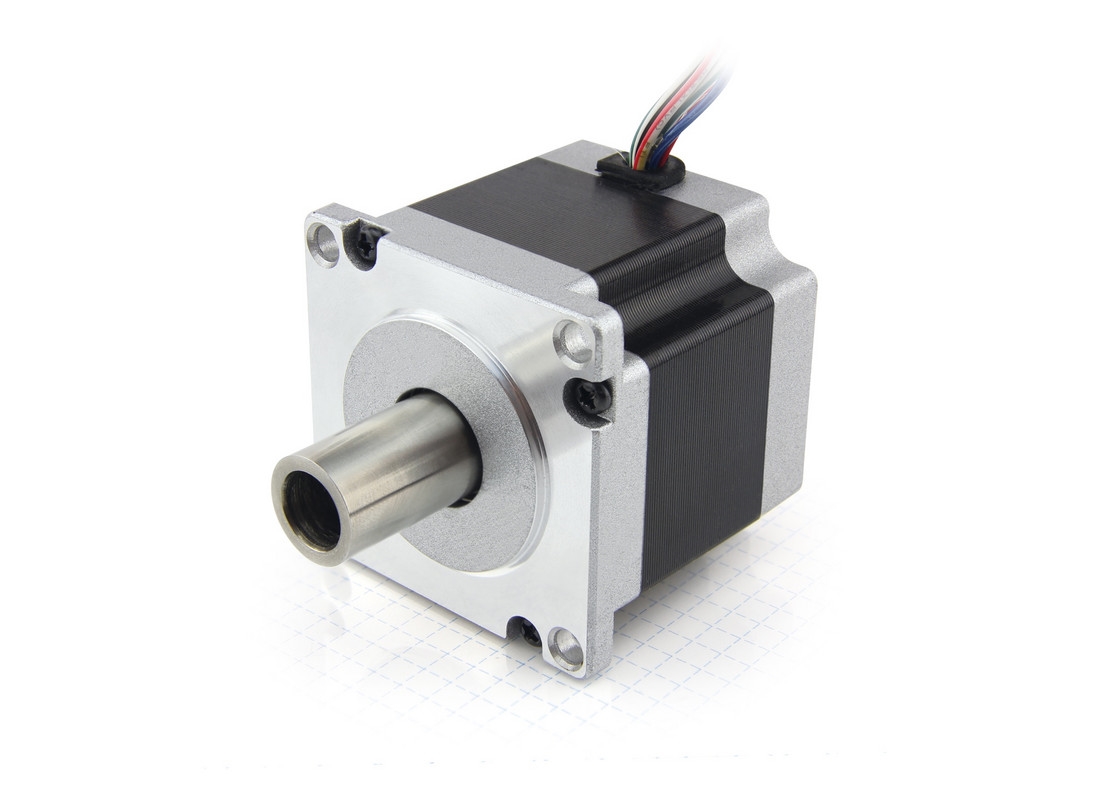

ST5918S3008-L2 – STEPPER MOTOR WITH HOLLOW SHAFT – NEMA 23

High-torque stepper motor with hollow shaft in size NEMA 23 (56 mm) and with 1.8° step angle (full step). Standard size for installation in linear axes or small CNC machines.


• Current per Winding - 3 A

• Length "A" - 2.01 in

• Size - 2.2 in

• Resolution - 1.8 °/step

• Weight - 0.65 kg
