Nanotec: ST6018 – STEPPER MOTOR – NEMA 24
Nanotec: ST6018 – STEPPER MOTOR – NEMA 24



Price: (Members Only)


Availability: Subject to availability
Order #: ST6018


Model No.:


Qty:
Description Ordering Information Specifications and Drawings


Nanotec Electronic GmbH & Co KG

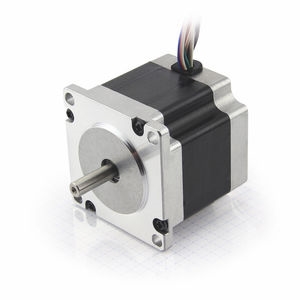

HYBRID STEPPER MOTOR – NEMA 24

High-torque stepper motor in size NEMA 24 (60 mm) with 1.8° step angle (full step). This stepper motor is slightly larger (flange size 60x60 mm) than the stepper motors of the ST5918 series, but offers a markedly higher power output and an 8 mm shaft with the same hole pattern. Available in five lengths and a variety of versions.

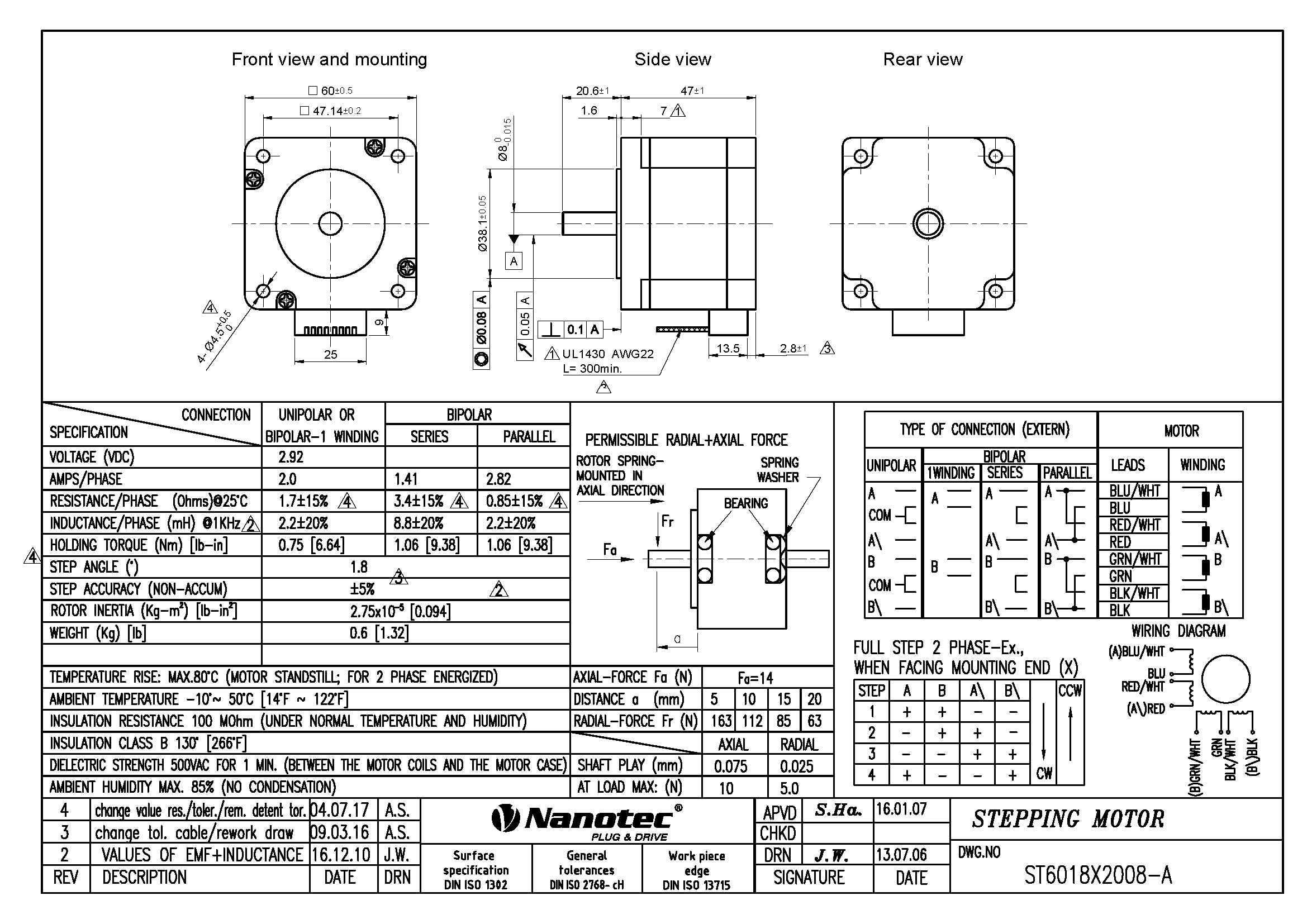

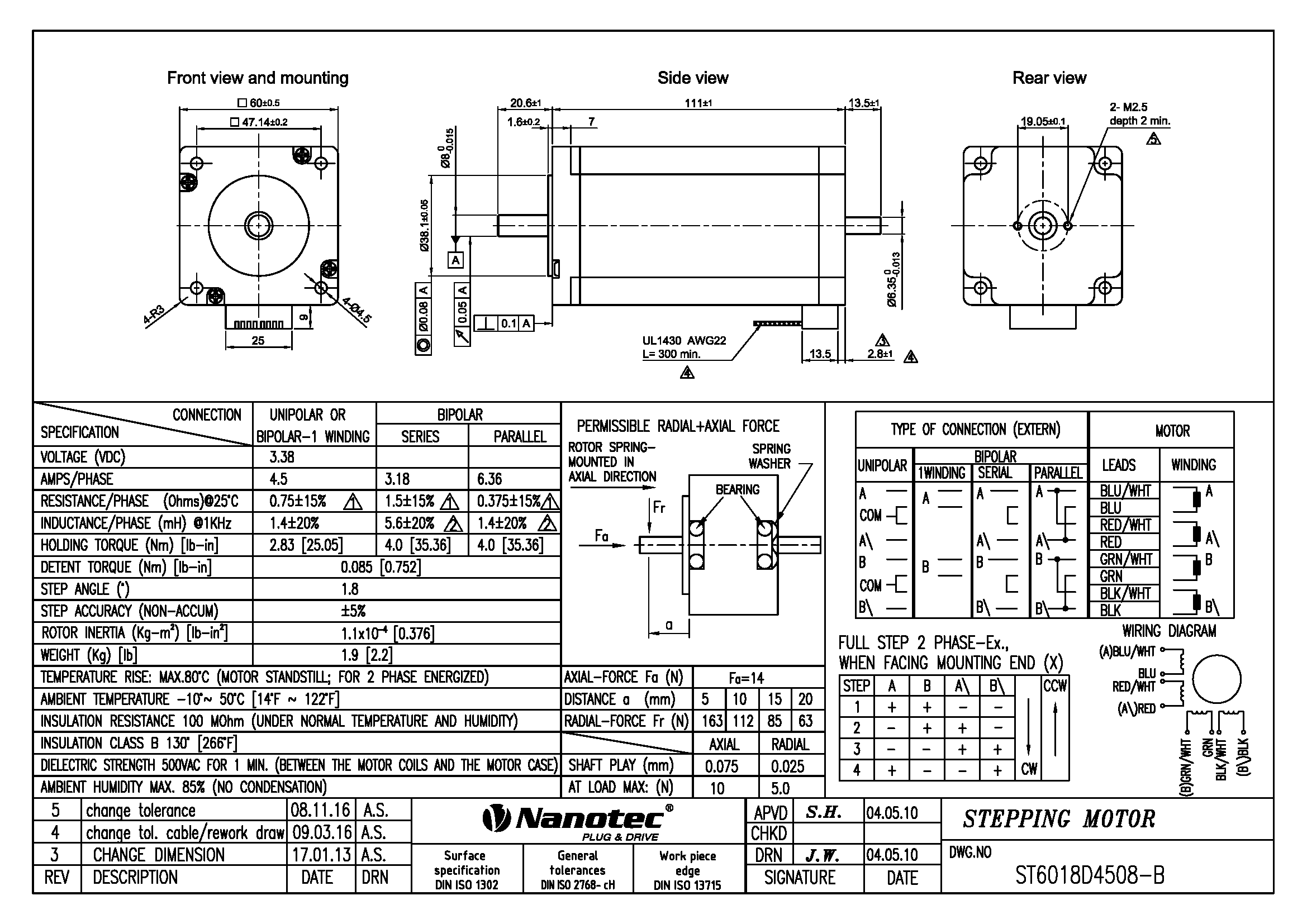

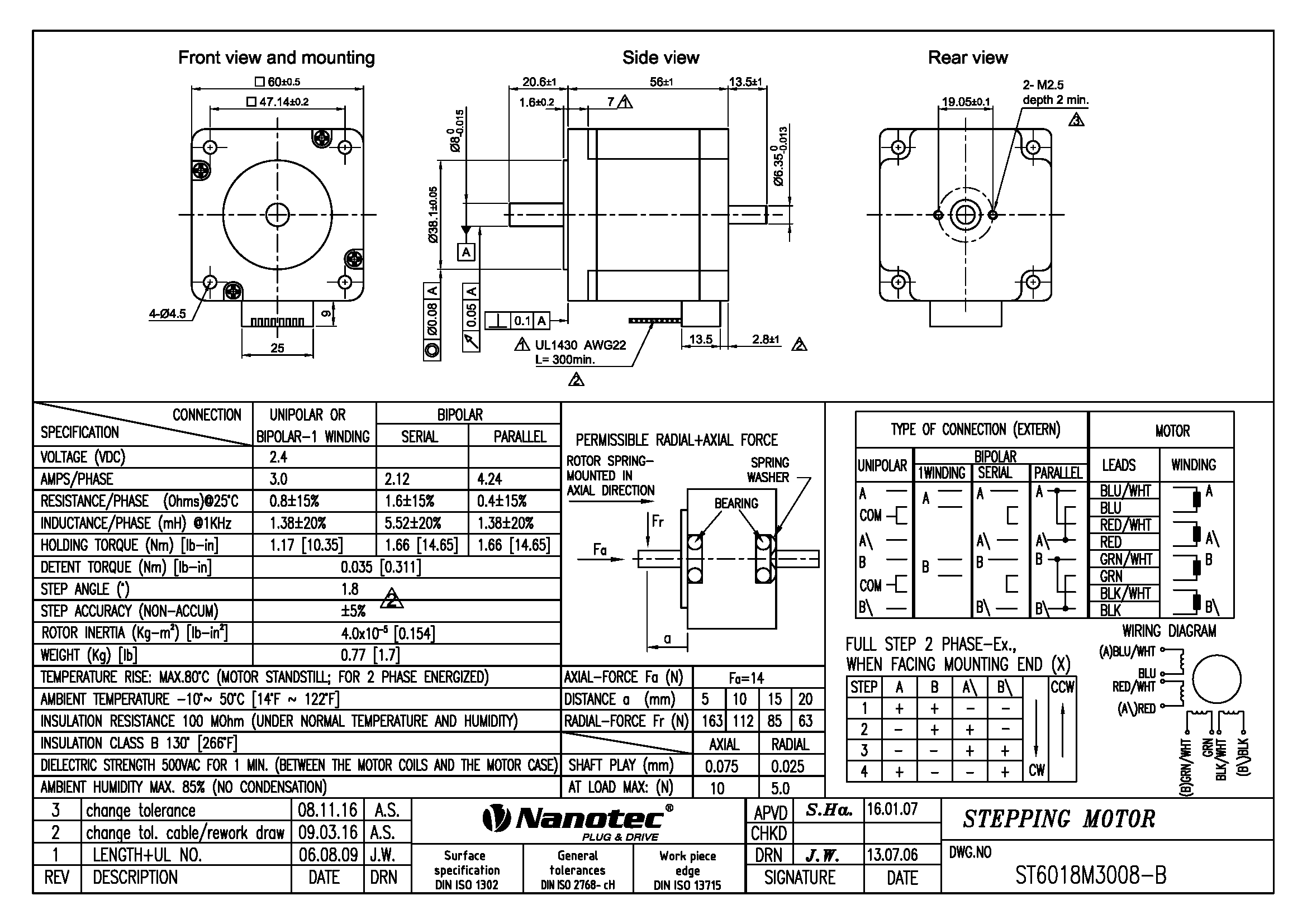

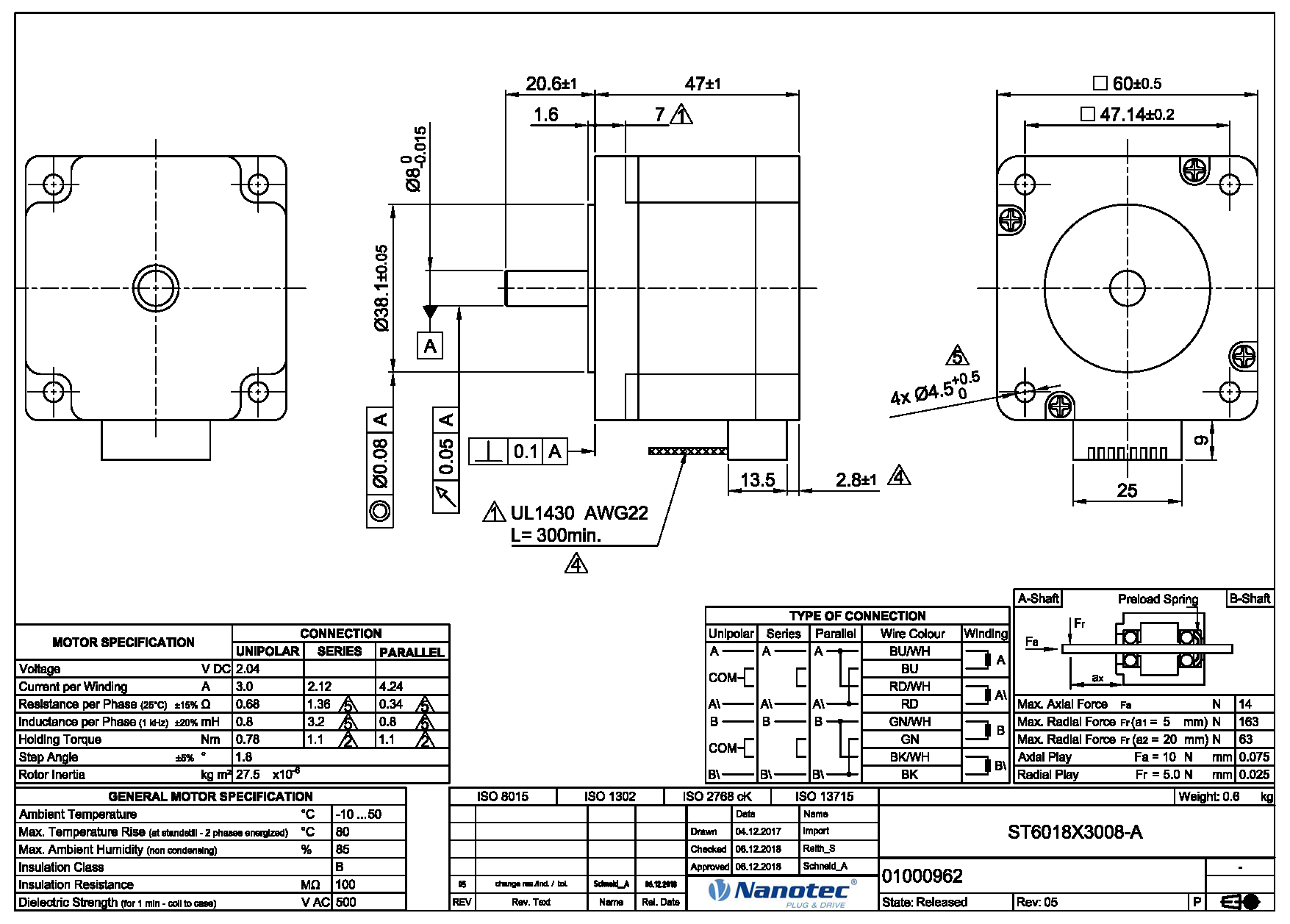

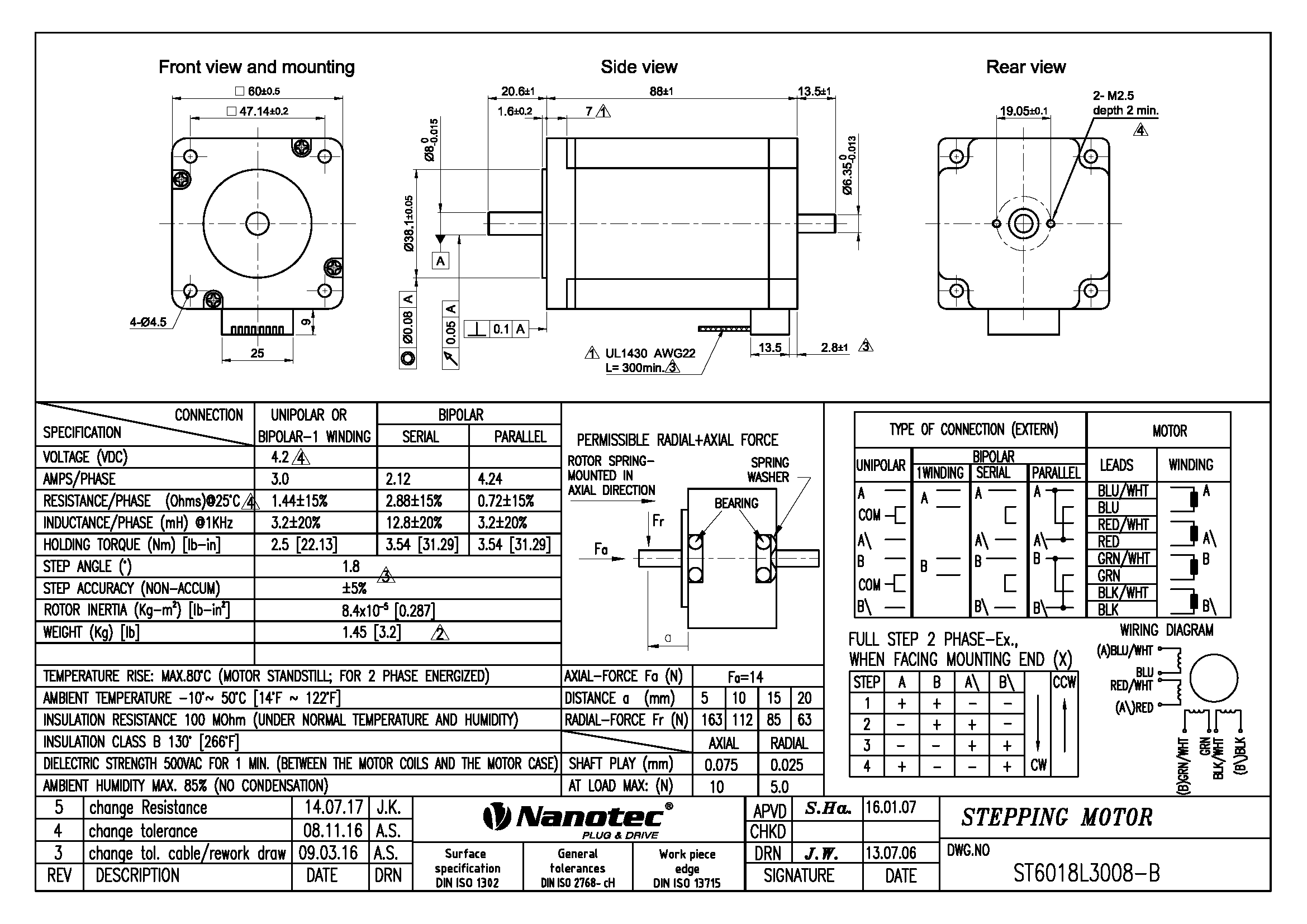

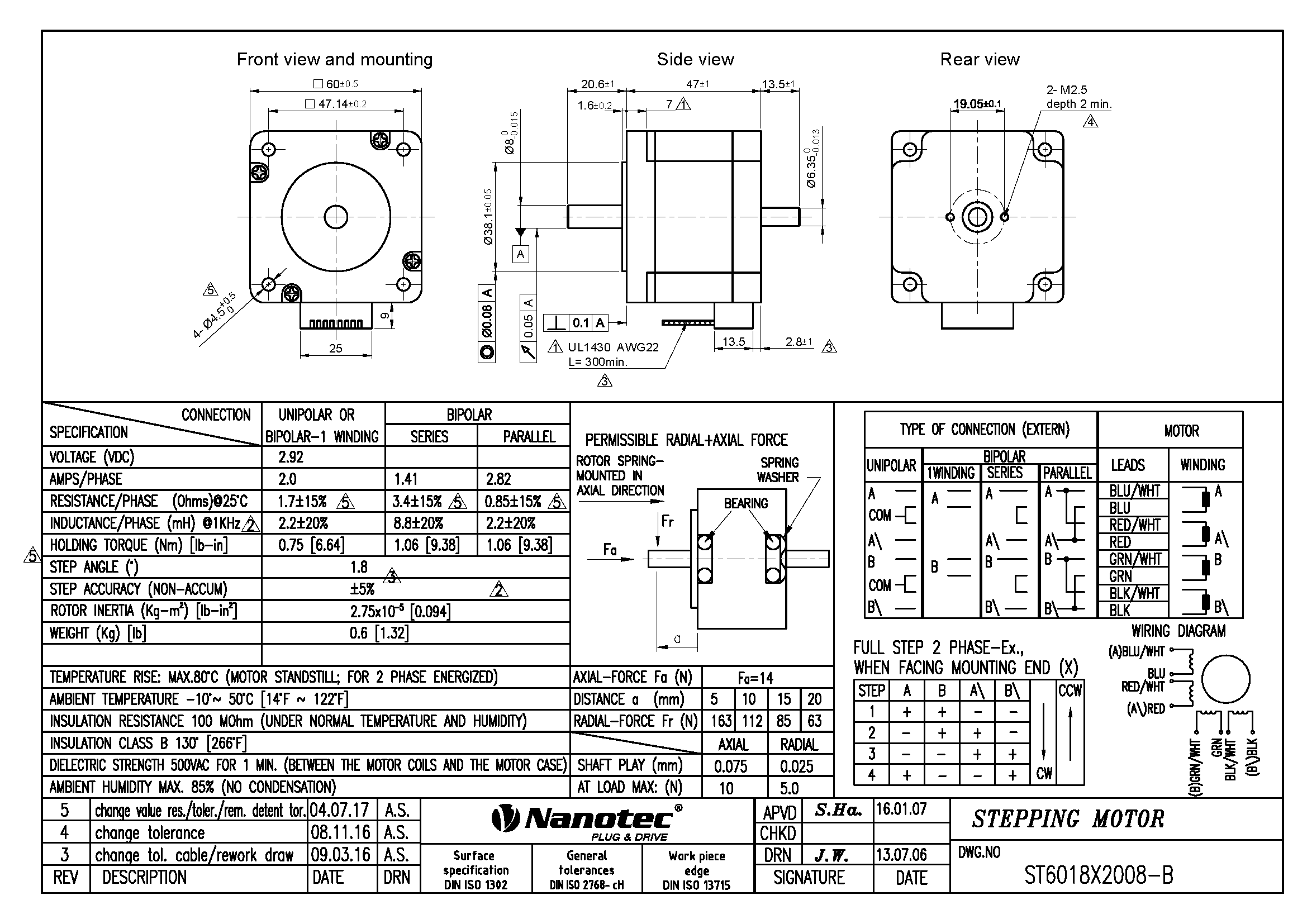

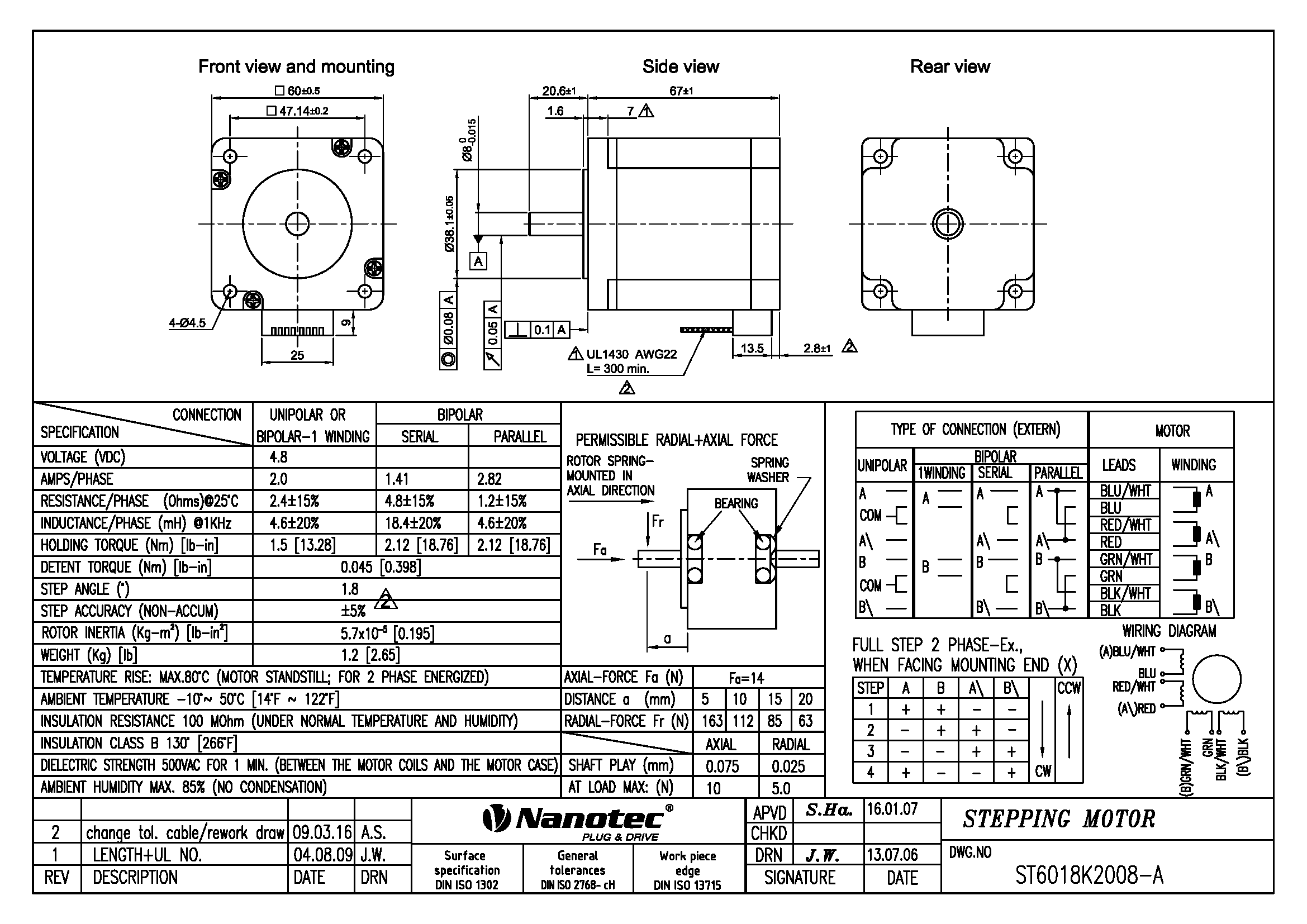

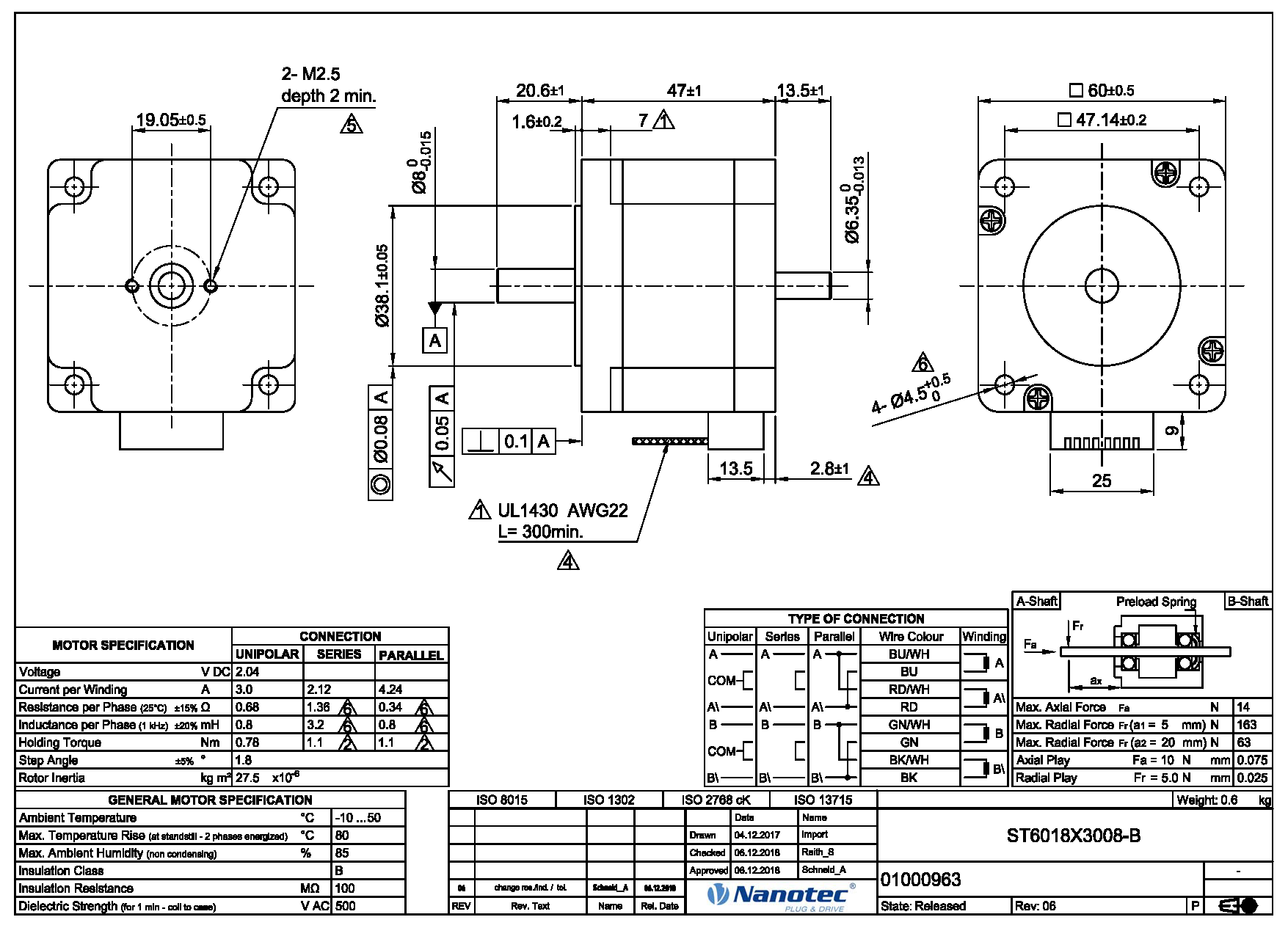

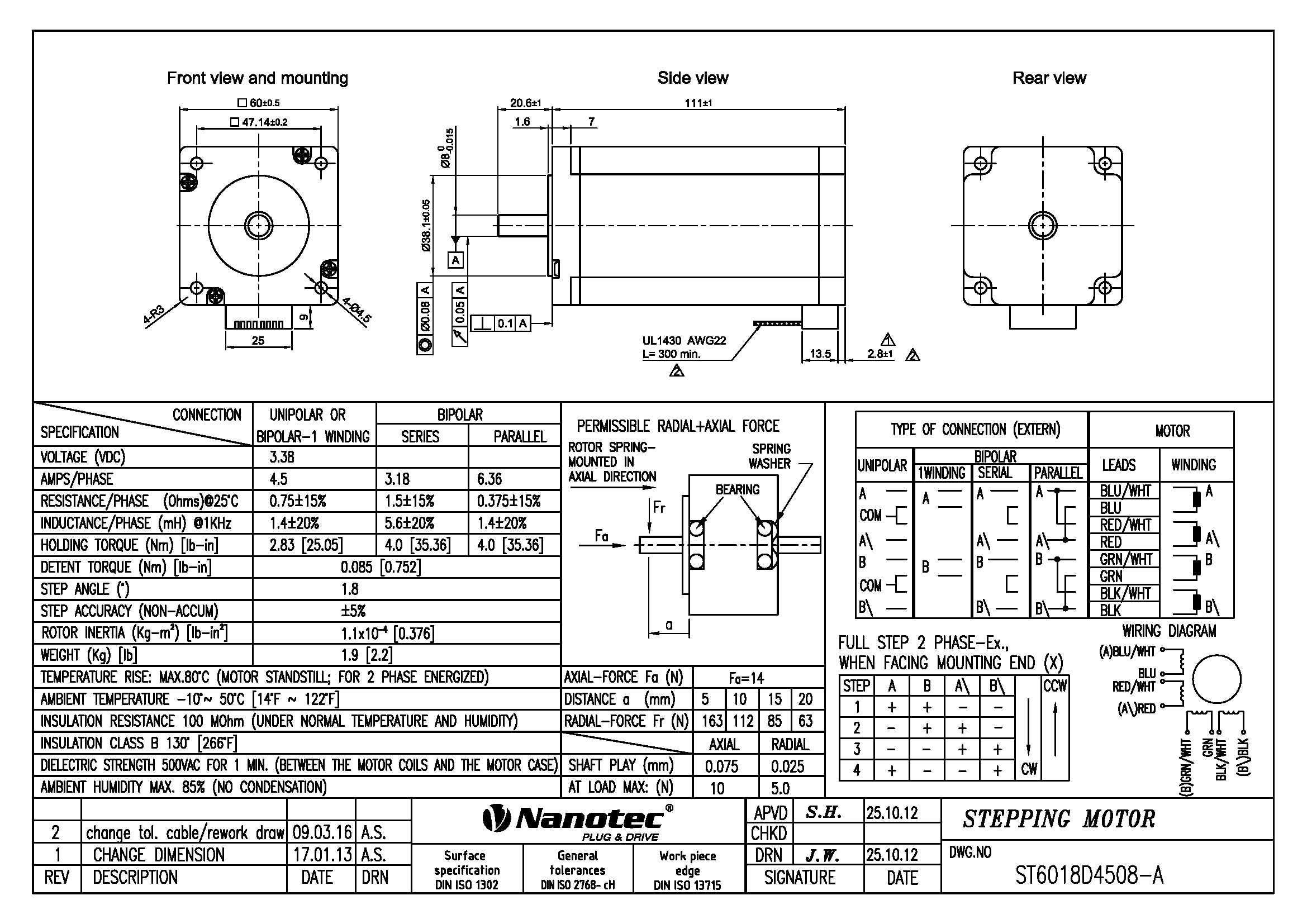

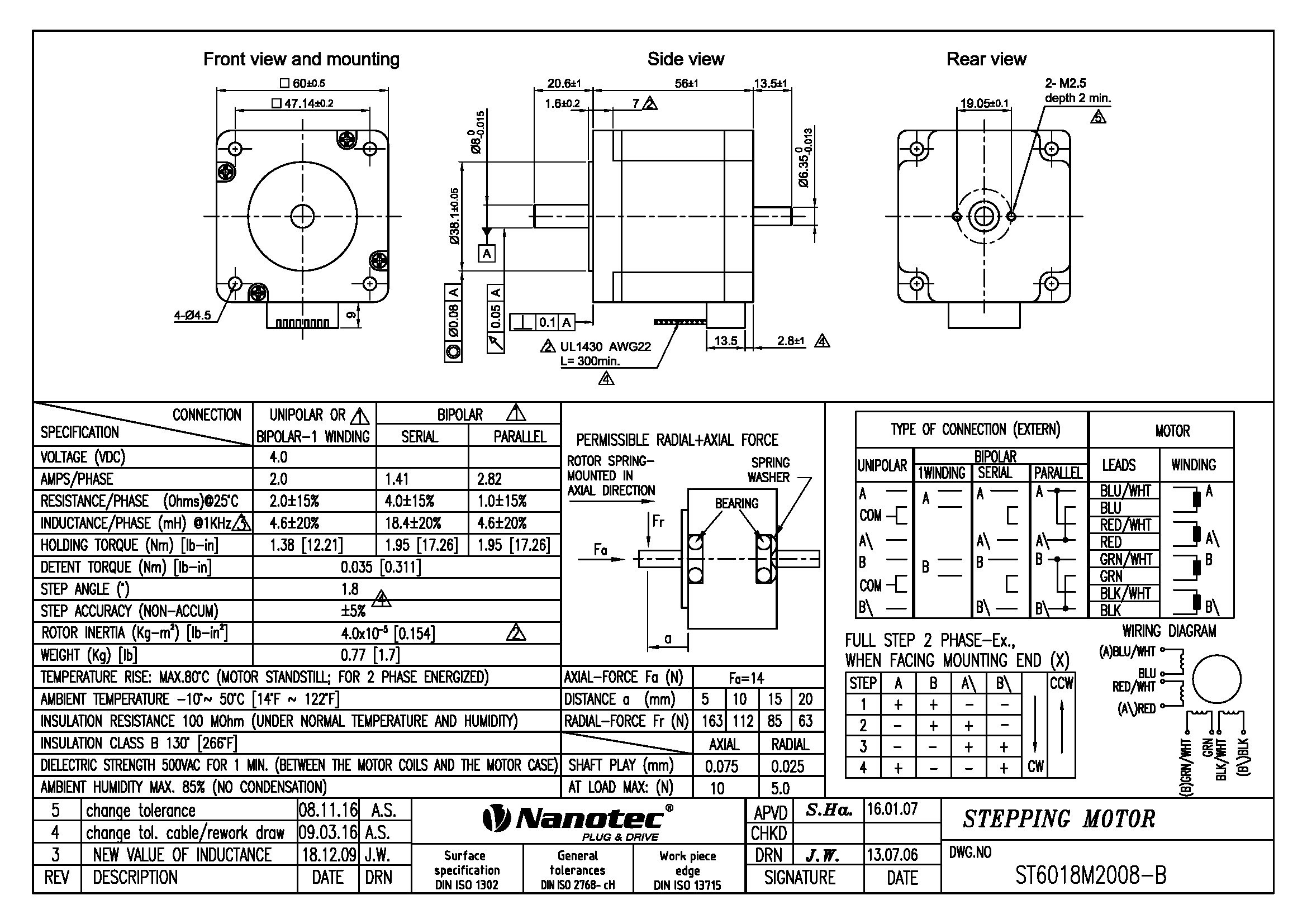

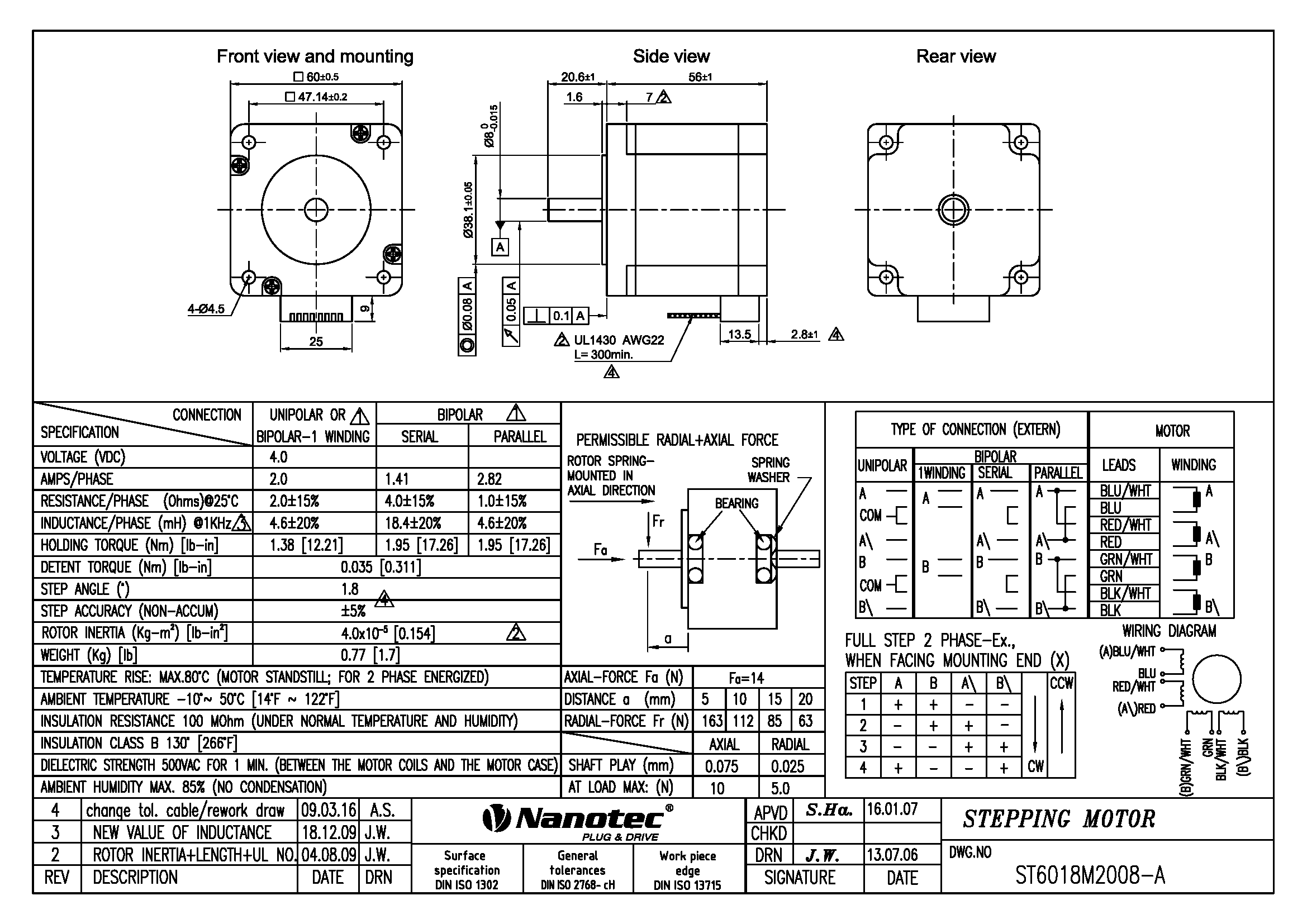

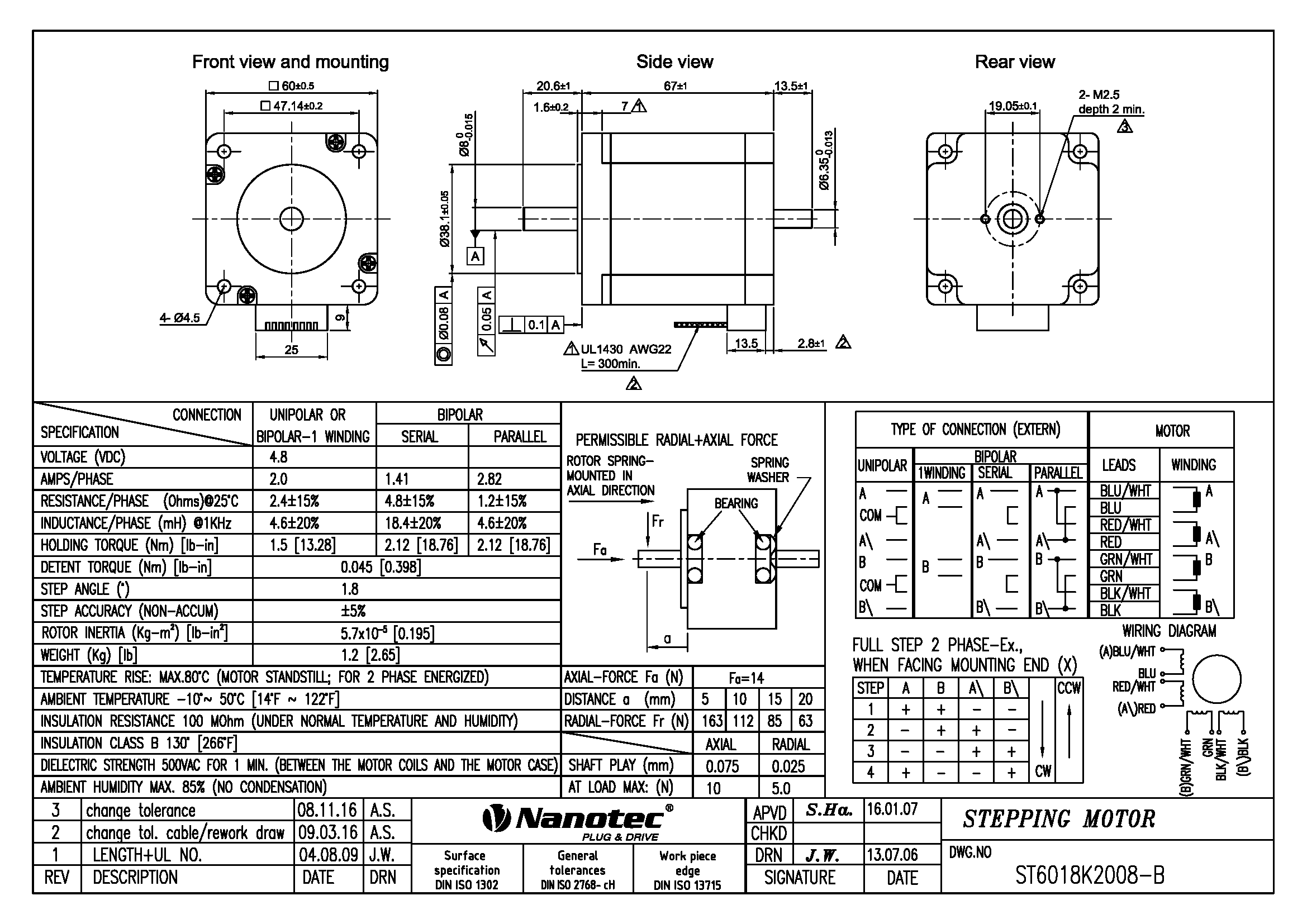

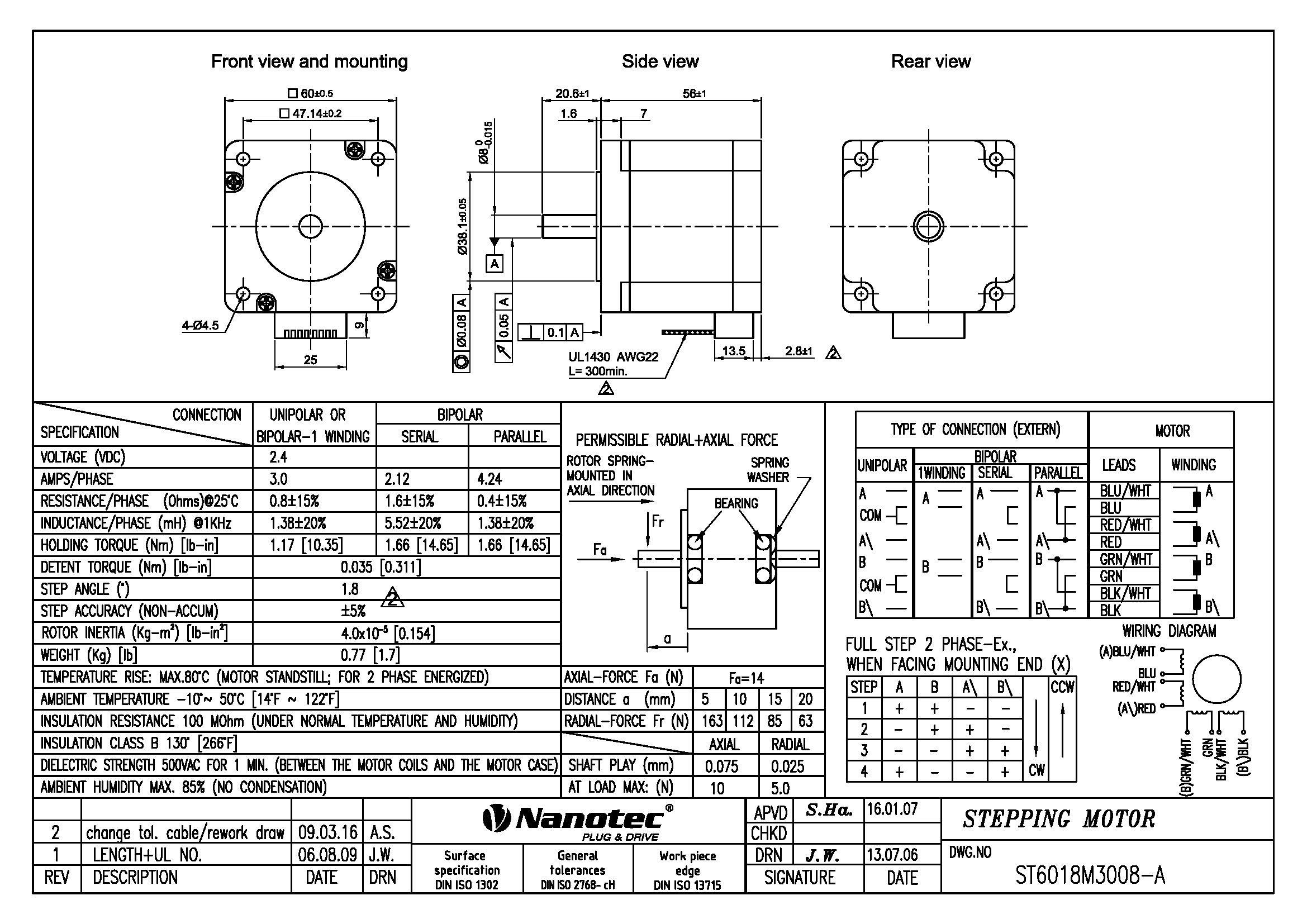

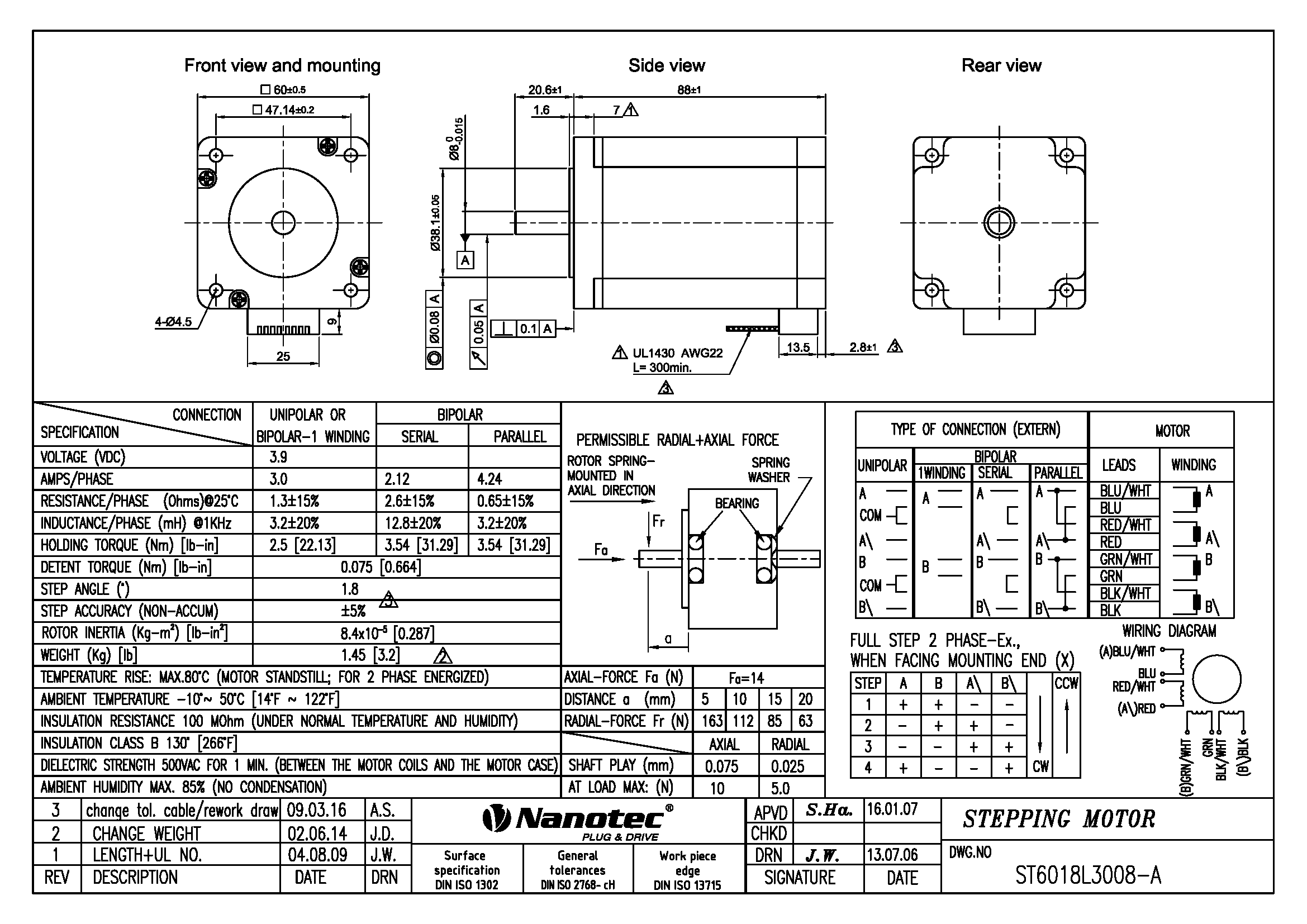

ST6018X2008-A, ST6018X2008-B, ST6018X3008-A, ST6018X3008-B, ST6018M2008-A, ST6018M2008-B, ST6018M3008-A, ST6018M3008-B, ST6018K2008-A, ST6018K2008-B, ST6018L3008-A, ST6018L3008-B, ST6018D4508-A, ST6018D4508-B

NEMA 24

Current per Winding - 1.41 A - 4.5 A

Length "A" - 1.85 in - 4.37 in

Size - 2.36 in

Holding Torque - 150.21 oz-in - 566.76 oz-in

Weight - 1.4 kg
