Mitutoyo: ST700 Linear Scales (579 Series)
Mitutoyo: ST700 Linear Scales (579 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Availability: Subject to Availability
Order #: ST700
.

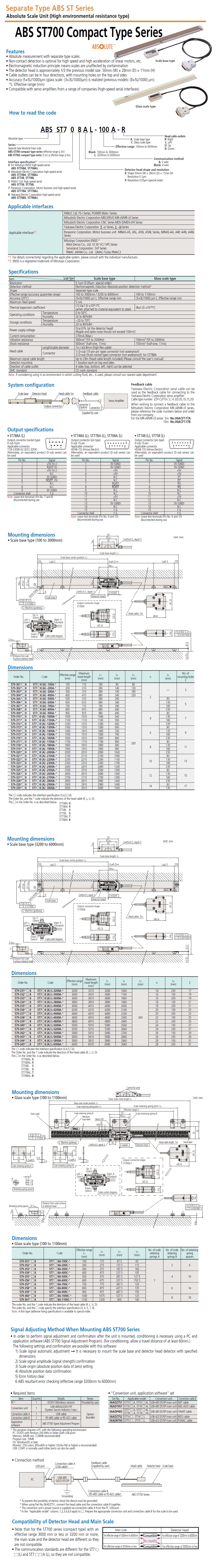

Description Specifications and Drawings

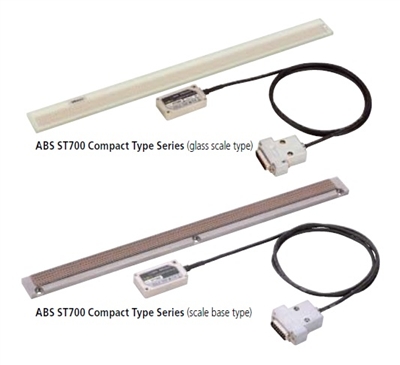

Mitutoyo: ST700 Linear Scales (579 Series) ABSOLUTE and High Environment Type

Features

  • Absolute measurement with exposed scales.

  • Non-contact detection is optimal for high speed and high acceleration devices such as linear motors.

  • Electromagnetic induction principle means scales are unaffected by water and oil contamination.

  • The detector head is approximately 1/3 the previous model size:50mm (W) × 28mm (D) × 11mm (H)

  • Cable outlets can be in four directions, with mounting holes on the top and sides.

  • Accuracy (5+5L/1000)μm, glass scale: (3+3L/1000)μm (previous models: (8+5L/1000)μm) L: Effective range (mm)

  • Compatible with servo amplifiers from a range of companies (high-speed serial interfaces)

  • Signal adjustment at installation is automatically performed with dedicated software.

Feedback cable

  • Yaskawa Electric Corporation serial cable can be used as the feedback cable to connect to a Yaskawa Electric Corporation servo amplifier. Cable model number : JZSP-CLP- (03, 05, 10, 15, 20)

  • For the feedback cable to connect to a Mitsubishi Electric Corporation MR-J2S/MR-J3, contact Mitutoyo with the following code numbers.
    For the MR-J2S 5m : No.06ACF116A 10m : No.06ACF116B
    For the MR-J3 5m : No.06ACF117A 10m : No.06ACF117B
