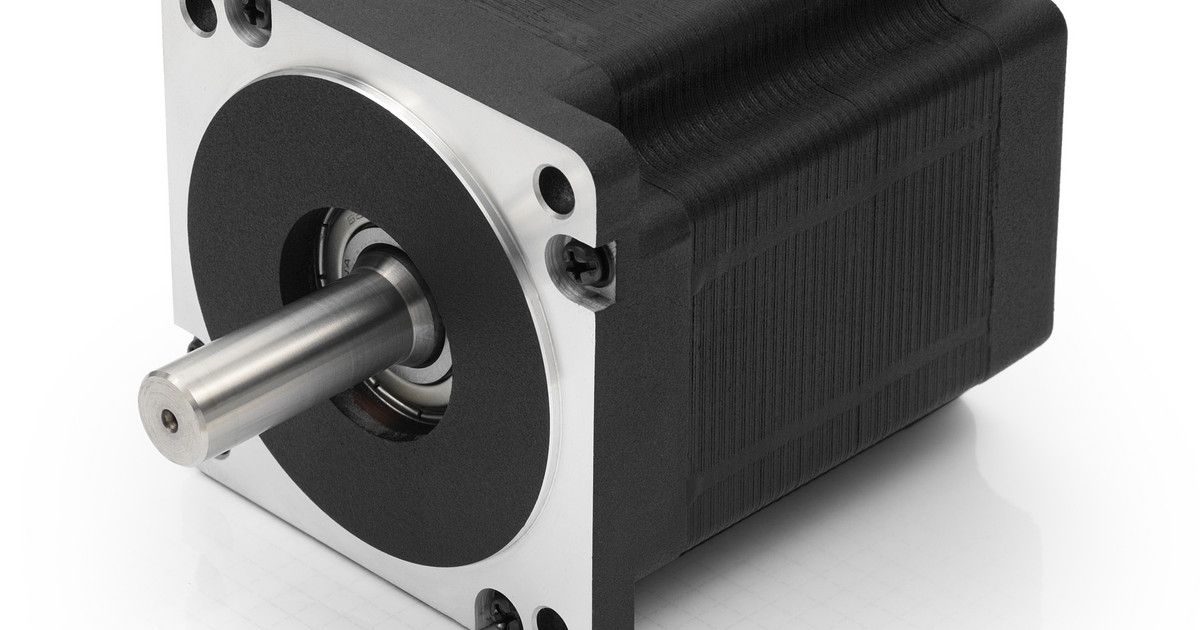

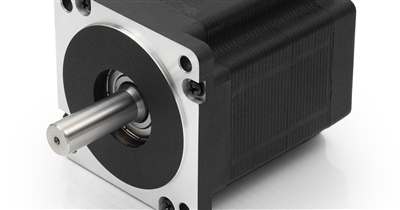

Stepper motor with very high torque in relation to its size. 86 mm flange, 1.8° step angle and 353.55–1,202.08 Ncm holding torque. Length: 65–156 mm.

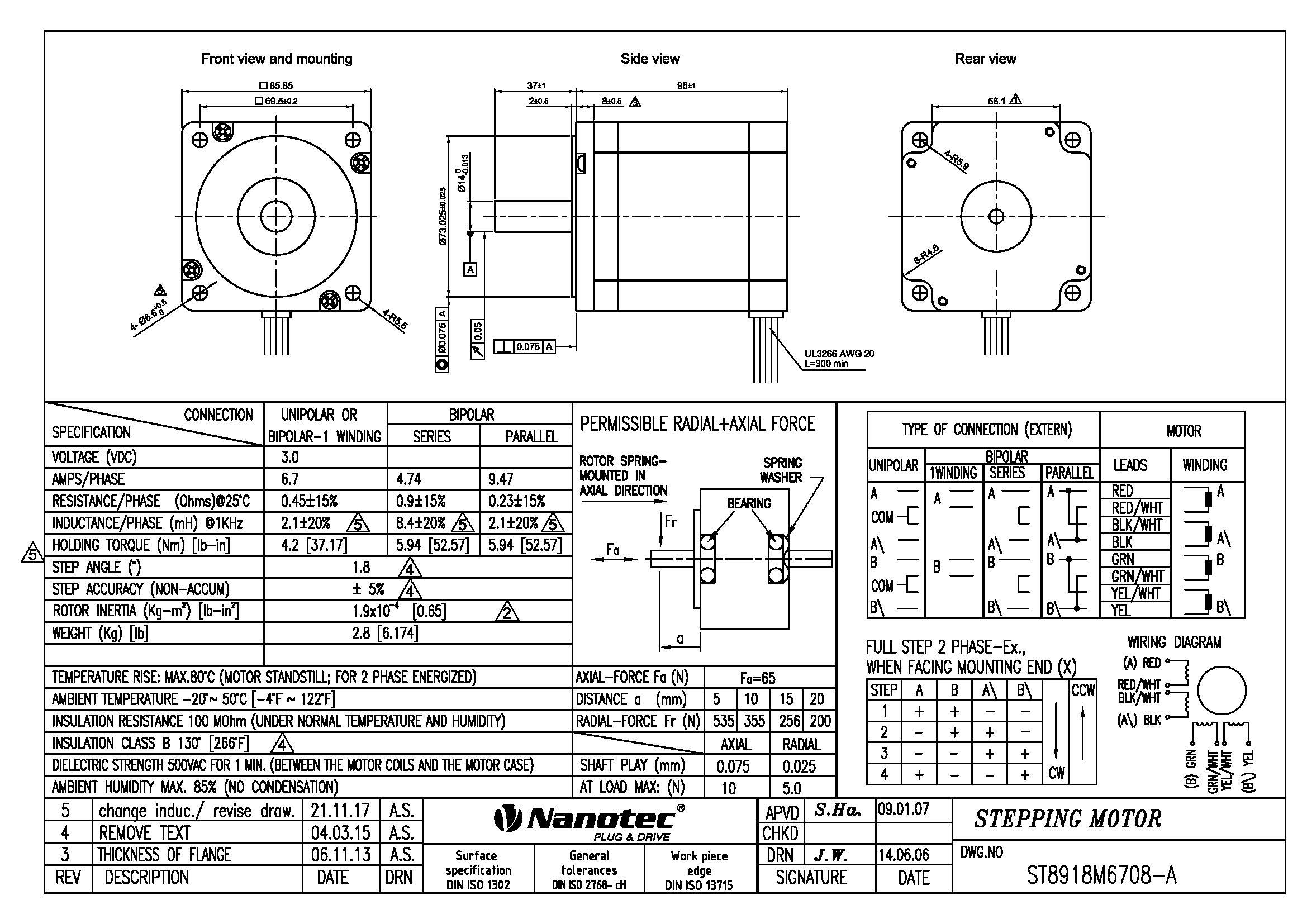

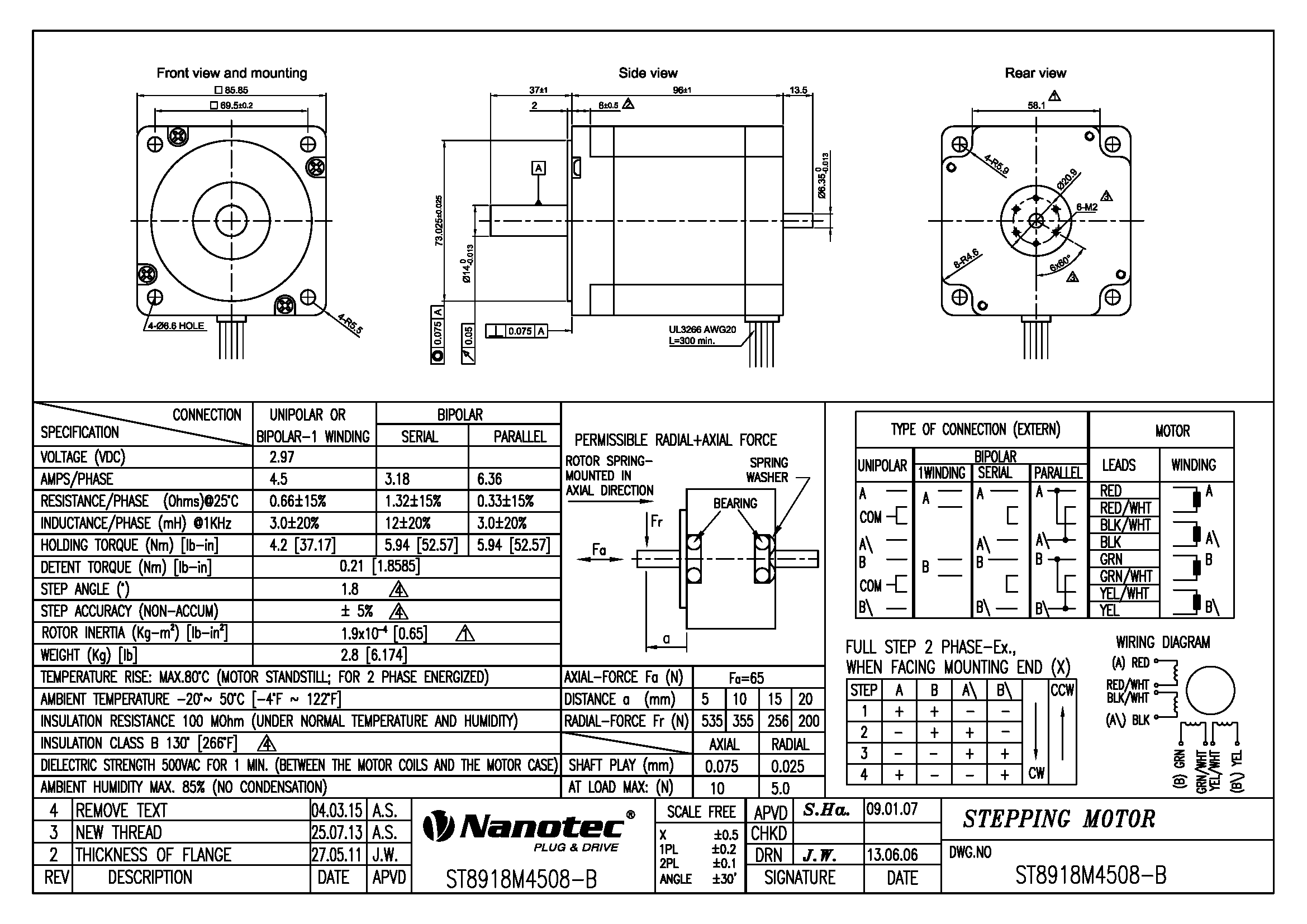

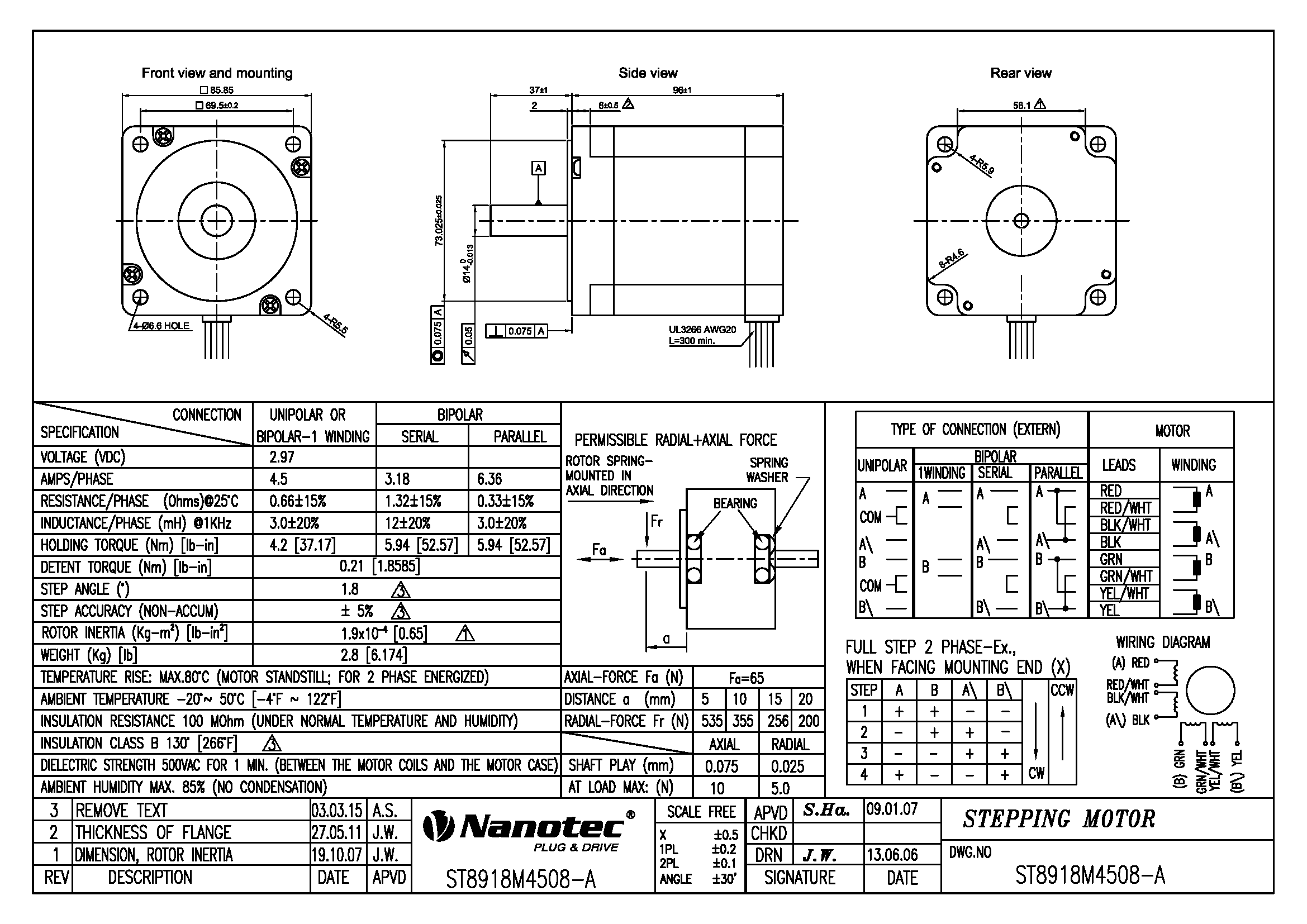

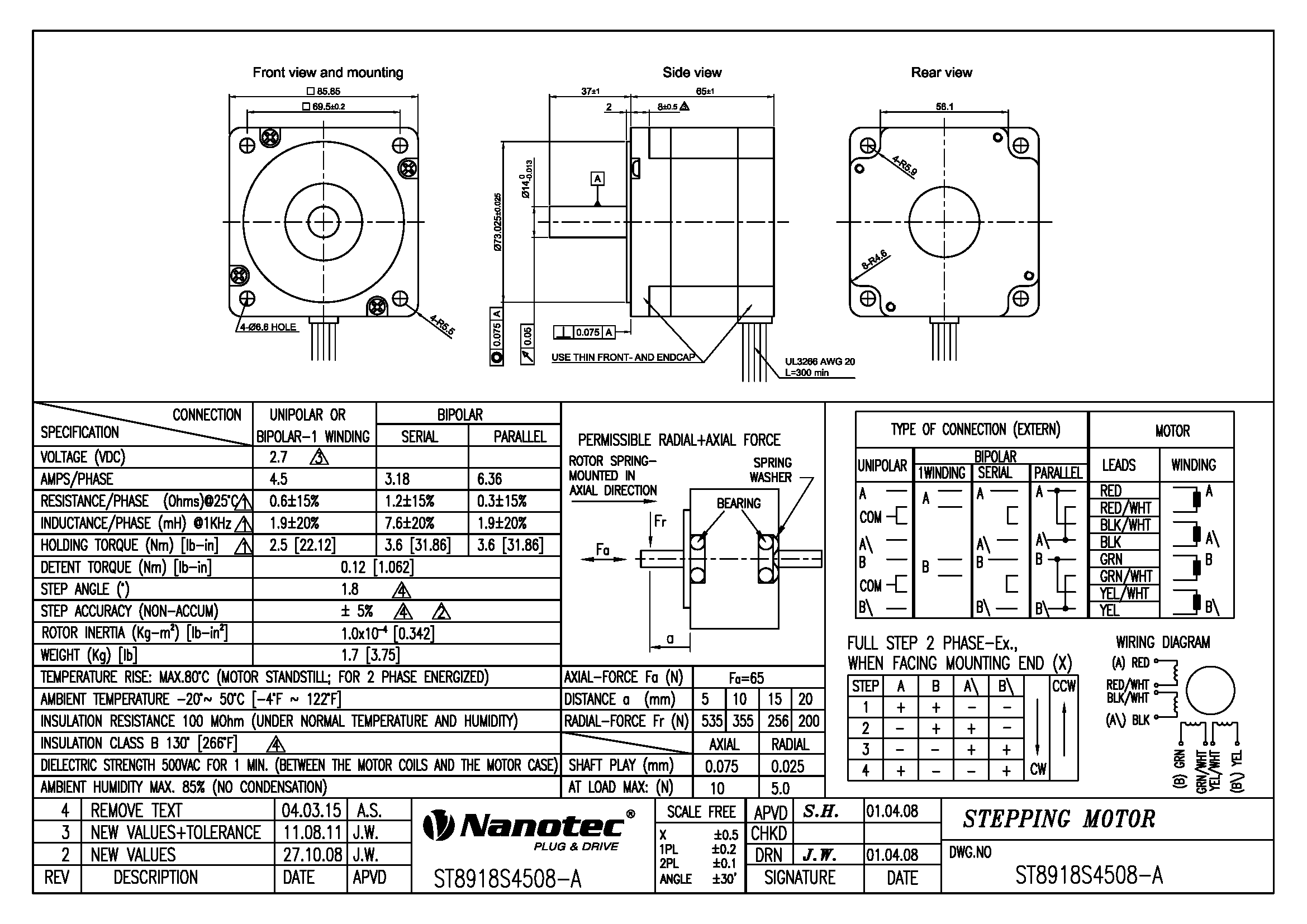

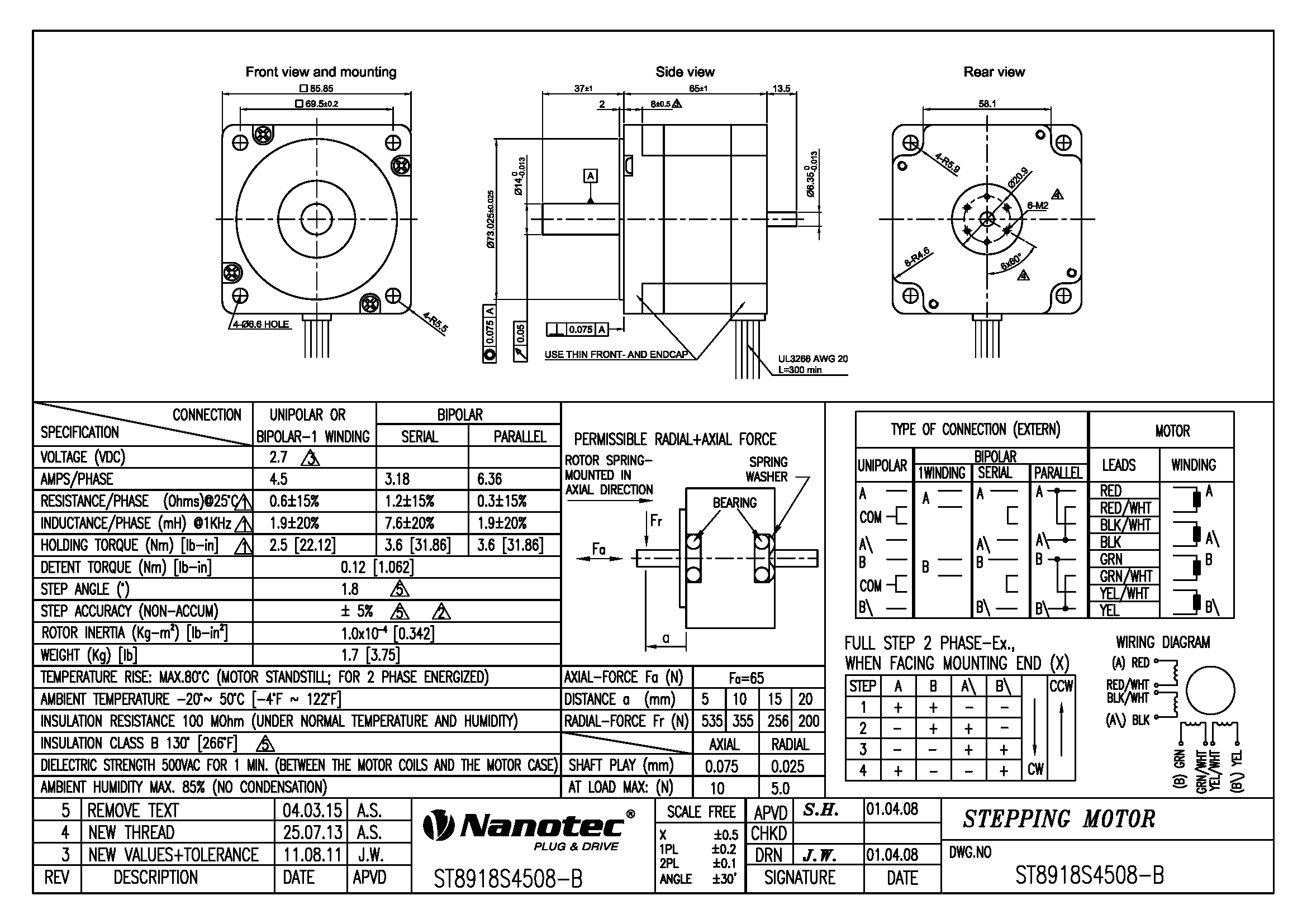

ST8918S4508-A, ST8918S4508-B, ST8918M4508-A, ST8918M4508-B, ST8918M6708-A,

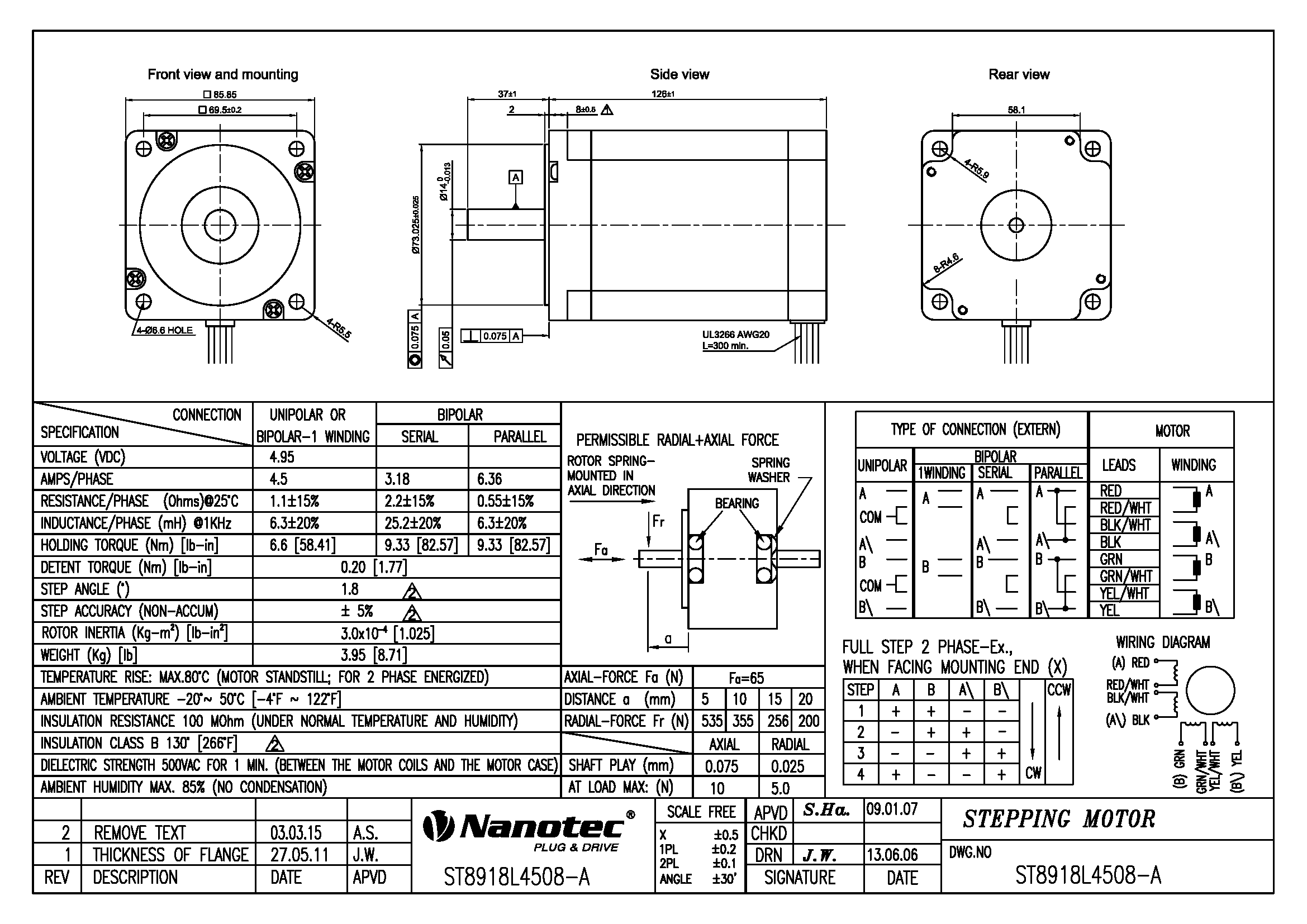

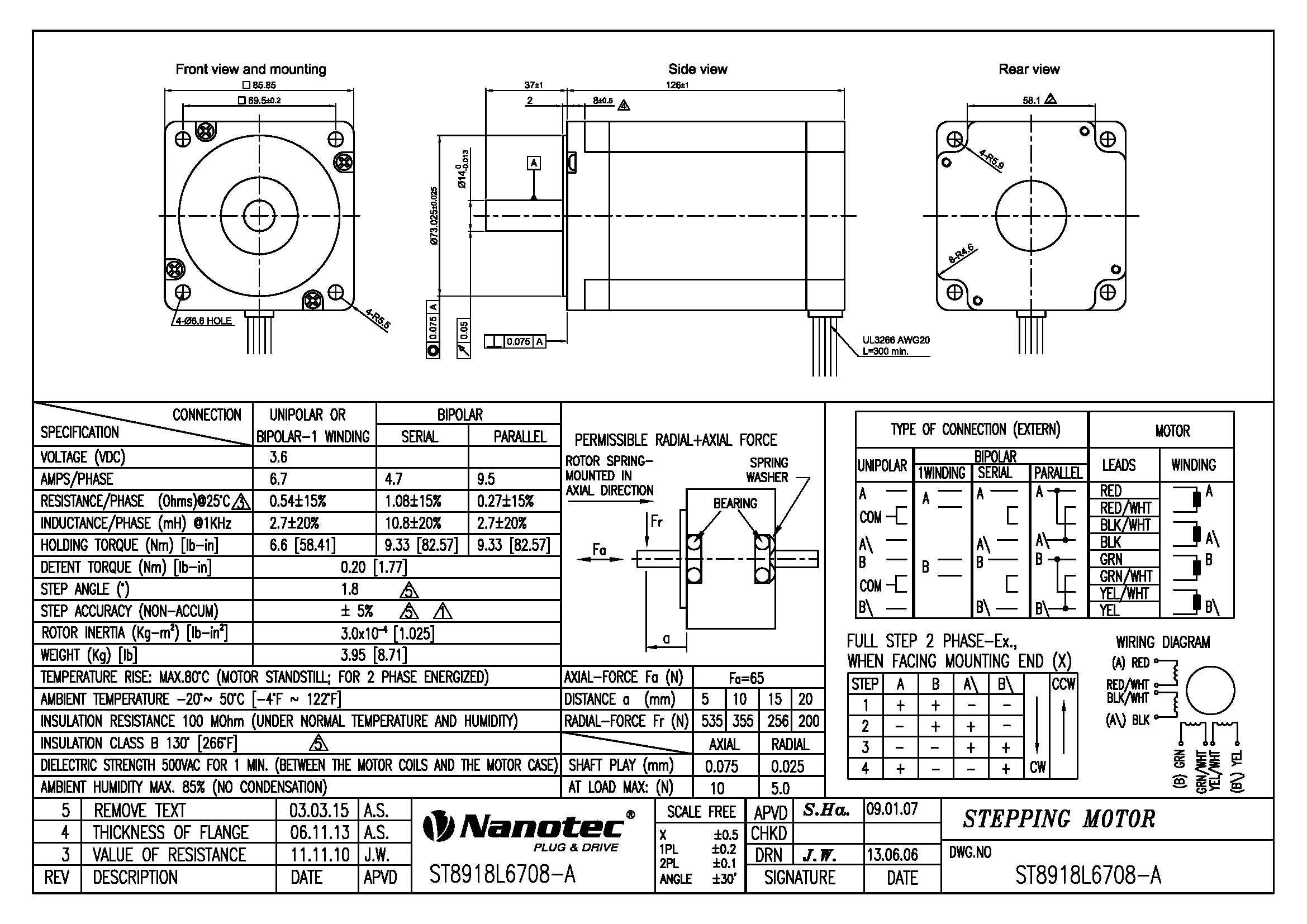

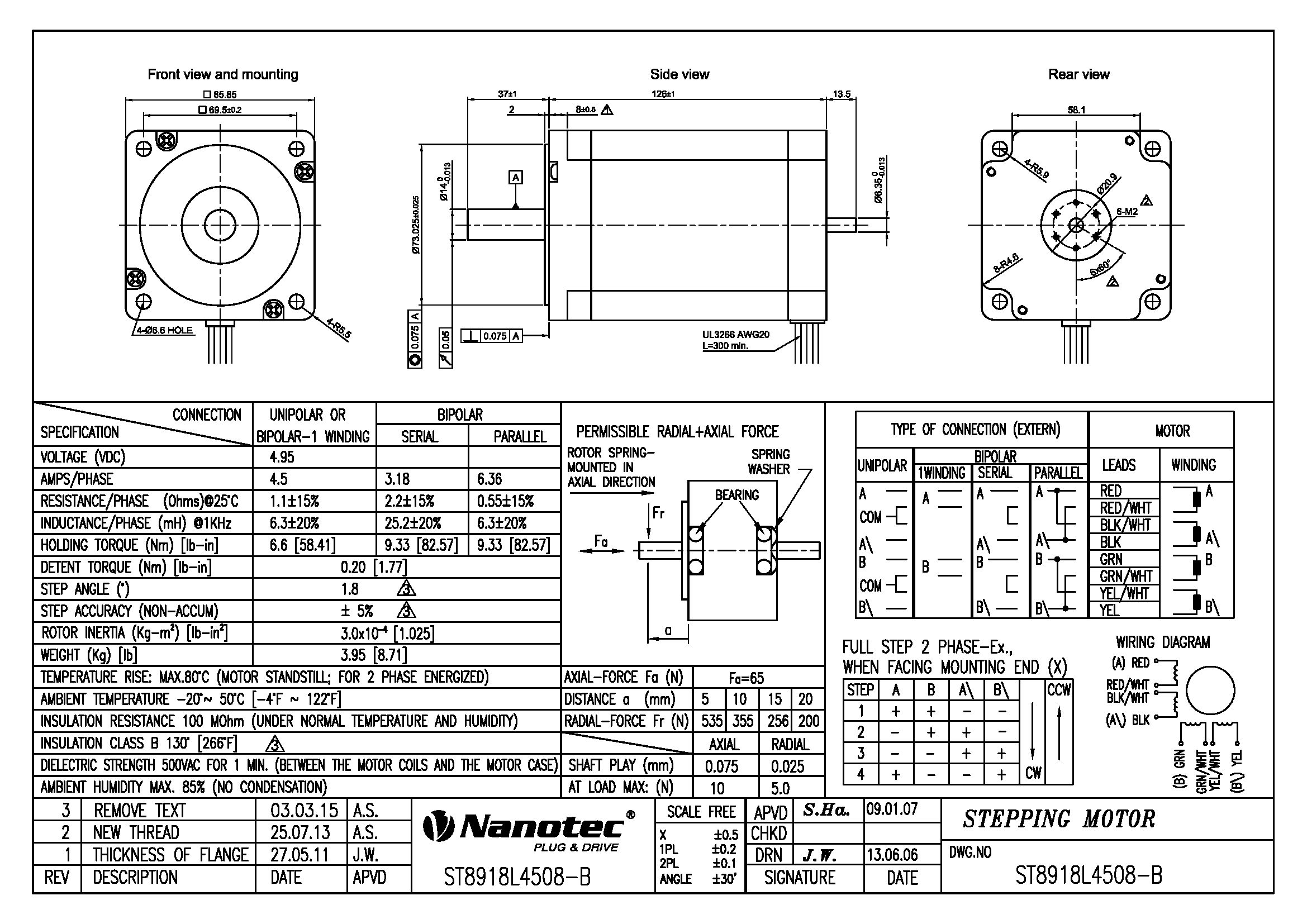

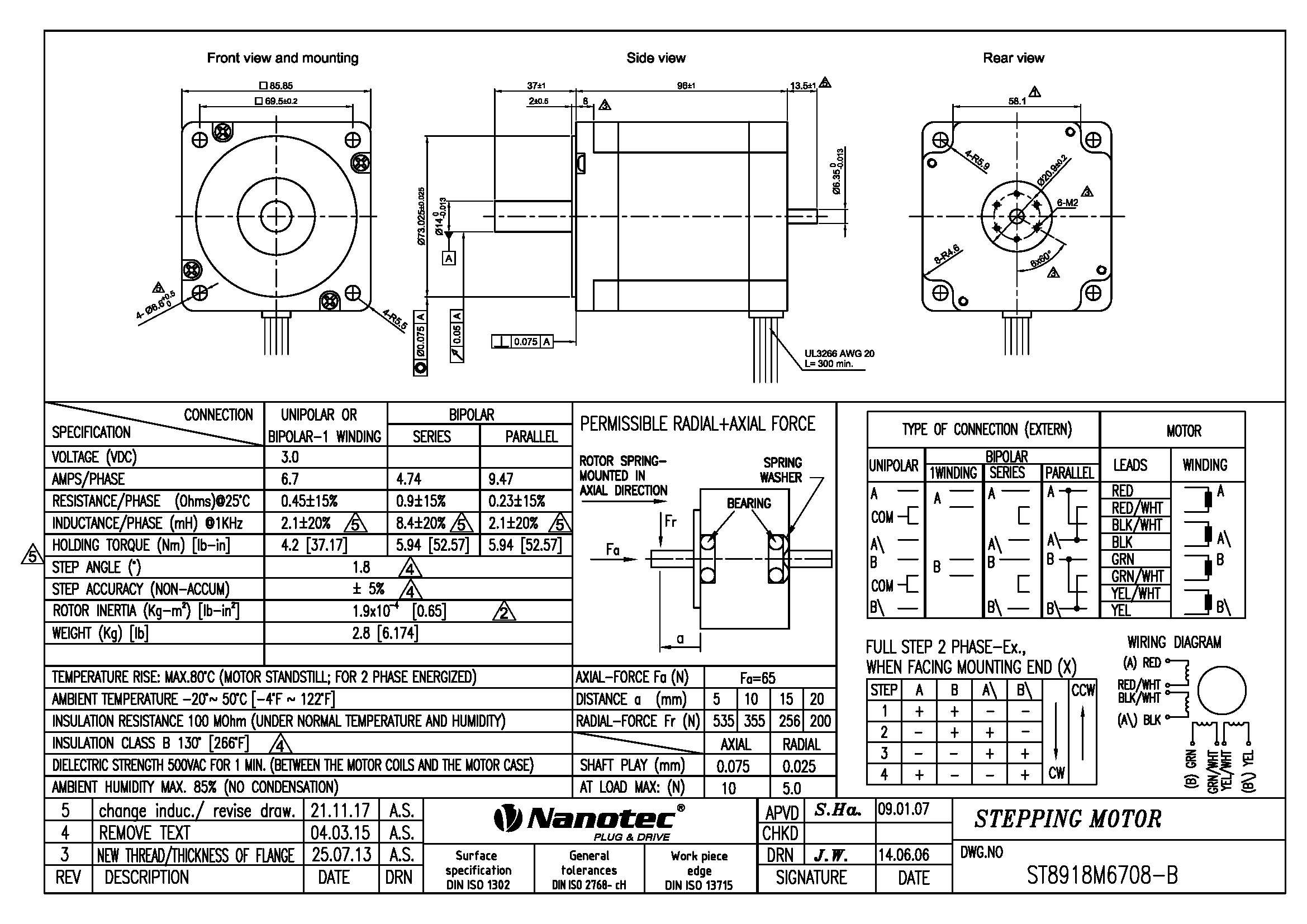

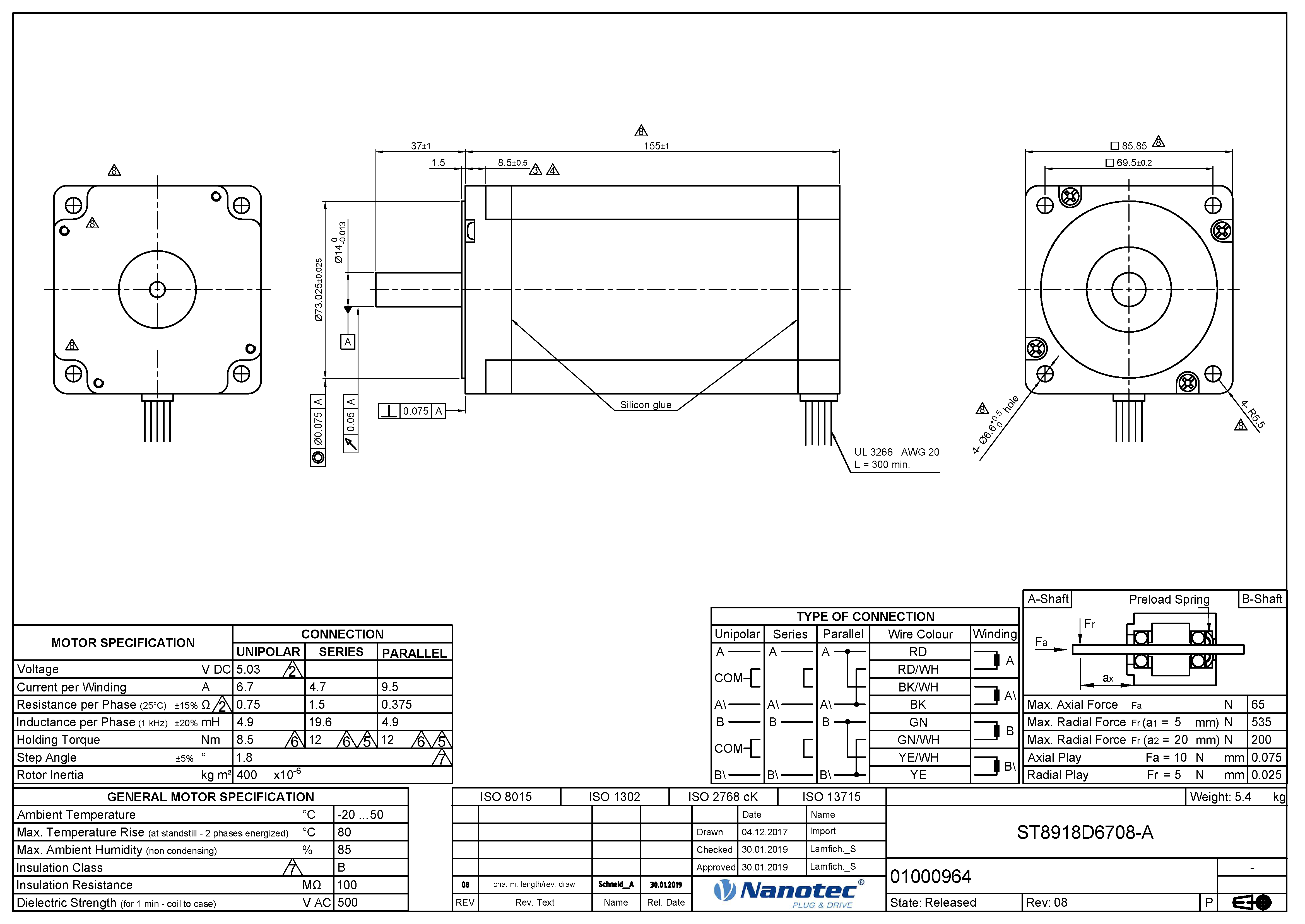

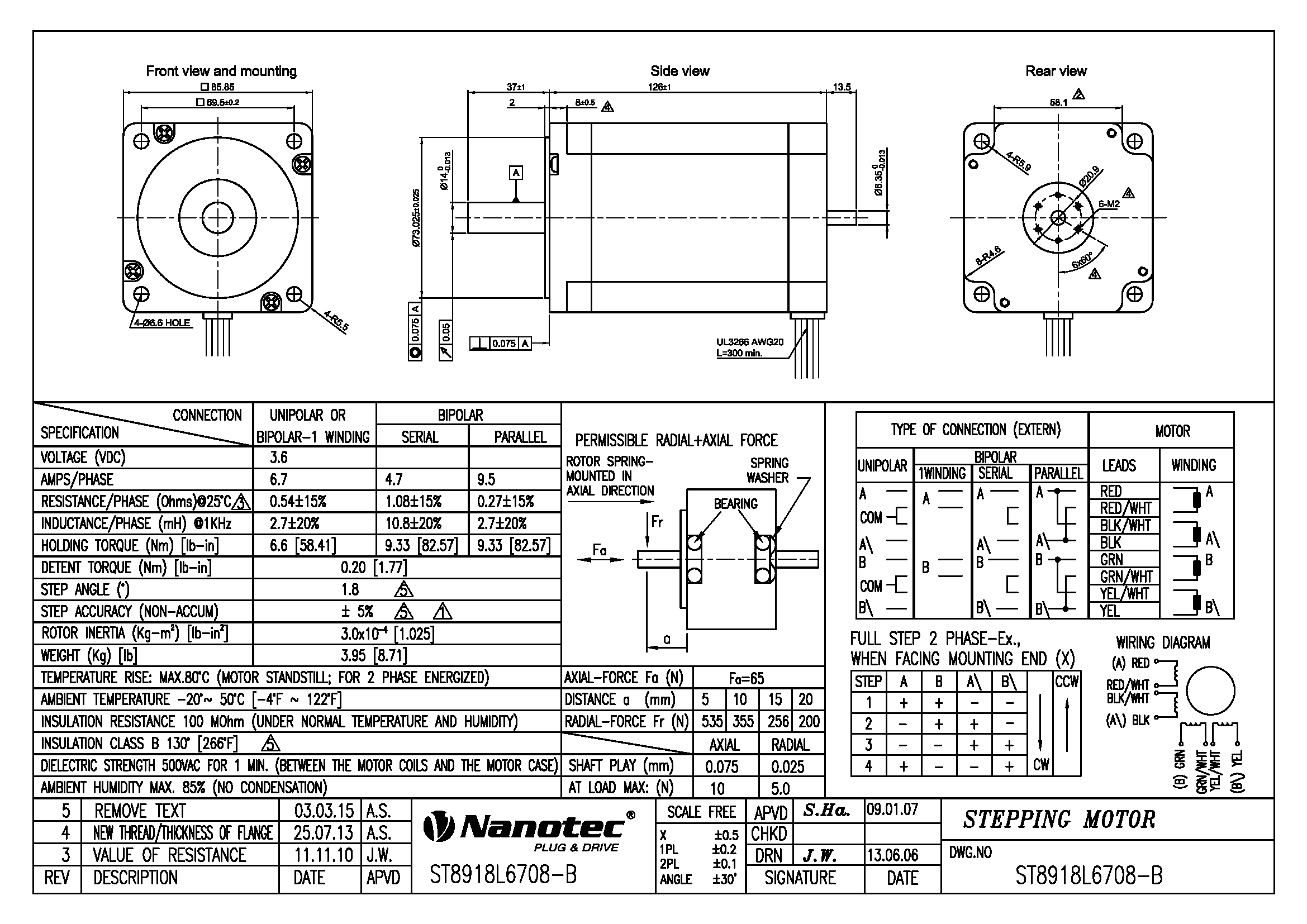

ST8918M6708-B, ST8918L4508-A, ST8918L4508-B, ST8918L6708-A, ST8918L6708-B, ST8918D6708-A,

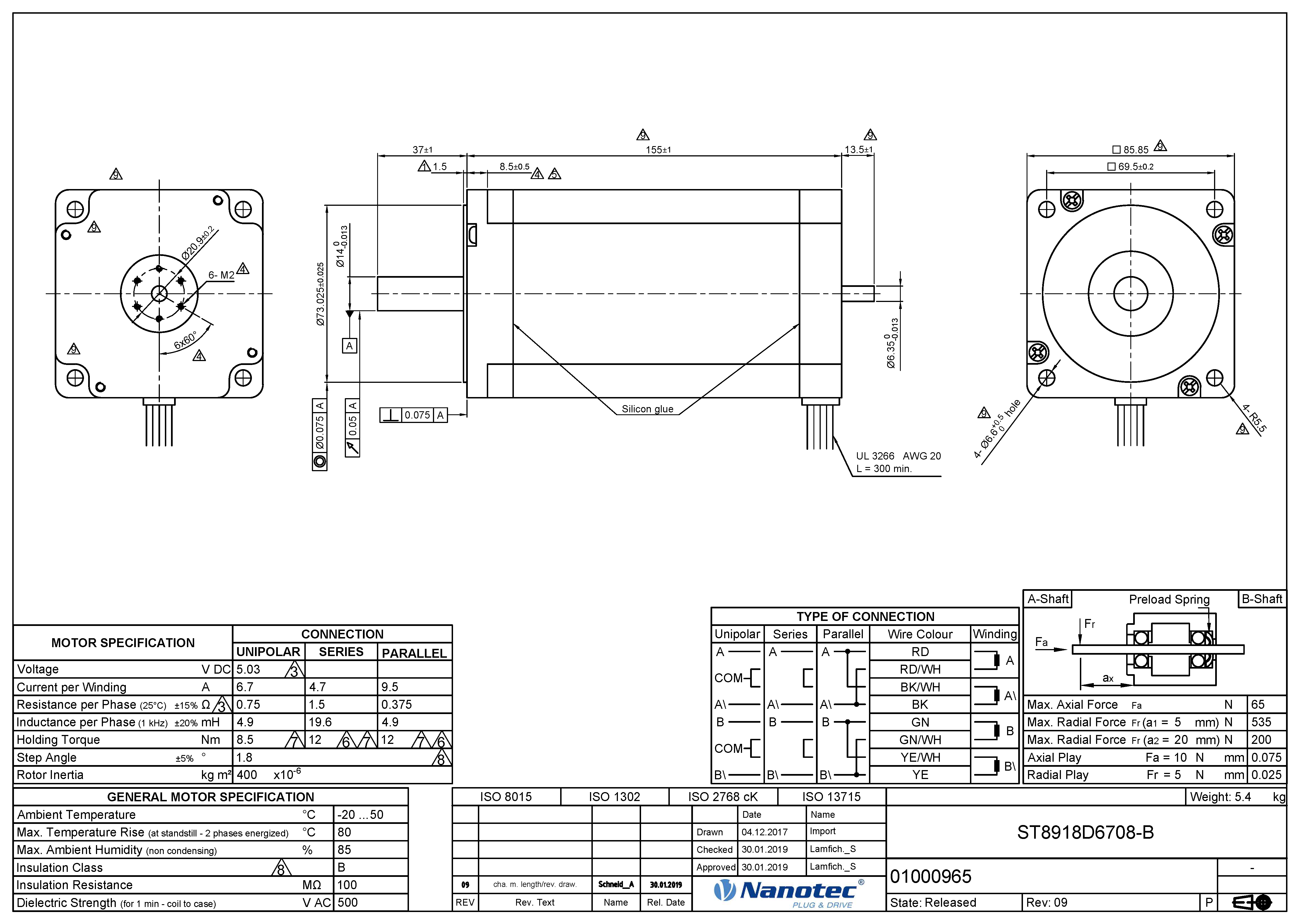

ST8918D6708-B,
• NEMA 34
• Current per Winding - 4.5 A - 6.7 A
• Length "A" - 2.56 in - 6.14 in
• Size - 3.38 in
• Holding Torque - 500.67 oz-in - 1702.29 oz-in
• Weight - 5.4 kg
