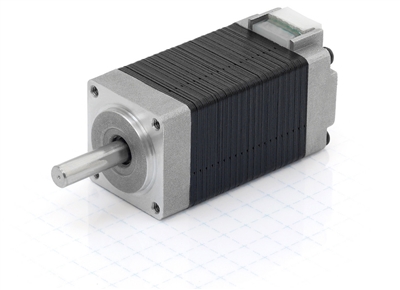

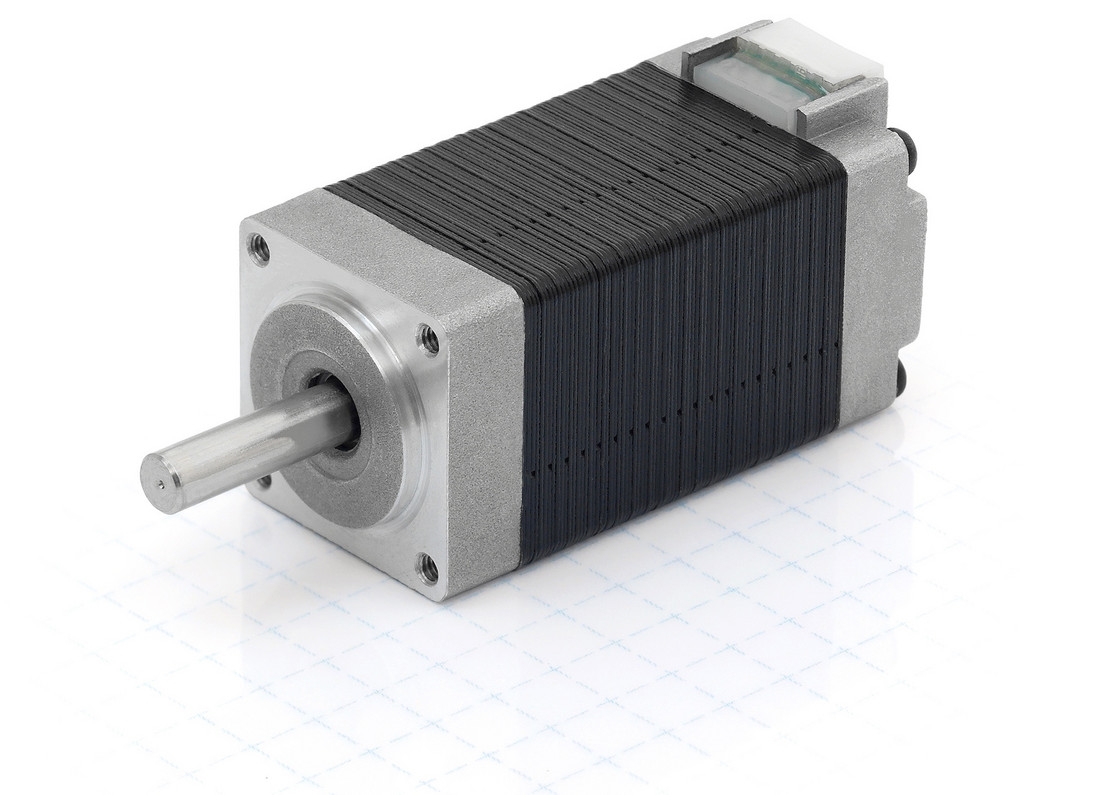

HYBRID STEPPER MOTOR – NEMA 8

Very small high-torque stepper motor in size NEMA 8 (20 mm) with 1.8° step angle (full step), high torque and speeds of up to 3000 rpm. Stepper motor with 20 mm flange, 1.8° step angle and 1.8–3.6 Ncm holding torque. Length: 33–48 mm.

• NEMA8

• Current per Winding - 0.6 A

• Rotor Inertia - 3.6 gcm²

• Inductance per Winding - 1.5 Mh

• Length "A" - 1.3 in

• Size - 0.787 in

• Holding Torque - 3 Ncm

• Resistance per Winding - 5.4 Ohm

• Resolution - 1.8 °/step

• Weight - 0.08 kg
