Nanotec: STA2018S– STEPPER MOTOR – NEMA 8
Nanotec: STA2018S– STEPPER MOTOR – NEMA 8



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Days
Order #: STA2018S


Model No.:


Qty:
Description Specifications and Drawings


Nanotec Electronic GmbH & Co KG

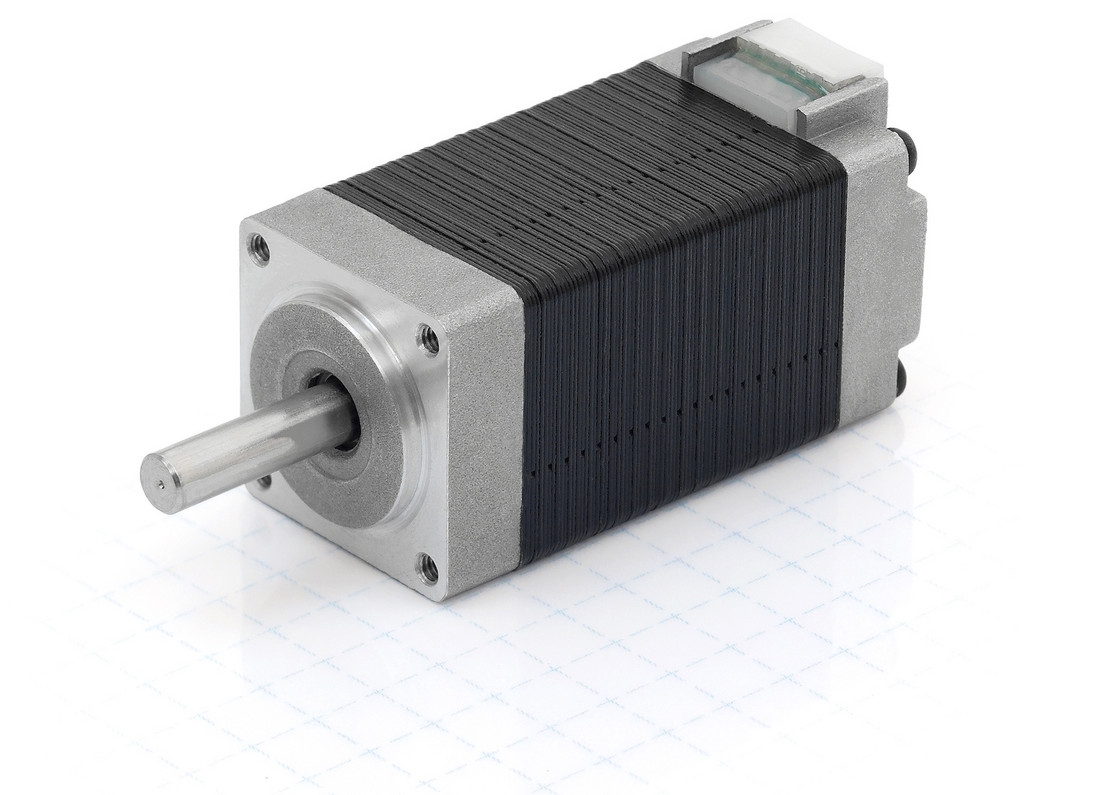

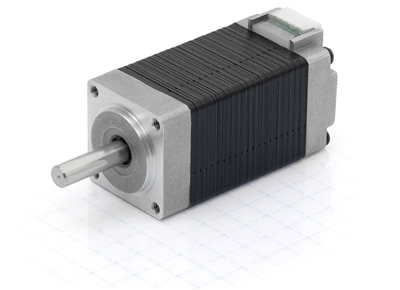

HYBRID STEPPER MOTOR – NEMA 8

Very small high-torque stepper motor in size NEMA 8 (20 mm) with 1.8° step angle (full step), high torque and speeds of up to 3000 rpm. Stepper motor with 20 mm flange, 1.8° step angle and 1.8–3.6 Ncm holding torque. Length: 33–48 mm.


NEMA8

Current per Winding - 0.6 A

Rotor Inertia - 2 gcm²

Inductance per Winding - 1.7 Mh

Length "A" - 1.3 in

Size - 0.787 in

Holding Torque - 2.2 Ncm

Resistance per Winding - 6.5 Ohm

Resolution - 1.8 °/step

Weight - 0.06 kg
