Nanotec: STF2818X0504-A– Ultraflat stepper motor
Nanotec: STF2818X0504-A– Ultraflat stepper motor



Price: (Members Only)


Availability: Usually Ships in 3 to 5 Days
Order #: STF2818X0504-A
Qty:

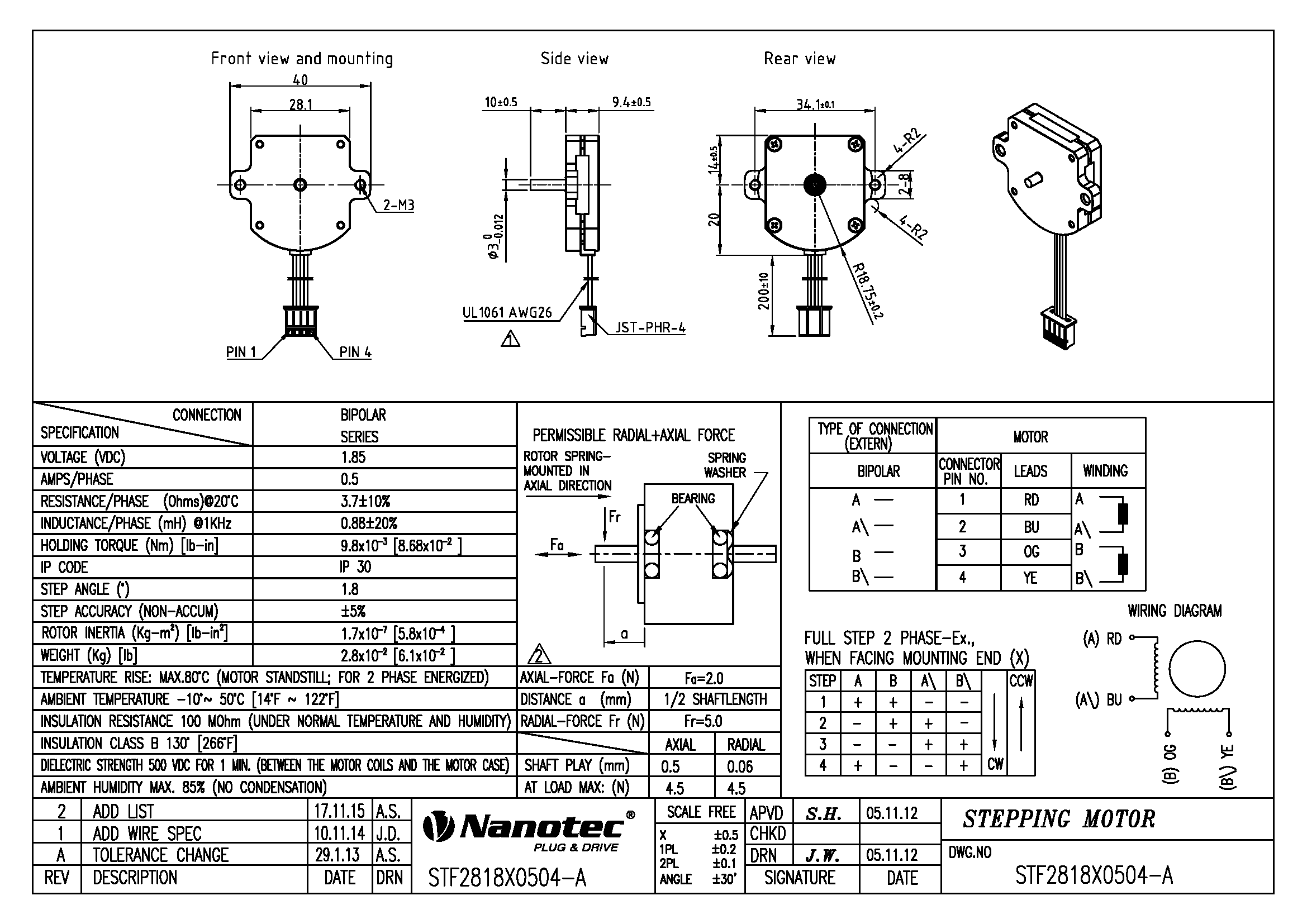

Description Ordering Information Specifications and Drawings


Nanotec Electronic GmbH & Co KG

STF2818X0504-A – Ultraflat stepper motor

Ultraflat high-torque stepper motor with 28 x 34 mm flange, 0.9 mm height, a step angle (full step) of 1.8°, high torque and speeds up to 4500rpm. It is the ideal solution for feeder applications in the semiconductor industry or stirrers


Current per Winding - 0.5 A

Length "A" - 9.4 mm

Size - 1.1 in

Resolution - 1.8 °/step

Weight - 0.028 kg
