Sensonor: Gyro sensors STIM210
Sensonor: Gyro sensors STIM210

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: STIM210
.

Description Specifications and Drawings


About Sensonor

Sensonor designs and manufactures high-precision tactical grade gyro sensors, gyro modules and IMUs for demanding applications. The company serves a global customer base in the Defense, Industrial, Aerospace and Commercial markets with ITAR-free solutions utilized in a wide range of applications.

Sensonor operates its own wafer fabrication facility for production of the key sensor components in its products. Assembly, test and calibration are all in-house processes to secure the product performance.

The tight integration between sensor fabrication, testing and assembly is what puts the company in a position to offer the highest performing sensors in the market.

Sensonor is a global leader in MEMS technology and has more than 30 years of experience developing and manufacturing reliable sensor solutions for demanding applications involving high vibration, high shock and harsh environments.

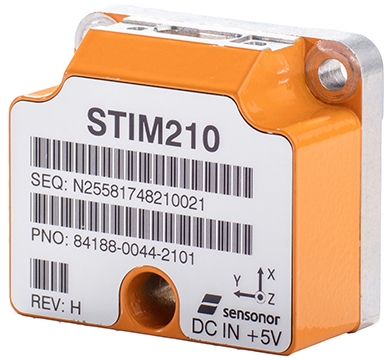

STIM210

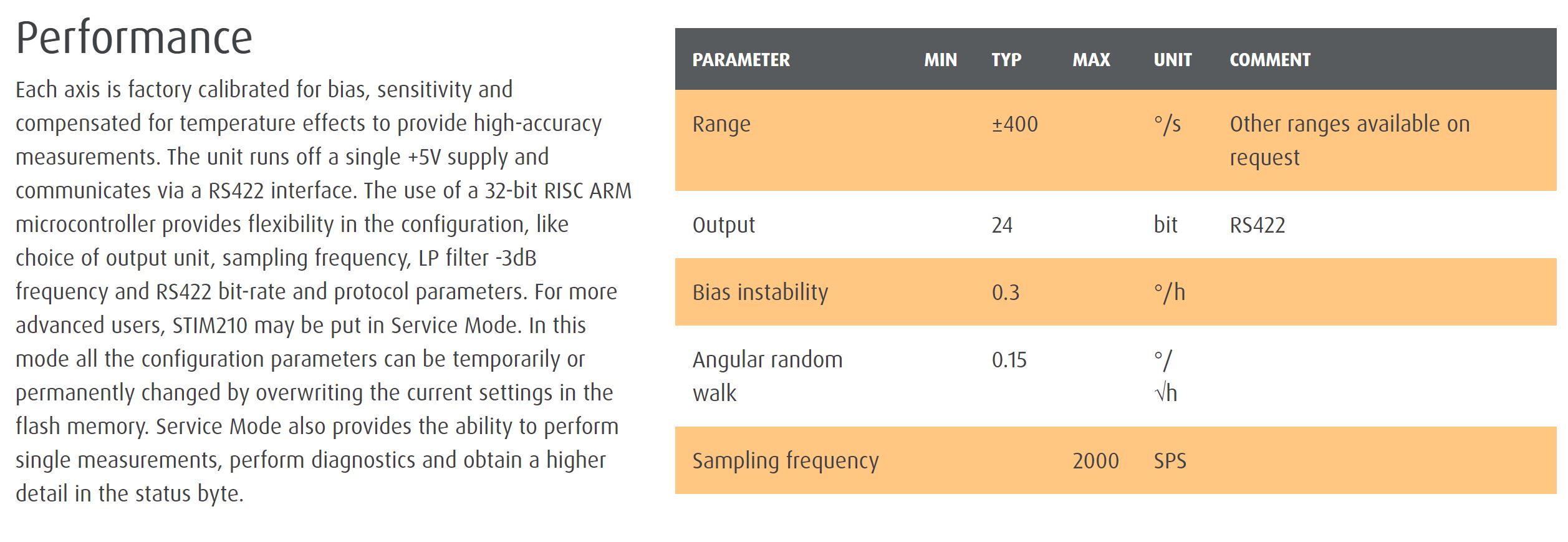

STIM210 is a small, tactical grade, affordable, robust and reliable, ultra high performance (Bias Stability 0.3°/h, ARW 0.15°/√h) MEMS gyro module with up to 3 axes. An integrated 32-bit microcontroller enables flexible user configuration. Electronic axis alignment is standard.

Miniature package

ITAR free

Excellent performance in vibration and shock

Excellent environmental robustness

1, 2 or 3 axes offered in same package

Electronically calibrated axis alignment

RS422 interface

24 bits resolution

Single-crystal silicon technology

Low bias drift

Low noise

5 different sampling rates available

5 different bandwidths available

LP filter -3dB frequency can be set individually for each axis

RS422 protocol, bit rate and line termination

Selectable output unit: angular rate [deg/s] or incremental angle [deg]

Continuous self-diagnostics
