Sensonor: Gyro sensors STIM300
Sensonor: Gyro sensors STIM300

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: STIM300
.

Description Specifications and Drawings


About Sensonor

Sensonor designs and manufactures high-precision tactical grade gyro sensors, gyro modules and IMUs for demanding applications. The company serves a global customer base in the Defense, Industrial, Aerospace and Commercial markets with ITAR-free solutions utilized in a wide range of applications.

Sensonor operates its own wafer fabrication facility for production of the key sensor components in its products. Assembly, test and calibration are all in-house processes to secure the product performance.

The tight integration between sensor fabrication, testing and assembly is what puts the company in a position to offer the highest performing sensors in the market.

Sensonor is a global leader in MEMS technology and has more than 30 years of experience developing and manufacturing reliable sensor solutions for demanding applications involving high vibration, high shock and harsh environments.

STIM300

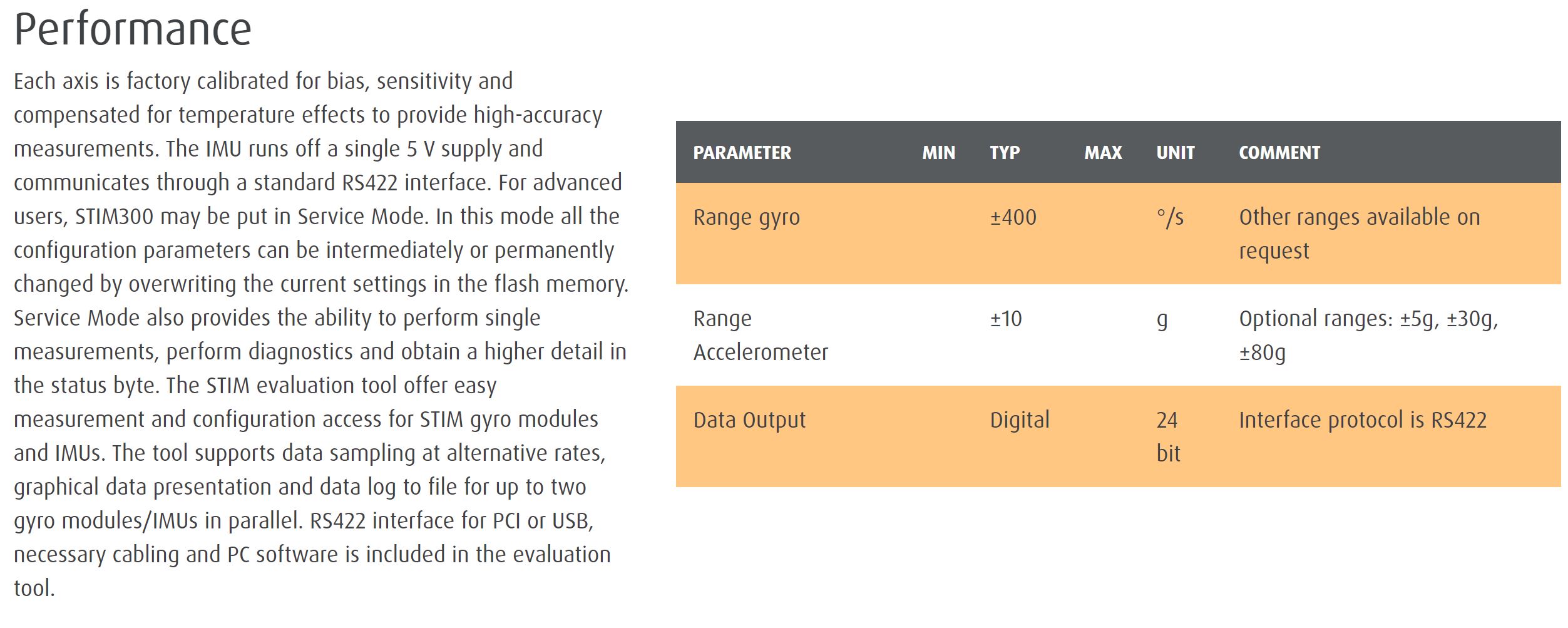

STIM300 is a small, tactical grade, low weight, high performance non-GPS aided Inertial Measurement Unit (IMU). It contains 3 highly accurate MEMS gyros, 3 high stability accelerometers and 3 inclinometers. The IMU is factory calibrated and compensated over its entire operating temperature range.

STIM300 is a cost-effective ITAR free solution for systems that only had FOGs as an alternative when reaching for the performance level of that STIM300 can offer.

Weight: <0,12 lbs (<55g)

Volume: <2,2 cu. in. (35cm3)

ITAR free

Insensitive to magnetic fields

Solid state - high reliability

Low gyro bias instability (0.3°/h)

Continuous self-diagnostics

Low gyro noise (0.15°/h)

±10g acceleration input range

Low accelerometer bias instability (0.05mg)

3 inclinometers for accurate leveling

Compensated digital output, RS422

Customer configurable output format, sampling rate and filter settings
