AMP: NEMA 17 Integrated Motors (STM17Q-2RN)
AMP: NEMA 17 Integrated Motors (STM17Q-2RN)
Larger Photo Email A Friend


Price: (Members Only)


Order #: STM17Q-2RN
Qty:

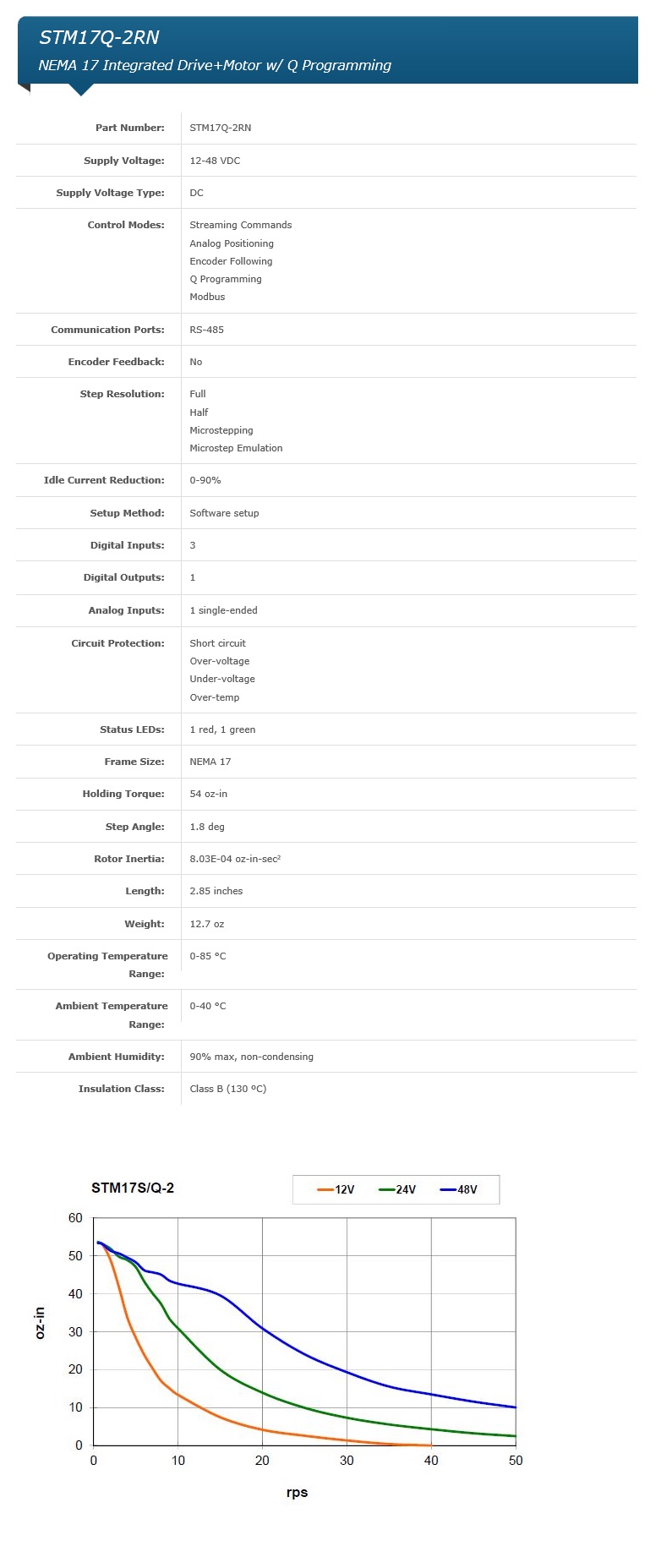

Description Specifications and Drawings

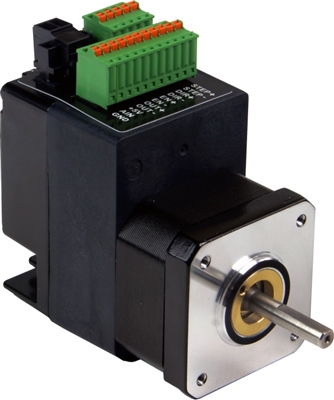

AMP: NEMA 17 Integrated Drive+Motor w/ Q Programming (STM17Q-2RN)

Features:

  • Sophisticated current control

  • Anti-resonance

  • Torque ripple smoothing

  • Microstep emulation

  • NEMA 17 frame size

  • Modbus/RTU for easy PLC and HMI communication

  • Q programming control mode for stand-alone operation

  • Capable of all “S” control modes

  • RS-485 port for programming and communications

The STM17Q-2RN integrated stepper is a drive+motor unit, fusing a NEMA 17 step motor and a sophisticated 2.0 A/phase (peak-of-sine) stepper drive into a single device. Power to the drive, located at the rear of the motor, must be supplied by an external DC supply. See Related and Recommended Products below for compatible 24 and 48 volt DC power supplies.

The STM17Q-2RN integrated stepper can operate in all of the same control modes as the S option, plus the ability to run a Q program stored in non-volatile memory. Q programs are created using Applied Motion’s Q Programmer™ software, which provides powerful commands for motion, I/O, conditional processing, multi-tasking, math functions, and more. All STM17 units are setup and configured using Applied Motion’s ST Configurator™ software.

Each STM17 integrated stepper comes with 3 digital inputs, 1 digital output, and 1 analog input. The digital inputs accept signals of 5-24 VDC and can be used for connecting pulse & direction signals, end-of-travel limit switches, jog switches, quadrature encoder signals, PLC outputs, sensors, or many other signal types. The digital output can be connected to PLC inputs, counters, lights, relays, or other devices. The analog input accepts 0-5 VDC signals and can be used for velocity and position control.

The STM17Q-2RN comes with an RS-485 port for programming and serial communications.
