AMP: NEMA 24 Integrated Motors (STM24IP-3EN)
AMP: NEMA 24 Integrated Motors (STM24IP-3EN)


Price: (Members Only)


Order #: STM24IP-3EN
Qty:

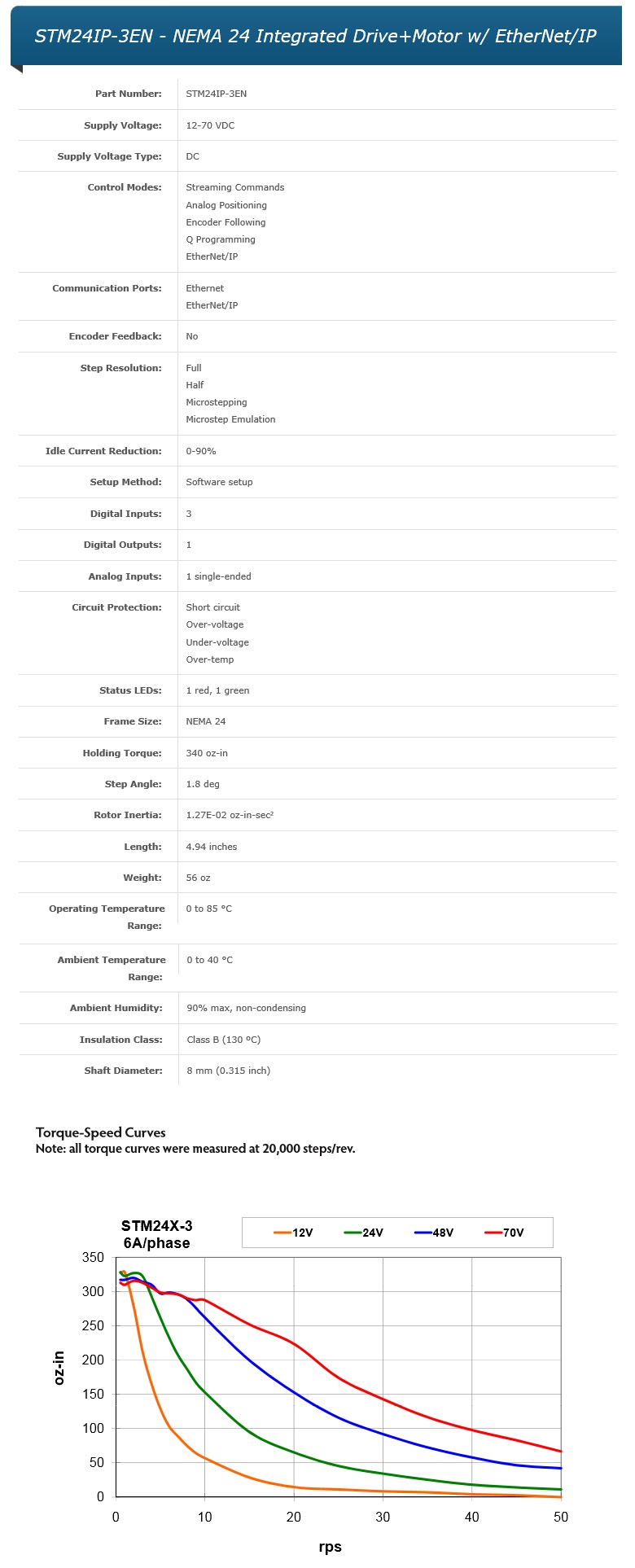

Description Specifications and Drawings

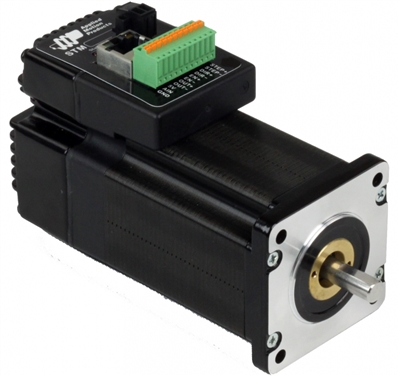

AMP: NEMA 24 Integrated Drive+Motor w/ EtherNet/IP (STM24IP-3EN)

Features:

  • Sophisticated current control

  • Anti-resonance

  • Torque ripple smoothing

  • Microstep emulation

  • NEMA 24 frame size

  • Q programming control mode for stand-alone operation

  • Capable of all “S” control modes

  • Fast 10/100 Ethernet for programming and communications (UDP & TCP)

  • EtherNet/IP industrial networking built in

The STM24IP-3EN integrated stepper is a drive+motor unit, fusing a NEMA 24 step motor and a sophisticated 6.0 A/phase (peak-of-sine) stepper drive into a single device. Power to the drive, located at the rear of the motor, must be supplied by an external DC supply. See Related and Recommended Products below for compatible 24 and 48 volt DC power supplies.

The STM24IP-3EN integrated stepper incorporates EtherNet/IP network communications, the widely used industrial protocol for manufacturing automation applications. With EtherNet/IP users can control, configure and query the drive using an open, standards-based, industrial Ethernet connection at speeds up to 100 MBits/sec. All STM24IP units run the same control modes as STM24Q units, with the addition that all drive+motor features can be accessed over EtherNet/IP, including more than 100 commands and 130 registers for controlling motion, I/O, configuration, polling, math, register manipulation, and Q programming. Setup and configuration of the STM24IP is done using Applied Motion’s ST Configurator™ software, while Q programs are created using the Q Programmer™ software.

Each STM24IP integrated stepper comes with 3 digital inputs, 1 digital output, and 1 analog input. The digital inputs accept signals of 5-24 VDC and can be used for connecting pulse & direction signals, end-of-travel limit switches, jog switches, quadrature encoder signals, PLC outputs, sensors, or many other signal types. The digital output can be connected to PLC inputs, counters, lights, relays, or other devices. The analog input accepts 0-5 VDC signals and can be used for velocity and position control.

The STM24IP-3EN comes with a fast 10/100 MBit Ethernet port for programming and EtherNet/IP communications. The same port also supports TCP and UDP protocols for sending commands from Applied Motion’s proprietary serial command language (SCL).

All STM24IP models are CE approved and RoHS compliant.

Please note that a VL series gearhead purchased for this motor will require a special mounting adaptor and 2 weeks lead time. Please contact customer service for the price of this adaptor.
