AMP: DC Advanced Microstep Drive (STR Series) 12-75 VDC

Step Motor Drives

Step motor drives from Applied Motion Products offer unparalleled performance for today's modern machine builders. From the ground up these drives offer best-in-class current control for optimal smoothness and torque, robust and flexible on-board control options, and industry-standard industrial network communications.

STR2: DC Advanced Microstep Drive (12-48 VDC)

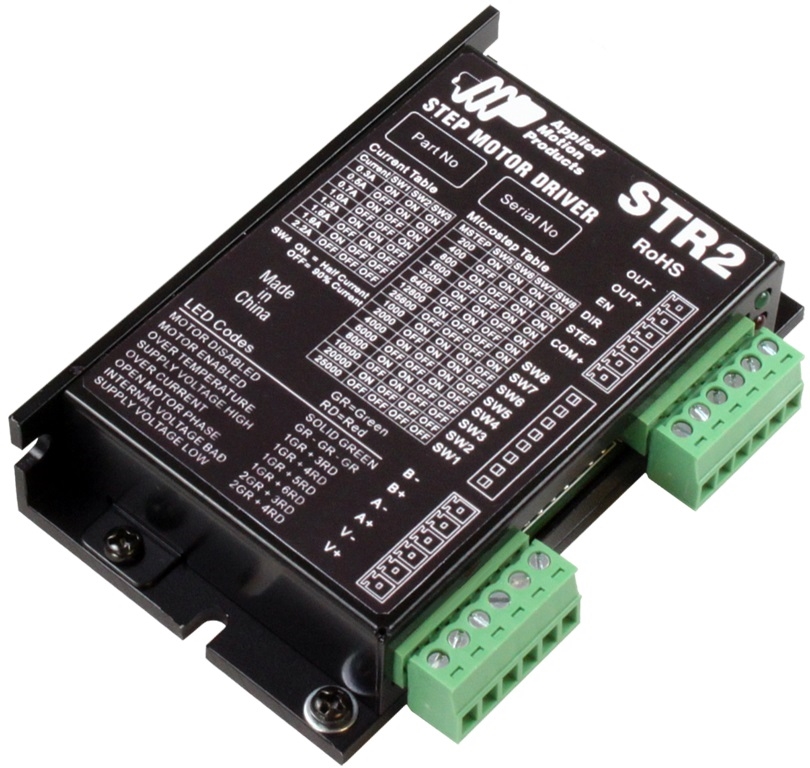

The STR2 stepper drive is an ultra compact, digital step & direction drive, great for OEM applications requiring basic step & direction control of a 2-phase step motor. The STR2 outputs up to 2.2 A/phase to the step motor, and is compatible with a variety of 2-phase step motors that have been selected to optimize performance of both the drive and motor.

The STR2 drive features advanced microstepping performance and sophisticated current control with anti-resonance. Anti-resonance electronically damps motor and system resonances, which improves motor smoothness and torque over a wide speed range.

Each STR2 step motor drive operates in either Step & Direction or Pulse/Pulse control mode. Selecting between these two modes is done by moving a jumper located under the cover of the drive. Each STR2 drive can microstep up to 20,000 steps/rev with a 1.8º step motor (1/100 step), and can even microstep the step motor when the command pulses are low resolution. This feature is called Microstep Emulation. All drive setup is done via dip switches on the side of the drive, including motor selection, running current, idle current, and step resolution.

This step pulse & direction motor drive is designed with sourcing inputs and intended for use with PLC’s and motion controllers that have sinking outputs.

Features:

STR4: DC Advanced Microstep Drive (24-48 VDC)

The STR4 stepper drive is a compact, powerful, digital step & direction drive, great for OEM applications requiring basic step & direction control of a 2-phase step motor. The STR4 outputs up to 4.5 A/phase to the step motor, and is compatible with a variety of 2-phase step motors that have been selected to optimize performance of both the drive and motor.

The STR4 drive features advanced microstepping performance and sophisticated current control with anti-resonance. Anti-resonance electronically damps motor and system resonances, which improves motor smoothness and torque over a wide speed range.

Each STR4 step motor drive operates in either Step & Direction or Pulse/Pulse control mode. Selecting between these two modes is done by moving a jumper located under the cover of the drive. Each STR4 drive can microstep up to 20,000 steps/rev with a 1.8º step motor (1/100 step), and can even microstep the step motor when the command pulses are low resolution. This feature is called Microstep Emulation. All drive setup is done via dip switches and a rotary switch on the side of the drive, including motor selection, running current, idle current, and step resolution.

Features:

STR8: DC Advanced Microstep Drive (24-75 VDC)

The STR8 stepper drive is a compact, powerful, digital step & direction drive, great for OEM applications requiring basic step & direction control of a 2-phase step motor. The STR8 outputs up to 8 A/phase to the step motor, and is compatible with a variety of 2-phase step motors that have been selected to optimize performance of both the drive and motor.

The STR8 drive features advanced microstepping performance and sophisticated current control with anti-resonance. Anti-resonance electronically damps motor and system resonances, which improves motor smoothness and torque over a wide speed range.

Each STR8 step motor drive operates in either Step & Direction or Pulse/Pulse control mode. Selecting between these two modes is done by moving a jumper located under the cover of the drive. Each STR8 drive can microstep up to 20,000 steps/rev with a 1.8º step motor (1/100 step), and can even microstep the step motor when the command pulses are low resolution. This feature is called Microstep Emulation. All drive setup is done via dip switches and a rotary switch on the side of the drive, including motor selection, running current, idle current, and step resolution.

Features:
