Parker: Gantry Robot System - System Seven (Three Axis: XX’-YY’-Z)

Parker Gantry Systems Minimize Your Engineering Effort

Parker’s gantry systems provide cost-effective, easy to integrate solutions that satisfy the vast majority of automation requirements. In addition to our standard gantry systems, Parker offers products with additional capabilities to fulfill the needs of special applications. Our engineering skill and manufacturing expertise have integrated these products into custom-tailored gantry solutions which have successfully addressed the most unique and exacting requirements of machine builders and integrators around the world.


Additional Capabilities:

  • Motors, Drives and Controls

  • Extended Travels

  • Rotary Motion Modules

  • Cleanroom Preparations

  • External Position Feedback

  • Vertical Axis Brakes

  • End Effectors

  • Protective Guarding

  • Custom Support Structures


Parker’s seven standard system configurations are
designed to satisfy the vast majority of gantry robot applications. By standardizing on these configurations, Parker has simplified sizing and selection, shortened lead times, and reduced costs for users of these systems. The travels and loads indicated are nominal, and should not be considered limiting factors. Longer travels and increased loads are attainable depending upon the combination of parameters.

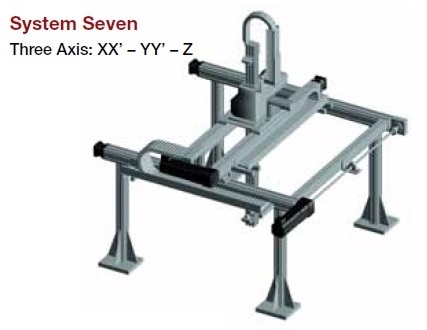

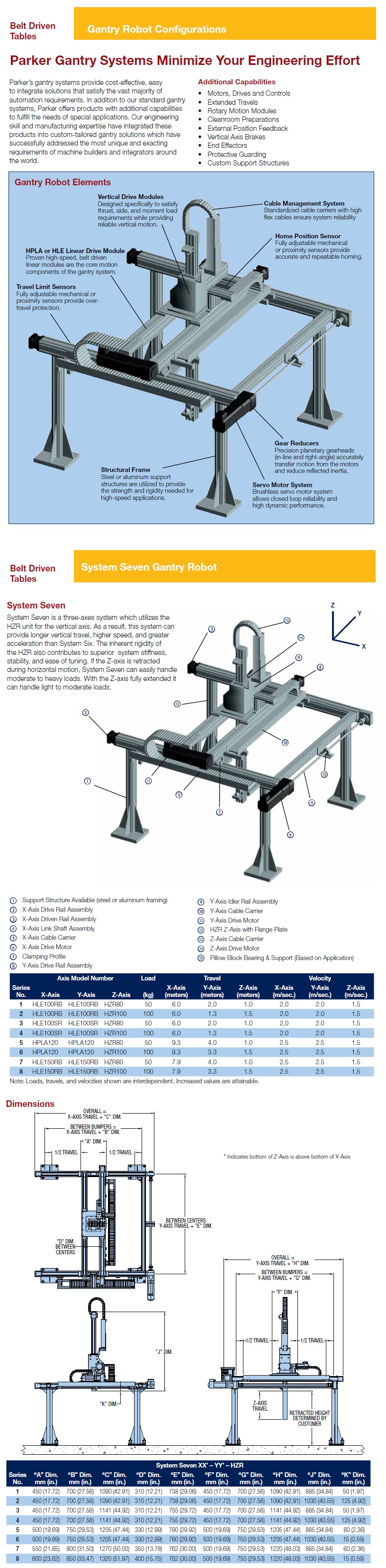

System
Seven

System Seven is a three-axes system which utilizes the HZR unit for the vertical axis. As a result, this system can provide longer vertical travel, higher speed, and greater acceleration than System Six. The inherent rigidity of the HZR also contributes to superior system stiffness, stability, and ease of tuning. If the Z-axis is retracted during horizontal motion, System Seven can easily handle moderate to heavy loads. With the Z-axis fully extended it can handle light to moderate loads.


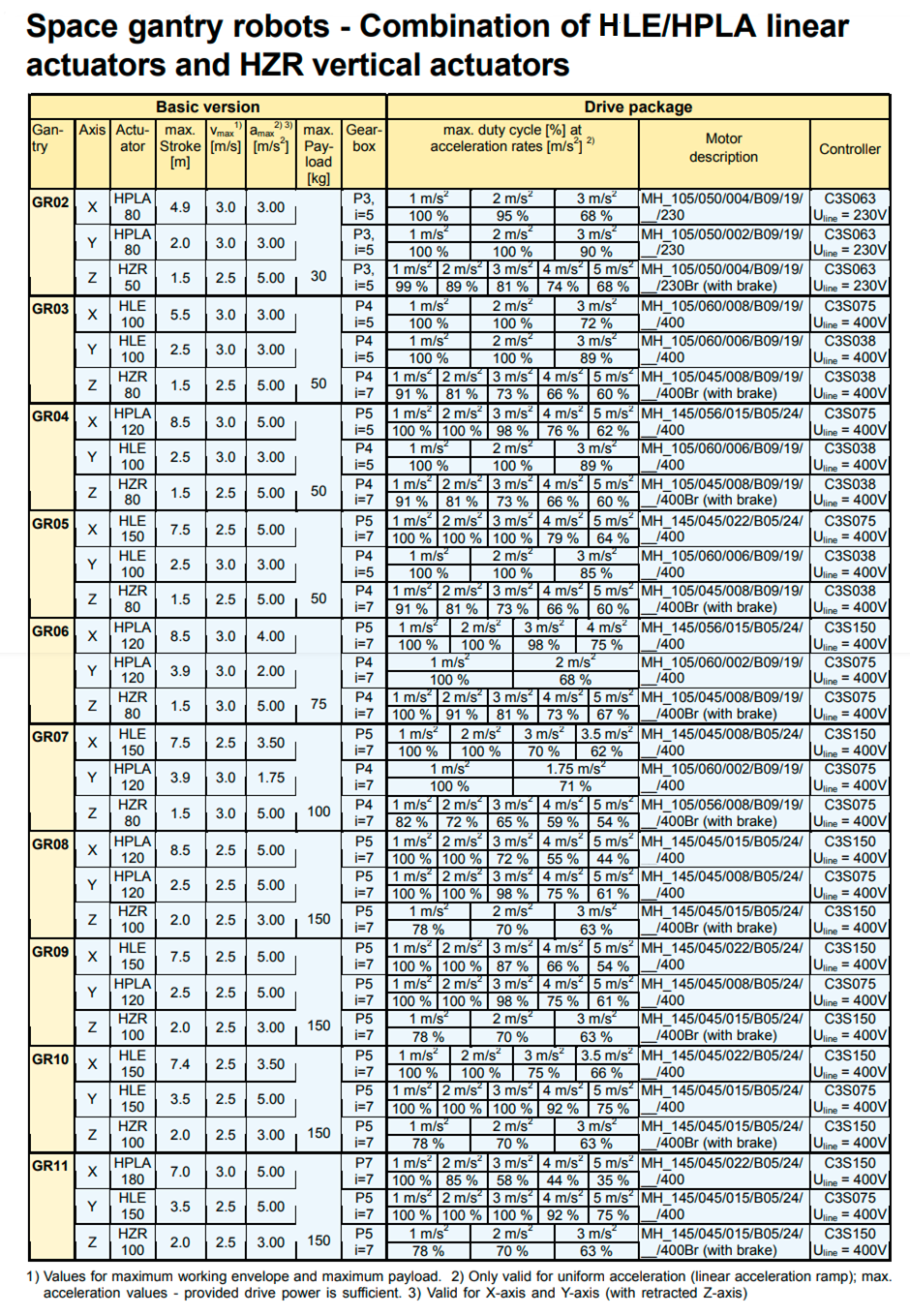

Series No.

X-Axis

Y-Axis

Z-Axis

1

HLE100RB

HLE100RB

HZR80

2

HLE100RB

HLE100RB

HZR100

3

HLE100SR

HLE100SR

HZR80

4

HLE100SR

HLE100SR

HZR100

5

HPLA120

HPLA120

HZR80

6

HPLA120

HPLA120

HZR100

7

HLE150RB

HLE150RB

HZR80

8

HLE150RB

HLE150RB

HZR100

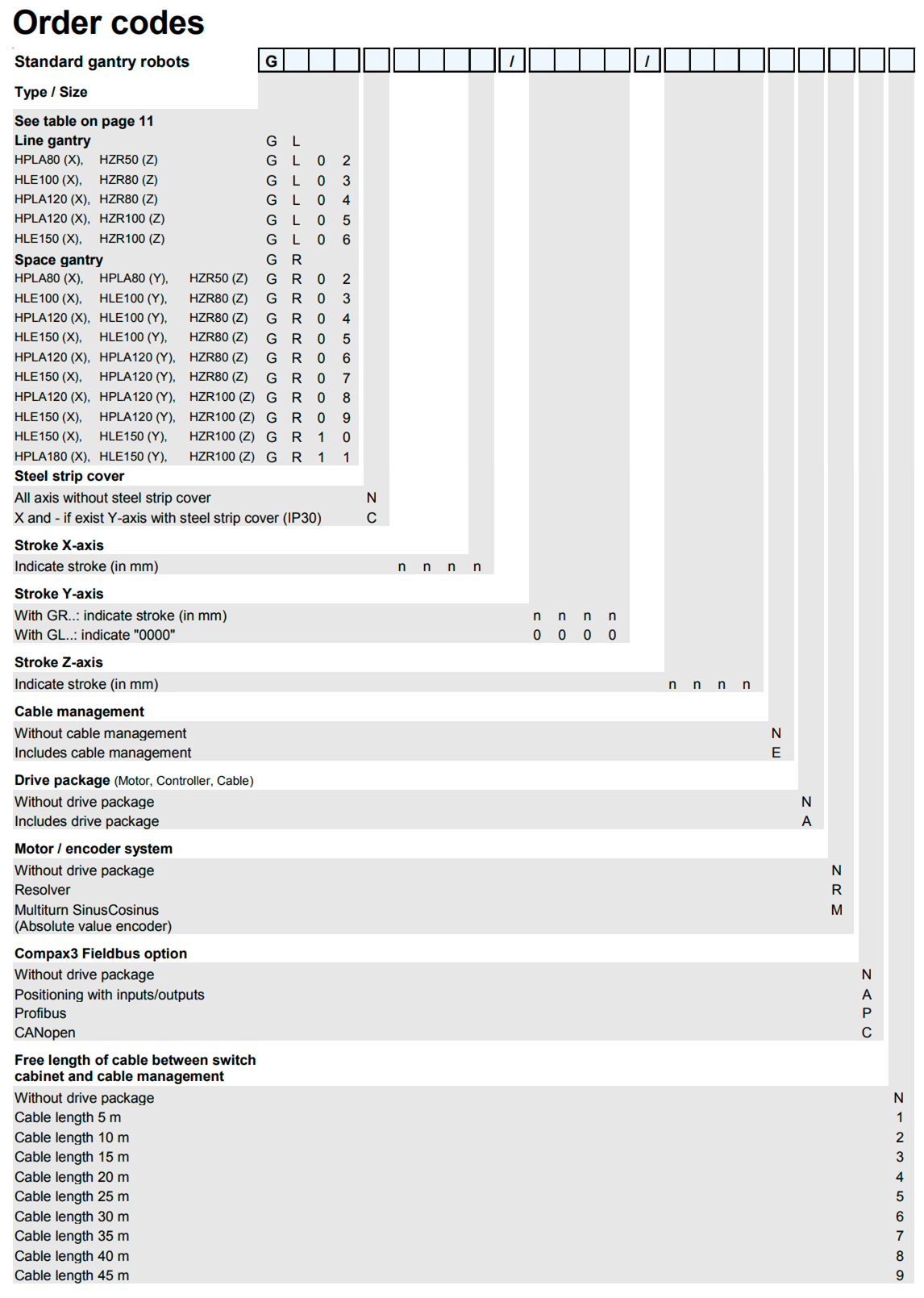

Size: HLE100RB-HLE100RB-HZR100 (X-Axis) (Y-Axis) (Z-Axis), HLE100RB-HLE100RB-HZR80 (X-Axis) (Y-Axis) (Z-Axis), HLE100SR-HLE100SR-HZR100 (X-Axis) (Y-Axis) (Z-Axis), HLE100SR-HLE100SR-HZR80 (X-Axis) (Y-Axis) (Z-Axis), HLE150RB-HLE150RB-HZR100 (X-Axis) (Y-Axis) (Z-Axis), HLE150RB-HLE150RB-HZR80 (X-Axis) (Y-Axis) (Z-Axis), HPLA120-HPLA120-HZR100 (X-Axis) (Y-Axis) (Z-Axis), HPLA120-HPLA120-HZR80 (X-Axis) (Y-Axis) (Z-Axis)

Catalog and Specifications
  • Catalog (pdf)
  • Request Electromechanical Positioning Systems Catalog #8092 (Print Version)
    Application Examples
  • Adhesive Dispensing
  • Laser Cutting
  • Photovoltaic Cell Manufacturing
  • Solid Modeling
    Download - Drawings and CAD files
  • CAD Files
