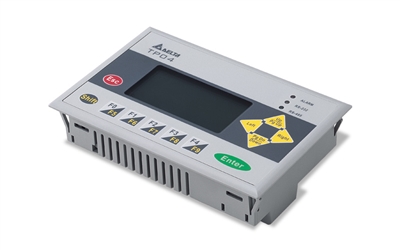

Delta: HMI (TP04G Series)
Delta: HMI (TP04G Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: TP04G


Model No.:


.
Description Specifications and Drawings


Delta: Text Panel HMI - Human Machine Interfaces (TP04G-AS1/TP04G-AS2 Series)

Text Panel is a monochrome text and graphical panel where people and machines work together. Though it is not as plenty and vivid as colorful graphical interface, it still can convert many program codes into text and graphical display and show on Text Panel.

Delta Text Panel is known for its simple operation and control function. The whole series support various communication protocols. It has the advantages of light weight, cost-effective price and good flexibility in use, which can help the user to quickly control the system and improve working efficiency.

TP04 Series

The screen of this series can display four lines text or message at the same time. It not only has the features of light weight, cost-effective price, good flexibility in use, and easy-to-control operation, but also supports various communication protocols.

Specifications:

  • 3" STN LCD single color

  • 128*64 pixels

  • 12 multiple function keys

  • 256K Flash Memory

  • Back-light auto turn off setting

  • Provide "program copy card" function: Save download time.

  • Back-light life about 50 thousand hours

  • 2 Comm. Ports. It can communicate with different communication protocols simultaneously.

  • Built-in various screen objects include graphs, charts, buttons, text and users own bmp files

  • CE & UL approved

Model No.: TP04G-AS1, TP04G-AS2
