Delta: HMI (TP05/TP08 Series)
Delta: HMI (TP05/TP08 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: TP05-TP08


Model No.:


.
Description Specifications and Drawings

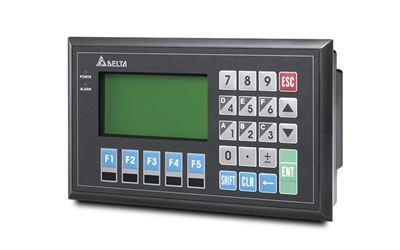

Delta: Text Panel HMI - Human Machine Interfaces (TP05/TP08 Series)

Text Panel is a monochrome text and graphical panel where people and machines work together. Though it is not as plenty and vivid as colorful graphical interface, it still can convert many program codes into text and graphical display and show on Text Panel.

Delta Text Panel is known for its simple operation and control function. The whole series support various communication protocols. It has the advantages of light weight, cost-effective price and good flexibility in use, which can help the user to quickly control the system and improve working efficiency.

TP05/TP08 Series

The screen of TP05 series can display five lines text or message at the same time and the screen of TP08 series can display eight lines text or message at the same time. These two series not only have the features of light weight, cost-effective price, good flexibility in use, and easy-to-control operation, but also supports various communication protocols, macro commands and software screen change functions.

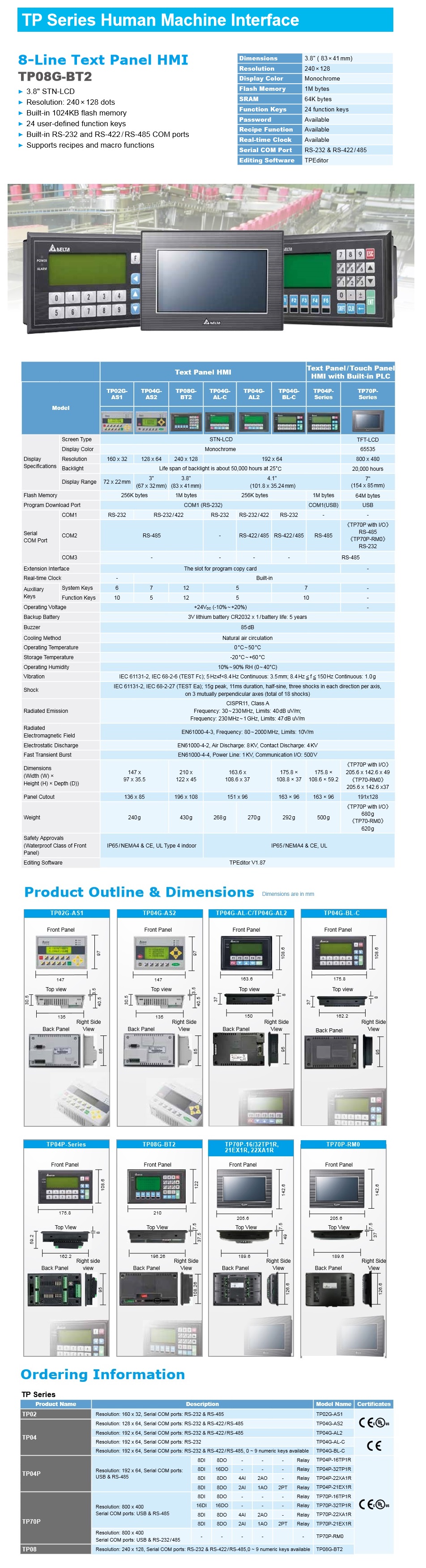

Specifications:

  • STN LCD single color

  • TP05 series: 160*80 pixels / TP08 series: 240*128 pixels

  • 512K Flash Memory

  • 24 multiple function keys

  • Back-light auto turn off setting upon software

  • Power, Communication, Alarm LED

  • 2 Comm. Ports. It can communicate with different communication protocols simultaneously.

  • Provide "program copy card" function: Save download time.

  • Support multi-languages display

  • CE & UL approved

Model No.: TP05, TP08
