Tamagawa Resolvers: Smartsyn Series
Brushless resolver and brushless synchro can be used for high accurate feedback of position and speed sensing, and pole detection of motor. Through their features of resistance for harsh environment and other reasons, they are used with motors for machine tools and robots, in steelworks.
Smartsyn:
Smartsyn is an angle sensor that converts rotational angles into electric signals.
Smartsyn is a brushless resolver based on an innovative winding method (National/Foreign Patent registered) our sophisticated design and production engineering developed. The traditional winding has been performed only by hand but our new method has enabled automatic winding by machine, thus realizing high productivity, low cost, high reliability, and excellent electrical properties.
Features:
Wide temperature range: Operating temperature range: -55 + 155°C
Superior environmental resistance: ･Vibration: 196m/s2{20G} at 10Hz .500Hz, for 2 hours to each of three axes. ･Shock: 981m/s2{100G} for 6ms, 3 times to each of 6 axes, 18 times in total ･Humidity: 90% RH or above at 60°C
High speed rotation: 10,000 min-1{rpm} (Size 08: 40,000 min-1{rpm})
High reliability: Extremely long life and high reliability are assured by the structure of mechanical parts and automated coil incorporation.
Absolute position detection
Long-distance transmission Robustness against noise enables long-distance transmission
Capable of compact incorporation The use of built-in types of Smartsyn minimizes housings of motors. Best suited for compact design
Low cost

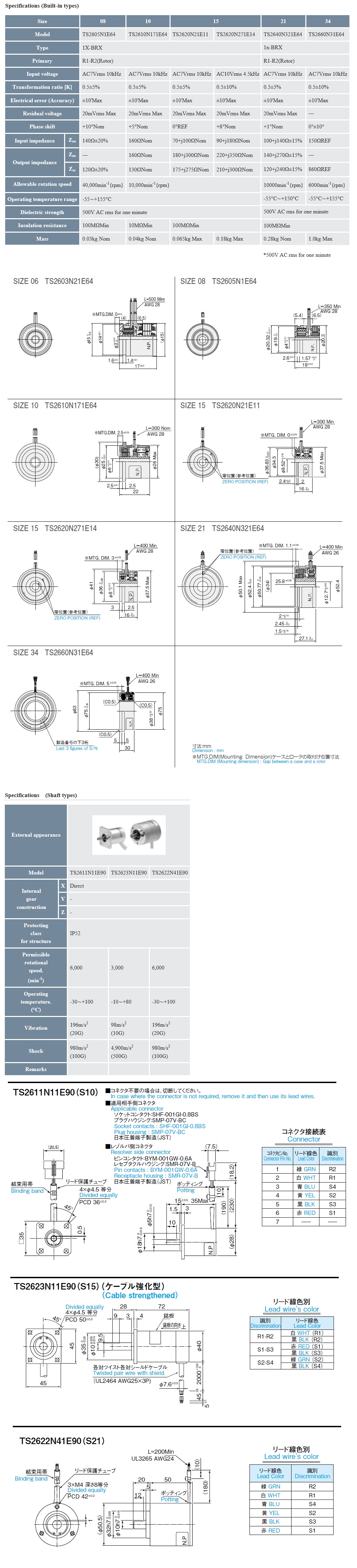

Model No.: TS2605N1E64 (Built-in types), TS2610N171E64 (Built-in types), TS2611N11E90 (Shaft Types), TS2620N21E11 (Built-in types), TS2620N271E14 (Built-in types), TS2622N41E90 (Shaft Types), TS2623N11E90 (Shaft Types), TS2640N321E64 (Built-in types), TS2660N31E64 (Built-in types)
