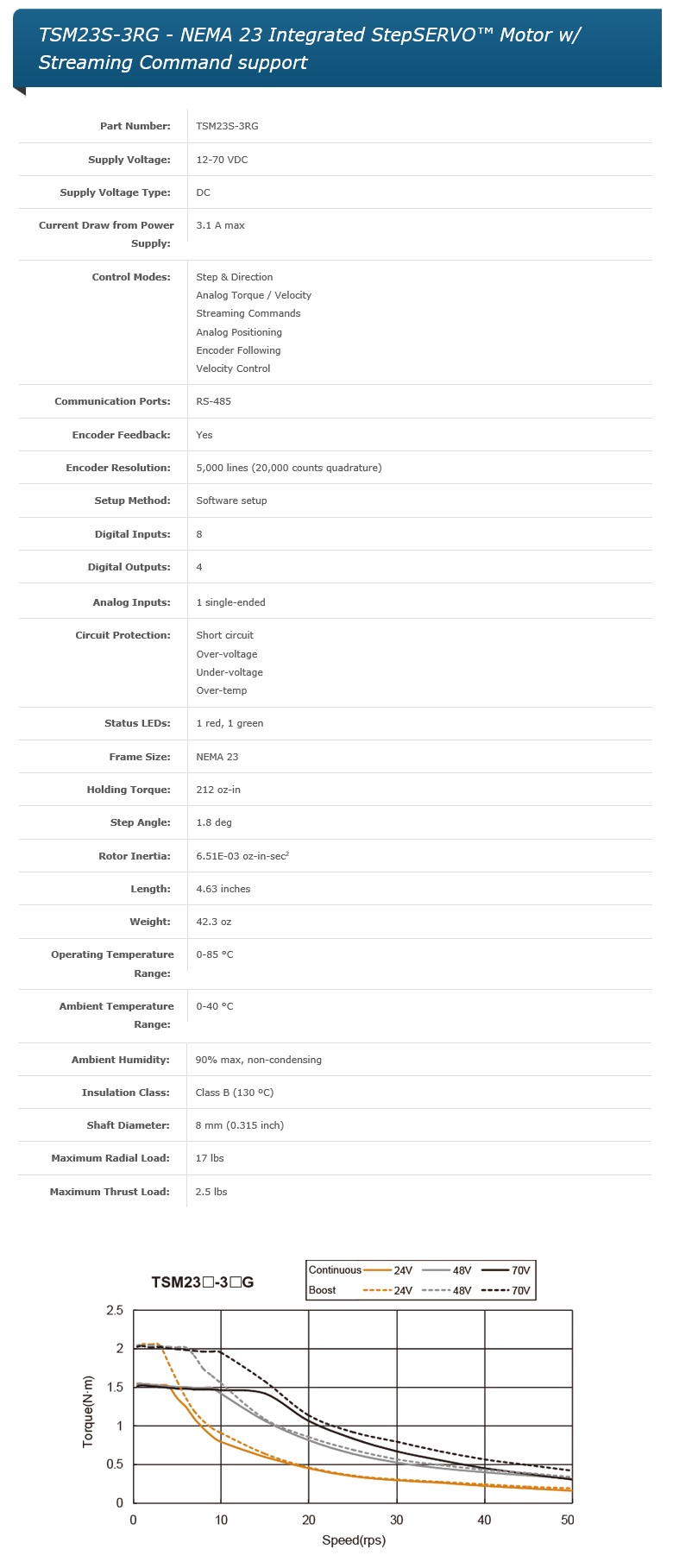

Description Specifications and Drawings

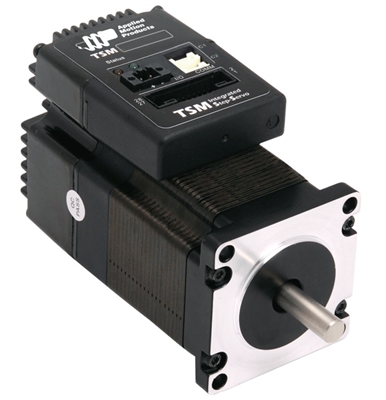

AMP: NEMA 23 Integrated StepSERVO™ Motor w/ Streaming Command support (TSM23S-3RG)

Features:

  • StepSERVO™ technology featuring space vector current control

  • NEMA 23 frame size

  • “Boost” torque of 25-50% higher than holding torque

  • Position, Velocity, and Torque modes

  • Supports streaming command language (SCL)

  • RS-485 port for setup and communications

  • Built-in 20,000 count/rev encoder for closed-loop control

The TSM23S-3RG integrated StepSERVO™ is a drive+motor unit, fusing a NEMA 23 step motor and a servo drive into a single device. Power to the drive, located at the rear of the motor, must be supplied by an external DC supply. See Related and Recommended Products below for compatible 24 and 48 volt DC power supplies.

StepSERVO technology combines the high torque capabilities of a step motor with the closed loop dynamic control of a servo system. The result is a highly customizable all-in-one motion control solution that operates quietly and efficiently, requiring only the minimum amount of current to maintain commanded position and velocity. Boost torque of 25-50% higher than the rated holding torque that is available from this integrated StepSERVO motor increases the limits of acceleration, leading to faster cycle times. With software selectable servo loops that have been pre-tuned for various inertial loads, the TSM StepSERVO can be applied in systems where a traditional stepper would not be capable of achieving the high accuracy required.

The TSM23S-3RG integrated StepSERVO can be operated in several different control modes, including Streaming Command mode, Pulse & Direction mode, Velocity mode, and Torque mode. All TSM23 units are setup, configured and tuned using Applied Motion’s Step-Servo Quick Tuner software.

Each TSM23 integrated StepSERVO comes with 8 digital inputs, 4 digital output, and 1 analog input. The digital inputs accept signals of 5-24 VDC and can be used for connecting pulse & direction signals, end-of-travel limit switches, jog switches, quadrature encoder signals, PLC outputs, sensors, or many other signal types. The digital outputs can be connected to PLC inputs, counters, lights, relays, or other devices. The analog input accepts 0-5 VDC signals and can be used for velocity and position control.

The TSM23S-3RG comes with an RS-485 port for programming and serial communications to allow for the use of Applied Motion’s Streaming Command Language (SCL). An integral 5000-line (20,000 count/rev) incremental encoder is housed inside the same enclosure as the drive electronics and used for closed-loop servo control to attain highly accurate position and velocity control. Encoder counts can be accessed over the network using SCL registers.

What’s in the Box?

  • TSM23S-3RG integrated motor

  • Mating power connector (2-pin)

  • 3004-308-2M or 3004-318-2M I/O cable (for details see Accessories below)

  • 3004-310-1M RS-485 cable (for details see Accessories below)

  • 3004-313-1M RS-485/CANopen cable (for details see Accessories below)

  • Screwdriver

  • Quick Setup Guide (also available in Downloads)

NOT included:

  • DC power supply (required), see Power Supplies below

  • Regen clamp (optional), see Accessories below

  • Additional accessories available below
