SICK: Linear Encoders (TTK70 Series)
SICK: Linear Encoders (TTK70 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: TTK70-AXA0-K02
.

Description Specifications and Drawings


TTK70

(Linear Encoders)

TTK70-AXA0-K02

At a glance:

  • Non-contact determination of absolute position

  • Small, compact read head

  • Standard SSI interface, combined with SinCos output

  • Measuring lengths of up to 4 m

  • High level of accuracy (± 10 μm)

  • High resolution (1 μm)

  • High travel speed of up to 10 m/s

Benefits:

  • Easy to integrate into existing systems

  • Small size, light weight and high measurement speed make it ideal for a variety of applications

  • After installation, the system is immediately available and completely maintenance-free, which leads to time and cost savings

  • Immune to environmental factors like contamination and condensation, ensuring increased reliability

  • Real-time speed determination plus absolute positioning due to SinCos and SSI output

Performance:

  • Measuring length: ≤ 4,000 mm

  • Magnetic strip length: Measurement length + 80 mm

  • Resolution: 1 μm

  • Travelling speed dynamic operation: < 10 m/s

  • Travelling speed static operation: < 1 m/s

  • System accuracy: ± 10 μm

  • Repeat accuracy: ≤± 2 μm

Mechanical data:

  • Connection type: Connector M12, 12-pin

  • Mass: 0.08 kg

  • Material: Die-cast zinc

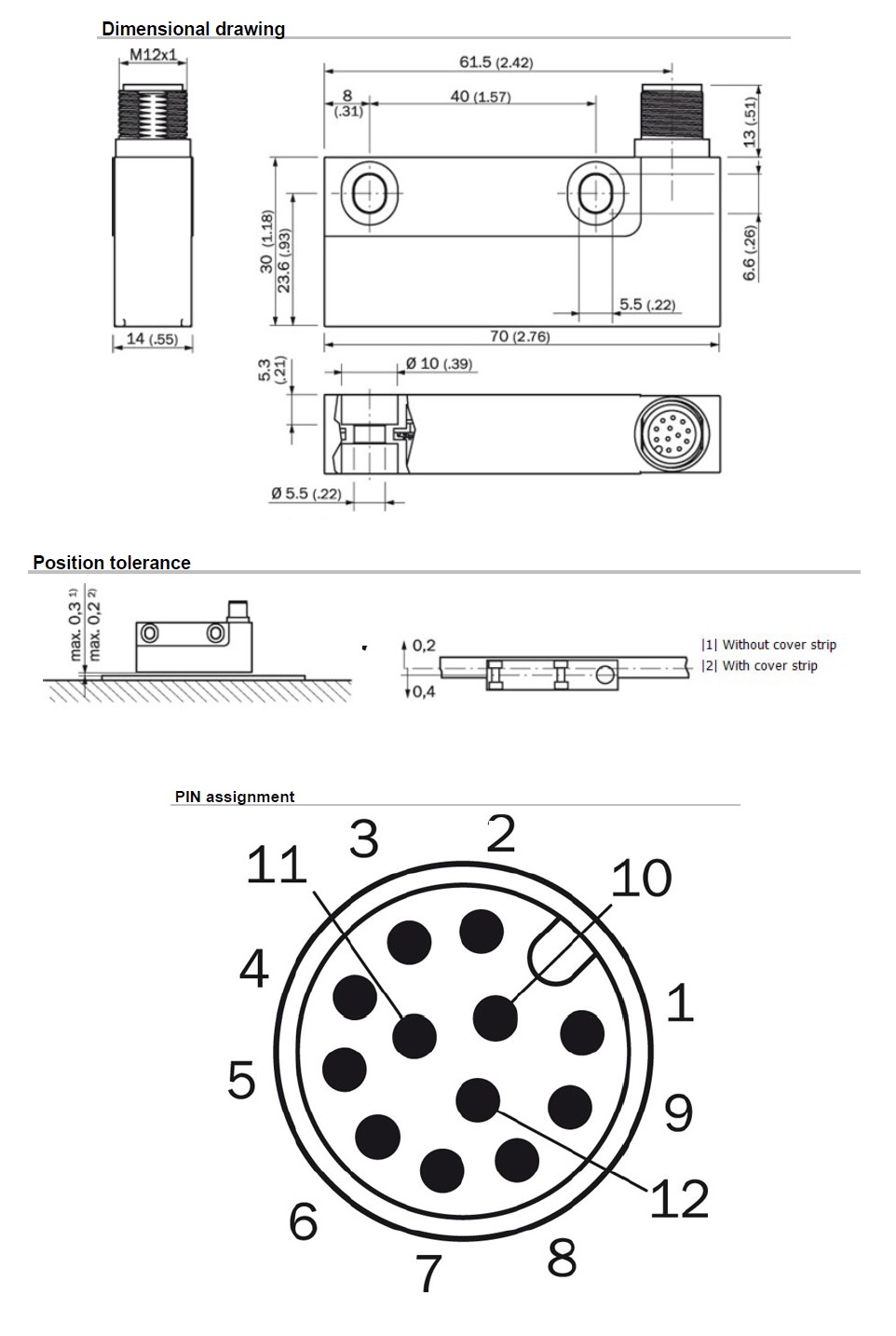

  • Dimensions: See dimensional drawing

Electrical data:

  • Supply voltage: 4.5 V ... 30 V

  • Operating power consumption (no load): 55 mA

  • Code type: Gray

  • MTTFd: mean time to dangerous failure: 65 a (EN ISO 13849) 1)

1)This product is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous. For more information, see document no. 8015532.

Interfaces:

  • Electrical interface: SSI

  • Interface signals: 24 Bit 1)

  • Sin/cos-output: Speed-proportional signal output for real-time requirements.

1)If the maximum distance between the TTK70 SSI and the magnetic tape is exceeded, bit 25 is set in the SSI data stream. The output position value is invalid! When exceeding or going below the temperature range of the sensor (< -30 °C or > +85 °C), bit 26 is set in the SSI data stream. The bits are reset as soon as the error condition no longer exists. To be able to use these additional bits, the control(ler) must be able to read in at least 26 bits of data.

Ambient data

  • EMC: (EN 61000-6-2), (EN 61000-6-3)

  • Enclosure rating: IP 67 (IEC 60529), with mating connector inserted

  • Working temperature range: -30 °C ... +80 °C

  • Storage temperature range: -40 °C ... +85 °C, without package

  • Permissible relative humidity: 100 % (condensation permitted)

  • Resistance to shocks: 30 g, 6 ms (EN 60068-2-27)

  • Resistance to vibration: 20 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)

  • Maximum permitted ambient field strength: < 3 kA/m ... 4 kA/m (3.8 mT ... 5 mT) (to guarantee compliance with the quoted accuracy values)

  • Maximum permitted field strength: < 150 kA/m (< 190 mT) (to ensure that the magnetic tape is not permanently damaged)

1)The maximum permitted external field influence is reached when the position value deviates from the original value (without external field influence) by more than 5 μm. This value is reached when, at the sensor location, a field strength of 3 kA/m to 4 kA/m (3.8 mT to 5 mT) occurs in addition to the field strength of the magnetic tape.
