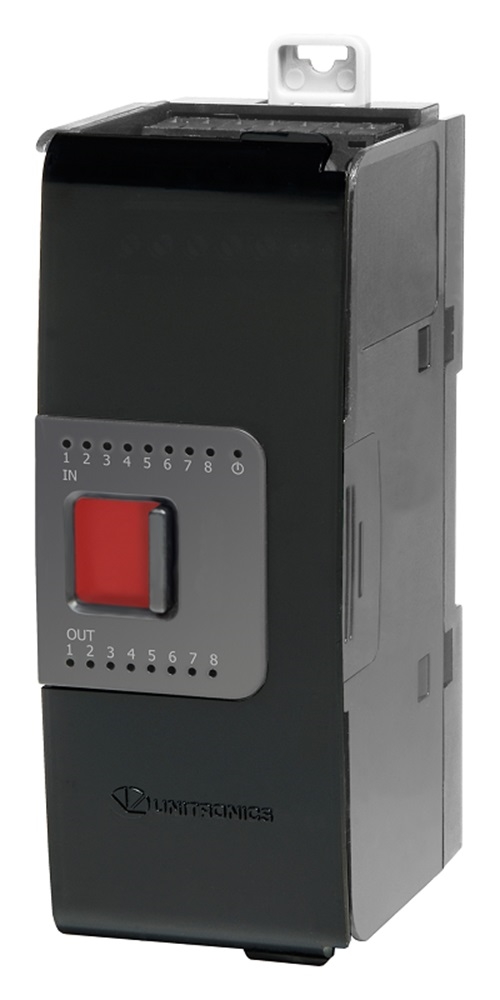

Unitronics: UniStream I/O Expansion Modules (UID Series)

Select the perfect combination of I/O expansion modules and configure them to fit your application.

Snap to the HMI panel up to 5 modules on a 10.4” panel, or up to 3 on a 7” panel. Expand further locally up to 16 modules, and use EX-RC1 adapters to further extend the number of I/Os using Vision I/Os locally or remotely.

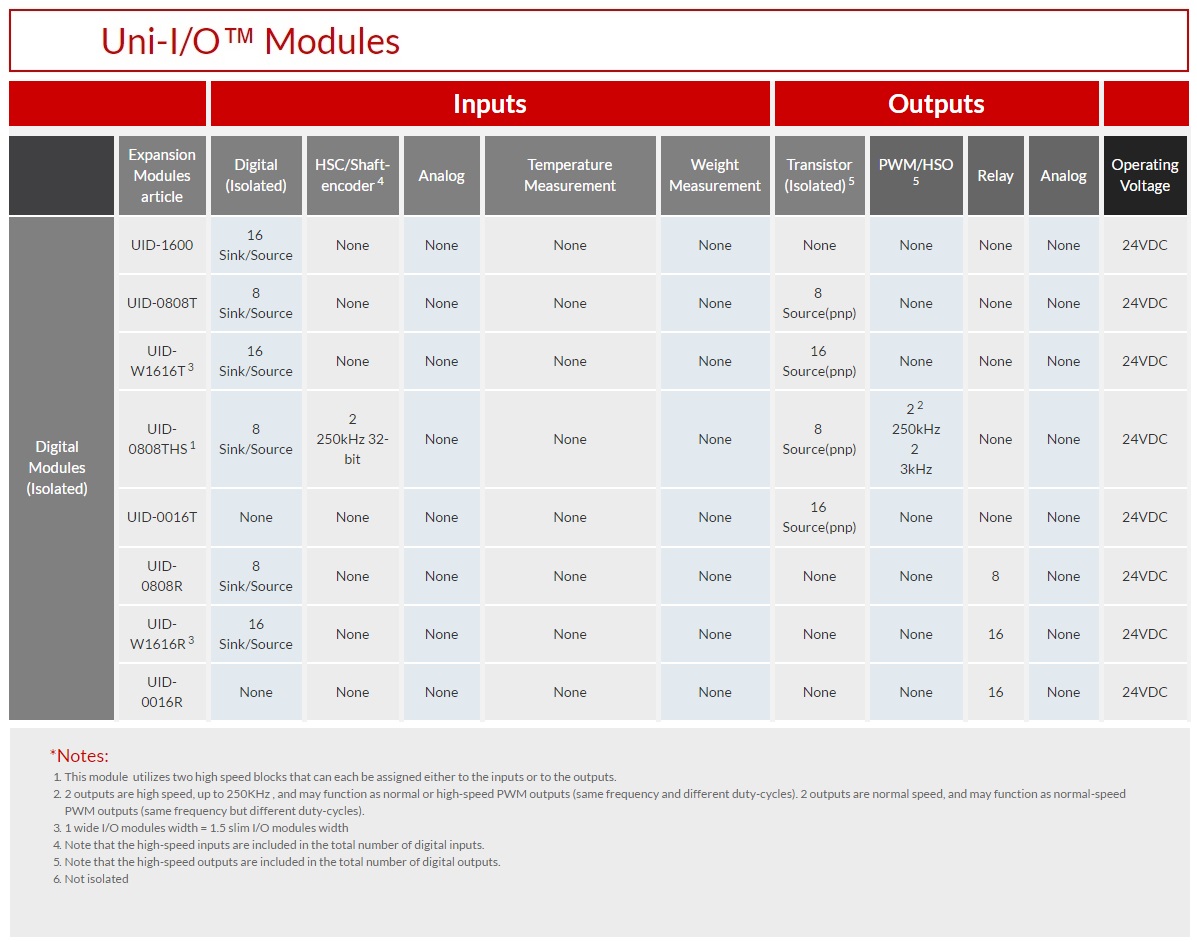

Models:

UID-W1616T

  • 24VDC

  • 16 isolated Digital Sink (pnp) or Source (npn) inputs

  • 16 isolated transistor outputs.

UID-W1616R

  • 24VDC

  • 16 isolated Digital Sink (pnp) or Source (npn) inputs

  • 16 isolated Relay outputs.

UID-1600

  • 24VDC

  • 16 isolated Digital Sink (pnp) or Source (npn) inputs

UID-08TC (order UIS-08TC)

  • UniStream I/O Module

  • 8 Thermocouple Inputs

UID-0808THS

  • 24VDC

  • 8 isolated Digital Sink (pnp) or Source (npn) inputs.

  • 4 inputs may be configured to function either as normal or as high speed digital inputs, and can support a total of 2 shaft encoders 250kHz max.

  • 8 isolated Source (pnp) outputs.

  • 2 outputs are high speed, up to 250KHz, and may function as normal or high-speed PWM outputs (same frequency and different duty-cycles).

UID-0808T

  • 24VDC

  • 8 isolated Digital Sink (pnp) or Source (npn) inputs

  • 8 isolated Transistor Source (pnp) outputs.

UID-0808R

  • 24VDC

  • 8 isolated Digital Sink (pnp) or Source (npn) inputs

  • 8 isolated Relay outputs.

UID-0800N

  • UniStream Analog I/O Module

  • AI/AV X 8

  • No ISO

UID-0016T

  • 24VDC

  • 16 isolated Transistor Source (pnp) outputs.

UID-0016R

  • 24VDC

  • 16 isolated Relay outputs.
