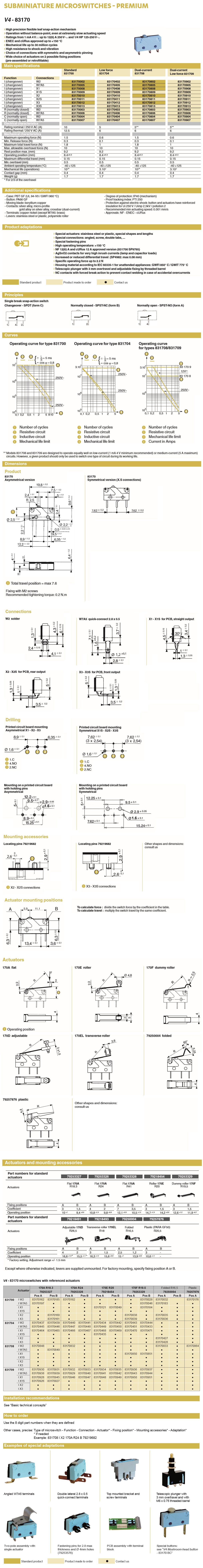

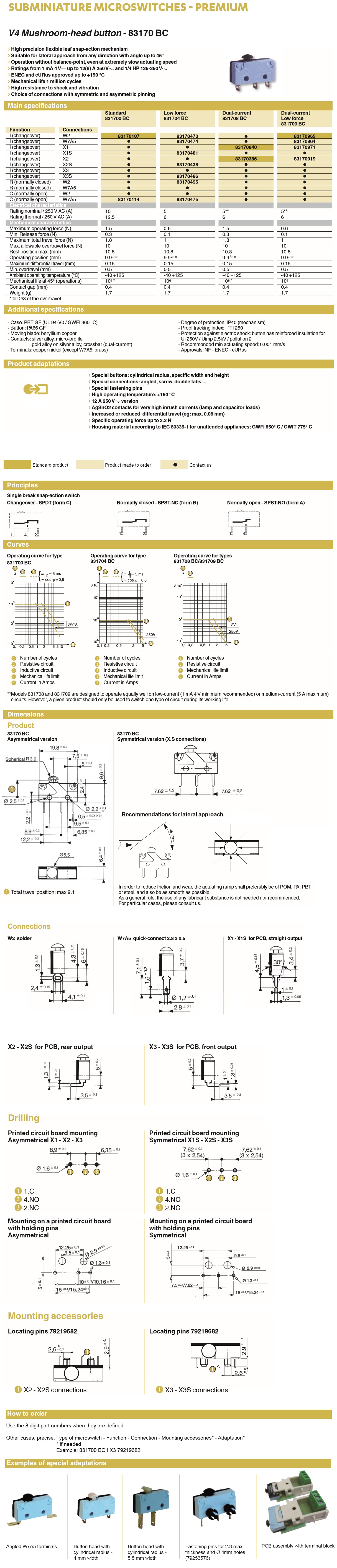

Crouzet: Subminiature Microswitches (V4 - 83170 Series)
With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.
Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.
Subminiature Microswitches – Premium
High precision flexible leaf snap-action mechanism
Operation without balance-point, even at extremely slow actuating speed
ENEC and cURus approved up to +150 °C
Mechanical life up to 30 million cycles
High resistance to shock and vibration
Choice of connections with symmetric and asymmetric pinning
Wide choice of actuators on 2 possible fixing positions (pre-assembled or retrofittable)
Specifications
Approx body size (mm): 20x10x6
Rating (max): 12A/250Vac
Degree of protection: IP40
Operating temperature: -40°C/+150°C
Operating force (max): 0.6 –> 2.2N
Differential travel (max): 0.08 mm; 0,15 mm
Overtravel (min): 0.5 mm
Mechanical life (cycles): 30 M
