Zygo: Laser Interferometer (Verifire™ QPZ Series)
Zygo: Laser Interferometer (Verifireâ„¢ QPZ Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: VERIFIREQPZ
.

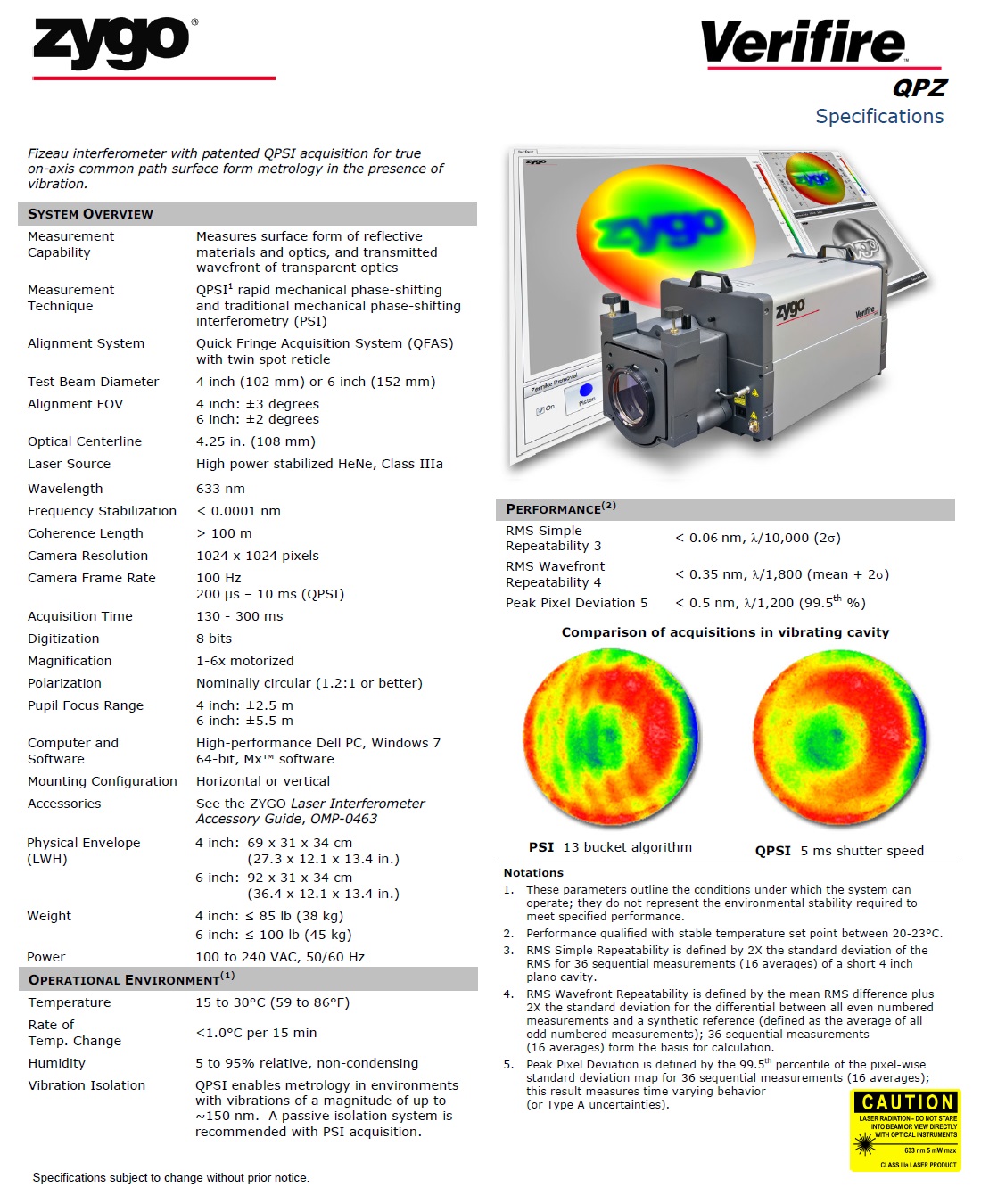

Description Specifications and Drawings


Zygo: Laser Interferometer

Laser interferometers from ZYGO were first introduced commercially over 35 years ago. Today, ZYGO continues to maintain the leadership role in surface form metrology using laser interferometry. Thousands of ZYGO interferometers are installed worldwide and relied upon daily to provide accurate production measurements of optical components and assemblies, things that affect our daily lives. Applications span across a wide range of industries, including consumer electronics, ophthalmology, semiconductor and defense & aerospace. ZYGO is the one optical metrology company that is trusted across the globe to qualify the world's most critical and precise optics. Shouldn't you be using a ZYGO laser interferometer?

DynaFiz™ Dynamic Interferometers - highly optimized dynamic Fizeau laser interferometer for performing the most precise measurement of optics in the presence of air turbulence and extreme vibrations.

Verifire™ Fizeau Interferometer Series - the ideal interferometry choice for accurate metrology of surface form. Verifire laser interferometers are used worldwide in quality control, R&D, and production test applications. The Verifire family of interferometers are quantitative phase shifting interferometers for use in the measurement of flat, spherical and aspheric optics.

Large Aperture Interferometer Systems - Large Aperture Fizeau Interferometers are available for static and phase measuring applications with 12", 18", 24" and 32" apertures (300 mm to 800 mm). ZYGO's large aperture beam expanders are an optional extension to the Verifire™ and GPI™ interferometers. Taking advantage of ZYGO's powerful lasers, the beam expanders are configured to provide both a standard 4" measurement beam and a large aperture metrology source.

GPI™ LC Laser Interferometer - The GPI™ LC interferometer allows you to perform visual fringe analysis of flat or spherical surfaces, and transmitted wavefront measurement of optical components and assemblies.

UV and IR Interferometers - Interferometers using invisible light at both longer and shorter wavelengths. ZYGO is expert at interferometry at a range of wavelengths, from 266 nm to 10.6 µm infrared.

'Special' interferometers - For metrology needs outside the mainstream production offerings of ZYGO - and ZYGO's catalog of standard interferometers is larger than any - we have a special group of experts dedicated to producing precision systems for limited production. Unusual configurations, wavelengths and apertures are all part of our capabilities.

Interferometry Accessories - ZYGO qualifies all of our optical metrology accessories to ensure optimal interferometer performance. Our accessories include transmission and reference optics, opto-mechanical mounts and fixtures, radius of curvature hardware and vertical mounting options.

Upgrade Your ZYGO Interferometer - ZYGO interferometers are built to last. Through our decades of support, as technology has advanced, ZYGO continues to offer upgrades to existing systems to improve and expand their capabilities.

Verifire™ Series

Interferometer Systems

ZYGO's Verifire™ Series of laser Fizeau interferometers represent a complete line of high performance metrology instruments for the measurement of plano, spherical and aspherical surfaces and material characteristics. The systems provide a variety of proprietary acquisition techniques to ensure optimum metrology in a wide range of environments.

Verifire™ QPZ

Interferometer System for Uncompromised Production Metrology

Key Features:

• True Fizeau configuration ensures accurate metrology

• Proprietary technologies provide reliable measurements in vibration-prone environments

• Easy-to-use production friendly GUI

• Industry preferred Mx™ software

The Verifire™ QPZ represents ZYGO's newest Fizeau interferometer designed for uncompromised production metrology. A true laser Fizeau design, the Verifire™ QPZ utilizes proprietary methods to ensure reliable "ripple-free" phase measurements in vibration prone environments. Compatible with all standard ZYGO accessories the Verifire™ QPZ is the one interferometric solution that can be trusted to provide accurate surface metrology in both production and QC environments – without compromise.
