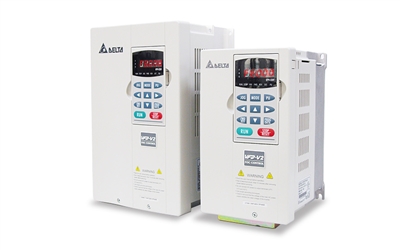

Delta: VFD-V Series
Delta: VFD-V Series

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: VFD-V
.

Description


Delta: AC Motor Drives (VFD-V Series)

With modern power electronics and advanced microprocessor technology, Delta's AC Motor Drives are able to efficiently control motor speed, improve machine automation and save energy. Taking advantage of our strong position in power electronics technology, Delta's VFD Series of AC motor Drives has evolved rapidly. Each Drive series is designed to meet specific application needs. Our AC Drives accurately control speed and torque, smoothly handle an increased load, and provide numerous custom control and configuration operating modes. Our AC Motor Drive product line provides a full range of motor control technologies and is used throughout a wide range of industries, to enhance and improve machine automation.

VFD-V Series

Flux Vector/Torque Control AC Drive. Offering V/F, Open Loop, Closed Loop and high speed control options. All VFD-V series drives are constant and variable torque rated. This NEMA 1 rated flux vector drive is capable of 0-3000Hz in V/F mode, and offers rapid response, pinpoint servo position control and speed adjustment.

Specifications:

  • Power Range: 230V 3-phase: 1~50HP; 460V 3-phase: 1~100HP

  • Sensorless vector control with speed control range 1:100

  • PG closed loop control with speed control range 1:1000

  • Output frequency range is 0~600Hz

  • Adjustable V/f curve

  • Automatic torque boost and slip compensation

  • 16-step preset speed control and 15-step PLC operation

  • Built-in PID feedback control with Sleep/Wake function

  • Optional PG encoder card for speed feedback and positioning

  • 4 sets of accel/decel time selections and independent accel/decal S-curve settings

  • Specific process control and energy saving operation for fan and pump application

  • Built-in communication interface RS-485 Modbus (RJ11)

  • Auto-tuning and FOC (field oriented vector control)

Applications:

  • Wood carving machine

  • Crane hoisting

  • Drilling machine

  • CNC lathe

  • Tooling machine

  • Middle/low-speed passenger elevator

  • PCB routing machine
