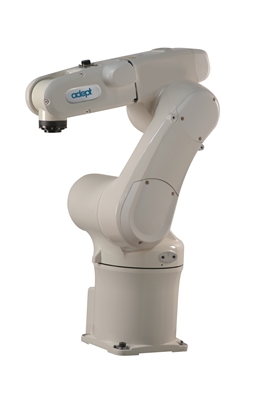

Adept: Viper Six-Axis Robot (ePLC650 Series)
Adept: Viper Six-Axis Robot (ePLC650 Series)

Call for Pricing

Price Quote Form

Price: (Members Only)


Order #: VIPER-EPLC650
.

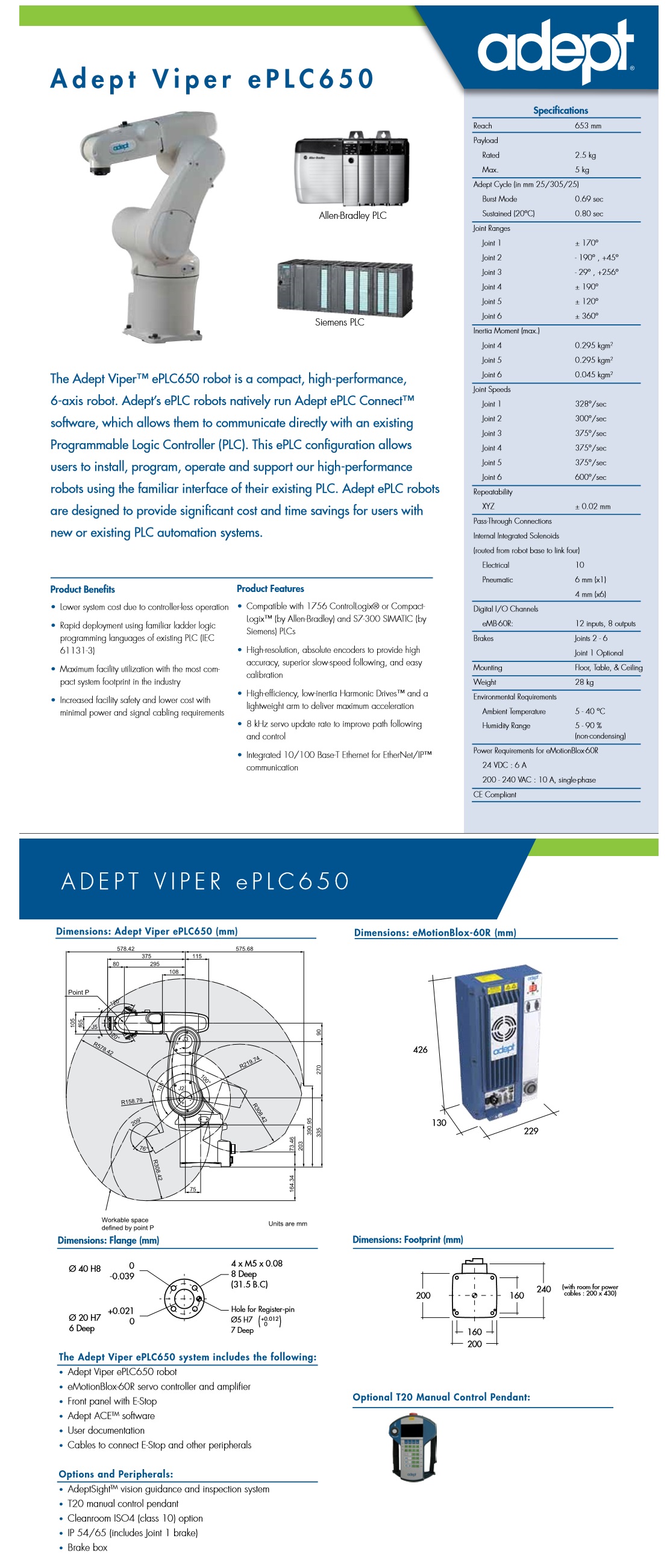

Description Specifications and Drawings


Adept: Viper Six-Axis Robot (ePLC650 Series)

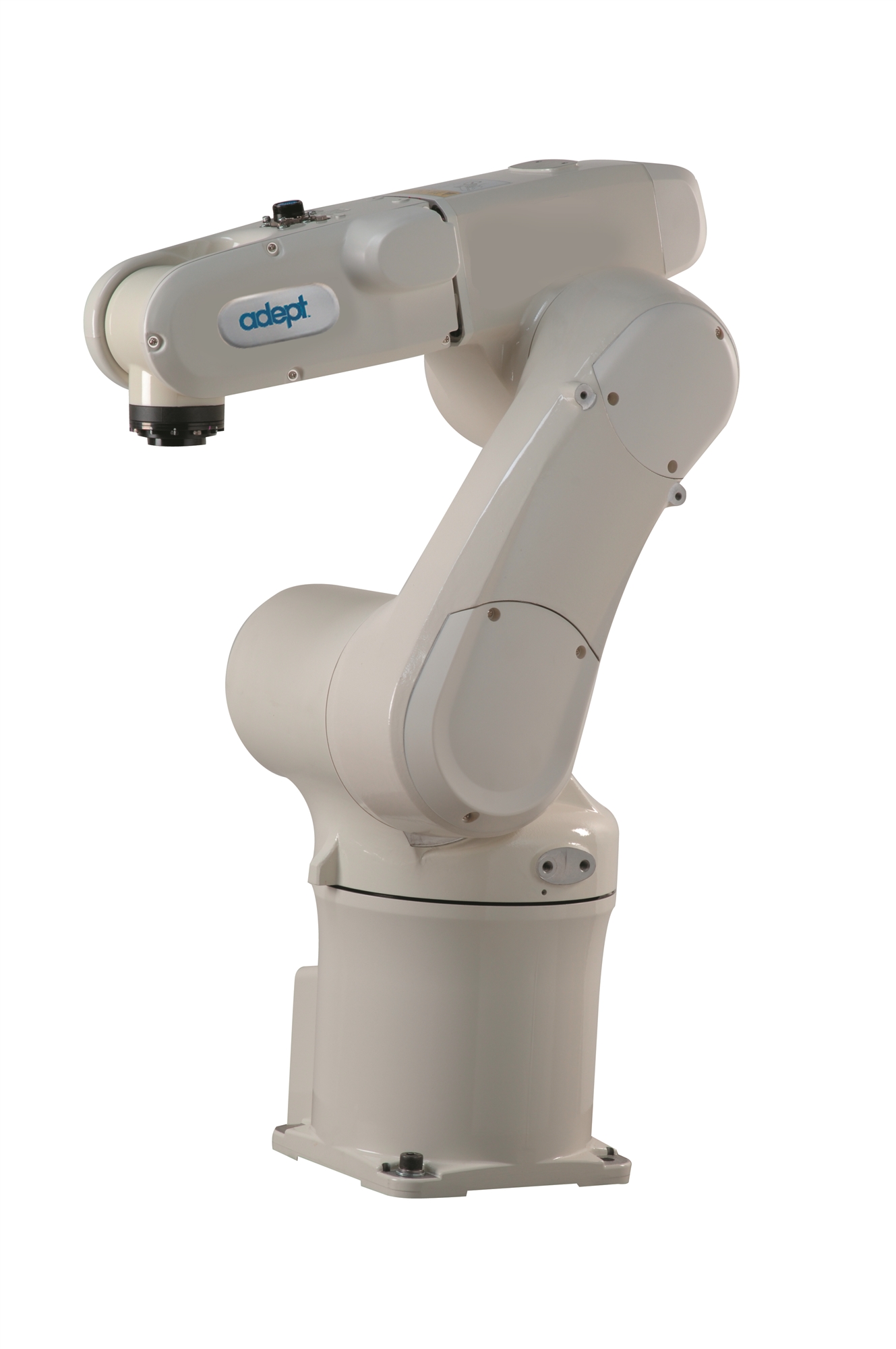

The Adept Viper™ ePLC650 six-axis robot is a compact, high-performance 6-axis robot designed to be programmed using Siemens or Allen-Bradley programming languages through an on-board Programmable Logic Controller (PLC). The Adept Viper ePLC platform features an integrated controller and amplifiers, enabling a highly compact robot footprint.

Product Features and Benefits

  • Easy programming with standard IEC 61131-3 languages

  • High-resolution, absolute encoders to provide high accuracy, superior slow-speed following, and easy calibration

  • Diagnostics display enables faster troubleshooting

  • High-efficiency, low-inertia Harmonic Drives and a lightweight arm to deliver maximum acceleration

  • 8 kHz servo update rate for improved path following and control

  • Integrated 10/100 Base-T Ethernet for EtherNet/IP Communication

Space Saving Embedded Amplifiers

The Adept Viper ePLC650 robot has no external electronics. The amplifier and motion controller are built into the robot's arm, which reduces the size and number of cables. The robot attaches via a single ethernet cable to the PLC.
