AutoVISION®: Machine Vision, Simplified. Designed for simplicity and ease of use, AutoVISION empowers manufacturers to implement inspection without any advanced knowledge of machine vision or automation technology. This family of intuitive software and smart cameras provides tools for decoding, error-proofing, quality control, verification, and more and comes equipped with the customizable CloudLink interface for monitoring inspection jobs from any web-enabled device. Portable and scalable across cameras, software platforms, industrial systems, and mobile devices, AutoVISION provides a single, adaptable vision system to simplify every inspection challenge. AutoVISION: Intuitive software, 3-step setup, powerful inspection tools – no experience needed. Vision MINI: World's smallest vision system. Vision HAWK: Most flexible, industrial vision system.

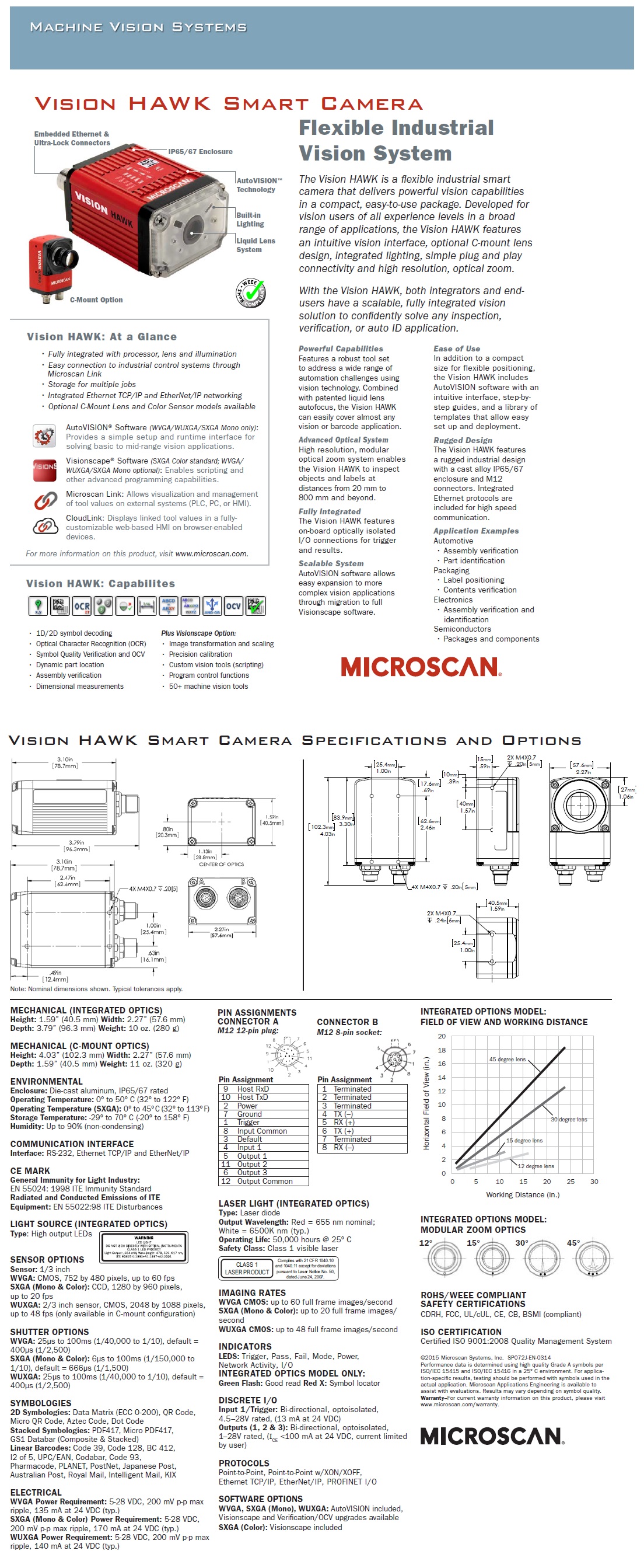

Vision HAWK: Flexible, Industrial Machine Vision Smart Camera The Vision Hawk Smart Camera delivers powerful vision capabilities in a rugged, industrial-grade package that is compact and easy to use. Developed with the world’s first liquid lens for machine vision imaging, and available with an optional C-mount lens for flexible mounting, Vision HAWK is engineered to meet inspection challenges no matter the requirement. Intuitive setup with AutoVISION software Infinite-focus liquid lens or C-mount lens Integrated lighting in liquid lens model Color vision inspection capability IP 65/67 cast alloy enclosure High-resolution optical zoom Plug-and-play connectivity
Easy connection to industrial control systems through Microscan Link Industrial protocols for production environments Fully integrated with processor, autofocus
lens and illumination Optional C-mount lens and color sensor models available Simplified programming with AutoVISION® Advanced programming with Visionscape®
The Vision HAWK is a flexible industrial smart camera that delivers powerful vision capabilities in a compact, easy-to-use package. Developed for vision users of all experience levels in a broad range of applications, the Vision HAWK features an intuitive vision interface, optional C-mount lens design, integrated lighting, high resolution optical zoom, and simple plug and play connectivity.
With the Vision HAWK, both integrators and end-users have a scalable, fully integrated vision solution to confidently solve any inspection, verification, or auto ID application.
Powerful Capabilities: Features a robust tool set to address a wide range of automation challenges using vision technology. Combined with patented liquid lens autofocus, the Vision HAWK can easily cover almost any vision or barcode application.
Advanced Optical System: High resolution modular optical zoom system enables the Vision HAWK to inspect objects and labels at distances from 20 mm to 800 mm and beyond.
Rugged Design: The Vision HAWK features a rugged industrial design with a cast alloy IP65/67 enclosure and M12 connectors. Integrated Ethernet protocols are included for high speed communication.
Mechanical (Integrated Optics) Height: 1.59” (40.5 mm) Width: 2.27” (57.6 mm) Depth: 3.79” (96.3 mm) Weight: 10 oz. (280 g)
Mechanical (C-Mount Optics) Height: 4.03” (102.3 mm) Width: 2.27” (57.6 mm) Depth: 1.59” (40.5 mm) Weight: 11 oz. (320 g)
Light Source (Integrated Optics) Sensor: 1/3 inch WVGA: CMOS, 752 by 480 pixels, up to 60 fps SXGA (Mono & Color): CCD, 1280 by 960 pixels, up to 20 fps WUXGA: 2/3 inch sensor, CMOS, 2048 by 1088 pixels, up to 48 fps (only available in C-mount configuration)
WVGA: 25μs to 100ms (1/40,000 to 1/10), default = 400μs (1/2,500) SXGA (Mono & Color): 6μs to 100ms (1/150,000 to 1/10), default = 666μs (1/1,500) WUXGA: 25μs to 100ms (1/40,000 to 1/10), default = 400μs (1/2,500)
WVGA, SXGA (Mono), WUXGA: AutoVISION included, Visionscape and Verification/OCV upgrades available SXGA (Color): Visionscape included
Assembly verification Part identification
Label positioning Contents verification
|
|
|
 |
|
 |
|
